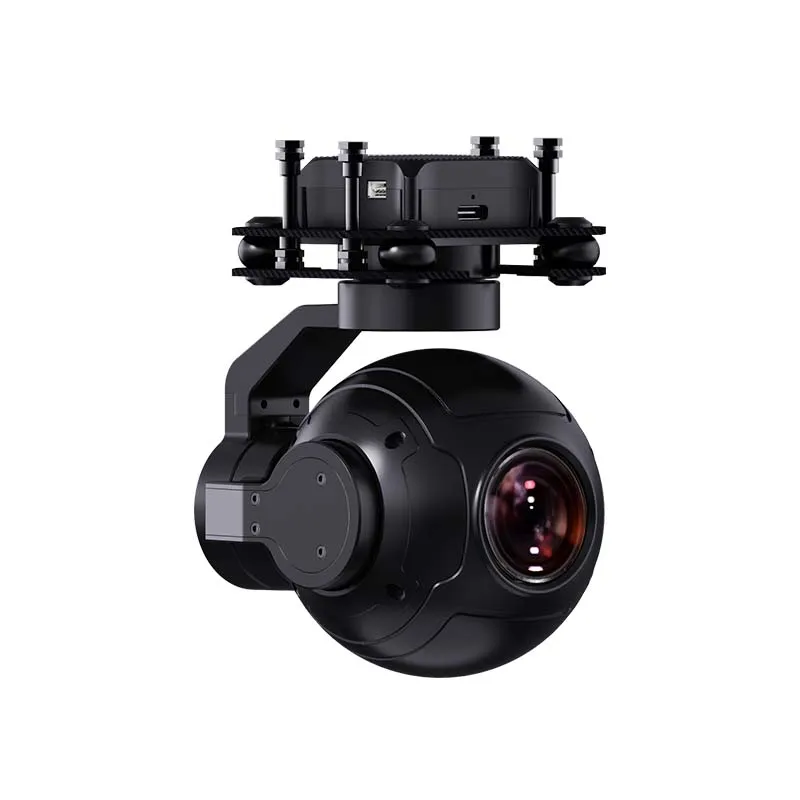

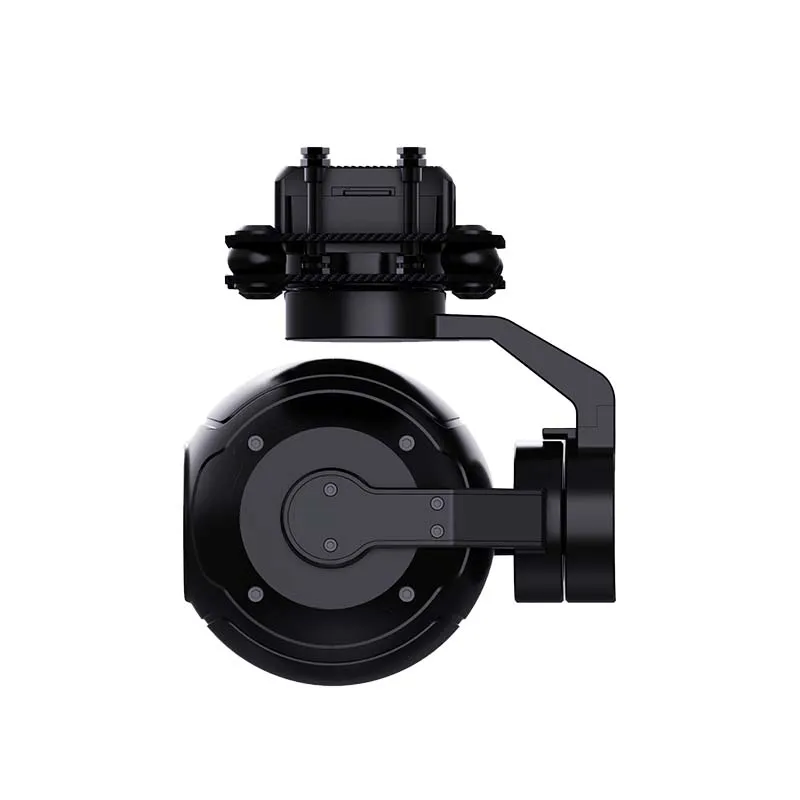

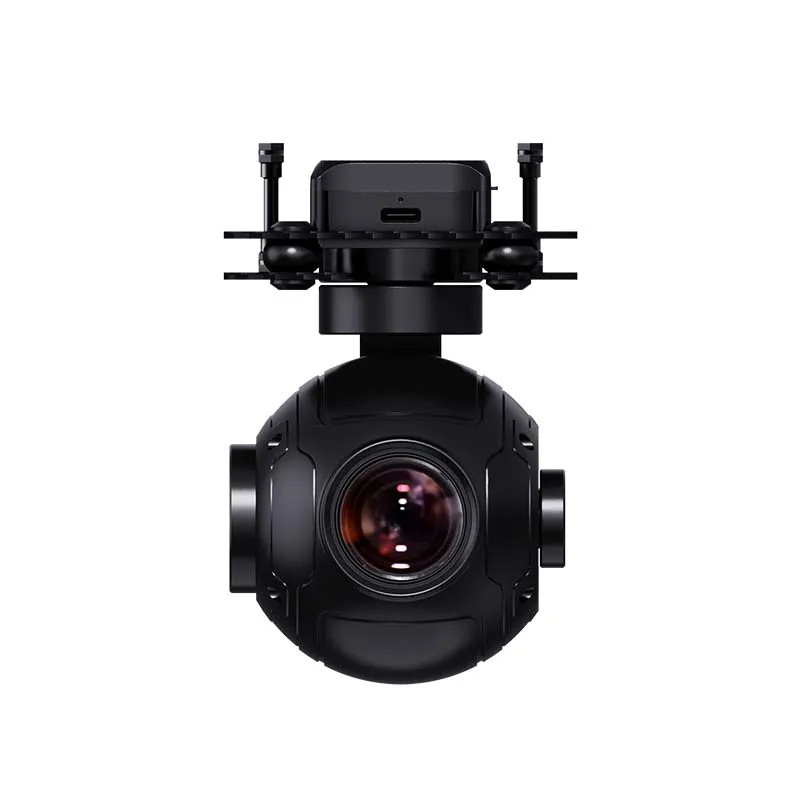

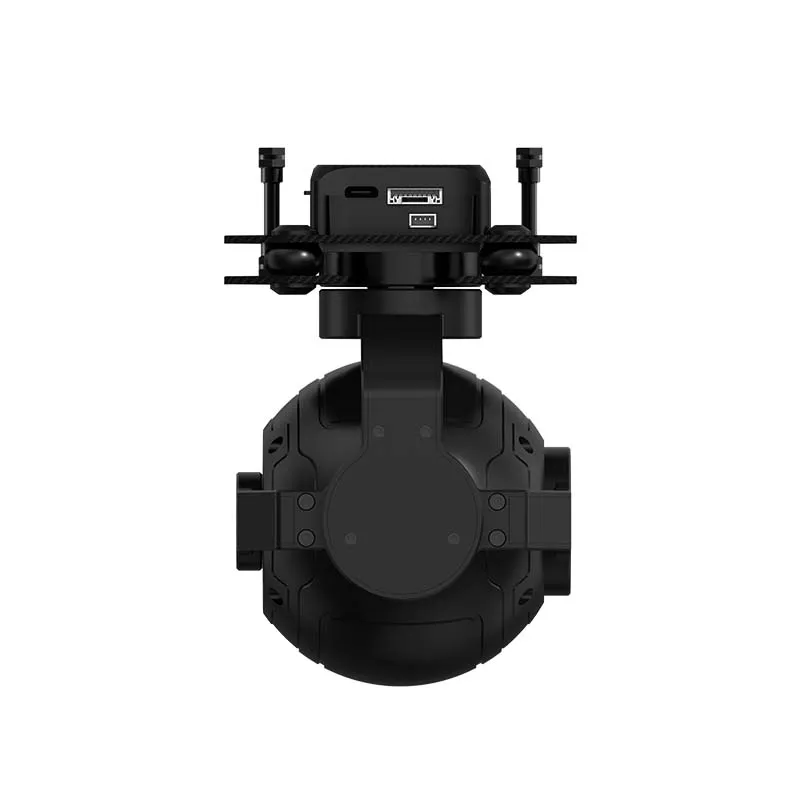

SIYI-ZR10 GIMBLE CAMERA
SPECIFICATION -
- 10X Optical Zoom / 3x Digital Zoom
- 4 Megabits Pixels
- Support TF Card / 2K Video Recording / 2K Photography
- 3-axis Gimbal Stabilizer
- High-Precision FOC Control
Technical Specifications -
Overall
Model: ZR10

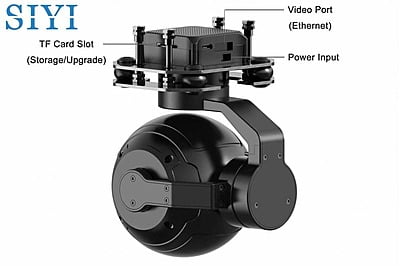

Video Output Port: Ethernet

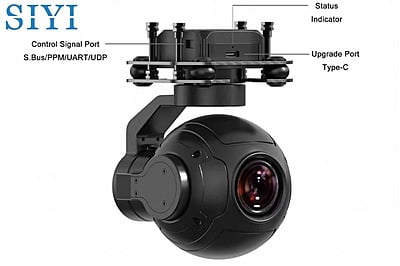

Control Signal Input Port: S.Bus / PPM / UART / UDP
Power Consumption: 5 W
Dimension: 121*101*78 mm
Weight: 381 g
Waterproof Level: IP53
Angular Vibration Range: ±0.01°
Working Voltage: 11 ~ 25.2 V
Working Temperature: -10 ~ 50 ℃
Camera -
Lens: 10X Optical Zoom, 3X Digital Zoom
Focal Length: 5.15±5% ~ 47.38±5% mm
Aperture: F1.8 ~ F2.5
Focus: 0.2 m to ∞
FOV: Diagonal 79.5°, Horizontal 71.5°
CMOS: 1/2.7”, 4 MP
TF Recording Resolution: 2560*1440 @ 30 fps
Video Storage Bitrate: 12 Mbps
File Storage Format: FAT32
Still Photography Mode: Single
Image Format: JPEG
Video Format: MP (Originally recorded in H.265 file, converted to MP4 file after reboot)
Metering Mode: Evaluative metering
White Balance: Auto
Supported MicroSD Cards: MicroSD Class10 (Max 32GB, will support 128GB by firmware update)
- 10X Optical Zoom / 3x Digital Zoom
- 4 Megabits Pixels
- Support TF Card / 2K Video Recording / 2K Photography
- 3-axis Gimbal Stabilizer
- High-Precision FOC Control
- HDR (High Dynamic Range)
- Starlight Night Vision Camera
- F1.8 Aperture
Package List:
1 x ZR10 Gimbal Camera
Overall
Model: ZR10
Video Output Port: Ethernet
Control Signal Input Port: S.Bus / PPM / UART / UDP
Working Voltage: 11 to 25.2 V
Power Consumption: 3 W
Working Temperature: -10 ~ 50 ℃
Waterproof Level: IP4X
Dimension: 121*101*78 mm
Weight: 381 g
Gimbal
Angular Vibration Range: ±0.01°
Controllable Pitch Angle: -90° to +25°
Mechanical Pitch Angle: -135° to +45°
Controllable Yaw Angle: -45° to +45°
Mechanical Yaw Angle: -90° to +90°
Camera
Lens: 10X Optical Zoom (30X Hybrid Zoom)
Focal Length: 5.15±5% to 47.38±5% mm
Minimum Focus Distance: 200 mm
Image Sensor: 1/2.7”-inch, 4 MP effective resoultion
Aperture: F1.8 to F2.5
FOV: Diagonal 79.5°, Horizontal 71.5°
TF Recording Resolution: 2K (2560*1440) @ 30 fps
Video Storage Bitrate: 12 Mbps
File Storage Format: FAT32
Image Format: JPEG
Video Format: MP4 (Recorded in H265, *auto converted to MP4 after restart)
Supported MicroSD Cards: MicroSD Class10, Max 128GB
Still Photography Mode: Single
Metering Mode: Evaluative metering
Mark
Features marked with "*" are in development and can be updated later by firmware.
