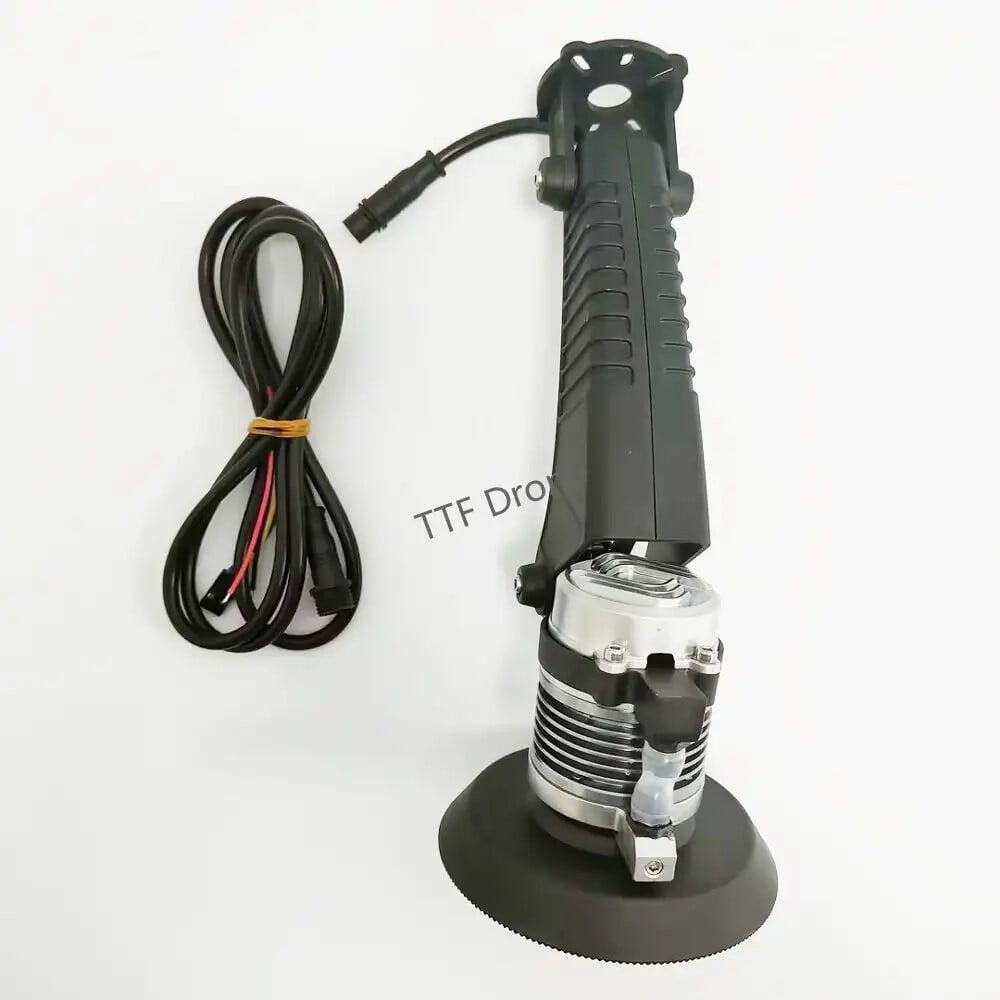

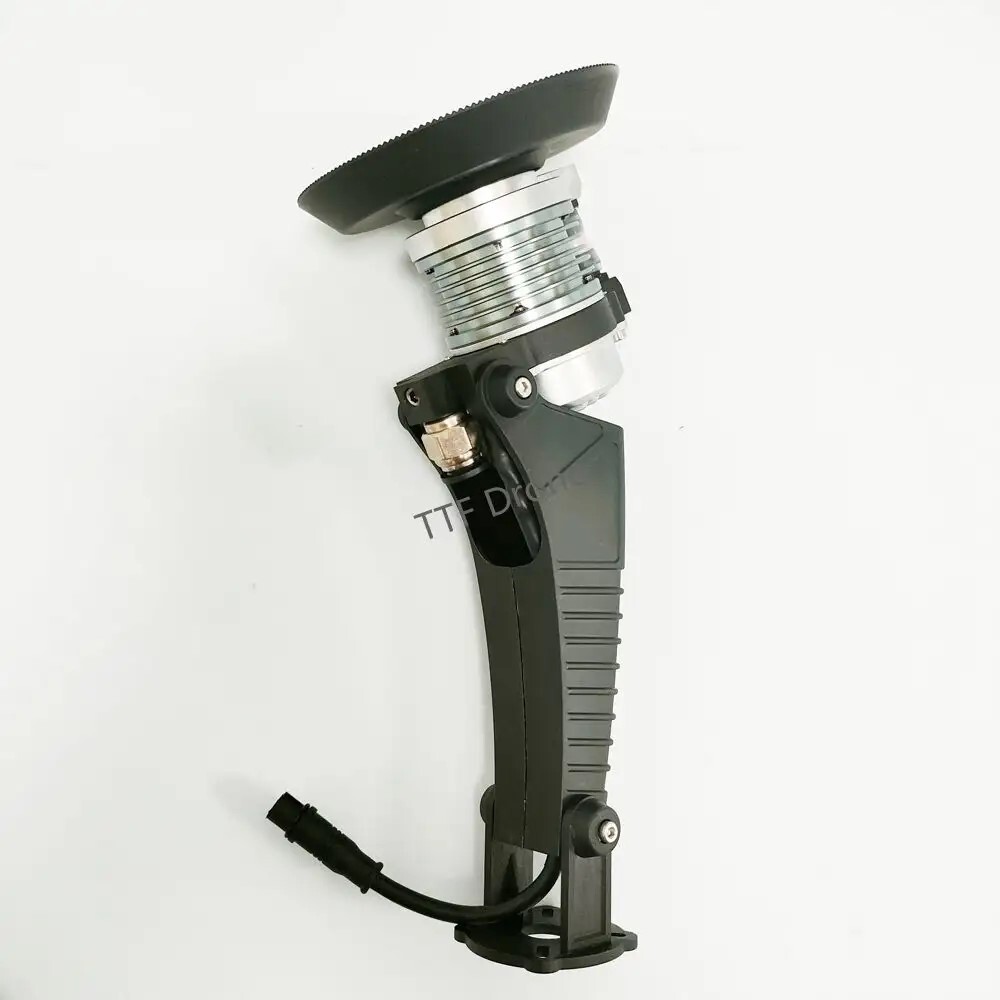

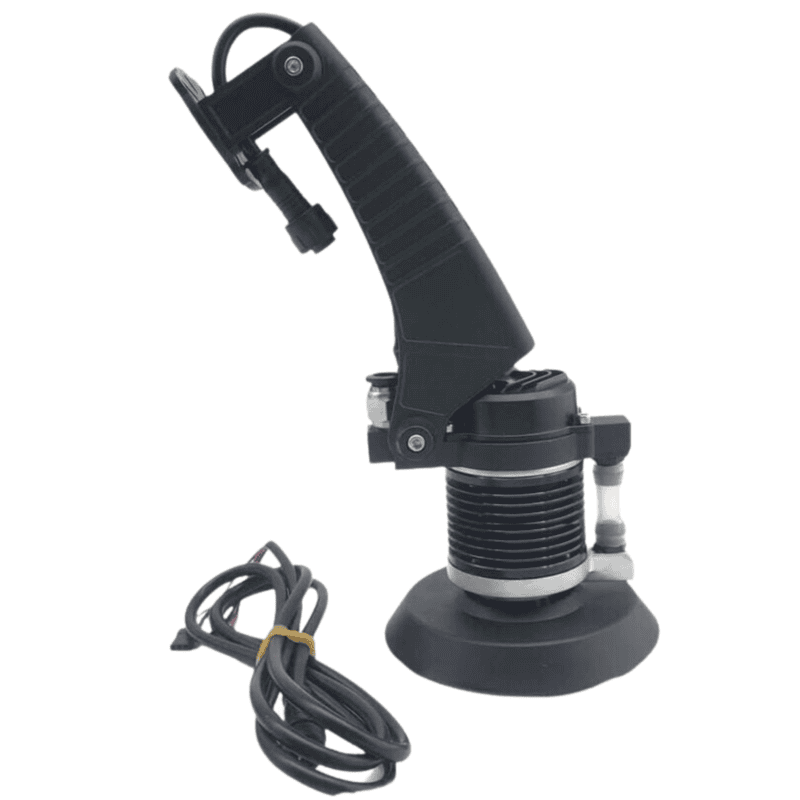

TTF-CN5 2L NOZZLE
₹6,509.00 ₹11,999.00
Features:
- The nozzle cannot idle, and the water pump needs to be turned on at the same time (the liquid medicine needs to flow to cool
- the nozzle motor).
- When powered by 12S, the nozzle speed is turned on at 95% (analog quantity 1000-1950)
- When powered by 14S, the nozzle speed is turned on at 85% (analog quantity 1000-1850)
- When powered by 18S, the nozzle speed is set at 75% (analog quantity 1000-1750)
- The nozzle must be turned off when the liquid medicine is finished (some flight controls do not have centrifugal nozzle mode and require manual nozzle closure)
- Each homework must be completed by filling a box of clean water, adding cleaning solution, turning on the centrifugal nozzle, spraying a box of water, and idling for 30 seconds. The purpose is to clean the residual pesticides and prevent corrosion, solidification, and damage to the motor bearings.
Choose Quantity
Product Details
Technical Specifications:
- Shell Material: Aluminum alloy, offering durability and lightweight properties.
- Mist Particle Size: 50-200 microns. This is the size of the droplets produced by the nozzle, which determines the spray's effectiveness and coverage.
- Working Range: Water supply flow rate between 200-2000 mL/min, depending on the specific requirements of the spraying system.
- Atomizing Spray Width: 1.5 to 2.0 meters, which defines how wide the spray will be.
- Voltage: 14-18S power supply, which means it's designed to operate with a voltage from 14 to 18 series lithium battery packs.
- Current Range: Operates within a current range of up to 4A, which is important for power supply and system compatibility.
- Control Method: Stepless speed regulation, meaning the speed can be adjusted continuously within a given range.
- Speed: 20,000 RPM, which dictates the rotational speed of the nozzle, influencing the atomization of the liquid.
- Signal: The nozzle speed is controlled using a PWM signal with a range of 1000-2000 (likely in microseconds, determining the duty cycle).
- Power Consumption: 60W, which specifies the energy used during operation.
- Weight: 359g, indicating the lightweight nature of the nozzle.
- Inlet and Outlet Pipe Diameter: 8mm, for the liquid flow in and out of the nozzle.
- Outgoing Cable Length: 125 cm, providing flexibility in connection.
- Protection Level: IP55, meaning the nozzle is protected from dust and can withstand low-pressure water jets, ensuring durability in outdoor environments.
- Shell Material: Aluminum alloy, offering durability and lightweight properties.
- Mist Particle Size: 50-200 microns. This is the size of the droplets produced by the nozzle, which determines the spray's effectiveness and coverage.
- Working Range: Water supply flow rate between 200-2000 mL/min, depending on the specific requirements of the spraying system.
- Atomizing Spray Width: 1.5 to 2.0 meters, which defines how wide the spray will be.
- Voltage: 14-18S power supply, which means it's designed to operate with a voltage from 14 to 18 series lithium battery packs.
- Current Range: Operates within a current range of up to 4A, which is important for power supply and system compatibility.
- Control Method: Stepless speed regulation, meaning the speed can be adjusted continuously within a given range.
- Speed: 20,000 RPM, which dictates the rotational speed of the nozzle, influencing the atomization of the liquid.
- Signal: The nozzle speed is controlled using a PWM signal with a range of 1000-2000 (likely in microseconds, determining the duty cycle).
- Power Consumption: 60W, which specifies the energy used during operation.
- Weight: 359g, indicating the lightweight nature of the nozzle.
- Inlet and Outlet Pipe Diameter: 8mm, for the liquid flow in and out of the nozzle.
- Outgoing Cable Length: 125 cm, providing flexibility in connection.
- Protection Level: IP55, meaning the nozzle is protected from dust and can withstand low-pressure water jets, ensuring durability in outdoor environments.
Operating Guidelines:
Nozzle Cannot Idle:
- The nozzle should not be allowed to run without liquid flow because the liquid helps to cool the nozzle motor.
- The water pump must always be activated when the nozzle is running to ensure cooling and prevent overheating or damage to the motor.
Speed Settings for Different Power Supplies:
- 12S Power Supply: The nozzle runs at 95% speed (analog quantity of 1000-1950).
- 14S Power Supply: The nozzle operates at 85% speed (analog quantity of 1000-1850).
- 18S Power Supply: The nozzle speed is set at 75% (analog quantity of 1000-1750).
- The speed adjustment based on the power supply ensures the nozzle operates within safe limits for different voltages.
Turning Off When Liquid Medicine is Finished:
- The nozzle must automatically shut off once the liquid is finished.
- Some flight control systems may lack centrifugal nozzle mode, meaning manual intervention will be required to close the nozzle when the liquid is exhausted.
Cleaning Procedure (Post-Use Maintenance):
- Fill a Box with Clean Water and Add Cleaning Solution: Ensures that any residual chemicals are diluted and removed.
- Turn On the Centrifugal Nozzle and Spray: Spray the clean water through the nozzle to clean the system.
- Idle for 30 Seconds: Let the nozzle idle for half a minute to allow the cleaning solution to fully circulate and rinse out any remaining pesticides.
- Purpose: This cleaning step is crucial to prevent corrosion, solidification of chemicals, and damage to the motor bearings, extending the lifespan of the nozzle and system.
