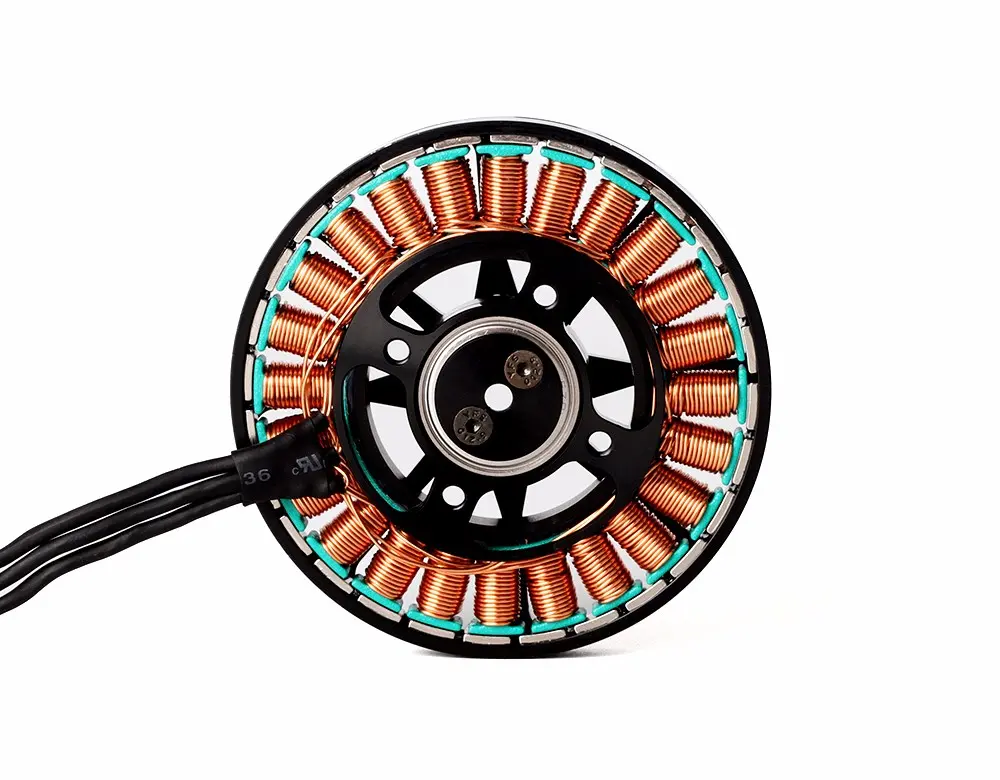

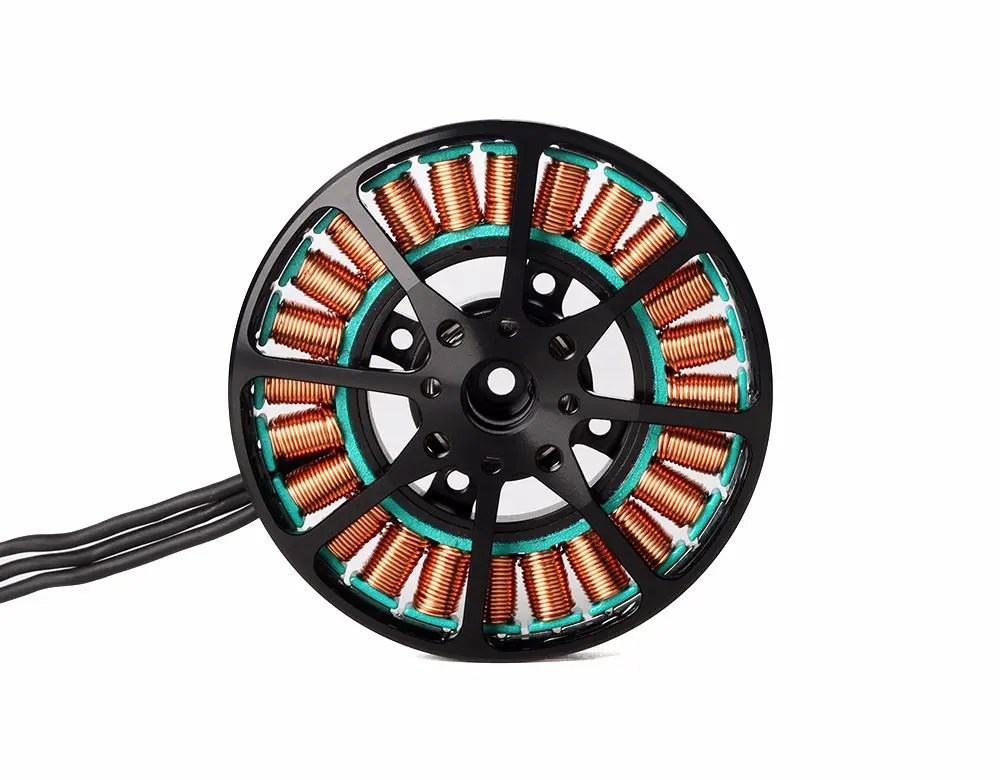

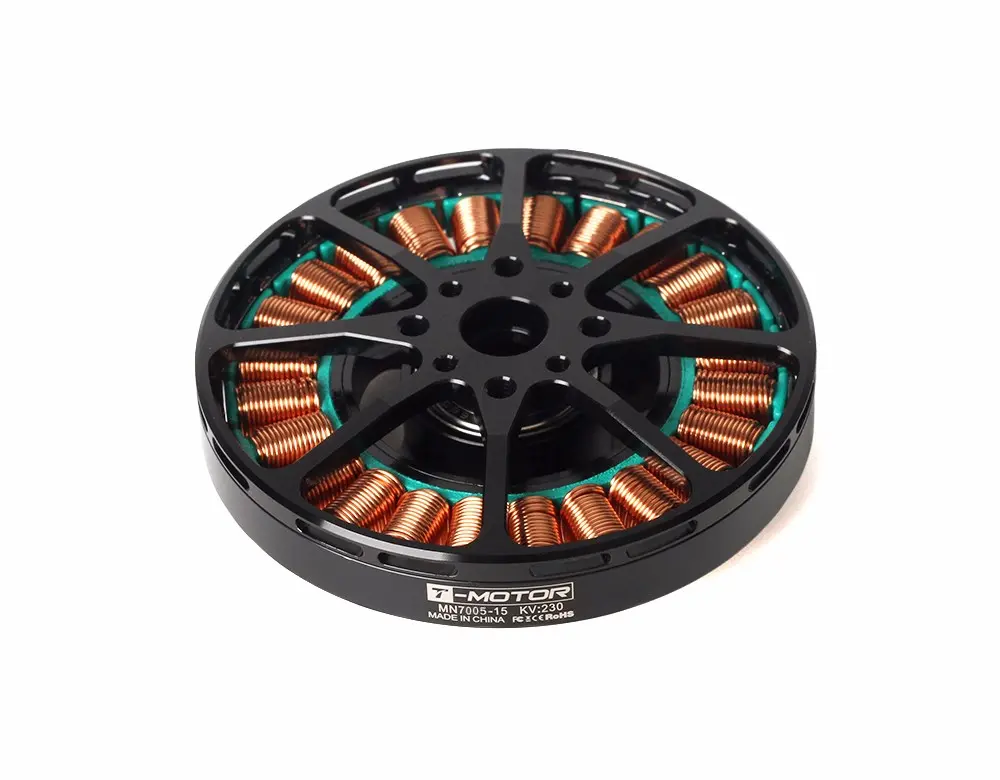

T-Motors MN7005-KV230
Non-returnable
₹24,799.00
Ultra light weight Antigravity 7005 T-Motors are available with anti-high temperature curved magnet which increases motor performance by 5%. Energy saving Antigravity type Tiger motors having 1.5kg thrust with efficiency of 13g/W. This type of T motors are made with specially imported German 7075 aviation aluminum alloy, strengthens motor cap with light weight design. Contains open structure for better cooling performance.
Choose Quantity
Product Details
Features:
- Ultra-lightweight design (188g).
- High 230KV for optimal efficiency.
- Energy-saving Antigravity type.
- Imported German 7075 aviation aluminum.
- Anti-high temperature curved magnets.
- Motor performance increased by 5%.
- Open structure for better cooling.
- High-temperature resistant copper wire (Level H).
- Precision dynamic balance for stability.
- Imported 6802ZZ bearings for smooth operation.
Technical Specifications:
- Motor Size: Φ79x21mm
- Copper Wire: 180°Chigh temperature resistance: Level H
- Stator: Imported silicon steel sheet; Anti-rust treatment; 180°Chigh temperature-resisting coatings
- Coil Insulation Test: 500V
- Configuration: 24N28P
- Centrifugal Cooling Design: YES
- Shaft Diameter: IN: 15mm
- Rotor Dynamic Balance Standard: ≤15mg
- Bearing: Imported 6802ZZ
- Motor Dynamic Balance Standard: ≤10mg
- Magnet Level: 150°Chigh temperature resistance: Level E
- Packing Size: 144x114.5x35mm
- Lead Cable: 60mm
- KV: 230
- Internal Resistance: 71mΩ
- Idle Current(22V): 0.9A
- Rated Voltage(Lipo): 6S
- Peak Current(180s): 28A
- Motor Weight (Incl. Cable): 188g
- Max. Power(180s): 700W
- Package Weight: 320g
Additional Details:
- Manufacturer: T-Motor
- Brand: T-Motor
- Generic Name: UAV Motor || Drone Motor || Brushless Motor || Multirotor Motor || Long Endurance Motor || Aerial Photography Motor || Electric Motor || Outrunner Motor || Professional Drone Motor || Surveying Drone Motor
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: Professional Multirotors || Aerial Photography Drones || Surveying & Mapping UAVs || Long-Duration Flights || Environmental Monitoring || Industrial & Commercial UAV Operations || Custom Endurance Builds || Heavy-Lift Drones (lighter class) || VTOL UAVs (specific applications) || Energy-Efficient Drone Designs
Package Details:
Includes:
- 1 x T-Motor MN7005 230KV Antigravity Motor
Frequently Asked Questions:
Q1. What is the primary focus of the T-Motor MN7005 230KV Antigravity motor?
Ans. The primary focus is achieving ultra-lightweight design and high energy efficiency for significantly extended flight times in professional multirotor UAVs.
Q2. What battery voltage is recommended for optimal performance with this motor?
Ans. This motor is primarily designed for use with 6S LiPo batteries to achieve its specified power and efficiency for long-duration flights.
Q3. What kind of thrust and efficiency can be expected from this motor, and what propeller size is suitable?
Ans. It can provide up to 4.691kg of thrust with an efficiency of around 13g/W, and it is recommended for use with large propellers, typically 22 to 24 inches.
