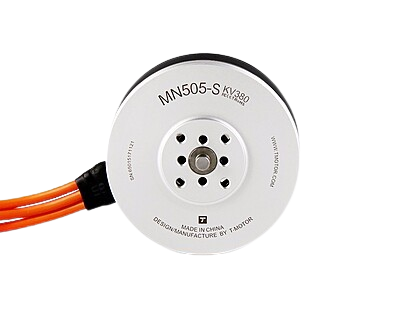

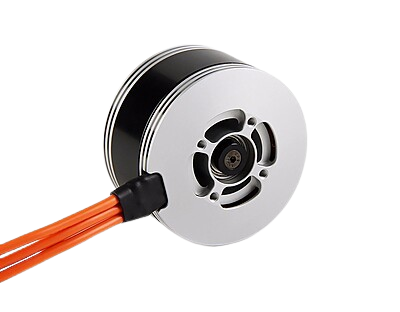

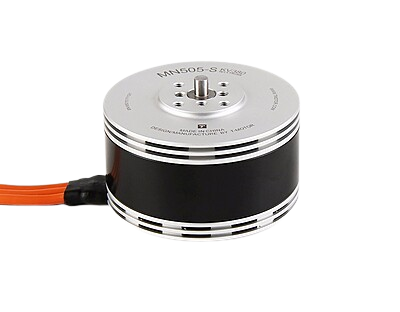

T-Motors MN505-S-KV320
Non-returnable
₹11,299.00
The T-Motor MN505-S 320KV is a high-efficiency motor engineered for professional multirotor UAVs demanding extended flight times. Its low KV and optimized design deliver exceptional endurance and powerful, stable thrust for heavy-lift and long-range applications. Built with T-Motor's renowned reliability, it ensures consistent performance for critical industrial missions.
Choose Quantity
Product Details
Features:
- Optimized for long endurance UAV flight.
- Low 320KV for maximum efficiency.
- Industrial-grade build, highly durable construction.
- Advanced cooling for prolonged operation.
- Precisely balanced rotor for smooth performance.
- High-quality bearings ensure long lifespan.
- Premium N52SH magnets for strong torque.
- Designed for professional, heavy-duty applications.
- Enhanced dust and water resistance (IP45).
- Reliable performance in diverse weather conditions.
Technical Specifications:
- Model: MN505-S
- KV: 320KV
- Motor Size: Φ55.6*38.9mm
- Stator: Imported silicon steel sheet; Anti-rust treatment 150°Chigh temperature-resisting coatings
- Coil Insulation Test: 500V
- Configuration: 24N28P
- Shaft Diameter : IN：6mm，OUT：4mm
- Rotor Dynamic Balance Standard: ≤5Mg
- Bearing: Imported 696ZZ
- Motor Dynamic Balance Standard: ≤10Mg
- Lead Cable: 16AWG*150mm
- Configuration: 12N14P
- Rated Voltage (LiPo): 6S
- Idle Current (18V): 1.8A
- Peak Current (180s): 55A
- Max. Power (180s): 1300W
- Internal Resistance: 38mΩ
- Motor Weight (excl. cable): Approximately 225g
- Mounting Hole Pattern: 30x30mm
- Protection Rating: IP45 (Dustproof, Water Resistant)
- ESC Recommendation: FLAME 60A 12S
- Propeller Recommendation: 20-22"
Additional Details:
- Manufacturer: T-Motor
- Brand: T-Motor
- Generic Name: Drone Motor || UAV Motor || Brushless Motor || Multirotor Motor || Industrial Drone Motor || Long Endurance Motor || RC Motor || Electric Motor || Heavy Lift Motor || Commercial Drone Motor
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: Long Endurance Drones || Agricultural Drones || Mapping Drones || Inspection Drones || Surveillance Drones || Professional Cinematography Drones || Heavy-Lift Multirotors || Custom Industrial UAVs || Powerline Inspection || Cargo Drones

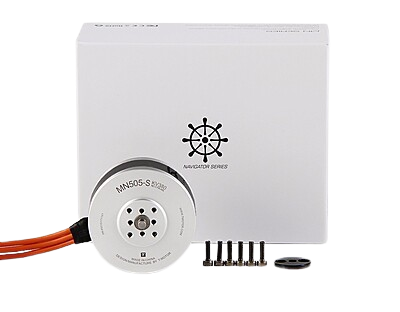

Package Details:
Includes:
- 1 x T-Motor MN505-S 320KV Motor
- 1 x Hardware Pack
Frequently Asked Questions:
Q1. What battery voltage range is recommended for the T-Motor MN505-S 320KV?
Ans. This motor is designed for a wide voltage range, specifically 6-12S LiPo batteries, offering flexibility for various heavy-lift applications.
Q2. What is the main benefit of the MN505-S over other T-Motor industrial series?
Ans. The MN505-S series is part of T-Motor's Navigator (MN) series, specifically designed for a balance of power, efficiency, and reliability in industrial multirotor applications, with the 'S' indicating an optimized version for efficiency.
Q3. What propeller sizes are most suitable for maximizing endurance with this motor?
Ans. For long endurance, propellers typically ranging from 18-22 inches are recommended with this 320KV motor, depending on the overall drone weight and specific flight goals.
