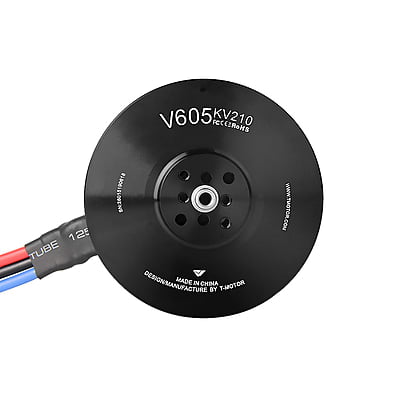

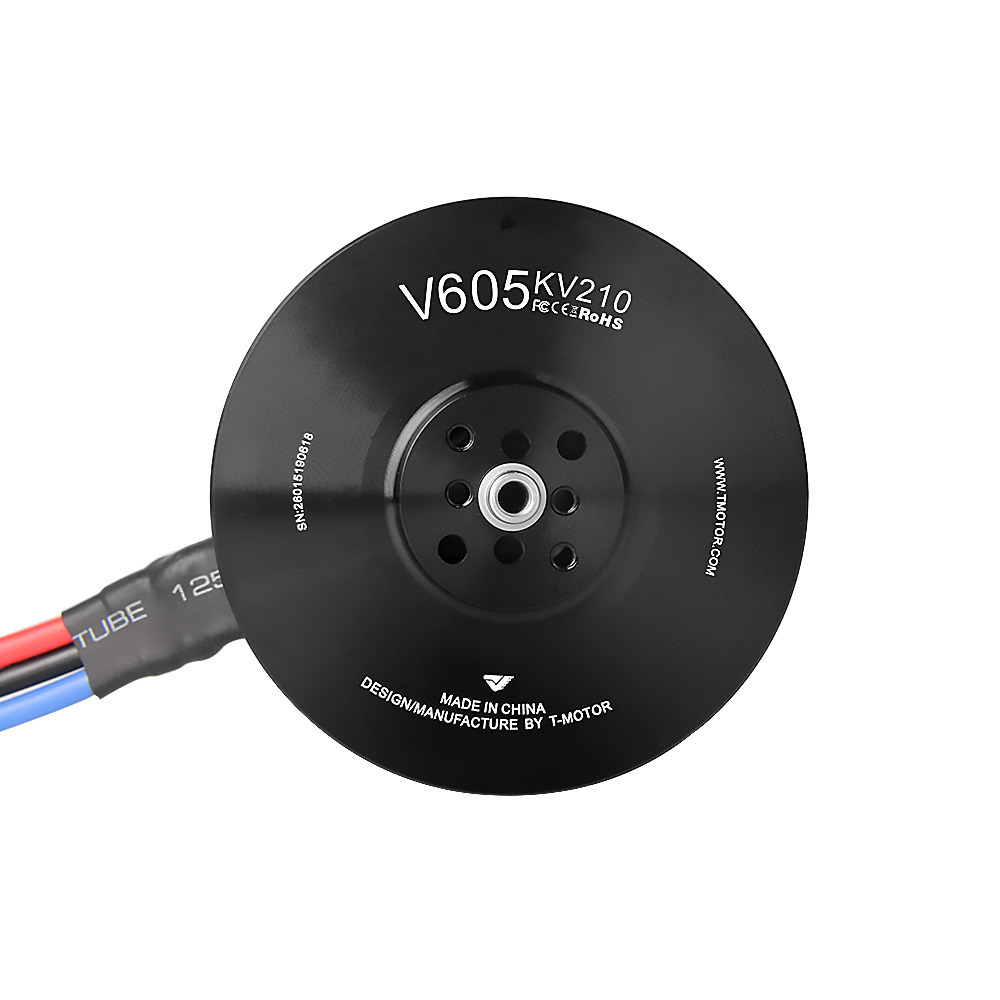

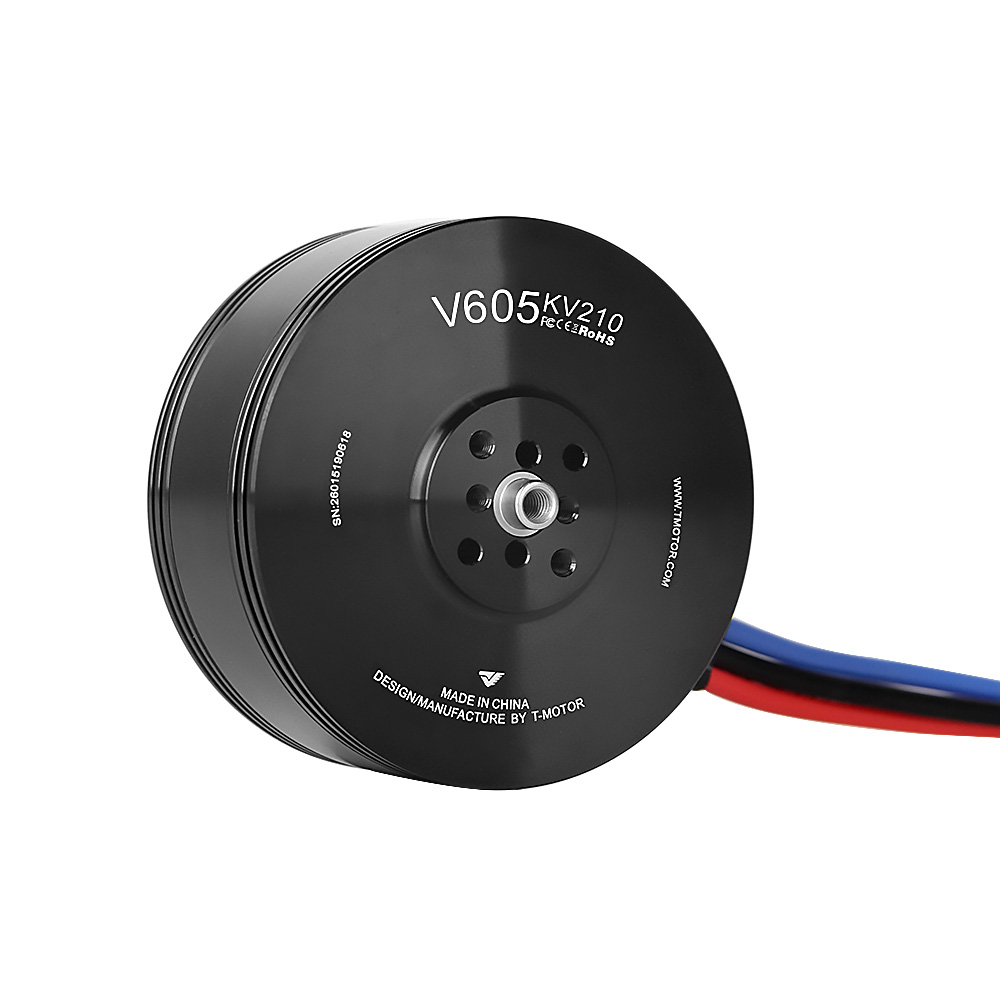

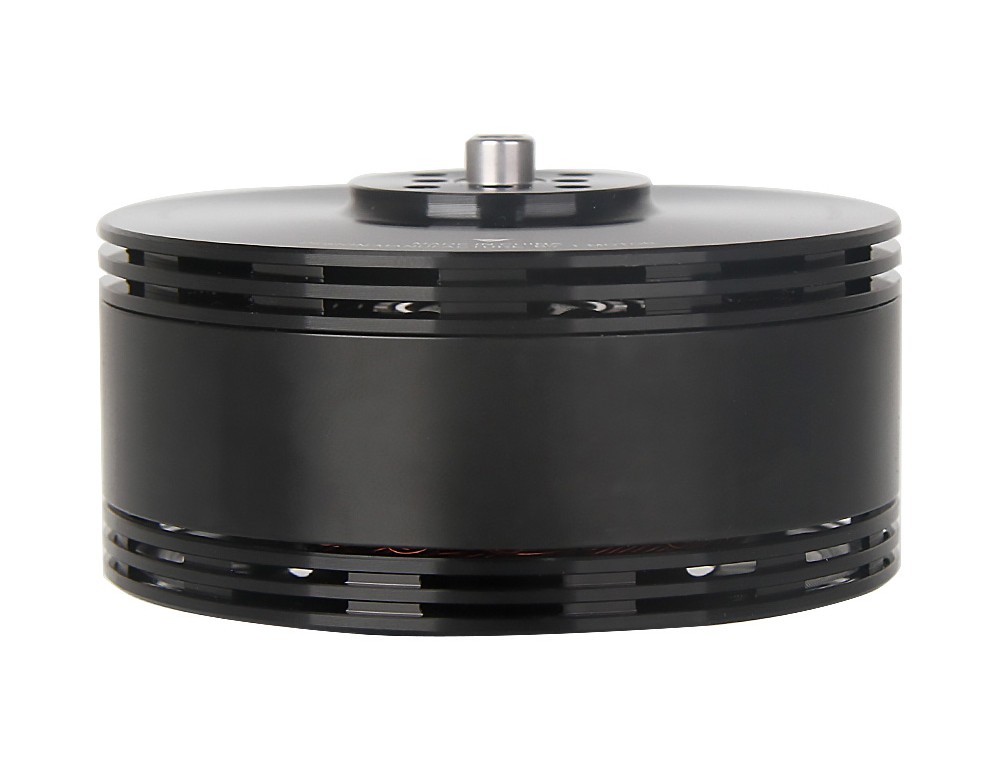

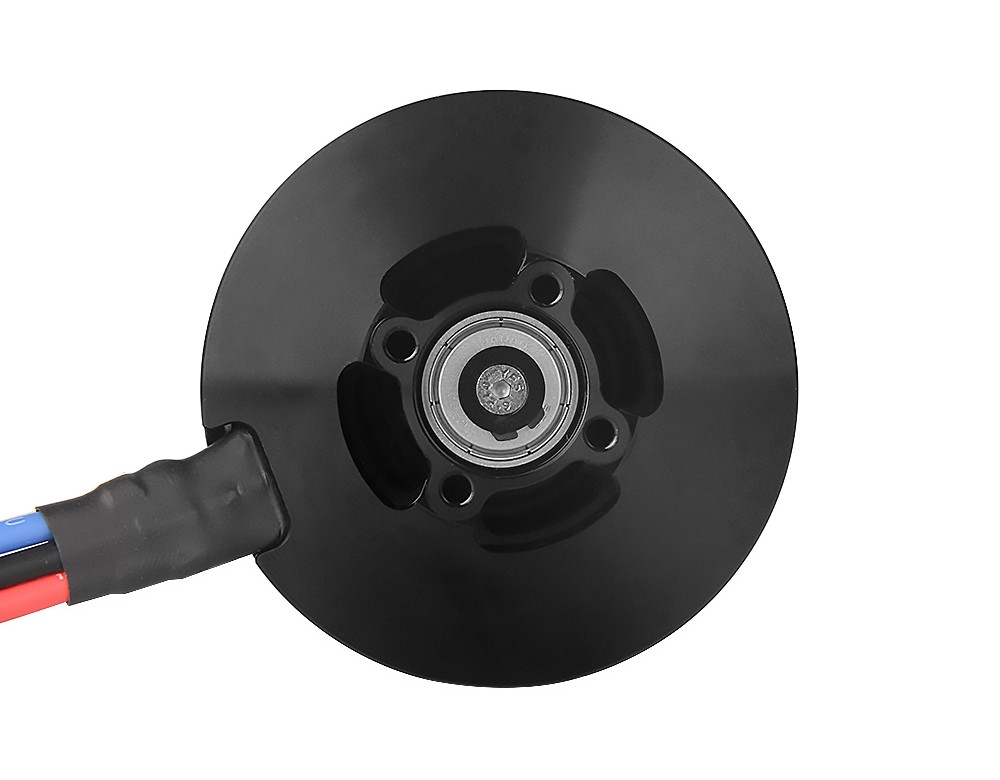

T-Motor V605 210KV Motor

Hot Products

Technical Drawing

Specification

Model No./ Kv	V605 KV210	Magnet Temperature Resistance Grade	Class E 150℃
Motor Size(mm)	Φ68.8*39.9	Lead(mm)	14AWG*600
Stator Technology	Anti-rust treatment;180°C high temperature-resisting coatings	Enamelled Wires Temperature Resistance Grade	Class C 220℃
Configuration	24N28P	Coil Withdraw Voltage	500V/5s
Shaft Diameter(mm)	IN:6 OUT:6	Rotor Dynamic Balance Standard	≤5mg
Bearing	Imported 626ZZ	IP	IP45

KV Value	KV210	Battery (lipo)/Voltage Recommendation	12S(4.2V/Sl)/42-52V
Idle Current(18V)	1.6A	ESC Recommendation	FLAME 80A 12S V2.0
Peak Current(A)	70A/Continuous 180s	Propeller Recommendation	V22*7.4
Max. Power(W)	3200W/Continuous 180s	Motor Weight(g)	340g (385g Weight (incl.cables))
Internal Resistance(mΩ)	48	Package Weight(g)	550g

Test Data

Item No.	Prop	Throttle	Voltage (V)	Thrust (g)	Torque (N*m)	Current (A)	RPM	Inputpower (W)	Efficiency (g/W)	Operating Temperature ℃)
V605 KV210	T-MOTOR V22*7.4	40%	47.90	2898	0.73	7.21	3444	345.38	8.39	98℃ (Ambient Temperature: 22℃)
42%	47.88	3200	0.80	8.20	3592	392.66	8.15
44%	47.86	3464	0.86	9.09	3762	435.10	7.96
46%	47.83	3722	0.93	10.29	3908	492.24	7.56
48%	47.80	4059	1.02	11.56	4063	552.31	7.35
50%	47.77	4385	1.09	12.94	4226	618.17	7.09
52%	47.75	4663	1.16	14.12	4352	674.42	6.91
54%	47.72	4995	1.24	15.46	4488	737.53	6.77
56%	47.70	5266	1.31	16.76	4618	799.58	6.59
58%	47.67	5525	1.36	18.00	4734	858.07	6.44
60%	47.63	5788	1.44	19.46	4859	927.06	6.24
62%	47.60	6153	1.52	21.06	4980	1002.58	6.14
64%	47.58	6455	1.60	22.61	5107	1075.70	6.00
66%	47.53	6771	1.68	24.51	5241	1164.96	5.81
68%	47.49	7049	1.75	26.19	5363	1243.96	5.67
70%	47.45	7383	1.84	28.11	5487	1334.04	5.53
80%	47.23	9108	2.28	38.69	6025	1827.49	4.98
90%	46.95	10917	2.80	52.16	6561	2448.72	4.46
100%	46.60	12761	3.26	68.30	7036	3182.62	4.01
