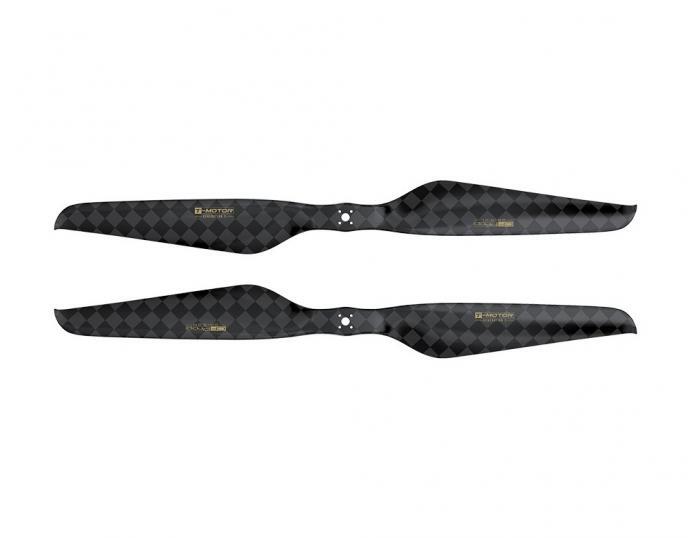

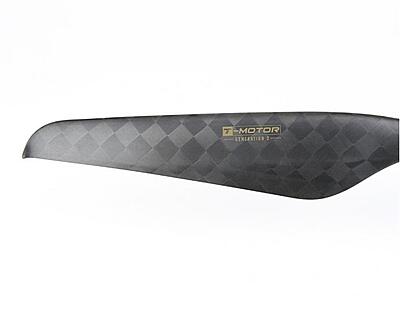

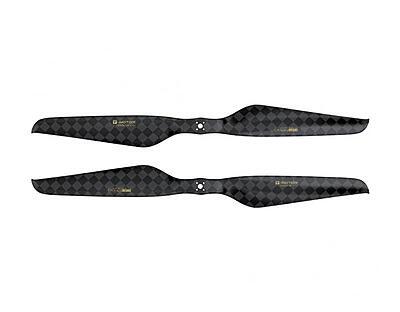

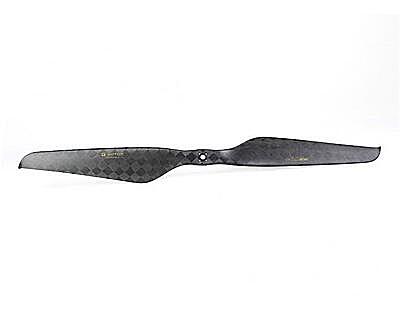

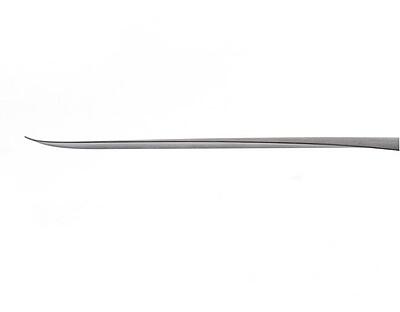

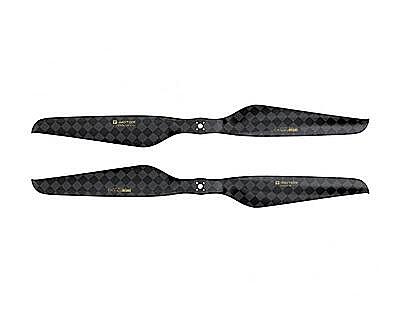

T-Motor Propeller NS26x8.5

Features:

• Large 26-inch diameter for immense thrust.




• High-efficiency design for long flight times.

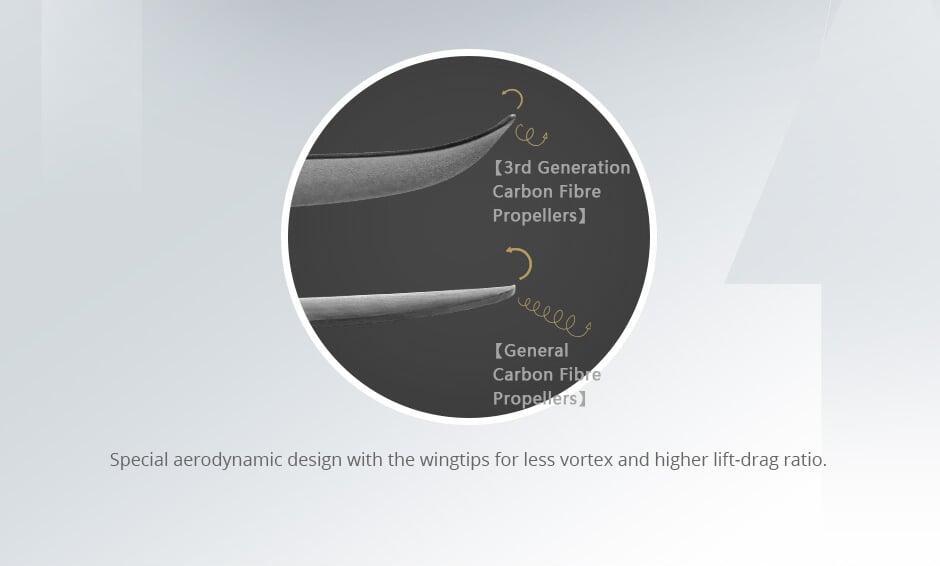

• Aerodynamically optimized for low noise.




• Lightweight and rigid carbon fiber construction.




• Provides superior lift for heavy payloads.




• Ideal for T-Motor U-series industrial motors.




• Reduces vibrations for stable flight.




• Durable design for reliable performance.




• Perfectly balanced for smooth operation.




• Essential for professional UAVs.

Technical Specifications:

• Model: T-Motor Propeller NS26x8.5

• T-MOTOR Series: 2-blades Integrated

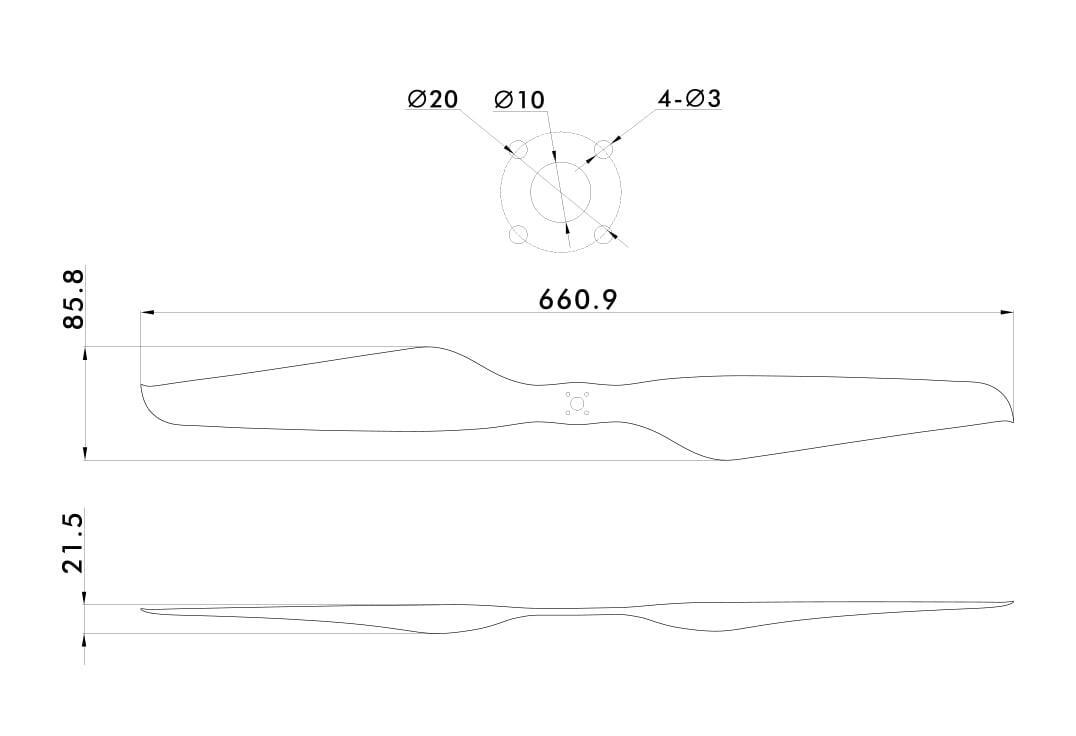

• Diameter: 26 inches (660.9 mm)

• Pitch: 8.5 inches (215.9 mm)

• Material: Carbon Fiber + Epoxy Composite

• Weight (Single Blade): 48 g

• Package Weight: 625.2 g

• Package Size: 717 × 105 × 75 mm

• Recommended Thrust / RPM: 4–8 kg / 2850–3970 RPM

• Recommended Max Thrust / RPM: 16 kg / 5480 RPM

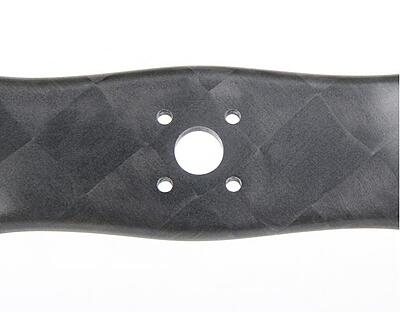

• Mounting Hole Diameter: Typically 12 mm (for large T-Motor U-series / G-series motors)

• Rotation: Typically sold as individual CW or CCW propeller

• Ambient Temperature: -40°C ~ 65°C

• Storage Temperature / Humidity: -10°C ~ 50°C / <85%

Additional Details:

• Manufacturer: T-Motor

• Brand: T-MOTOR

• Generic Name: Drone Propeller || Carbon Fiber Prop || UAV Prop || Multirotor Propeller || T-Motor Prop || Industrial Propeller || RC Prop || Heavy-Lift Prop || Drone Blade || Motor Prop

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: Agricultural Drones || Heavy-Lift UAVs || Commercial Drone Operations || Long-Endurance Drones || Aerial Mapping & Surveying || Industrial Inspections || Custom Drone Builds || Professional Drone Pilots || High-Thrust Applications || Search and Rescue Drones

Package Details:

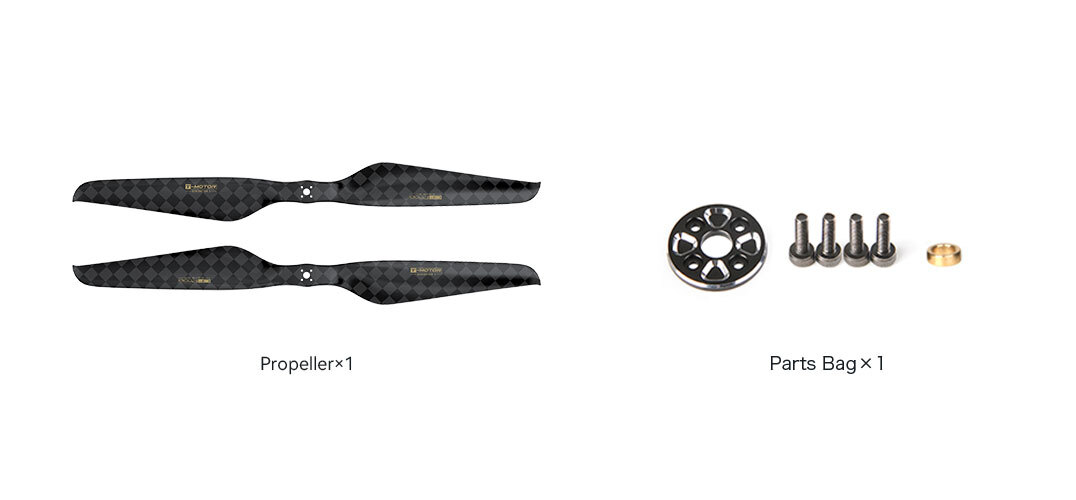

• Includes:

  • 1x T-Motor Propeller NS26x8.5

  • 1x Set of mounting screws

Frequently Asked Questions:

Q1. What type of drone is the NS26x8.5 propeller designed for?

Ans. The NS26x8.5 propeller is designed for very large, heavy-lift industrial and professional drones. Its immense size and high pitch are required to generate the significant thrust needed to lift heavy payloads, such as agricultural spraying tanks, professional camera gimbals, or specialized sensors, while maintaining high efficiency.

Q2. What is the benefit of the "NS" design?

Ans. The "NS" stands for a "New Standard" design, specifically focused on low noise and high efficiency. The propeller's aerodynamic profile is optimized to reduce the noise generated during flight while maximizing lift and minimizing energy consumption. This is crucial for applications that require discretion or long flight times, such as aerial inspections or long-distance surveying.

Q3. Can I use this propeller with a T-Motor U-series motor?

Ans. Yes, the T-Motor NS26x8.5 propeller is specifically optimized to be paired with T-Motor's U-series industrial motors. This combination is engineered to deliver the highest possible performance, efficiency, and reliability for demanding professional missions. It is highly recommended to use the prop and motor from the same manufacturer for best results.
