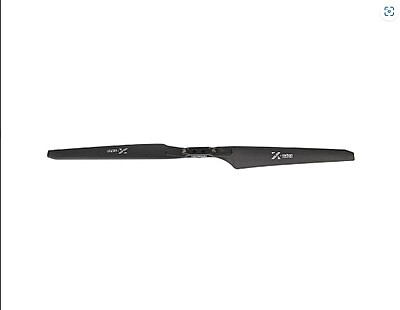

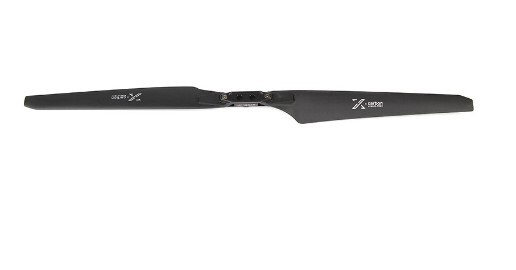

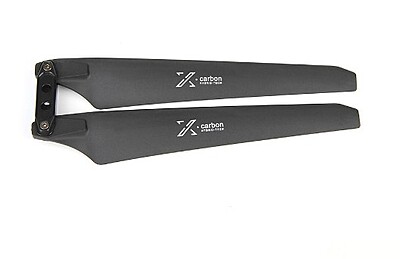

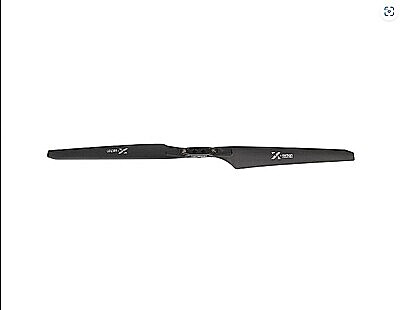

T- Motor Propeller MF1806

Features:

• Convenient folding design for portability.

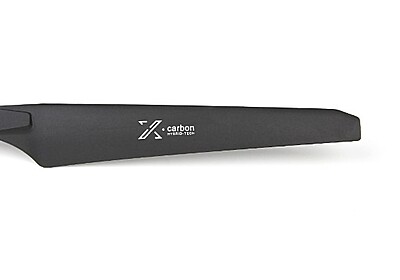

• Lightweight and rigid carbon fiber construction.




• Provides high thrust and efficiency.




• Reduces vibrations for smooth flight.

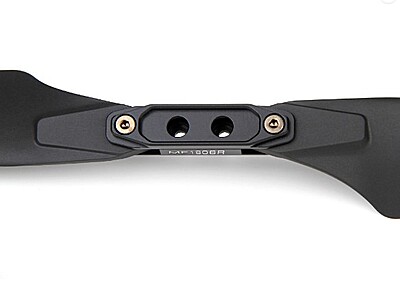

• Quick-release mount for easy installation.




• Optimized for T-Motor P-series motors.




• Durable design for reliable performance.




• Comes as a matched pair (CW and CCW).




• Essential for professional UAVs.




• Ideal for heavy-lift drone applications.

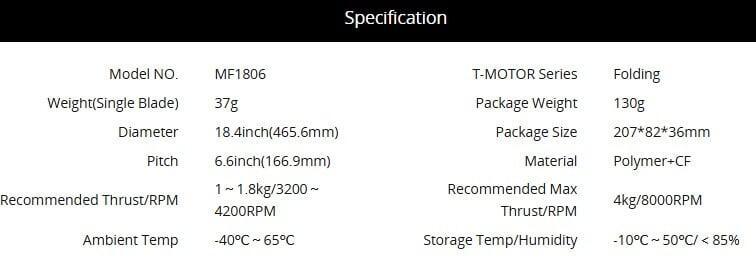

Technical Specifications:

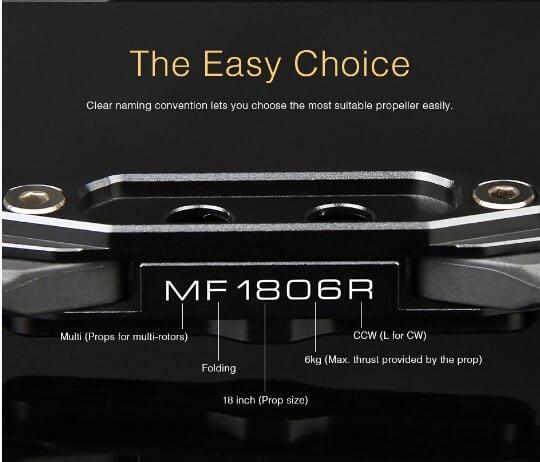

• Model: T-Motor Propeller MF1806

• T-MOTOR Series: Folding

• Weight (Single Blade): 37 g

• Package Weight: 130 g

• Diameter: 18.4 inches (465.6 mm)

• Pitch: 6.6 inches (166.9 mm)

• Material: Polymer + Carbon Fiber (CF)

• Package Size: 207 × 82 × 36 mm

• Recommended Thrust / RPM: 1 ~ 1.8 kg / 3200 ~ 4200 RPM

• Recommended Max Thrust / RPM: 4 kg / 8000 RPM

• Ambient Temperature: -40°C ~ 65°C

• Storage Temperature / Humidity: -10°C ~ 50°C / < 85%

Additional Details:

• Manufacturer: T-Motor

• Brand: T-MOTOR

• Generic Name: Drone Propeller || Carbon Fiber Prop || UAV Prop || Folding Propeller || T-Motor Prop || Propeller Pair || RC Prop || Industrial Drone Part || Drone Blade || Motor Prop

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: Agricultural Drones || Heavy-Lift UAVs || Commercial Drone Operations || Long-Endurance Drones || Aerial Mapping & Surveying || Industrial Inspections || Custom Drone Builds || Professional Drone Pilots || High-Thrust Applications || Search and Rescue Drones

Package Details:

• Includes:

  • 2x T-Motor Propeller MF1806 Blades

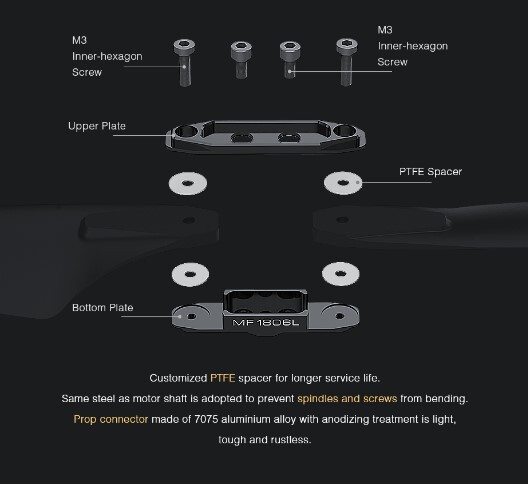

  • 1x Folding Propeller Mount Set

Frequently Asked Questions:

Q1. What is the main advantage of a folding propeller?

Ans. The main advantage of a folding propeller is portability and convenience. It allows a large drone to be stored and transported in a much smaller case without needing to remove the propellers entirely. This saves time during setup and teardown, while also protecting the delicate propeller blades from damage.

Q2. Does the folding design affect the propeller's performance?

Ans. A well-designed folding propeller, like the T-Motor MF1806, is engineered to have negligible impact on performance. When the motor spins, centrifugal force locks the blades firmly into position, providing the same rigidity and thrust as a fixed propeller. The quick-release mount ensures a secure connection for reliable flight.

Q3. Is this propeller compatible with any drone motor?

Ans. While this propeller can be adapted for use with various motors, it is specifically designed for use with T-Motor's P-series and other large, high-power industrial motors that use a standard folding prop hub. To ensure safety and optimal performance, you must verify that your motor's size, thrust rating, and mounting pattern are compatible with this propeller.
