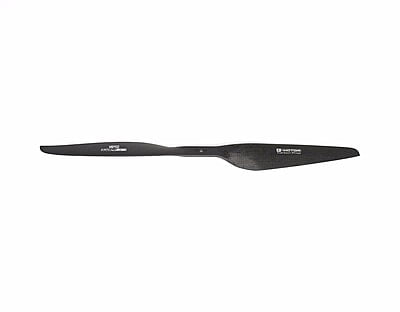

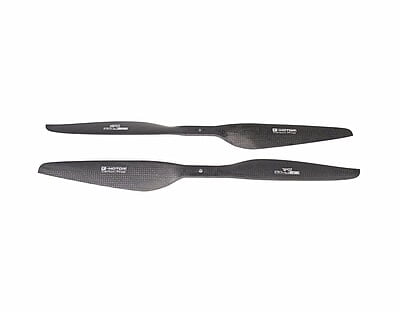

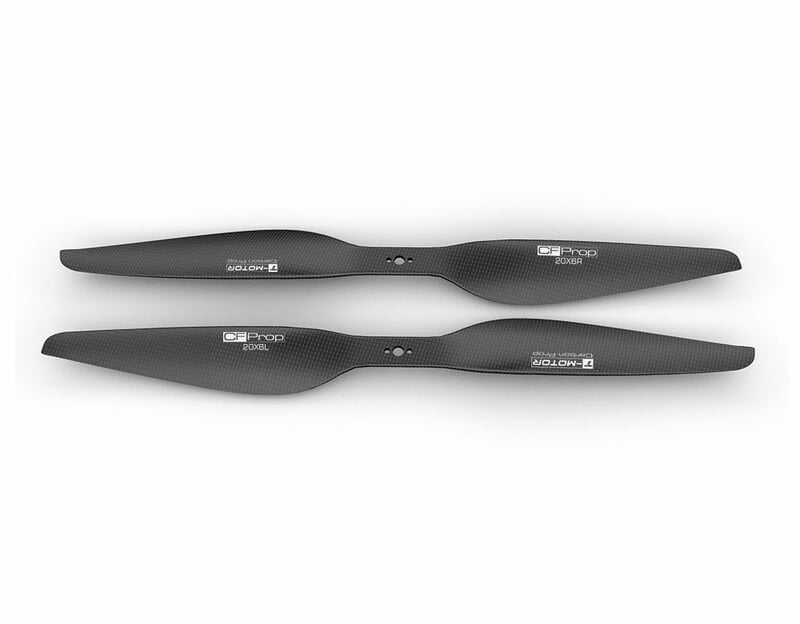

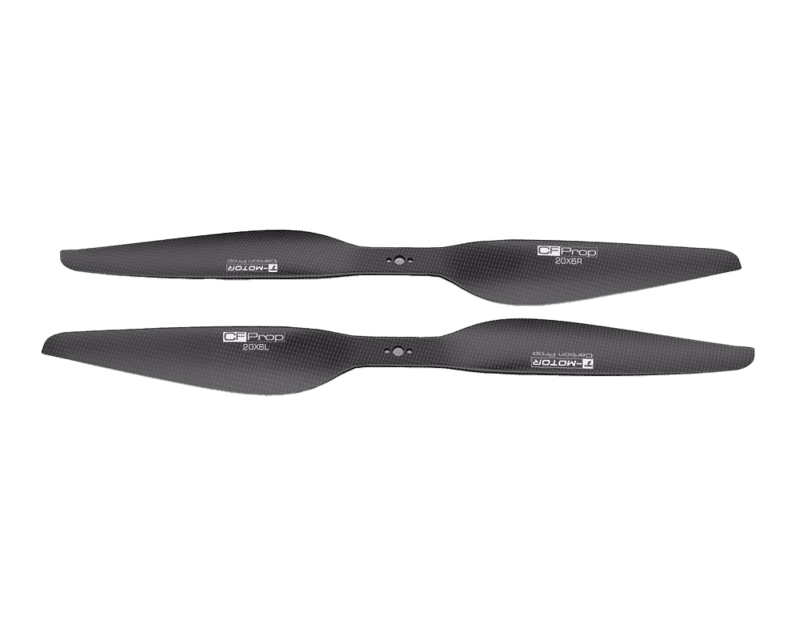

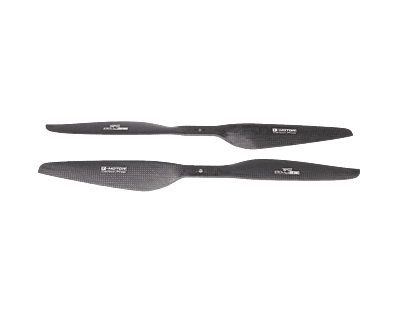

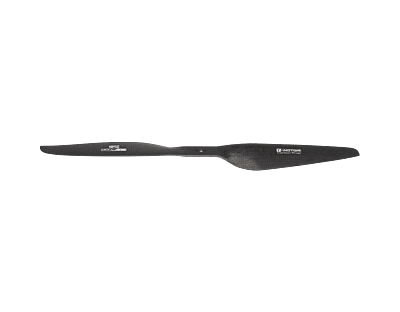

T-Motor P20x6 Propeller 2pcs/pair
The T-Motor P20x6 Propeller is a high-strength carbon fiber propeller designed for industrial and heavy-lift drones. Featuring a polished finish, integrated two-blade structure, and excellent balance, it delivers stable thrust, efficiency, and durability for professional UAV manufacturing and operations.
Features:
High-strength carbon fiber epoxy construction for superior durability
Polished surface ensures smooth airflow and efficient thrust
Two-blade integrated propeller design for stable performance
Precisely balanced for vibration-free and reliable flight
Optimized 20x6 inch size for heavy-lift UAVs
Supports thrust output up to 10kg
Compatible with industrial T-Motor U-series motors
Long operational life under continuous professional use
Resistant to deformation under high RPM conditions
Designed for professional drone manufacturing and repair
Technical Specifications:

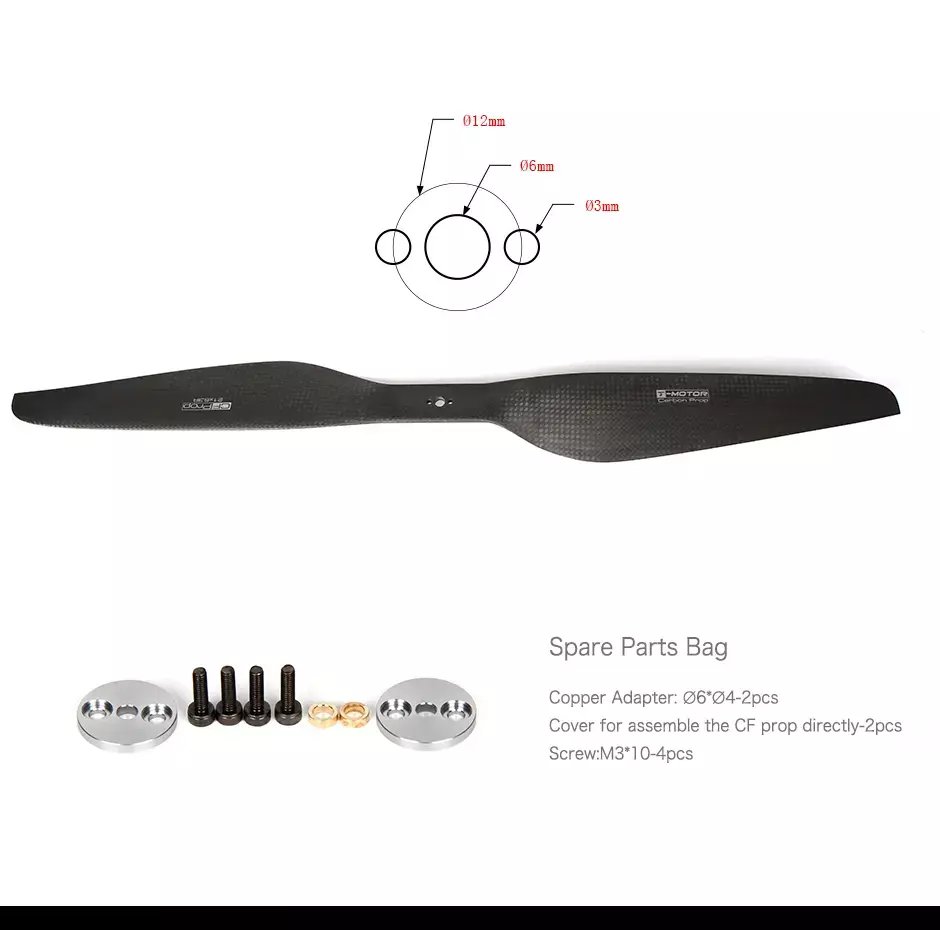

Propeller Size: 20 × 6 inches (Diameter × Pitch)
Diameter: 20 inches (502mm)
Pitch: 6 inches (152.4mm)
Material: Carbon Fiber Epoxy
Propeller Type: Two-blade integrated

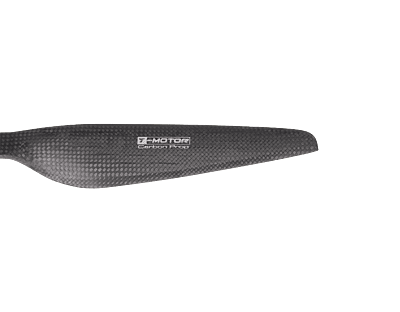

Surface Treatment: Polished
Weight (Single Propeller): Approx. 47g
Maximum Thrust Capability: Up to 10kg
Ambient Temperature: -40°C to 65°C
Optimum RPM: 3000–5500 RPM
Storage Temp/Humidity: -10℃~50℃/<85%
Additional Details:
- Manufacturer: T-Motor
- Brand: T-Motor
- Generic Name: Drone Propeller, UAV Propeller, Carbon Fiber Propeller, Industrial Drone Propeller
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: Industrial drones, heavy-lift UAVs, commercial drone manufacturing, professional drone repair and integration
Package Details:

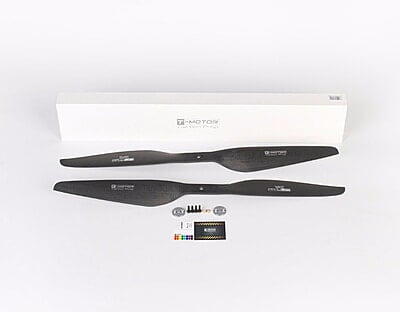

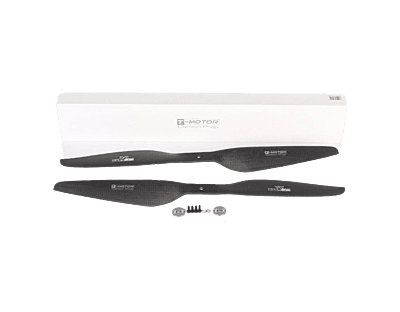

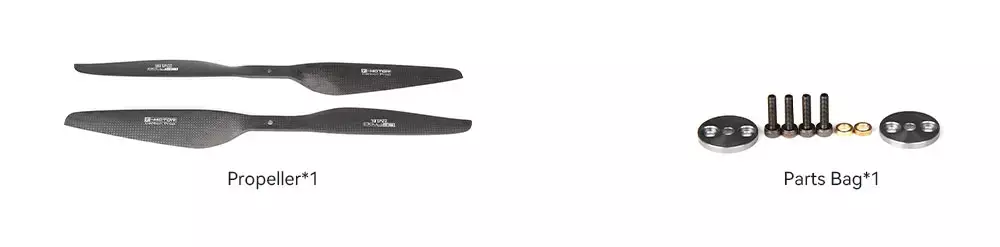

- Includes: 1 x T-Motor P20x6 Propeller 2pcs/pair
Frequently Asked Questions:
Q1. Is this propeller suitable for consumer or hobby drones?
Ans. The T-Motor P20x6 Propeller is designed specifically for industrial, commercial, and professional UAV applications. Due to its size, thrust capability, and regulated usage, it is not recommended for hobby-grade or consumer drones.
Q2. Which motors are compatible with the T-Motor P20x6 propeller?

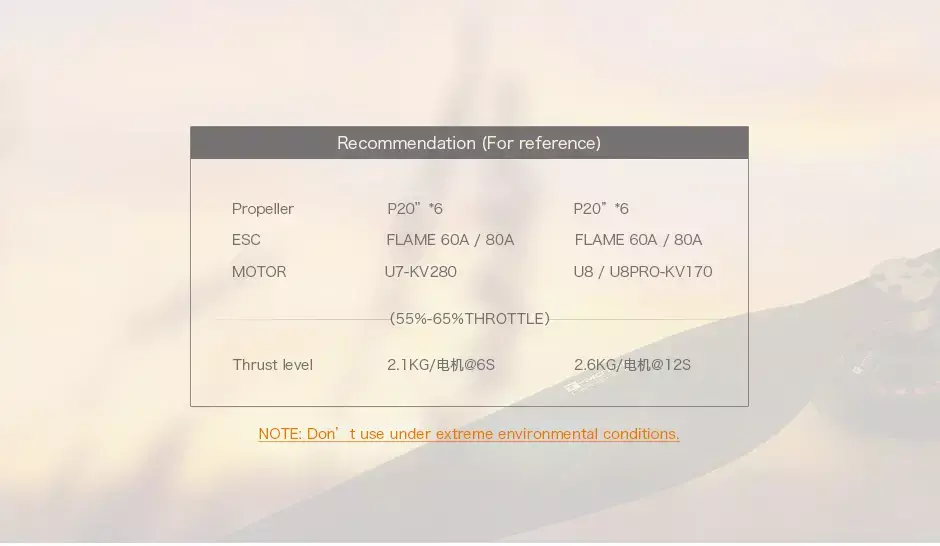

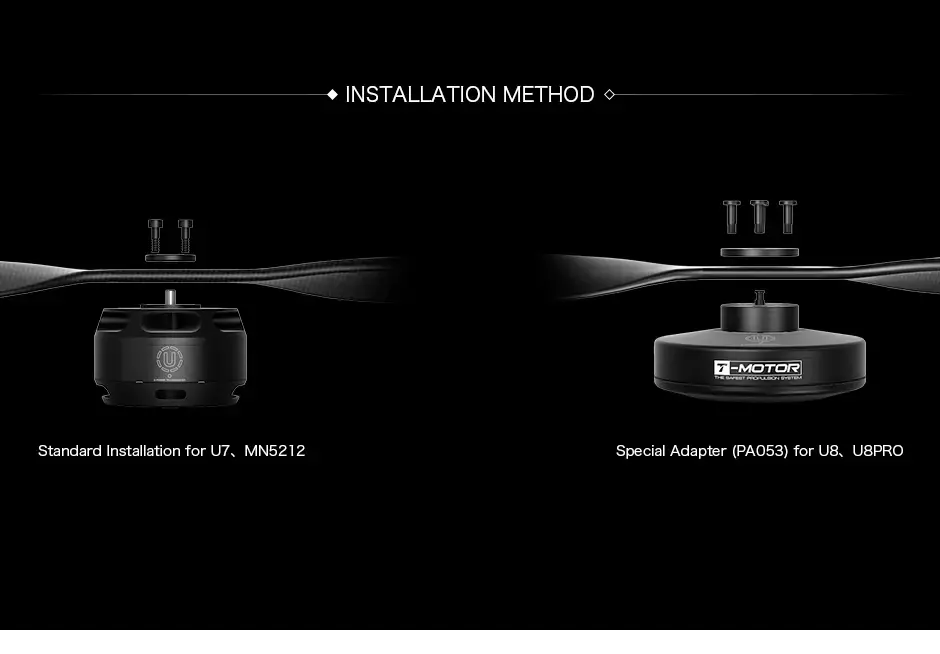

Ans. This propeller is compatible with T-Motor U7, MN5212, U8, and U8 Pro motors, using either standard installation or the appropriate adapter. Always ensure motor thrust ratings and RPM limits align with the propeller specifications.
Q3. Is documentation required before purchasing or operating this propeller?
Ans. As this is a restricted drone component, buyers must provide valid end-use documentation, identity proof, and applicable drone manufacturing or operation licenses. Orders without proper documentation may not be processed, and details may be shared with authorities if required.
