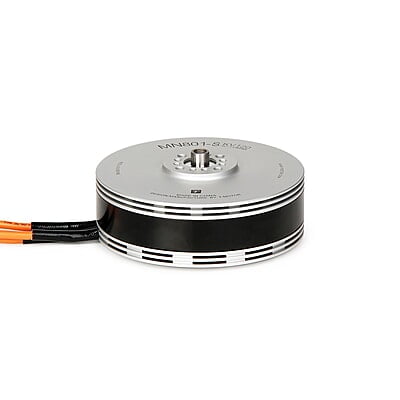

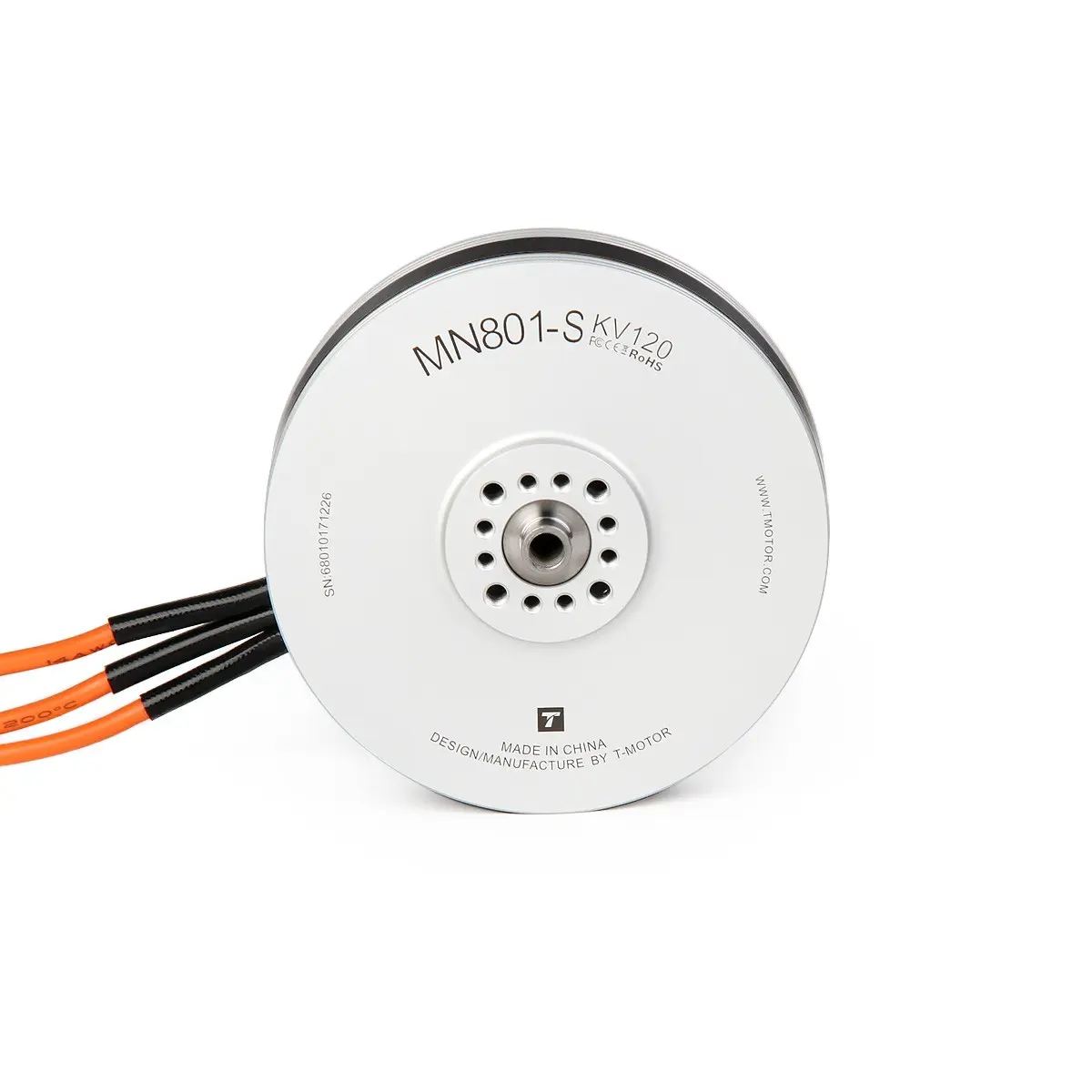

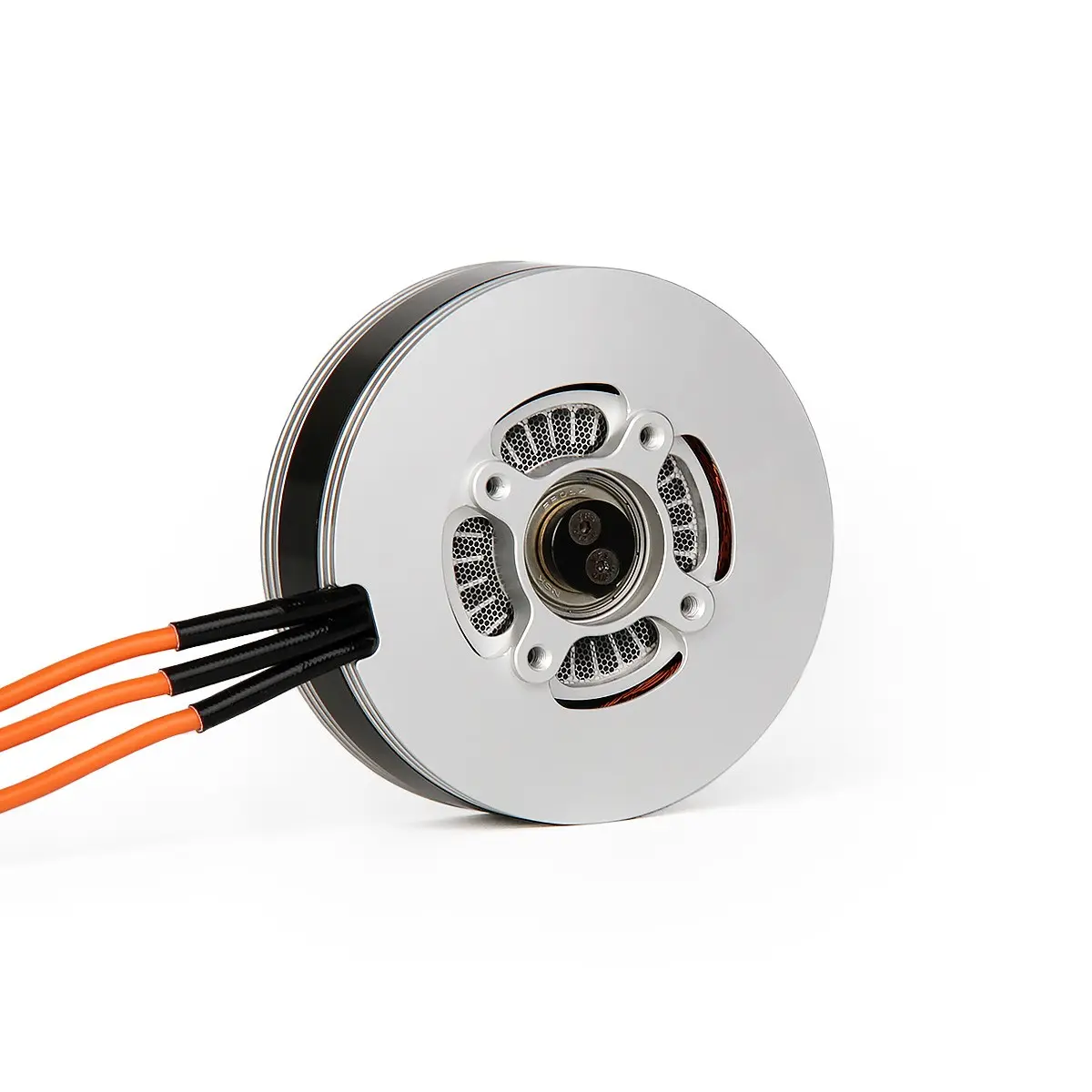

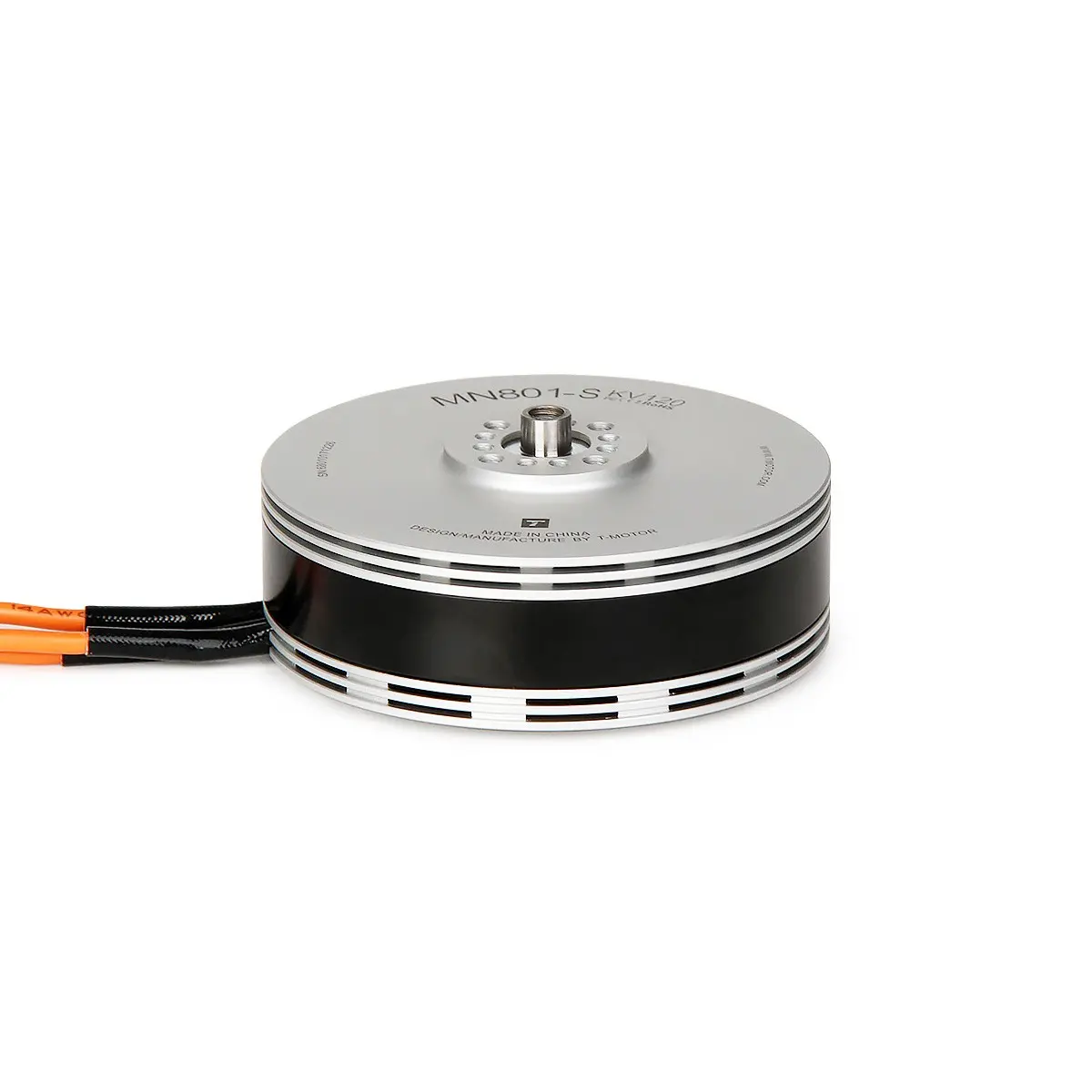

T-Motor MN801-S 120KV
Non-returnable
₹27,999.00
The T-Motor MN801-S 120KV is a heavy-load brushless motor designed for professional multirotor, VTOL, and fixed-wing UAVs. With a maximum thrust of 12kg and IP45 dust/water/anti-corrosion protection, it ensures reliable and stable performance for demanding tasks like aerial photography, mapping, and cargo delivery. Its advanced cooling guarantees long service life.
Choose Quantity
Product Details
Features:
- Heavy load motor, born for VTOL.
- Long service life (MTBF about 1000 hours).
- Excellent centrifugal cooling performance (15% enhanced).
- Anti-high temperature/Anti-overload protection.
- IP45 dust-resistance, waterproof, and anti-corrosion.
- Semi-closed design protects from debris.
- Special alloy shaft, custom bearing.
- Varnished wires, silicon steel sheet, magnet, and bell treated with anti-rust/anti-corrosion technology.
- T-shape shaft secured with circlip and screw for safety.
- Large 12mm steel shaft and 24mm big bearings for impact resistance.
Technical Specifications:
- Motor Size: Φ89*39.4mm
- Copper Wire: 220°C high temperature resistance: Level C
- Stator: Imported silicon steel sheet; Anti-rust treatment; 150°C high temperature-resisting coatings
- Coil Insulation Test: 500V
- Configuration: 24N28P
- Centrifugal Cooling Design: YES
- Shaft Diameter: IN: 12mm, OUT: 8mm
- Rotor Dynamic Balance Standard: ≤5Mg
- Bearing: Imported 6901ZZ
- Motor Dynamic Balance Standard: ≤10Mg
- Magnet Level: 180°C high temperature resistance
- IP: IP45
- Lead Cable: 14AWG*150mm
- KV: 120
- Rated Voltage (Lipo): 6-12S
- Idle Current(18V): 1.1A
- ESC Recommendation: FLAME 60A 12S
- Peak Current(180s): 45A
- Propeller Recommendation: 28-29"
- Max.Power(180s): 2200W
- Motor Weight (incl. Cable): 470g
- Internal Resistance: 80mΩ
- Package Weight: 600g
Additional Details:
- Manufacturer: T-Motor
- Brand: T-Motor
- Generic Name: UAV Motor || Drone Motor || Brushless Motor || Multirotor Motor || Professional Drone Motor || Heavy-Lift Motor || Waterproof Motor || Electric Motor || Outrunner Motor || Industrial Drone Motor
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: Heavy-Load Multirotors (e.g., 20-30kg takeoff weight drones) || VTOL Aircraft || Fixed-Wing UAVs || Professional Aerial Photography Drones || Mapping & Surveying UAVs || Cargo Drones || Tethered Drones || Inspection Drones || Surveillance Drones || Custom Industrial UAV Builds || Commercial Drone Applications || All-Weather Drone Operations.
Package Details:

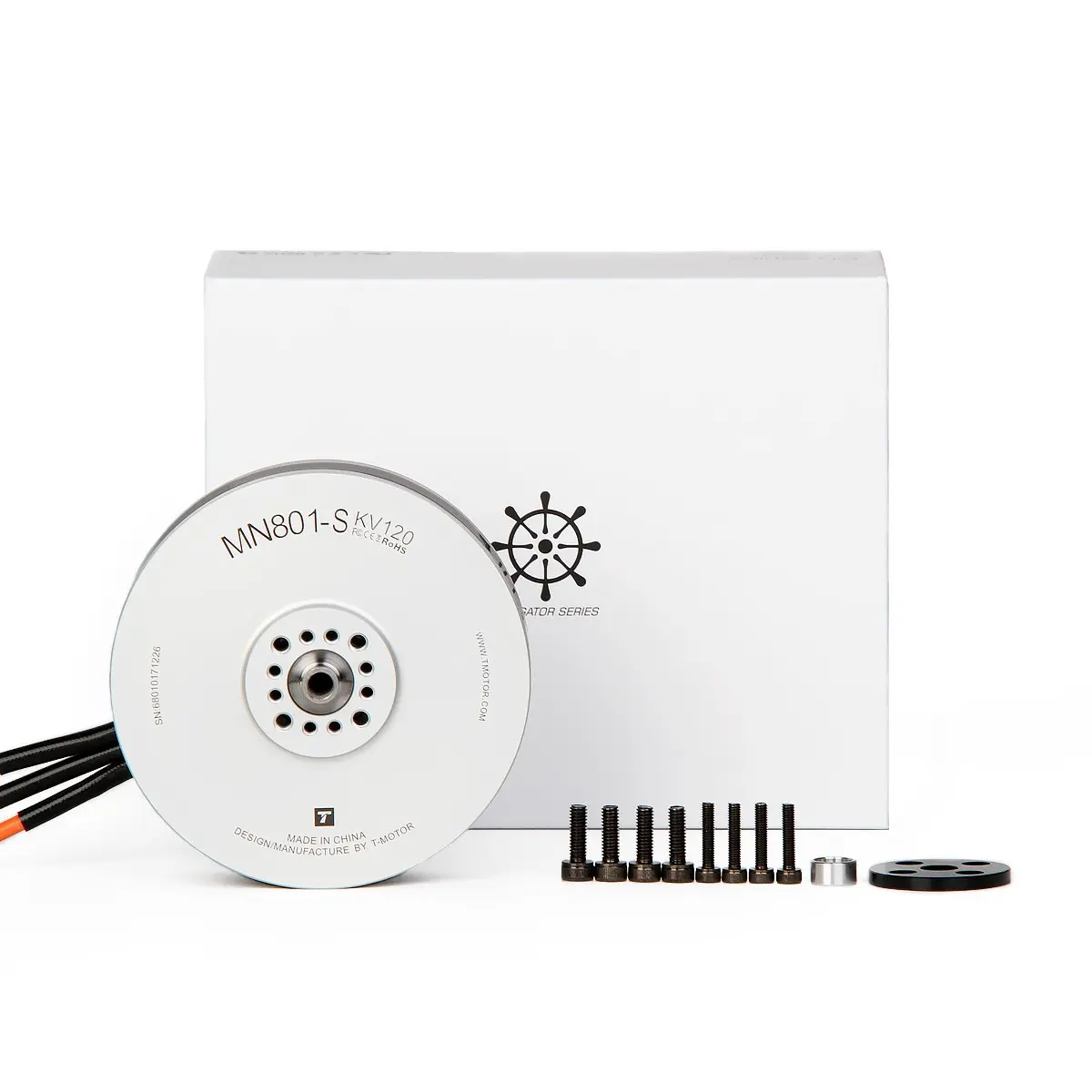

Includes:
- 1 x T-Motor MN801-S 120KV Brushless Motor
- 1 x Hardware pack (typically includes propeller adapter/nut and mounting screws)
Frequently Asked Questions:
Q1. What battery voltage range is recommended for the T-Motor MN801-S 120KV motor?
Ans. This motor is designed for high-voltage systems, operating optimally with 6-12S LiPo batteries, providing significant power and flexibility for heavy-load UAV applications.
Q2. What level of environmental protection does the T-Motor MN801-S 120KV motor offer for outdoor operations?
Ans. The MN801-S features an IP45 rating, meaning it is dust-resistant, waterproof against splashes, and has anti-corrosion treatment, ensuring high reliability in harsh outdoor and variable weather conditions.
Q3. What is the maximum thrust capability of the T-Motor MN801-S 120KV motor?
Ans. This motor can deliver an impressive maximum thrust of up to 12kg (12000g), making it highly suitable for heavy-payload multirotor, VTOL, and fixed-wing UAVs.
