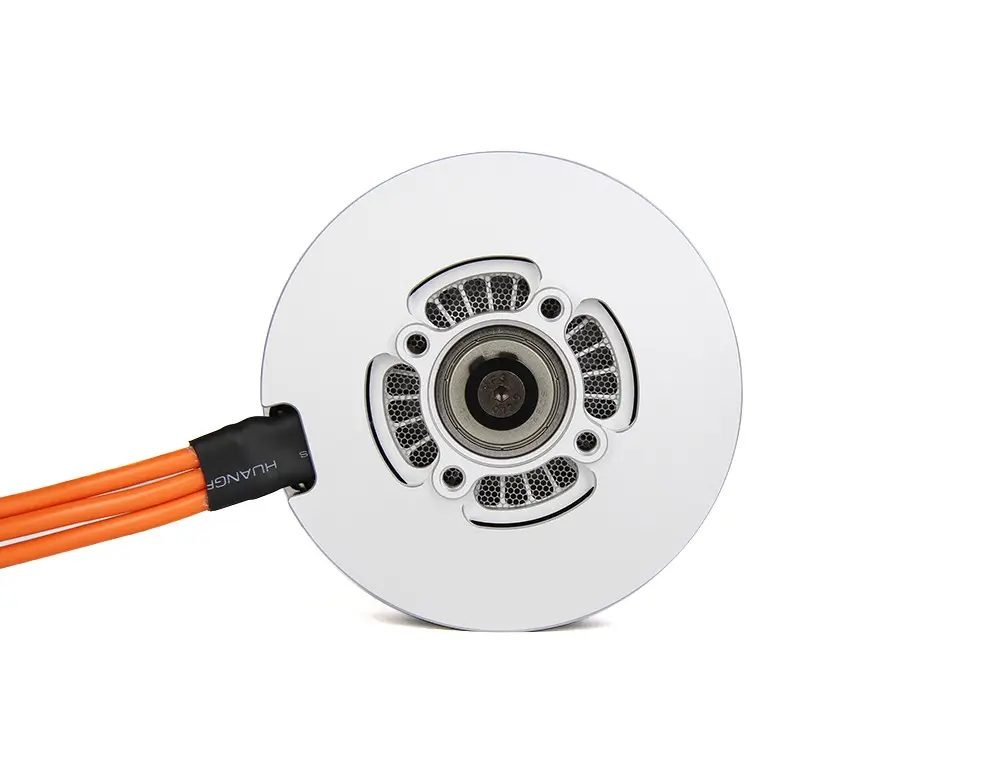

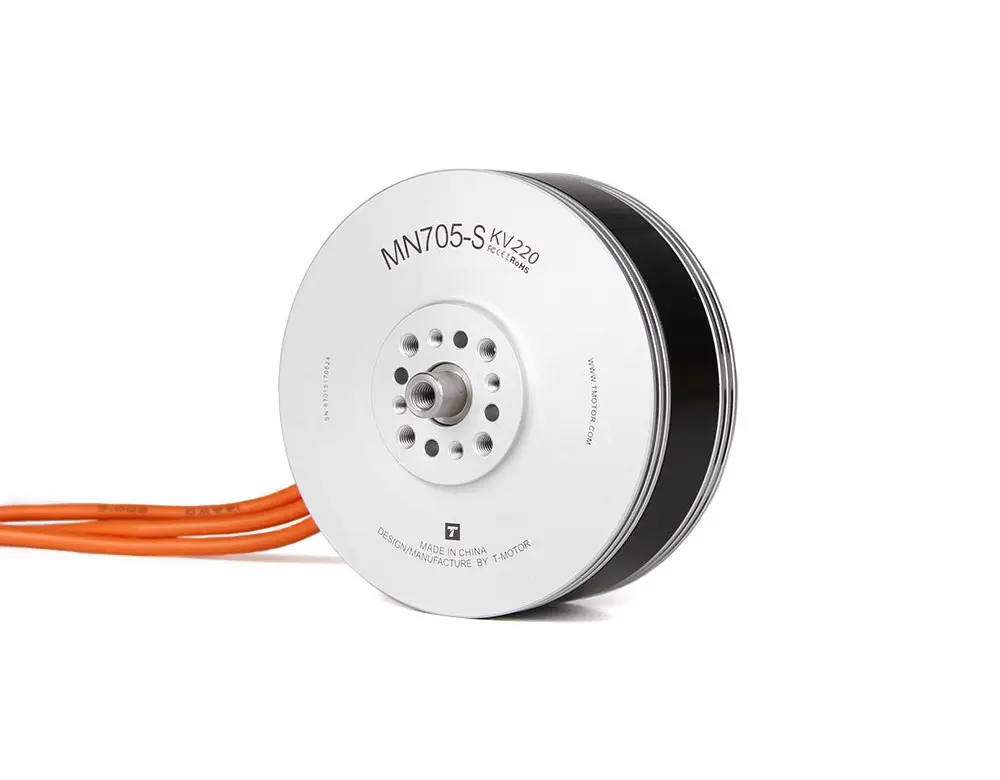

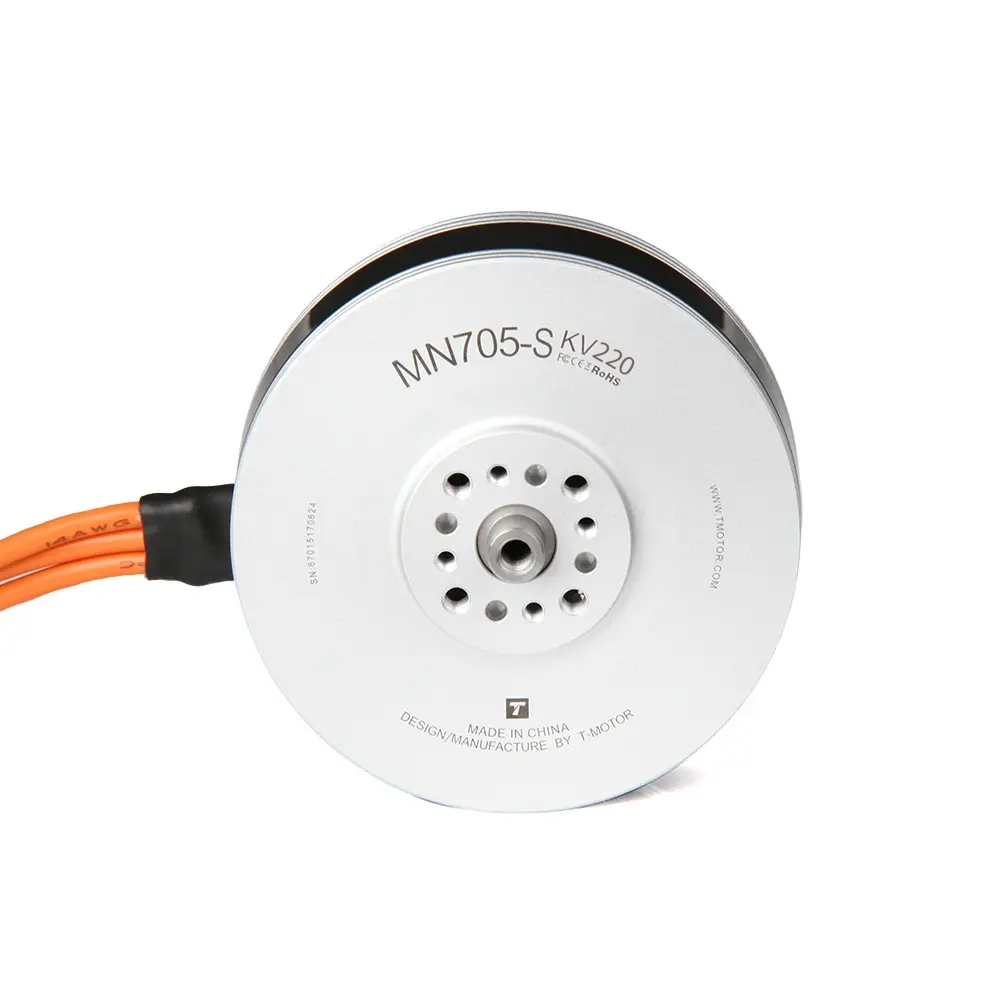

T-Motor MN705-S 220KV 2pcs/set
Non-returnable
₹51,499.00
The T-Motor MN705-S 220KV is a pair of high-performance brushless motors designed for professional and industrial UAVs.With an IP45 rating for dust and water resistance, optimized cooling, and high-temperature components, these motors deliver strong, reliable power and exceptional efficiency for demanding applications like aerial mapping, photography, and heavy-lift cargo transport.They ensure long service life and stable operation under challenging conditions.
Choose Quantity
Product Details
Features:
- Strong power, long service life

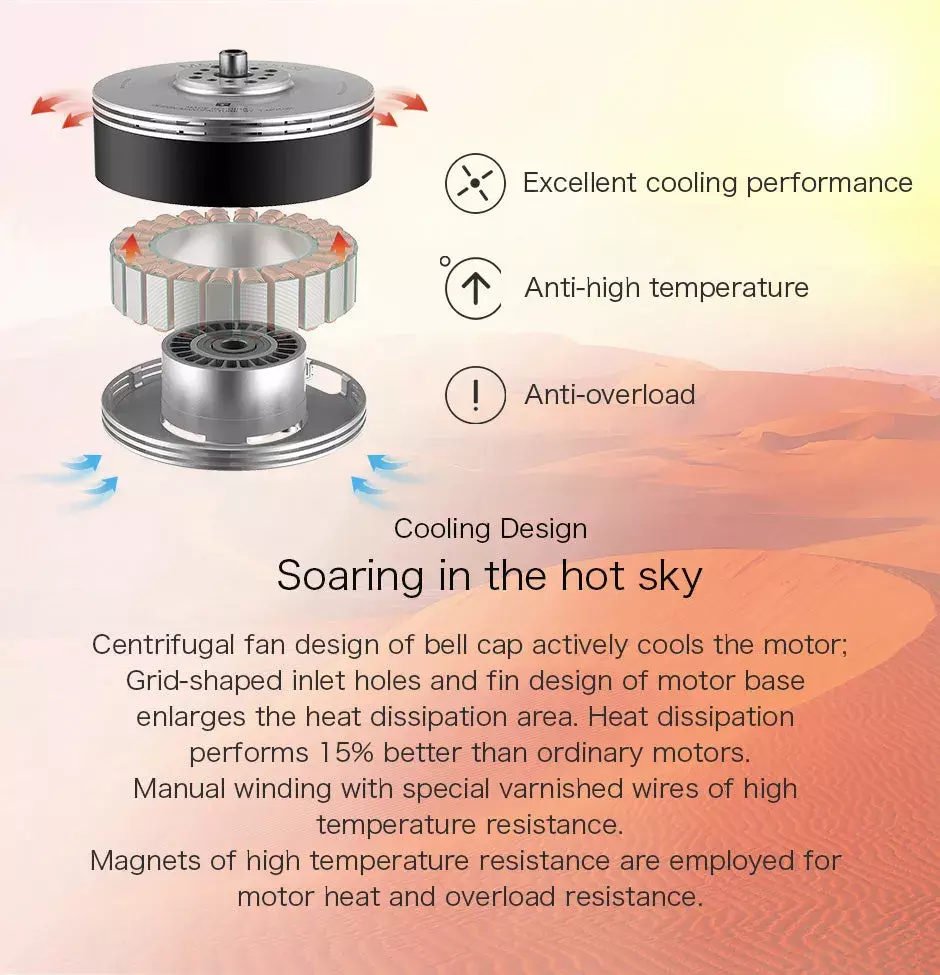

- Excellent cooling performance
- Anti-high temperature/Anti-overload
- Dust-resistance/Waterproof/Anti-corrosion

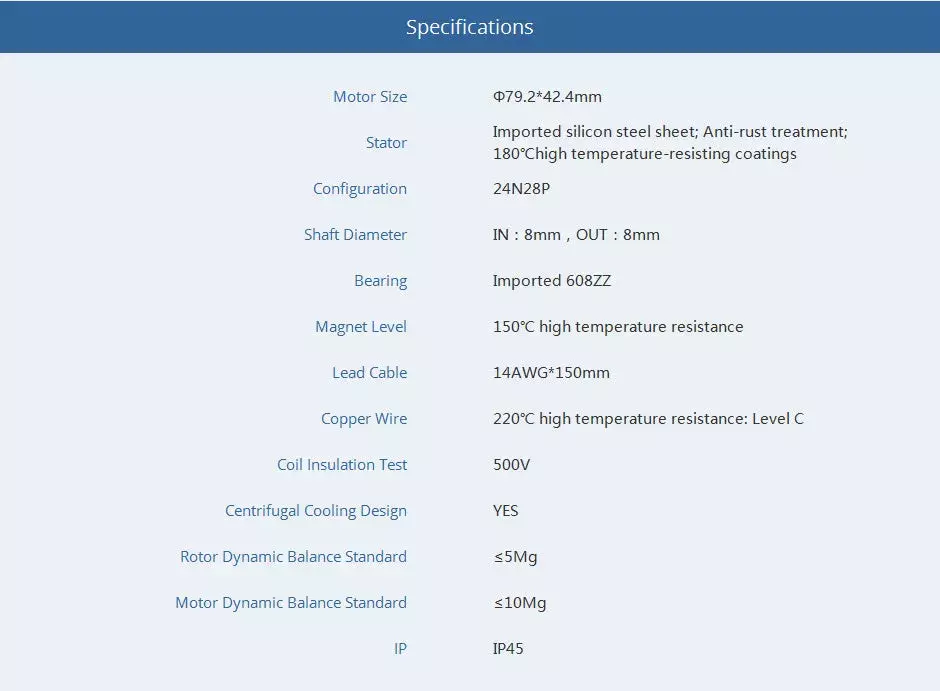

Technical Specification:
- ModelT-Motor MN705-S
- KV Rating220KV
- Voltage6S – 12S (LiPo)
- Max Thrust6.5kg (per motor)
- Idle Current0.4A @ 10V
- Weight230g (approx.)
- Mounting PatternStandard X-configuration
- Shaft Diameter4mm
- BearingsJapanese NMB for long lifespan
- Cooling SystemOptimized cooling design
- EfficiencyHigh efficiency with reduced power loss
Additional Details
- Manufacturer: T-Motor (Taizhou Tiger Power Technology Co., Ltd.)
- Brand: T-Motor
- Generic Name: Brushless Motor, UAV Motor, Drone Motor, Multirotor Motor
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: Professional Heavy-Lift Drones, Industrial UAVs, Aerial Photography Platforms, Mapping Drones, VTOL (Vertical Take-Off and Landing) Aircraft, Long-Endurance Missions.

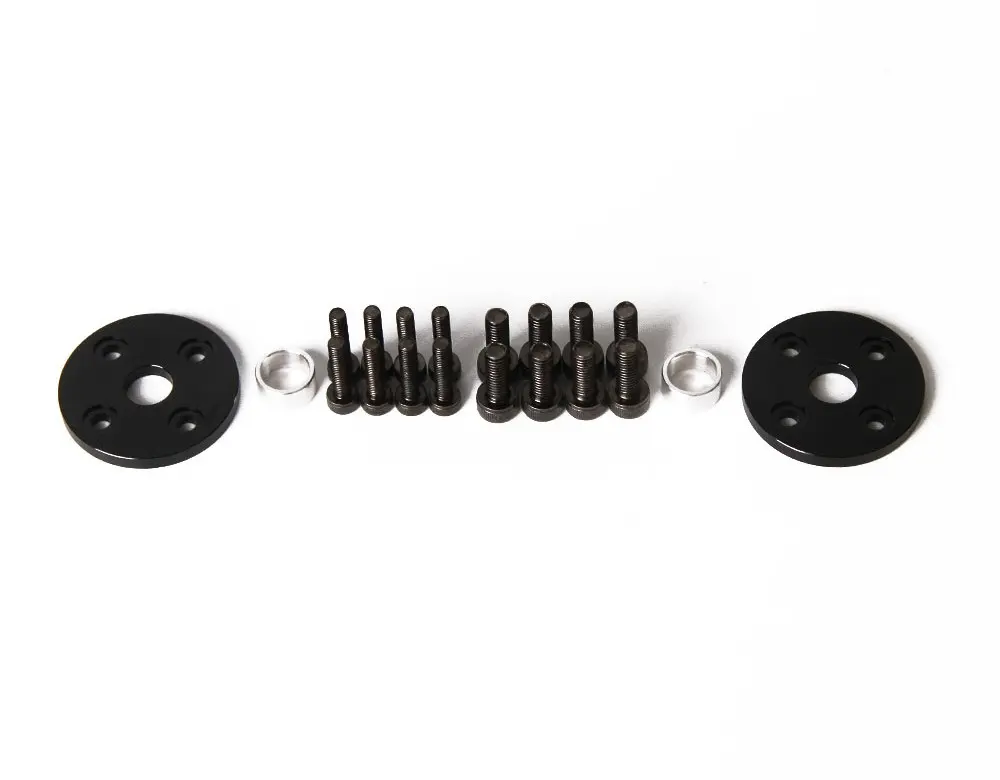

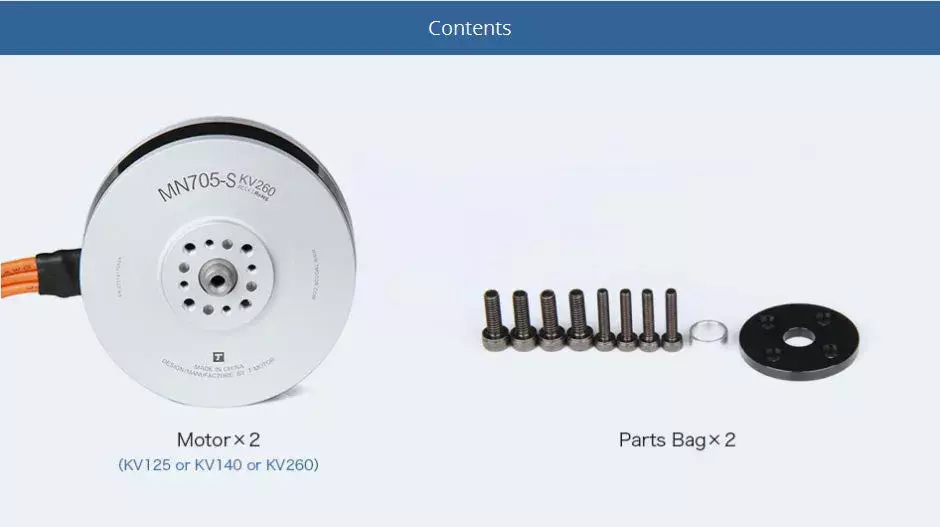

Package Details
- Includes
- 1 * T-Motor MN705-S 220KV Motors
Frequently Asked Questions
Q1: What battery voltage range does the MN705-S 220KV motor support?
ANS: This motor is compatible with a wide range — specifically 6S to 12S LiPo battery configurations, allowing flexibility for various drone builds and mission requirements.
Q2. What propeller sizes are recommended for optimal performance?
ANS: For the best results in terms of thrust and efficiency, it is generally recommended to pair this motor with 18–24 inch propellers.
Q3. Does the motor require an external Electronic Speed Controller (ESC)?
ANS: Yes. The MN705-S is a standalone motor and requires a suitable Electronic Speed Controller (ESC), such as one from the T-Motor Flame series, for proper operation.
