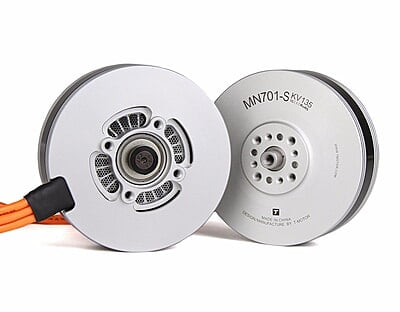

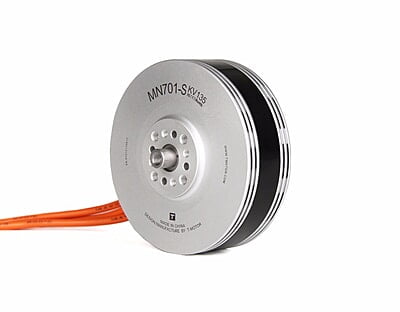

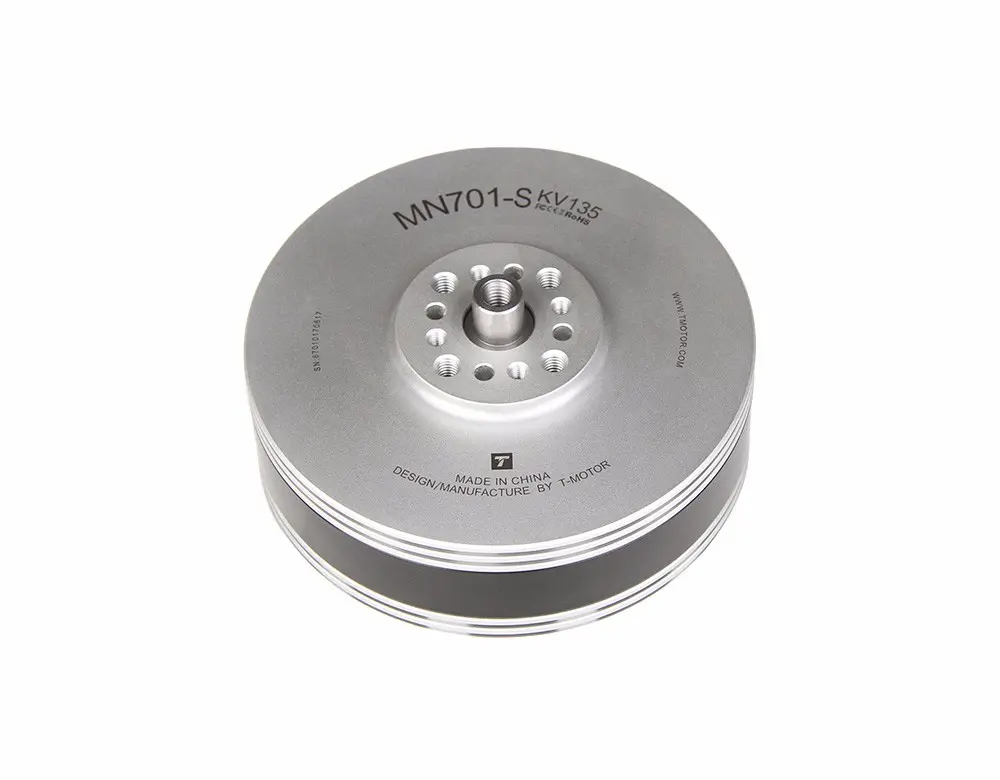

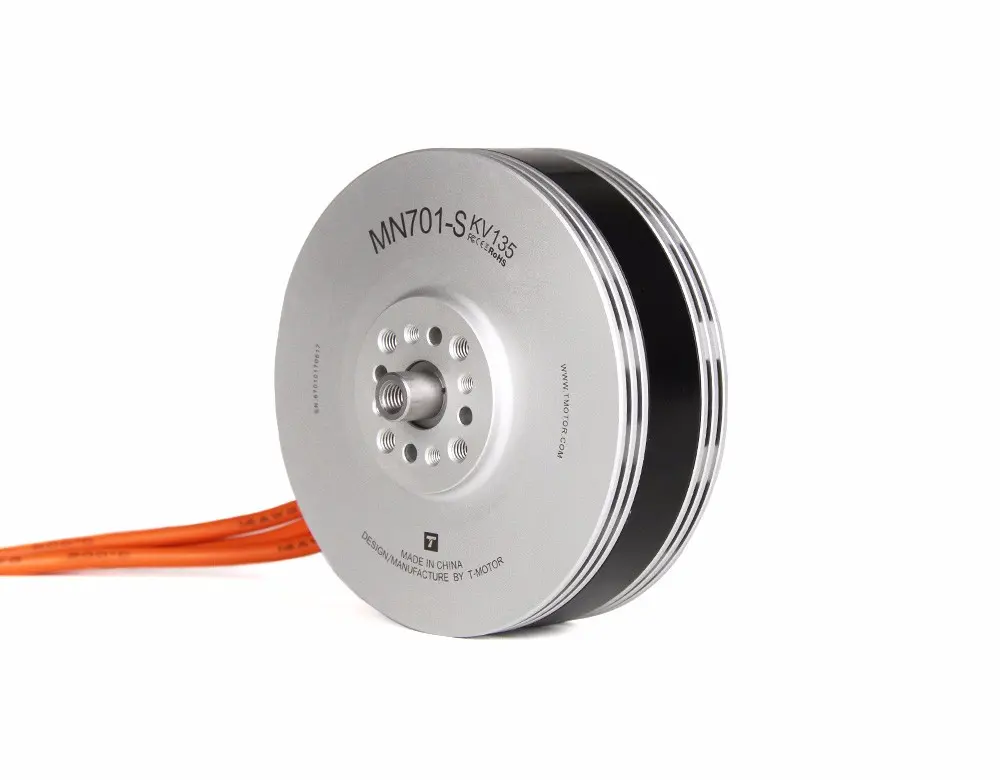

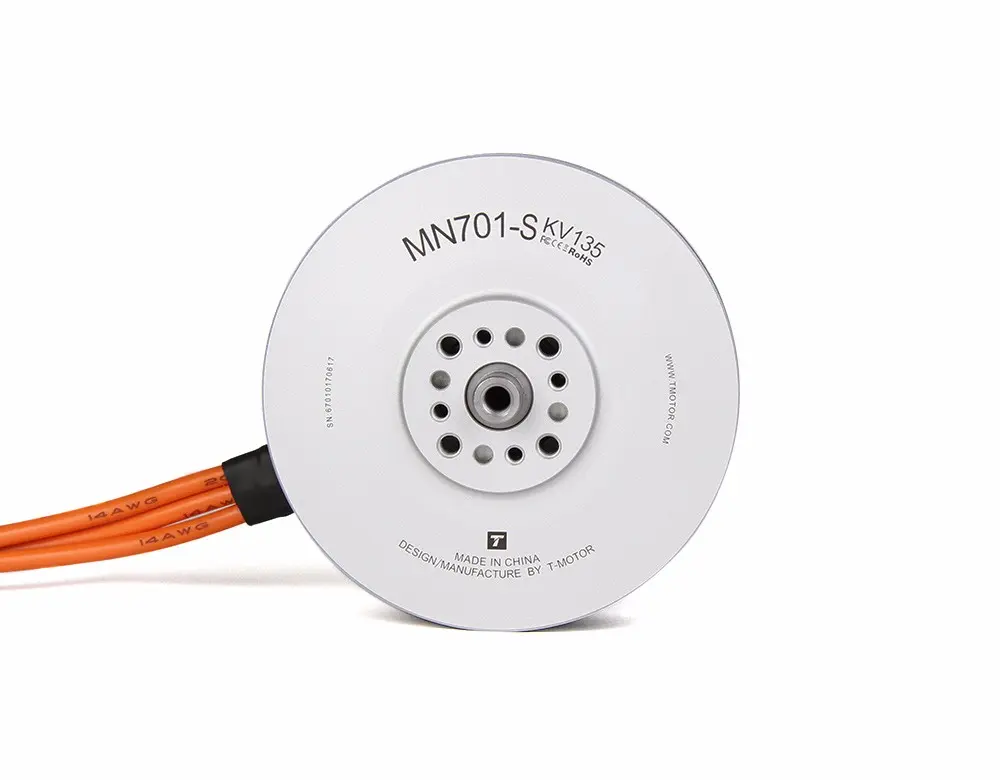

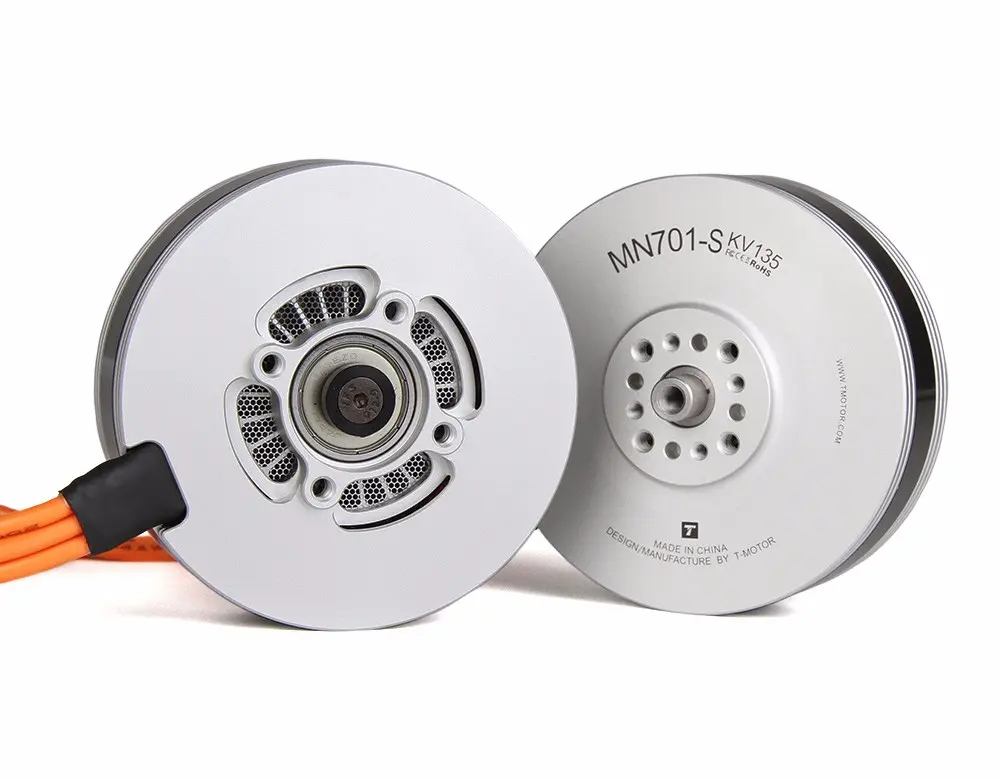

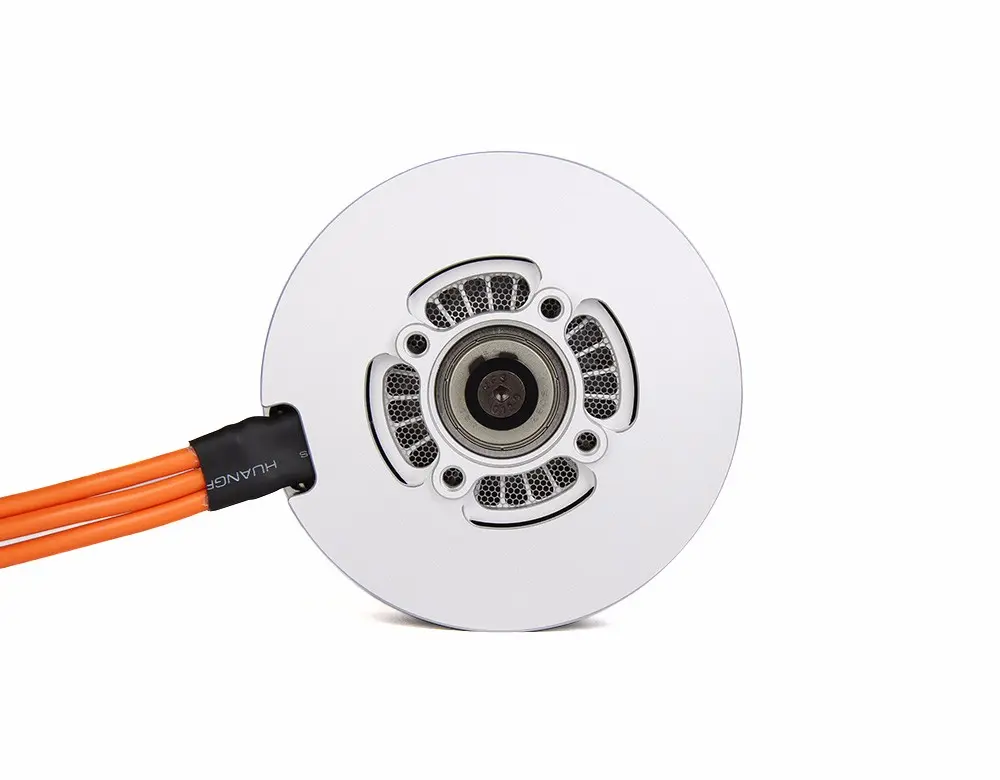

T-Motor MN701-S 135KV 2pcs/Set
Non-returnable
₹49,999.00
This 2-piece set of T-Motor MN701-S 135KV motors provides immense thrust (up to 9.7kg/motor) and long service life for heavy-lift multirotor UAVs. Featuring IP45 dust/water/anti-corrosion protection and advanced cooling, they ensure stable and reliable operation in demanding environments. Ideal for industrial drones, mapping, and surveillance, offering exceptional performance and durability.
Choose Quantity
Product Details
Features:
- Set of 2 professional-grade motors.
- Immense max thrust of 9.7kg per motor.
- Optimized for heavy-lift and long endurance.
- IP45 dust-resistance, waterproof, and anti-corrosion.
- Excellent centrifugal cooling design.
- Anti-high temperature/Anti-overload capability.
- Robust 8mm steel shaft for impact resistance.
- High-quality imported EZO bearings for stability.
- High-temperature resistant copper windings (220°C).
- Semi-enclosed design for debris protection.
Technical Specifications:
- Motor Size: Φ79.2*37.4mm
- Copper Wire: 220°C high temperature resistance: Level C
- Stator: Imported silicon steel sheet; Anti-rust treatment; 180°C high temperature-resisting coatings
- Coil Insulation Test: 500V
- Configuration: 24N28P
- Centrifugal Cooling Design: YES
- Shaft Diameter: IN: 8mm, OUT: 8mm
- Rotor Dynamic Balance Standard: ≤5Mg
- Bearing: Imported 608ZZ
- Motor Dynamic Balance Standard: ≤10Mg
- Magnet Level: 150°C high temperature resistance
- IP: IP45
- Lead Cable: 14AWG*150mm
- KV: 135
- Rated Voltage (Lipo): 6-12S
- Idle Current(20V): 0.9A
- ESC Recommendation: FLAME 60A 12S, FLAME 80A 12S V2.0
- Peak Current(180s): 42A
- Propeller Recommendation: 24-26"
- Max.Power(180s): 1900W
- Motor Weight (incl. Cable): 350g
- Internal Resistance: 94mΩ
- Package Weight: 1050g(2PCS/SET)
Additional Details:
- Manufacturer: T-Motor
- Brand: T-Motor
- Generic Name: UAV Motor || Drone Motor || Brushless Motor || Multirotor Motor || Professional Drone Motor || Long Endurance Motor || Waterproof Motor || Electric Motor || Outrunner Motor || Heavy-Lift Motor || Industrial Drone Motor
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: Heavy-Lift Multirotors || Professional Aerial Photography Drones || Mapping & Surveying UAVs || Cargo Drones || Tethered Drones || Inspection Drones || Surveillance Drones || Custom Industrial UAV Builds || Commercial Drone Applications || All-Weather Drone Operations || Extreme Endurance Flights || Large Fixed-Wing UAVs (specific VTOL applications)
Package Details:
Includes:
- 2 x T-Motor MN701-S 135KV Brushless Motors
- 2 x Sets of Mounting Screws
Frequently Asked Questions:
Q1. What battery voltage range is recommended for the T-Motor MN701-S 135KV motors?
Ans. These motors are designed for high-voltage systems, operating optimally with 6-12S LiPo batteries, providing significant power and flexibility for heavy-lift and endurance UAV applications.
Q2. What level of environmental protection do these motors offer for outdoor drone operations?
Ans. The MN701-S motors feature an IP45 rating, meaning they are dust-resistant, waterproof against splashes, and have anti-corrosion treatment, ensuring high reliability in harsh outdoor and variable weather conditions.
Q3. What is the maximum thrust capability of each T-Motor MN701-S 135KV motor?
Ans. Each motor can deliver an impressive maximum thrust of up to 9.7kg (9700g) when paired with large propellers like 24-26 inches on a 12S LiPo setup, making them suitable for very heavy-duty drone applications
