T-Motor MN605-S 170KV 2pcs/Set
T-Motor MN605-S 170KV 2pcs/Set
T-Motor MN605-S 170KV 2pcs/Set
T-Motor MN605-S 170KV 2pcs/Set
T-Motor MN605-S 170KV 2pcs/Set
T-Motor MN605-S 170KV 2pcs/Set

T-Motor MN605-S 170KV 2pcs/Set

Non-returnable
₹29,199.00

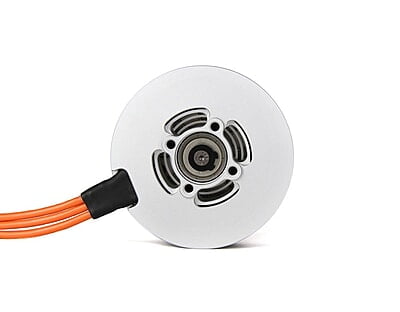

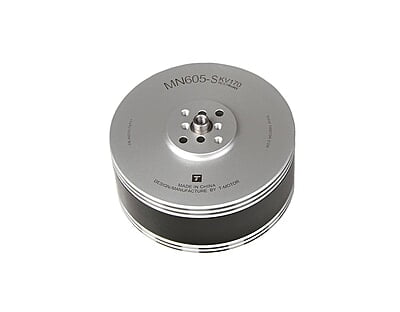

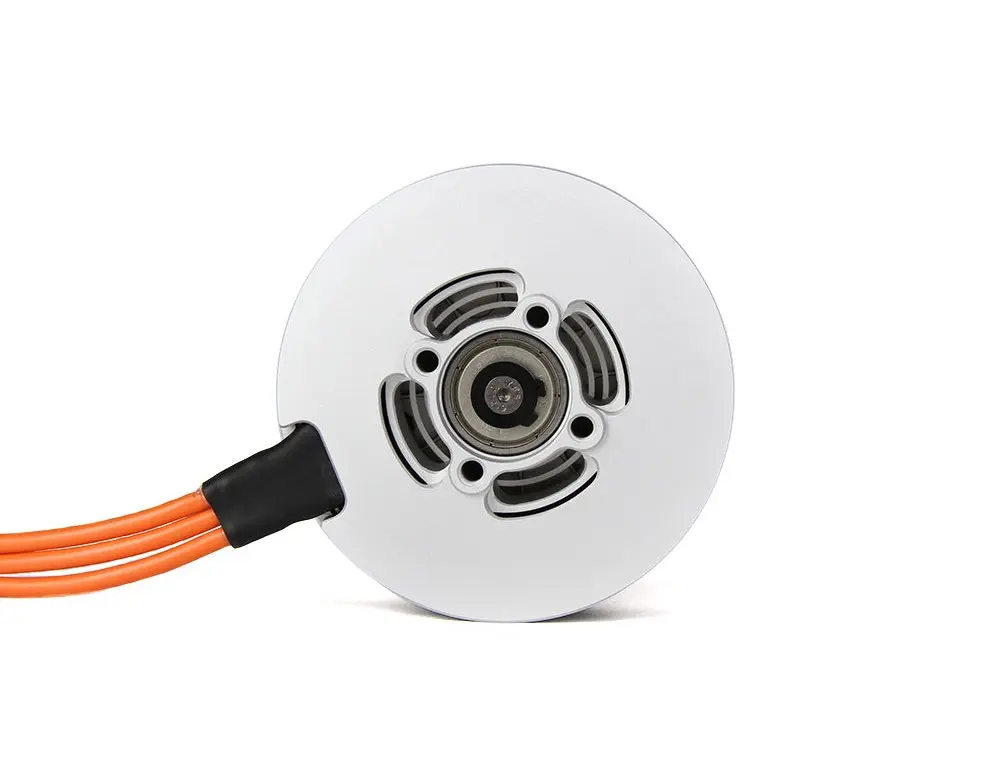

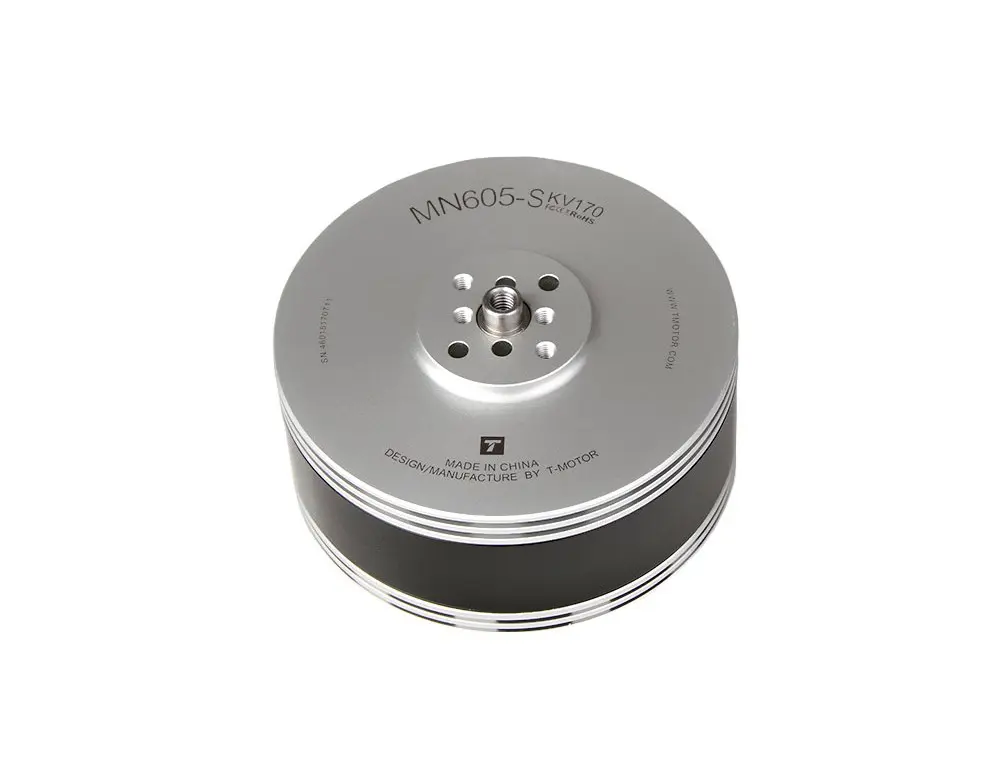

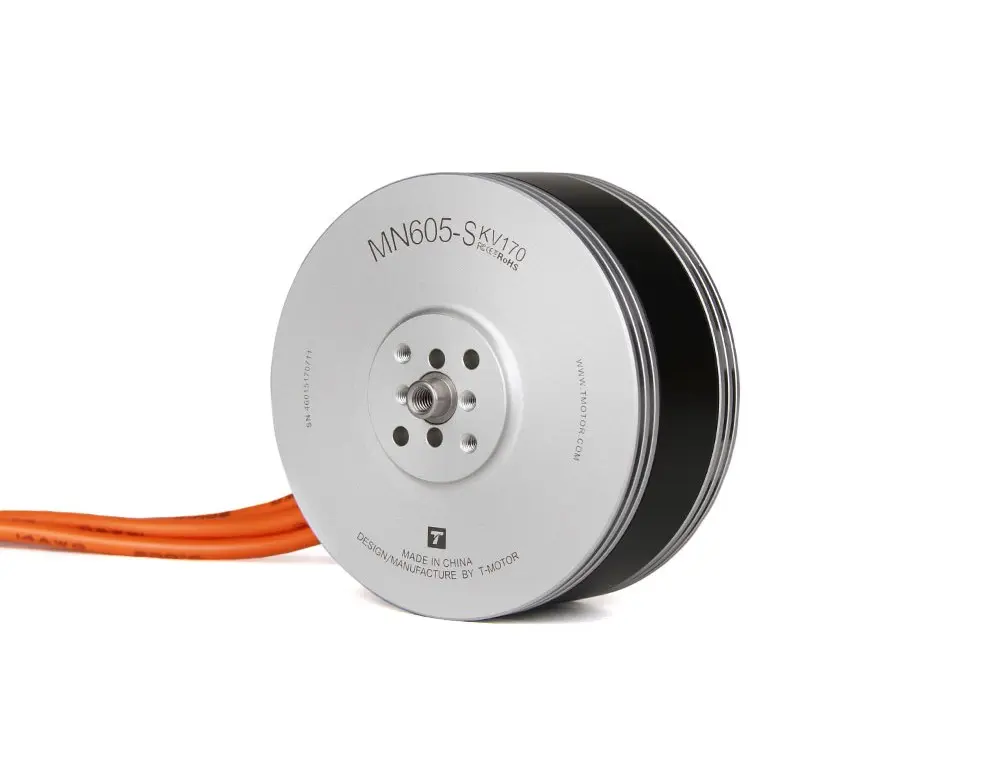

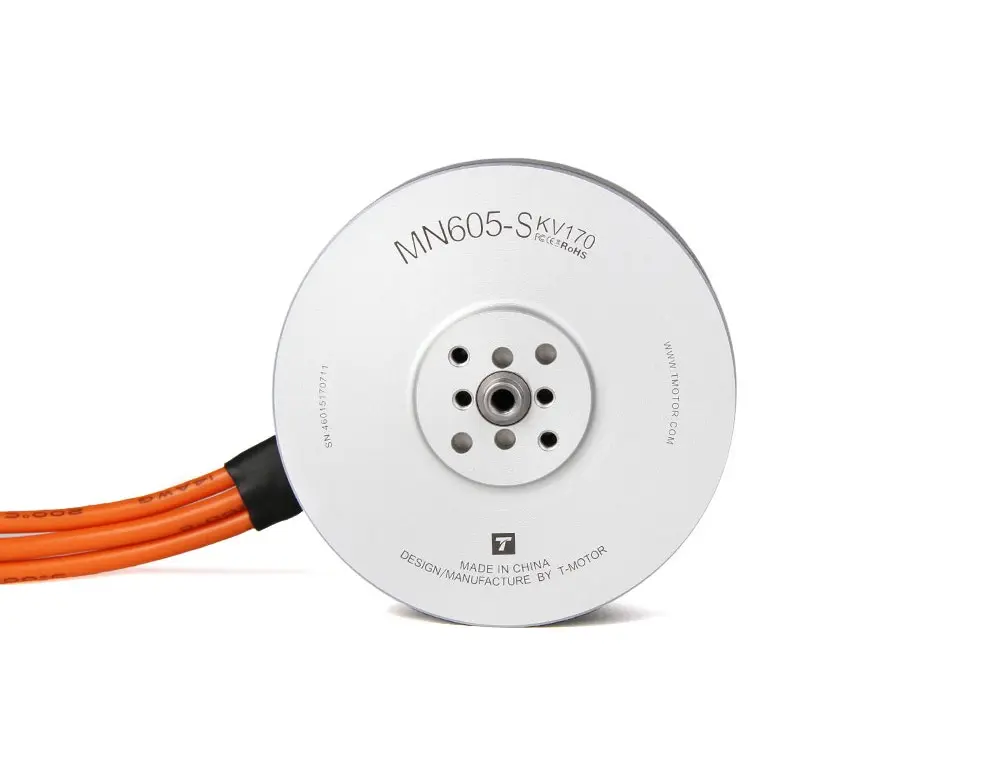

This set contains two T-Motor MN605-S 170KV motors, designed for professional UAVs. They feature strong power, long service life, and excellent cooling. With dust/water/corrosion resistance, they ensure reliable performance in demanding conditions. Ideal for aerial photography, monitoring, and various multirotor applications.
Choose Quantity
+ Add to Cart
Product Details
Features:

  • Set of 2 high-performance motors.
  • Strong power, long service life (MTBF > 1000 hours).
  • Excellent centrifugal cooling design.
  • Anti-high temperature/Anti-overload capability.
  • IP45 dust-resistance, waterproof, and anti-corrosion.
  • Fixed T-shaped shaft for extra resilience.
  • High-temperature resistant copper windings (220°C).
  • Imported Japanese NMB bearings for smooth operation.
  • Lightweight design for efficiency.
  • Optimized magnetic circuit for reliable thrust.

Technical Specifications:

  • Motor Size: Φ68.8*34.9mm
  • Copper Wire: 180°C high temperature resistance: Level H
  • Stator: Imported silicon steel sheet; Anti-rust treatment; 180°C high temperature-resisting coatings
  • Coil Insulation Test: 500V
  • Configuration: 24N28P
  • Centrifugal Cooling Design: YES
  • Shaft Diameter: IN: 6mm, OUT: 6mm
  • Rotor Dynamic Balance Standard: ≤5Mg
  • Bearing: Imported 626ZZ
  • Motor Dynamic Balance Standard: ≤10Mg
  • Magnet Level: 150°C high temperature resistance
  • IP: IP45
  • Lead Cable: 14AWG*150mm
  • KV: 170
  • Rated Voltage (Lipo): 6-12S
  • Idle Current(20V): 1A
  • ESC Recommendation: FLAME 60A 12S
  • Peak Current(180s): 35A
  • Propeller Recommendation: 20-22"
  • Max.Power(180s): 1700W
  • Motor Weight (incl. Cable): 350g
  • Internal Resistance: 65mΩ
  • Package Weight: 980g(2PCS/SET)

Additional Details:

  • Manufacturer: T-Motor
  • Brand: T-Motor
  • Generic Name: UAV Motor || Drone Motor || Brushless Motor || Multirotor Motor || Professional Drone Motor || Long Endurance Motor || Waterproof Motor || Electric Motor || Outrunner Motor || Aerial Photography Motor
  • Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
  • Ideal For: Professional Multirotors || Aerial Photography Drones || Mapping & Surveying UAVs || Monitoring Systems || Heavy-Lift Drones (up to 2kg-3kg/motor payload) || Custom Industrial UAV Builds || Commercial Drone Applications || All-Weather Drone Operations || Long-Duration Flights || High-Voltage Systems (12S)

Package Details:

Includes:
  • 2 x T-Motor MN605-S 170KV Brushless Motors

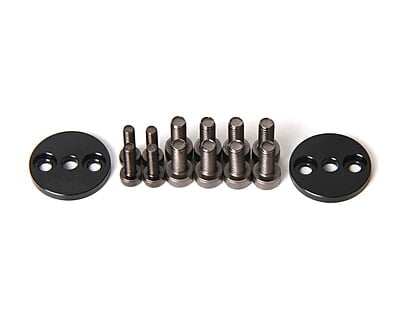

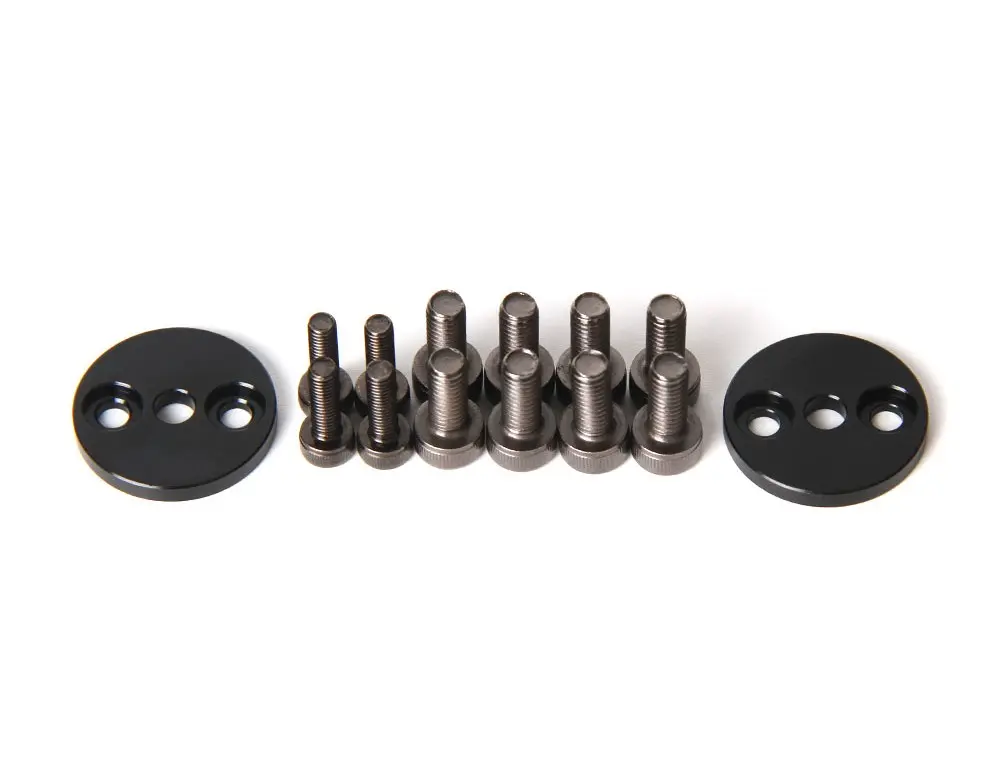

  • 2 x Sets of Mounting Screws

Frequently Asked Questions:

Q1. What battery voltage range is suitable for the T-Motor MN605-S 170KV motors?
Ans. These motors are designed for high-voltage systems, performing optimally with 6-12S LiPo batteries, providing flexibility for various heavy-lift and endurance multirotor setups.

Q2. What level of environmental protection do these motors offer?
Ans. The MN605-S motors feature an IP45 rating, meaning they are dust-resistant, waterproof against splashes, and have anti-corrosion treatment, ensuring high reliability in harsh outdoor and variable weather conditions.

Q3. What kind of thrust can I expect from each T-Motor MN605-S 170KV motor?
Ans. Each motor can provide substantial thrust, up to 8.6kg (8600g), when paired with recommended propellers like the T-Motor P22*6.6 on a 12S LiPo setup, making them suitable for heavy-lift applications.
