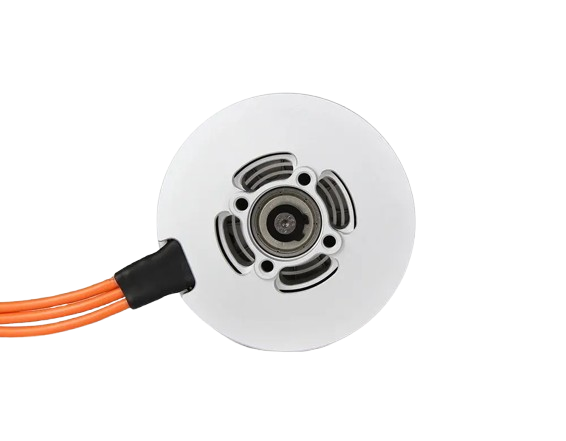

T-Motor MN601-S 320KV 2pcs/Set
Non-returnable
₹27,289.00
This 2-piece set of T-Motor MN601-S 320KV brushless motors delivers strong, agile power for professional multirotor UAVs. Featuring excellent cooling, high-temperature resistance, and IP45 water/dust protection, they are ideal for responsive aerial photography, inspection, and mapping systems. Experience reliable, efficient performance even in challenging environments.
Choose Quantity
Product Details
Features:
- Higher 320KV for agile performance.
- Strong power, long service life.

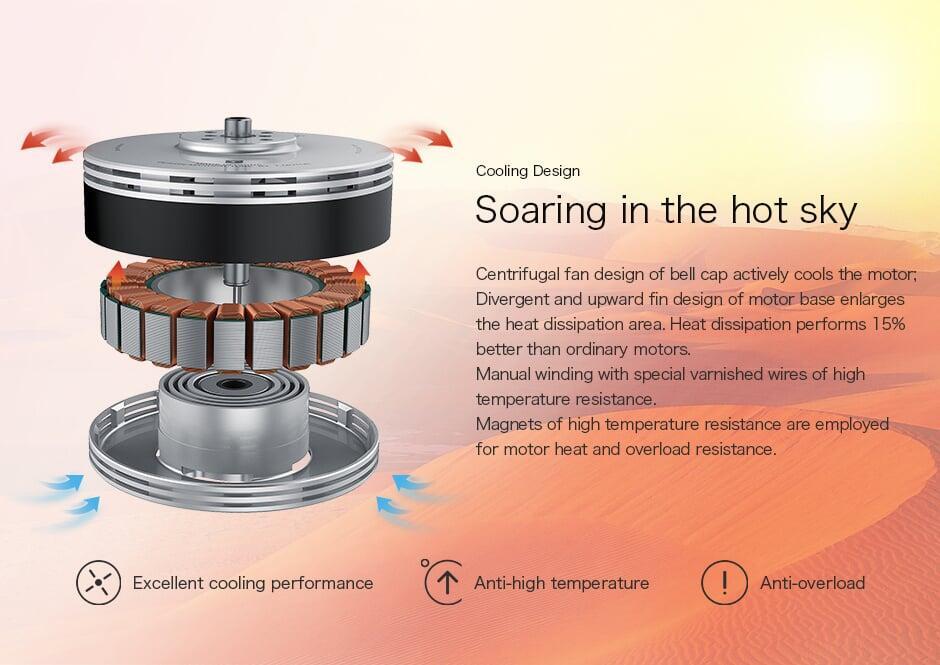

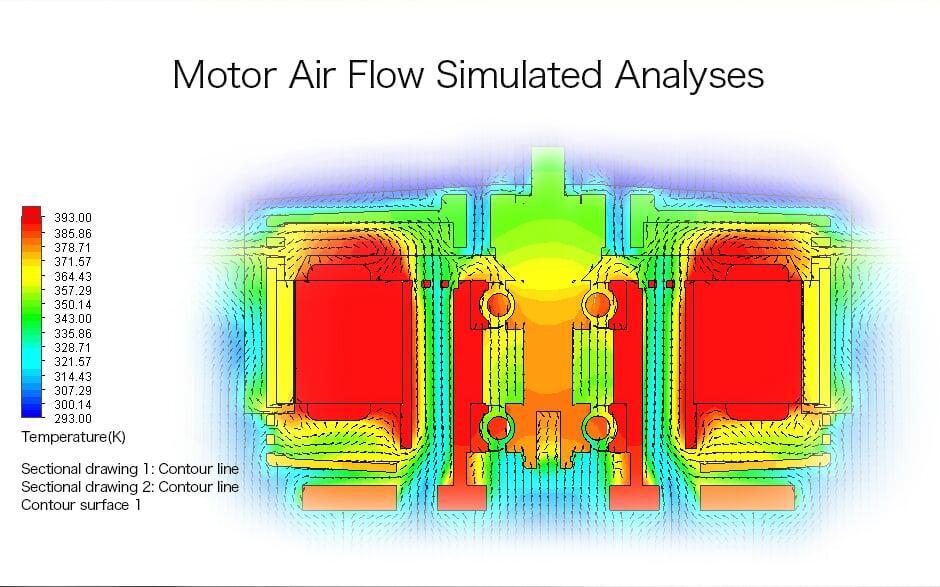

- Excellent centrifugal cooling design.
- Anti-high temperature/anti-overload.
- IP45 dust-resistance and waterproof.
- Anti-corrosion treatment for parts.
- Semi-closed bell design protects from debris.
- High-temperature resistant magnets and wires.

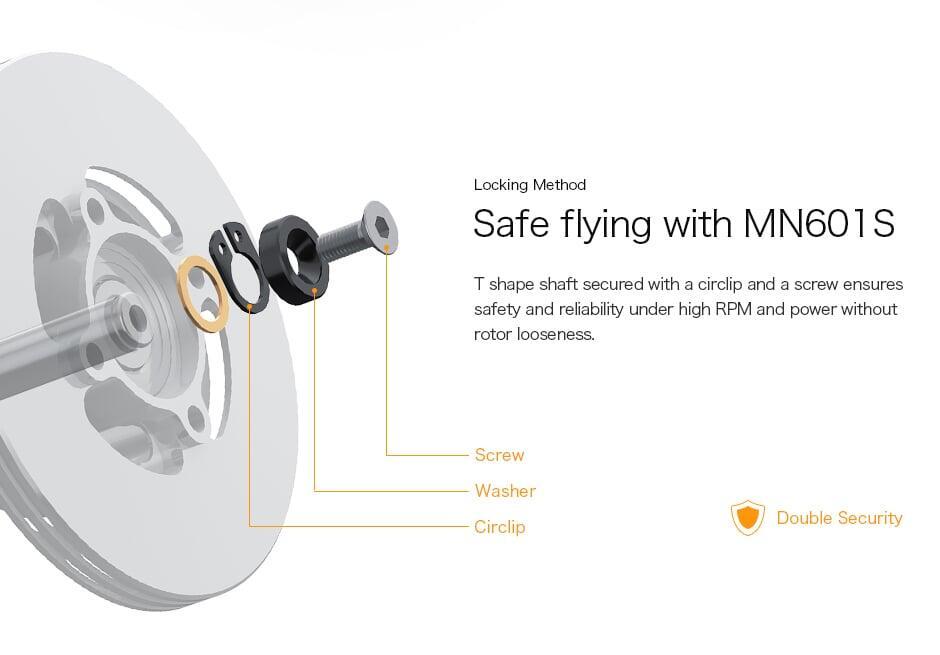

- T-shape shaft secured for reliability.
- Optimised magnetic circuit for efficiency.
Technical Specifications:
- Motor Size: Φ68.8*34.9mm
- Copper Wire: 180℃ high temperature resistance: Level H
- Stator: Imported silicon steel sheet; Anti-rust treatment;150°Chigh temperature-resisting coatings
- Coil Insulation Test: 500V
- Configuration: 24N28P
- Centrifugal Cooling Design: YES

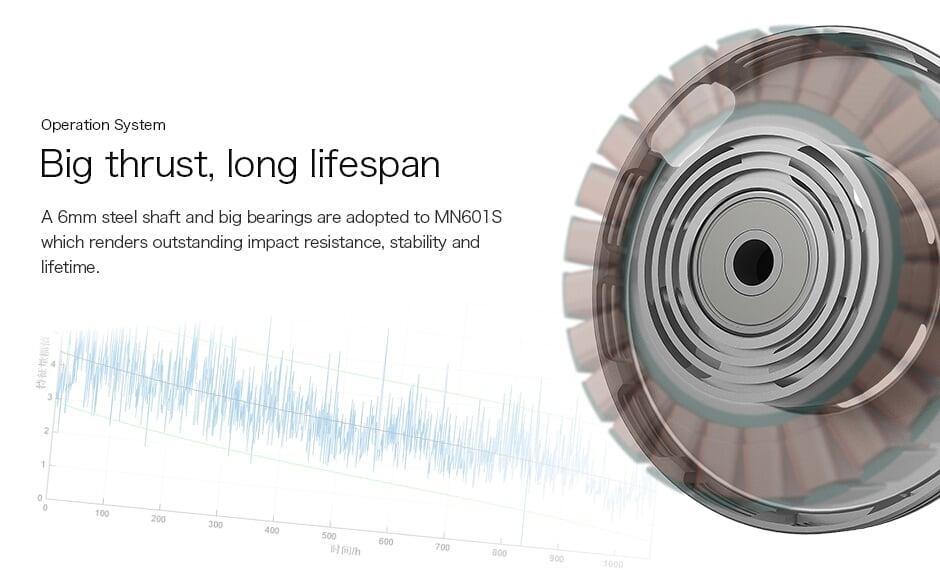

- Shaft Diameter: IN：6mm，OUT：6mm
- Rotor Dynamic Balance Standard: ≤5Mg
- Bearing: Imported 626ZZ
- Motor Dynamic Balance Standard: ≤10Mg
- Magnet Level :150℃ high temperature resistance
- IP: IP45
- Lead Cable: 16AWG*150mm
- KV: 320
- Rated Voltage ( Lipo ): 6S
- Idle Current(17V): 1.6A

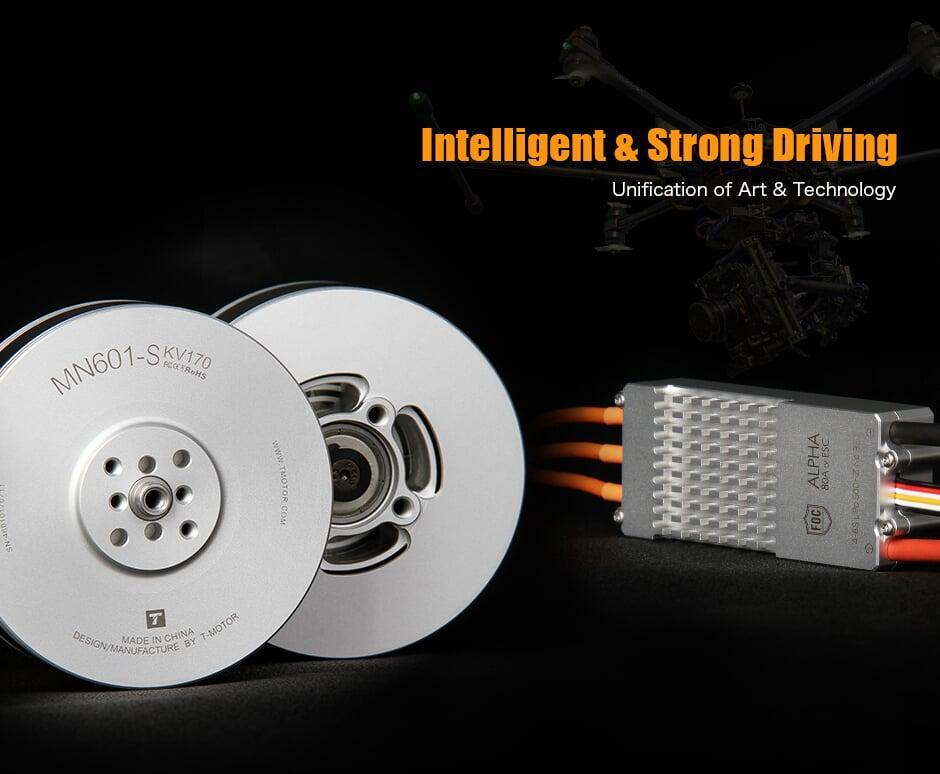

- ESC Recommendation: FLAME 70A 6S
- Peak Current(180s): 50A
- Propeller Recommendation: 20-21"
- Max.Power(180s): 1200W
- Motor Weight (indl. Cable): 246g
- Internal Resistance: 39mΩ
- Package Weight: 815g(2PCS/SET)
Additional Details:
- Manufacturer: T-Motor
- Brand: T-Motor
- Generic Name: UAV Motor || Brushless Motor || Multirotor Motor || Industrial Drone Motor || Responsive Motor || Waterproof Motor || Electric Motor || Outrunner Motor || Drone Propulsion || Aerial Photography Motor
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: Professional Multi-rotors || Agile Drones || Agricultural Drones (smaller configurations) || Mapping & Surveying UAVs || Inspection Drones || Surveillance Drones || Custom Industrial UAV Builds || Commercial Drone Applications || All-Weather Drone Operations || High-Performance Payload Drones
Package Details:
Includes:
- 2 x T-Motor MN601-S 320KV Brushless Motors

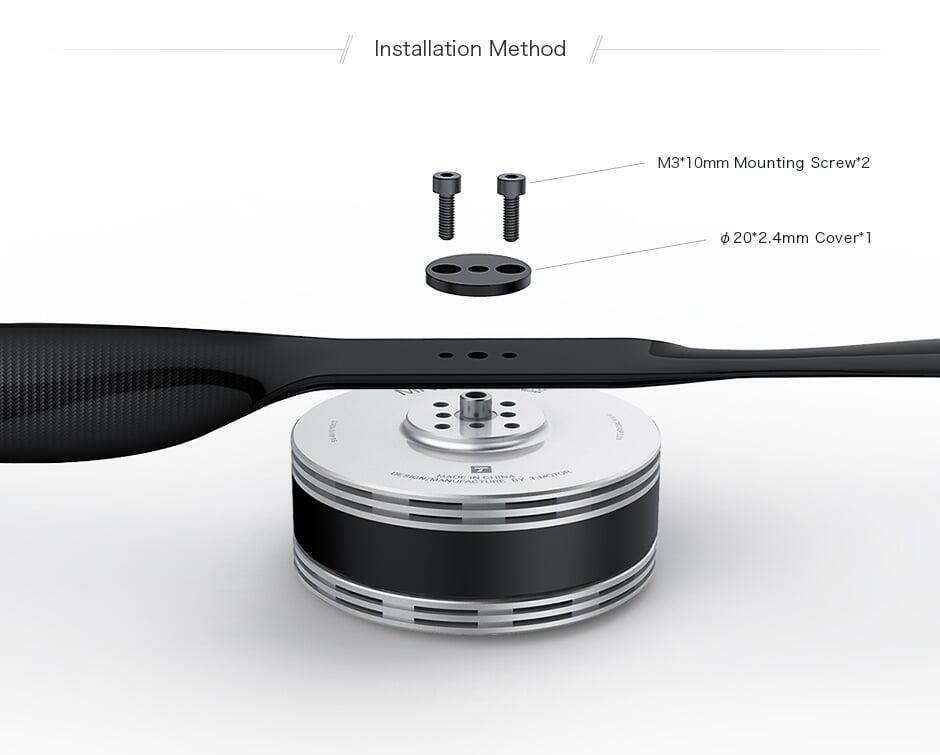

- 2 x Hardware packs
Frequently Asked Questions:
Q1. What battery voltage is suitable for the T-Motor MN601-S 320KV motors?
Ans. These motors are specifically designed for 6S LiPo batteries, providing optimal performance for their KV rating.
Q2. What is the primary difference between the 170KV and 320KV MN601-S motors?
Ans. The 320KV variant provides higher RPM for a given voltage, making it suitable for smaller propellers and more agile, responsive drone setups, compared to the 170KV which excels in long endurance with larger props.
Q3. Are these motors genuinely waterproof and dust-resistant for outdoor use?
Ans. Yes, with an IP45 rating, these motors offer significant protection against dust ingress and water splashes, making them highly reliable for outdoor and challenging weather conditions.
