T-Motor MN6007II 320KV Antigravity Motor
₹15,899.00
The T-Motor Antigravity MN6007II 320KV is an ultra-light (161g), high-efficiency brushless motor designed for professional multirotor UAVs, enabling flight times up to 50 minutes. It delivers excellent thrust (up to 5.5kg) with lower cogging torque for smooth operation. Ideal for aerial photography, surveying, and heavy-duty professional drone applications.
Choose Quantity
Product Details
Features:
- Ultra-light design, high efficiency.
- Max. thrust up to 5.5kg.
- Lower cogging torque for smooth operation.
- Flight time up to 50 minutes.
- Unique centrifugal cooling system.
- High-strength aluminum construction.
- High-quality imported materials.
- Excellent assembling workmanship.
- Great rotor dynamic balance (≤15mg).
- High slot space factor on winding for stability.
Technical Specifications:

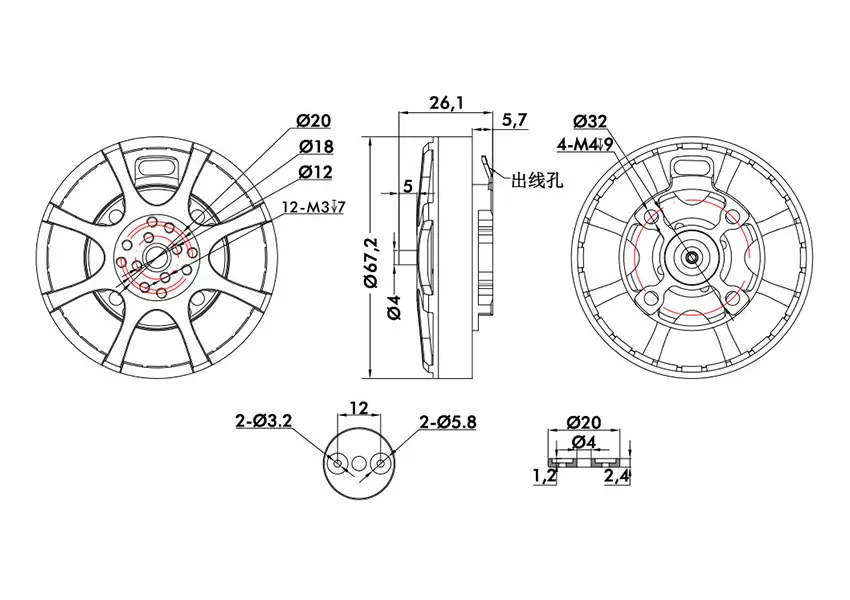

- Motor Size: Φ67.2*26.1mm
- Lead: Enameled Wire 70mm
- Stator: Anti-rust treatment; 180°C high temperature-resisting coatings
- Copper Wire: 220°C high temperature resistance: Level C
- Configuration: 24N28P
- Coil Insulation Test: 500V
- Shaft Diameter: IN:6 OUT:4
- Rotor Dynamic Balance Standard: ≤15mg
- Bearing: Imported 696ZZ
- Packing Size: 1229945.5mm
- Magnet Level: 150°C high temperature resistance: Level E
- KV: 320
- Internal Resistance: 47.5mΩ
- Idle Current(18V): 1.0A
- Rated Voltage(Lipo): 6S
- Peak Current(180s): 44.2A
- Motor Weight(Incl. Cable): 161g
- Max. Power(180s): 1040W
- Package Weight: 182g
Additional Details:
- Manufacturer: T-Motor
- Brand: T-Motor
- Generic Name: Drone Motor || Brushless Motor || Multirotor Motor || UAV Motor || Long Endurance Motor || Aerial Photography Motor || Electric Motor || Outrunner Motor || Professional Drone Motor || Surveying Drone Motor
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: Professional Multi-rotors || Heavy-Duty Professional Drones || Aerial Photography Drones || Surveying & Mapping UAVs || Long-Endurance Flights (up to 50 minutes) || Custom Drone Builds || VTOL Aircraft || Emergency Rescue Drones || High-Efficiency Payload Drones.
Package Details:

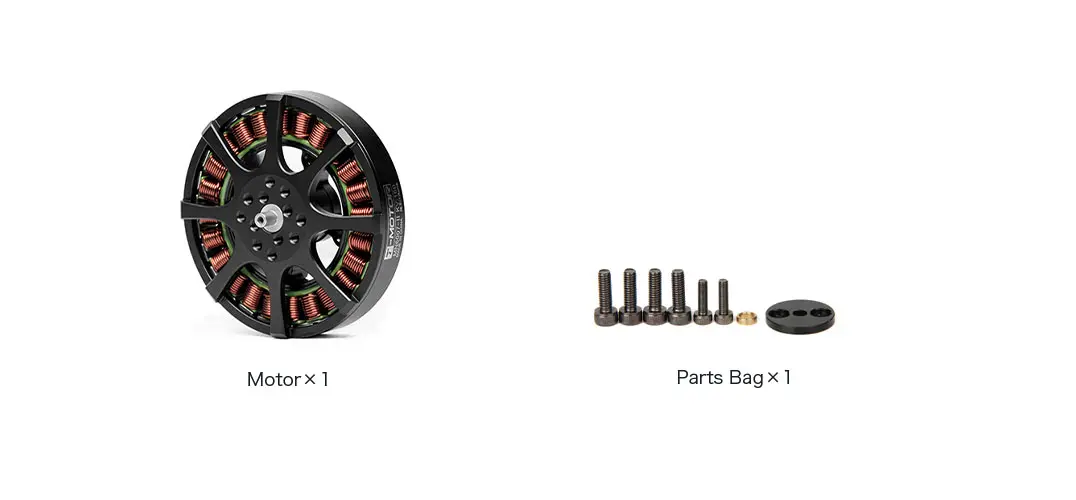

Includes:
- 1 x T-Motor Antigravity MN6007II 320KV Brushless Motor
- 1 x Hardware pack (typically includes propeller adapter/nut and mounting screws)
Frequently Asked Questions:
Q1. What is the primary benefit of the T-Motor Antigravity MN6007II 320KV motor?
Ans. Its ultra-lightweight design, high efficiency, and low cogging torque enable significantly longer flight times (up to 50 minutes) and stable performance for professional UAV applications.
Q2. What battery voltage is recommended for this 320KV motor?
Ans. The T-Motor Antigravity MN6007II 320KV motor is designed to operate optimally with 6S LiPo batteries, providing a strong balance of power and efficiency for extended flight.

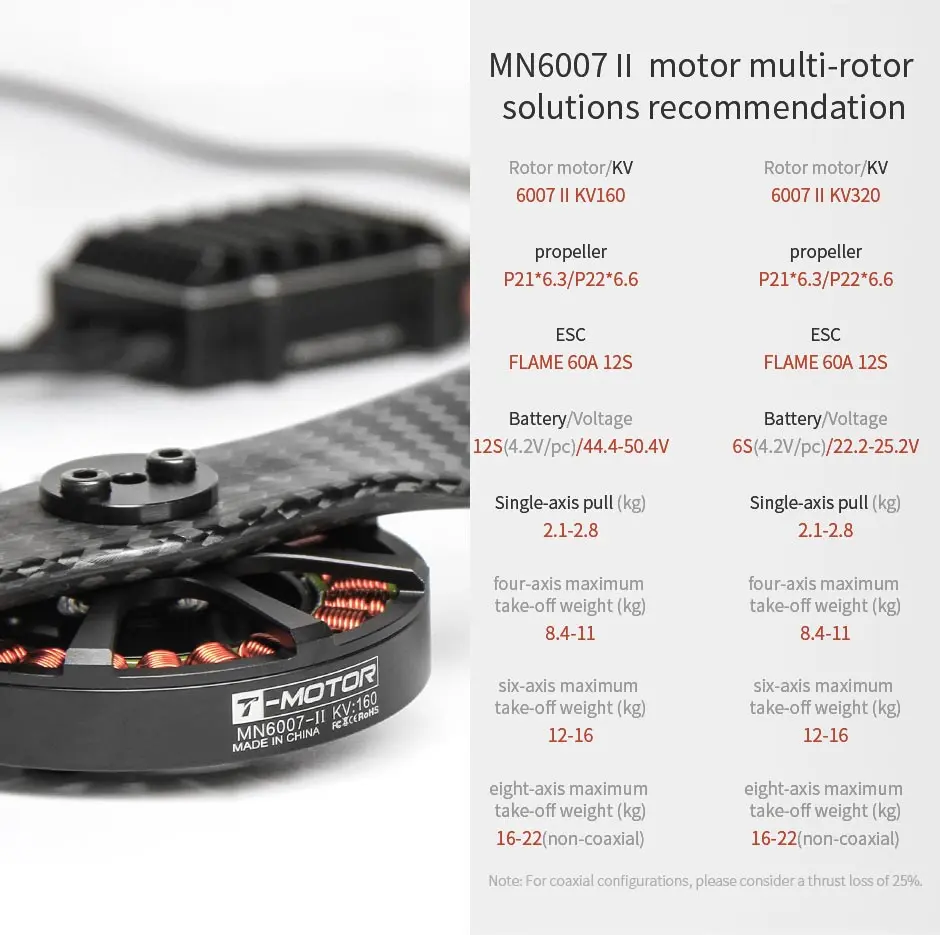

Q3. What kind of thrust can I expect from the MN6007II 320KV, and what propellers are recommended?
Ans. This motor can provide a maximum thrust of up to 5.5kg, and it is highly recommended to use it with T-Motor carbon fiber propellers like the P216.3" or P226.6" for optimal performance.
