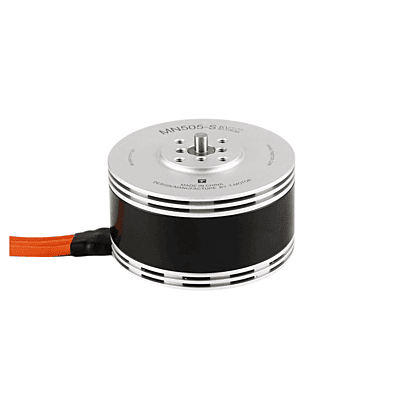

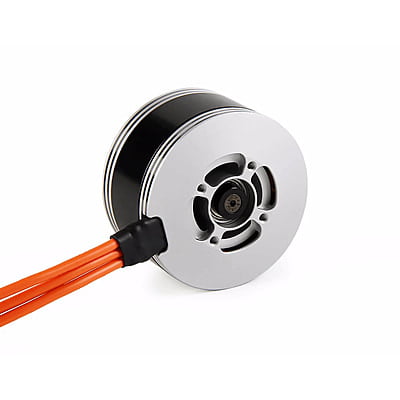

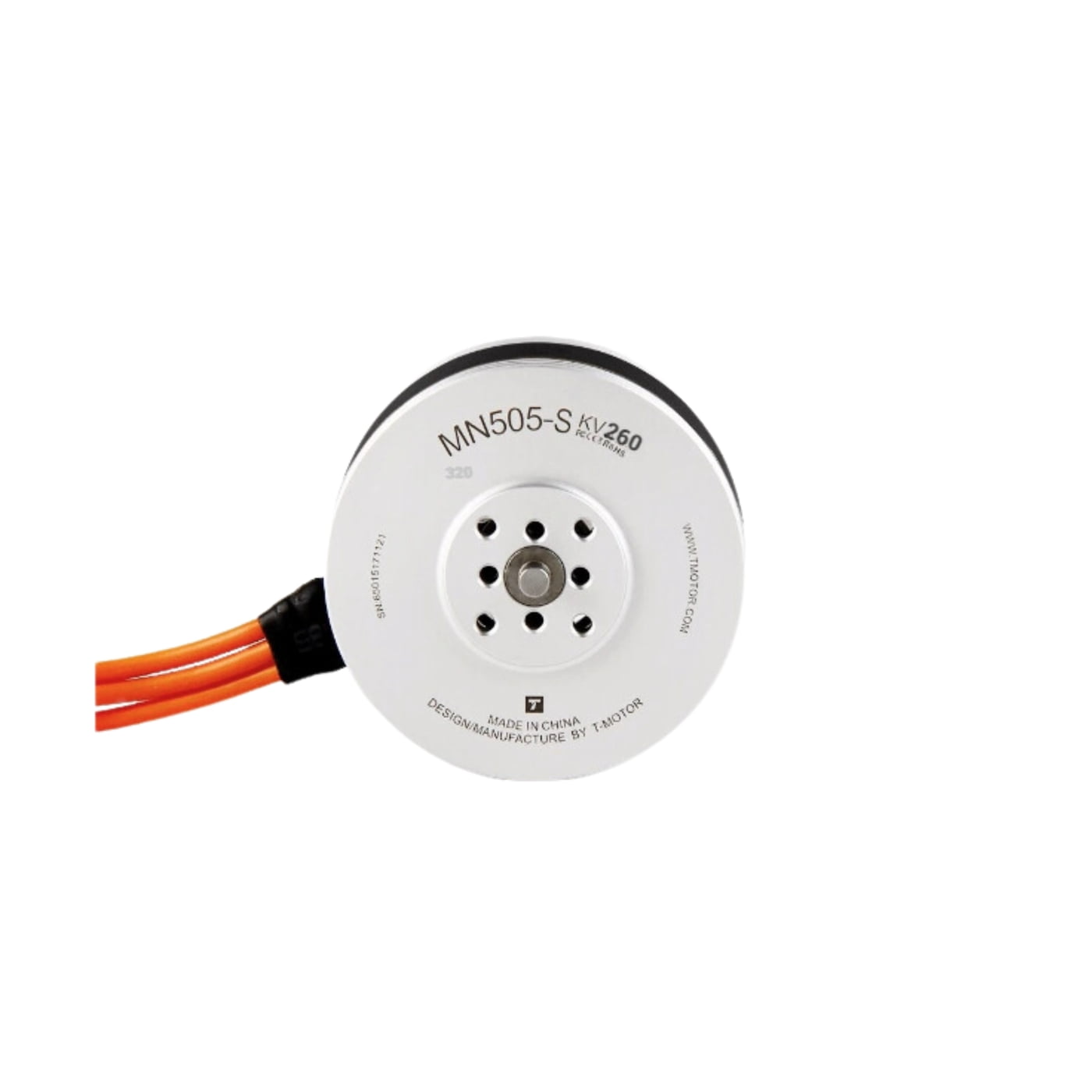

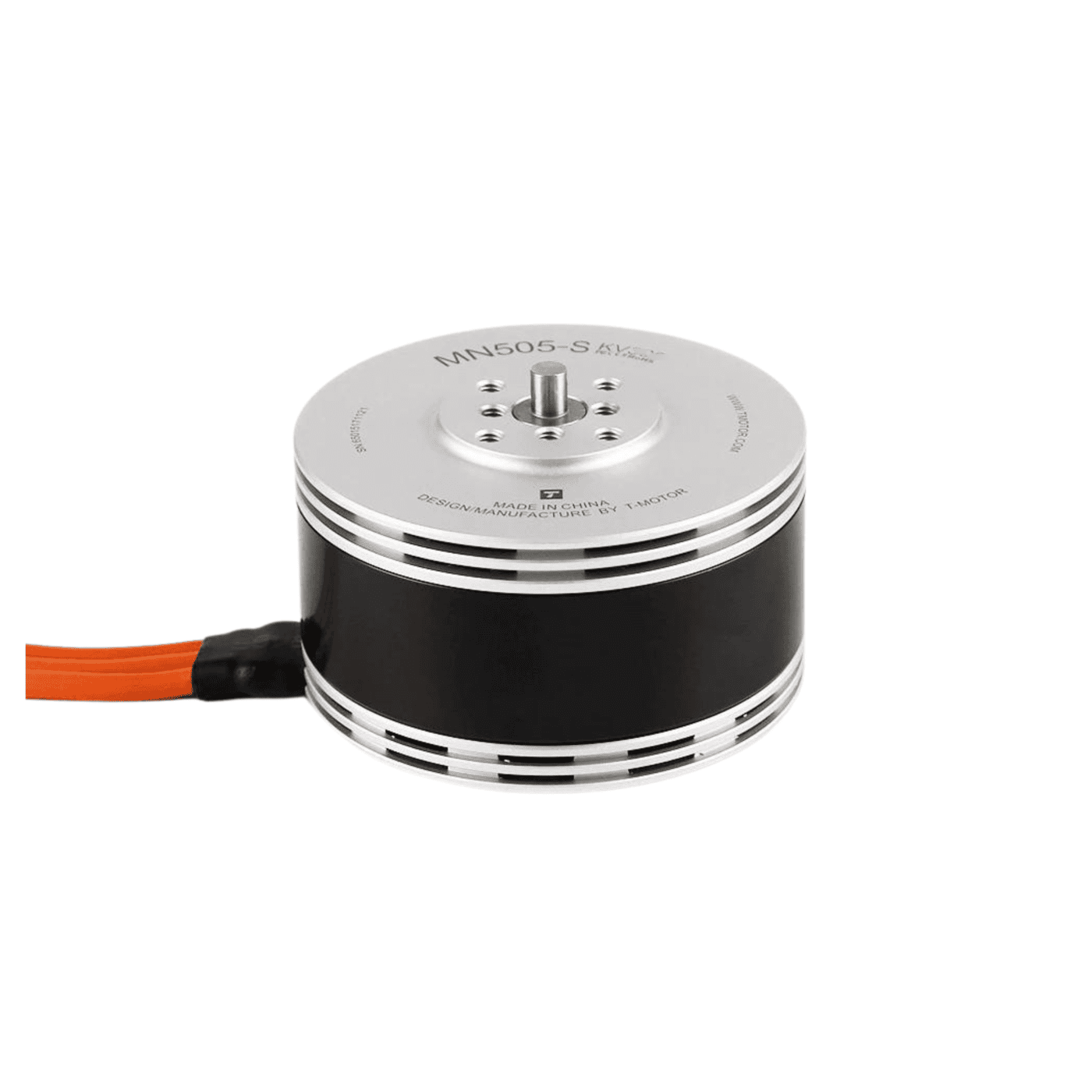

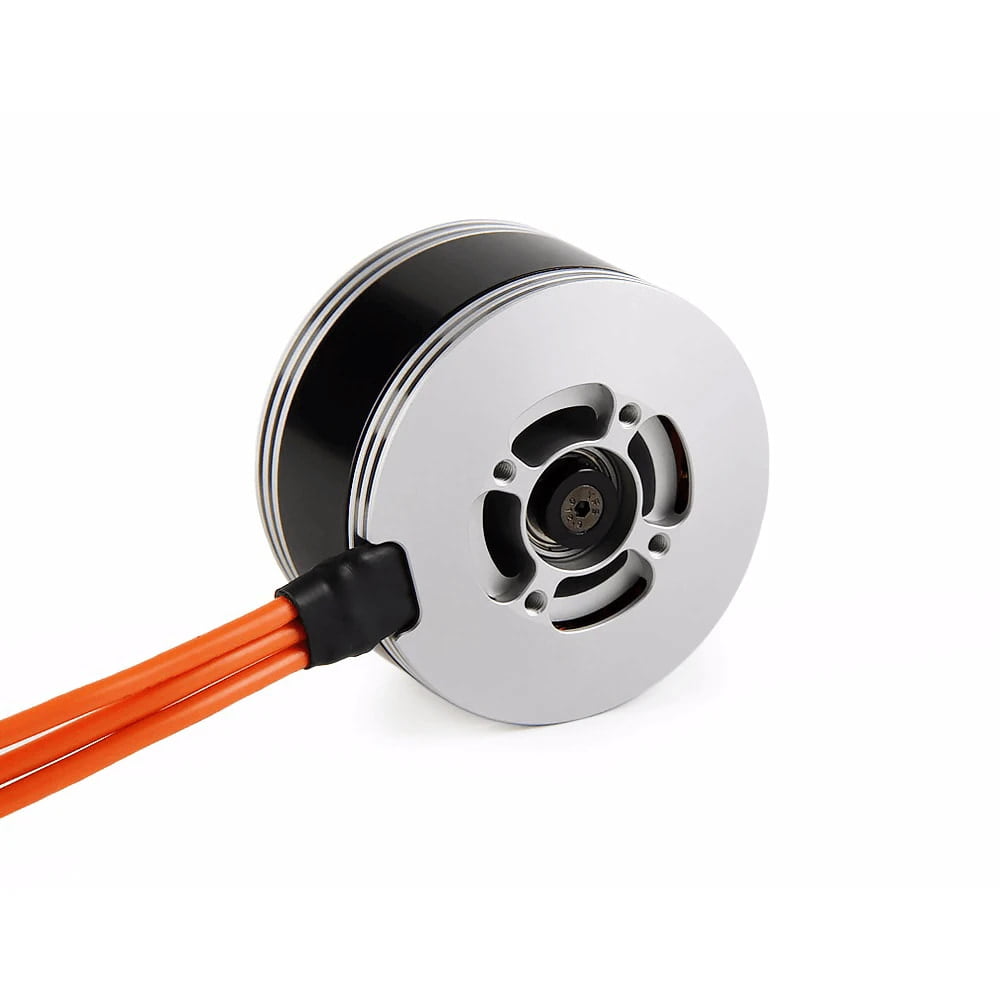

T-Motor MN505-S 260KV Motor

Features:

• High torque and efficiency for heavy lift.

• Low 260KV rating for large propellers.

• Durable design for industrial applications.

• Stable and reliable operation for professional use.

• Excellent heat dissipation for endurance flights.

• Premium bearings ensure long lifespan.

Specification

• Motor Size: Φ55.6 × 38.9 mm

• Stator: Imported silicon steel sheet; Anti-rust treatment; 150°C high temperature-resisting coatings

• Configuration: 24N28P

• Shaft Diameter: IN: 6 mm, OUT: 4 mm

• Bearing: Imported 696ZZ

• Magnet Level: 180°C high temperature resistance

• Lead Cable: 16 AWG × 150 mm

• Copper Wire: 220°C high temperature resistance; Level C

• Coil Insulation Test: 500 V

• Centrifugal Cooling Design: Yes

• Rotor Dynamic Balance Standard: ≤ 5 Mg

• Motor Dynamic Balance Standard: ≤ 10 Mg

• Ingress Protection (IP): IP45

Additional Details:

• Manufacturer: T-Motor

• Brand: T-Motor

• Generic Names: Drone motor, brushless multi-rotor motor, heavy-lift motor, UAV propulsion system

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: Professional heavy-lift drones (cinematic/industrial), large quadcopters/hexacopters, long endurance flight platforms, aerial photography, and mapping.

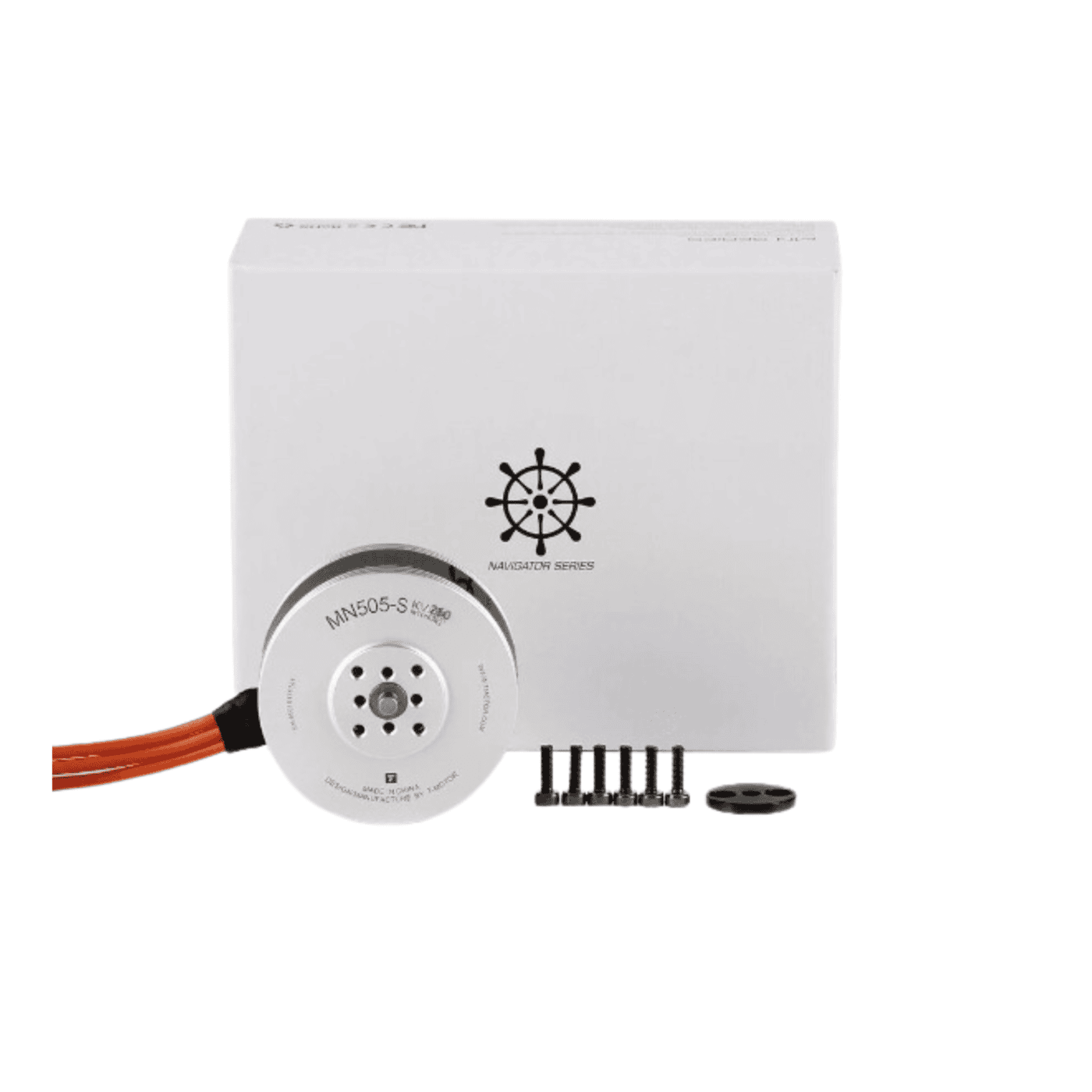

Package Details:

• Includes:

• 1 x T-Motor MN505-S 260KV Motor

Frequently Asked Questions:

Q1: What propeller size is recommended for this motor?

ANS: This motor is typically optimized for large propellers, generally 16 to 18 inches, depending on the battery voltage.

Q2: Can this motor run on a 6S battery?

ANS: Yes, it supports a wide voltage range from 6S up to 12S LiPo for maximum power and efficiency.

Q3: Is this motor designed for FPV racing drones?

ANS: No, it is a high-torque, low-KV motor designed for large, heavy-lift industrial and cinematic drones, not small FPV racers.
