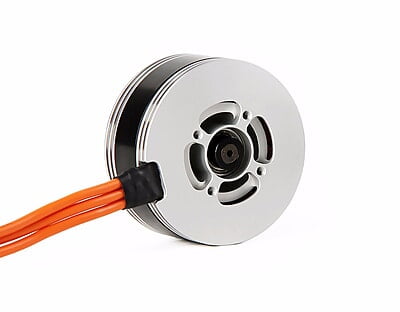

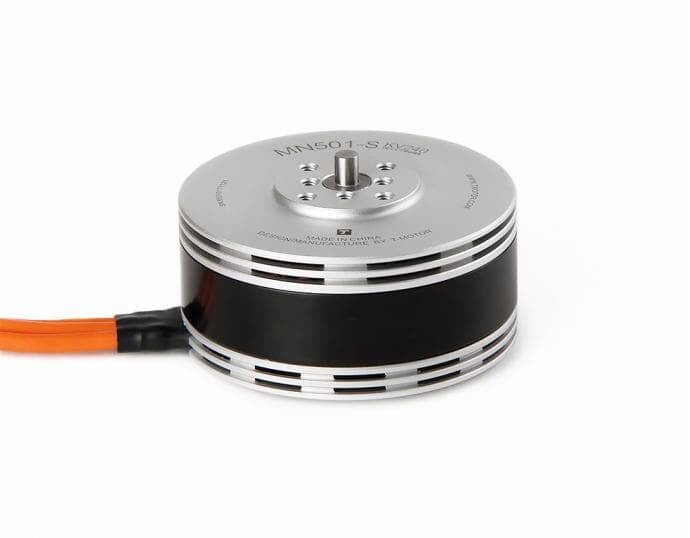

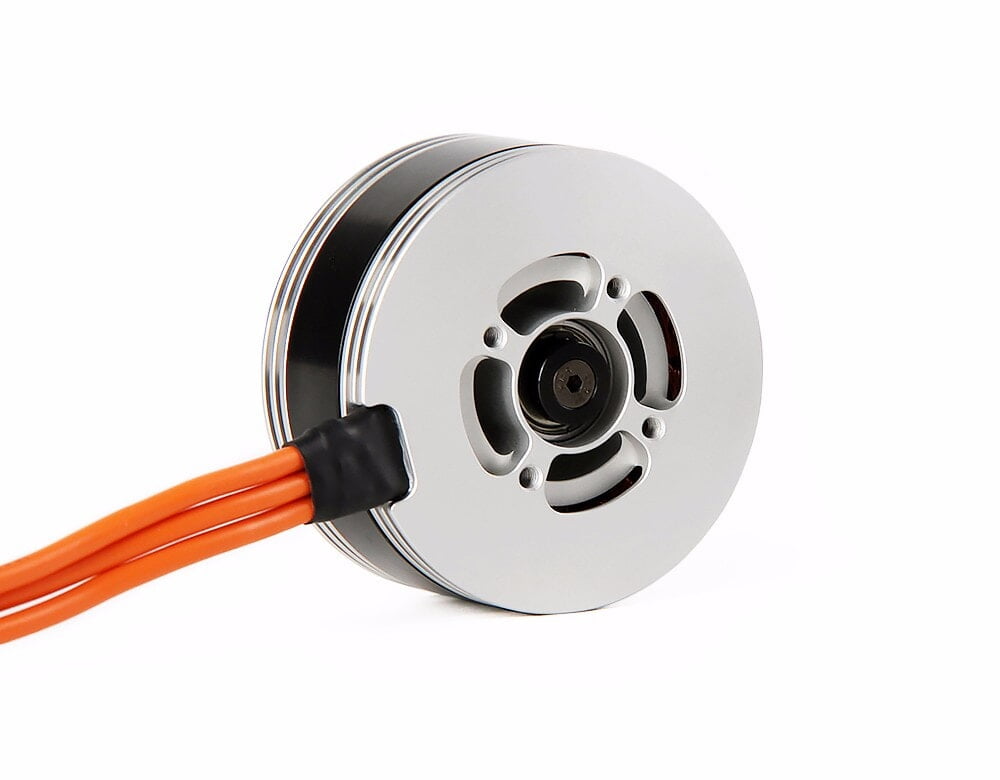

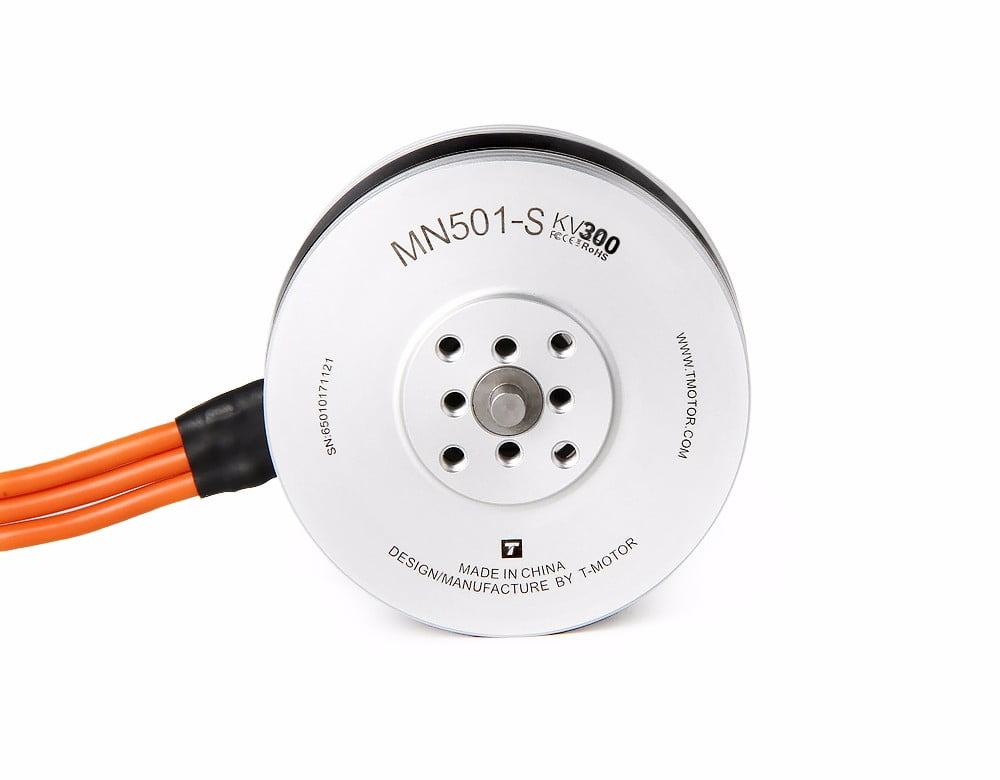

T-Motor MN501-S 300KV Motor

"Navigator" motors are for general uses like aerial photography.
For demand of multi-rotors, VTOL and fixed wings.

1. Max. thrust ：5.2kg
2. Recommendation：T MOTOR P20*6 prop
3. MTBF：1000hours
4. Motor Maintenance：Regularly lubricate bearings to reduce friction and wear
5. Features：Dust-resistance/Waterproof/Anti-corrosion

Specification

Motor Size	Φ55.6*33.9mm	Copper Wire	220℃ high temperature resistance: Level C
Stator	Imported silicon steel sheet; Anti-rust treatment; 150°Chigh temperature-resisting coatings	Coil Insulation Test	500V
Configuration	24N28P	Centrifugal Cooling Design	YES
Shaft Diameter	IN：6mm，OUT：4mm	Rotor Dynamic Balance Standard	≤5Mg
Bearing	Imported 696ZZ	Motor Dynamic Balance Standard	≤10Mg
Magnet Level	180℃ high temperature resistance	IP	IP45
Lead Cable	16AWG*150mm

KV	240	Rated Voltage ( Lipo )	6-12S
Idle Current(18V)	0.9A	ESC Recommendation	AIR 40A
Peak Current(180s)	25A	Propeller Recommendation	14-15 / 20-22"
Max.Power(180s)	1200W	Motor Weight (indl. Cable)	170g
Internal Resistance	85mΩ	Package Weight	350g

KV	300	Rated Voltage ( Lipo )	6-8S
Idle Current(15V)	1.1A	ESC Recommendation	AIR 40A
Peak Current(180s)	40A	Propeller Recommendation	20-22"
Max.Power(180s)	1000W	Motor Weight (indl. Cable)	170g
Internal Resistance	63mΩ	Package Weight	350g

KV	360	Rated Voltage ( Lipo )	6S
Idle Current(15V)	1.4A	ESC Recommendation	AIR 40A
Peak Current(180s)	40A	Propeller Recommendation	17-18"
Max.Power(180s)	1000W	Motor Weight (indl. Cable)	175g
Internal Resistance	45mΩ	Package Weight	350g

surface temperature @100% throttle running 10mins. (Date above based on benchtest are for reference only,comparion with that of other motor types is not recommended.)

Motor Analysis Chart

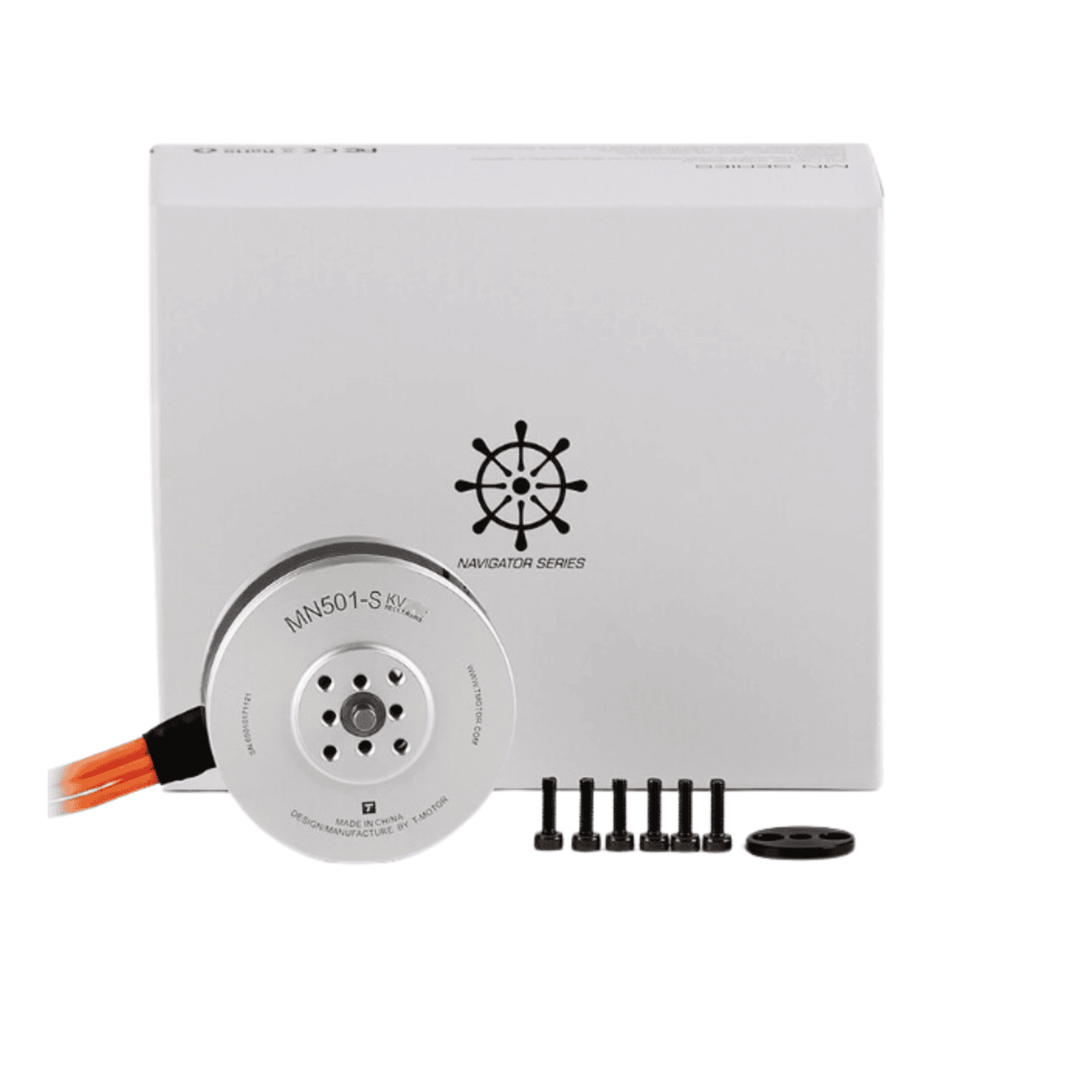

Packing List
