T-Motor MN5006 450KV Antigravity Motor
Non-returnable
₹8,999.00
The T-Motor Antigravity MN5006 450KV is an ultra-light (106g), high-efficiency brushless motor designed for professional multirotor UAVs seeking extended flight times. Ideal for aerial photography, surveying, and long-duration missions, it ensures smooth operation with low cogging torque, enabling 4kg quadcopters to achieve impressive 60-minute flights.
Choose Quantity
Product Details
Features:
- Ultra-light design (106g, including cable).
- High 450KV for balanced efficiency.
- Devoted to long flight durations.

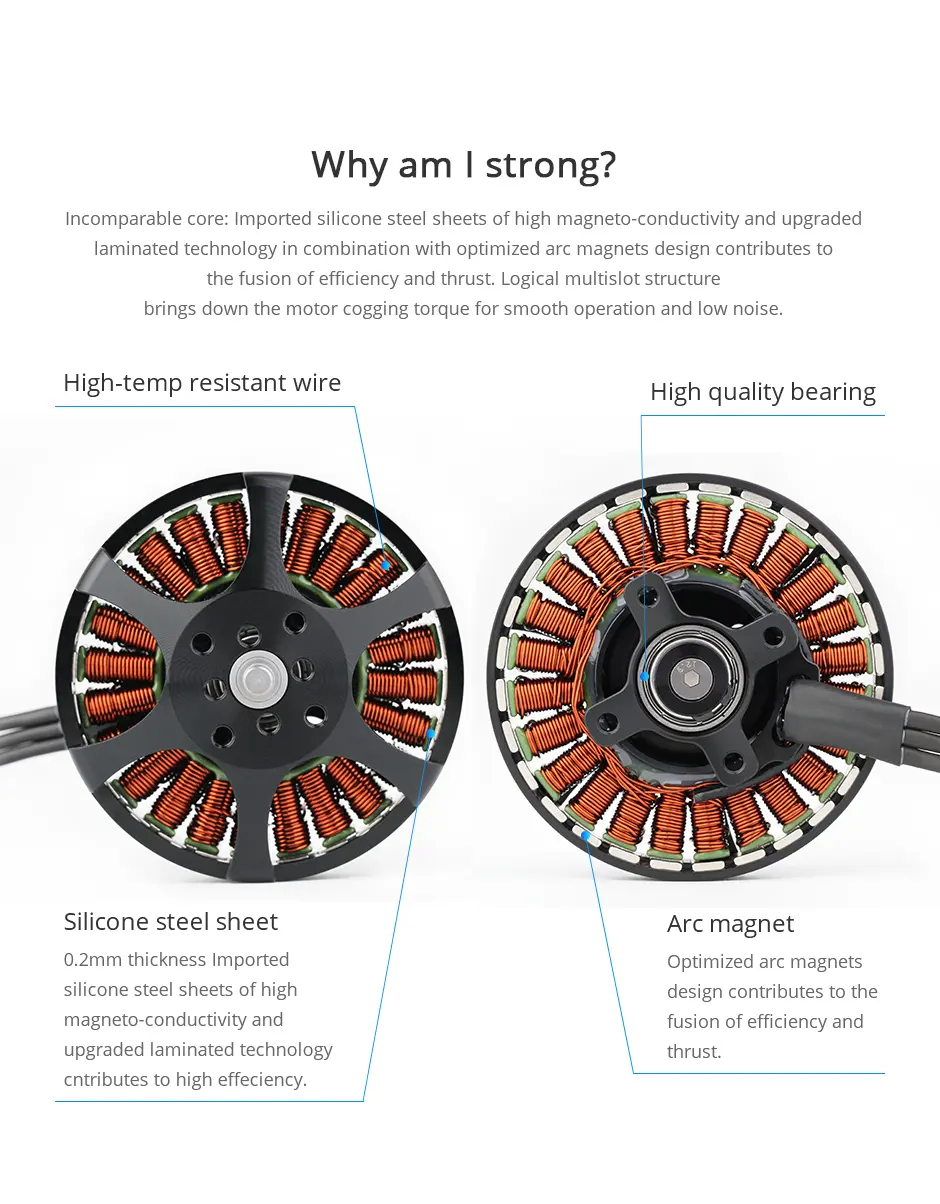

- Runs smoothly with low cogging torque.
- Unique centrifugal cooling design.
- High-strength aluminum construction.
- Single thick copper wire winding.
- Perfect dynamic balance for stability (≤10mg).
- High-quality imported 696ZZ bearings.
- High-temperature resistant copper wire (Level H).
Technical Specifications:

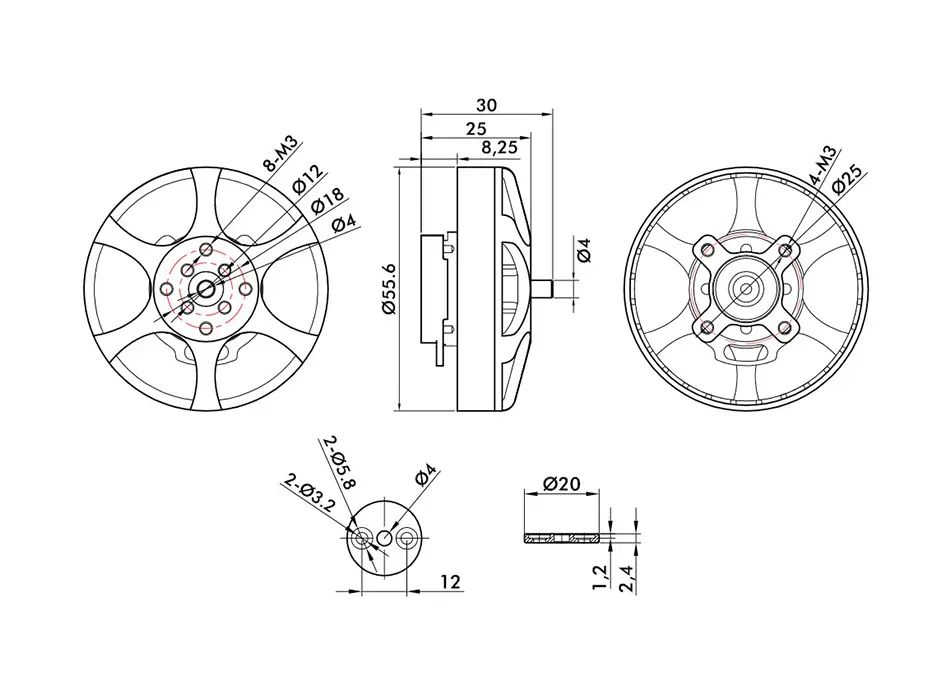

- Motor Size: Φ55.6*30mm
- Copper Wire: 180°Chigh temperature resistance: Level H
- Stator: Imported silicon steel sheet; Anti-rust treatment; 180°Chigh temperature-resisting coatings
- Coil Insulation Test: 500V
- Configuration: 24N28P
- Centrifugal Cooling Design: YES
- Shaft Diameter: IN: 6mm
- Rotor Dynamic Balance Standard: ≤15mg
- Bearing: Imported 696ZZ
- Motor Dynamic Balance Standard: ≤10mg
- Magnet Level: 150°Chigh temperature resistance: Level E
- Packing Size: 1068135mm
- Lead Cable: 80mm
- KV: 450
- Rated Voltage(Lipo): 4-6S
- Idle Current(22V): 0.9A
- ESC Recommendation: AIR 40A
- Peak Current(180s): 26A
- Propeller Recommendation: P14-18"
- Max. Power(180s): 650W
- Motor Weight(Incl. Cable): 106g
- Internal Resistance: 60mΩ
- Package Weight: 170g
Additional Details:
- Manufacturer: T-Motor
- Brand: T-Motor
- Generic Name: Drone Motor || Brushless Motor || Multirotor Motor || UAV Motor || Long Endurance Motor || Aerial Photography Motor || Electric Motor || Outrunner Motor || Professional Drone Motor || Surveying Drone Motor
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: Professional Multirotors (e.g., 4kg quadcopters for 60-min flight) || Aerial Photography Drones || Surveying and Mapping UAVs || Inspection Drones || Rescue Drones || Long-Range Drones || Custom Endurance Builds || Commercial Drone Applications || VTOL UAVs || High-Efficiency Payload Drones
Package Details:

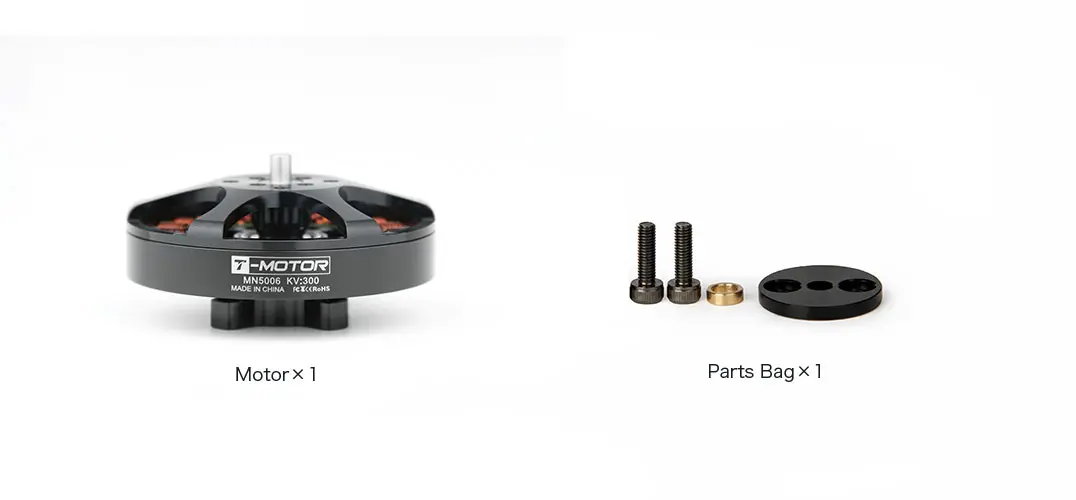

Includes:
- 1 x T-Motor Antigravity MN5006 450KV Brushless Motor
- 1 x Hardware pack (typically includes propeller adapter/nut and mounting screws)
Frequently Asked Questions:
Q1. What is the primary purpose of the T-Motor Antigravity MN5006 450KV motor?
Ans. This motor is designed for ultra-light and highly efficient multirotor UAVs, with a focus on achieving extended flight times, potentially up to 60 minutes for a 4kg quadcopter.
Q2. What battery voltage range is recommended for this 450KV motor?
Ans. The T-Motor Antigravity MN5006 450KV motor is designed to operate optimally with 4-6S LiPo batteries, providing flexibility for various drone setups and endurance goals.
Q3. What propeller sizes are best suited for maximizing flight time with this 450KV motor?
Ans. To maximize flight time and efficiency, T-Motor recommends using carbon fiber propellers ranging from 14 to 18 inches, such as P144.8" or P155", depending on the specific drone configuration and desired performance.
