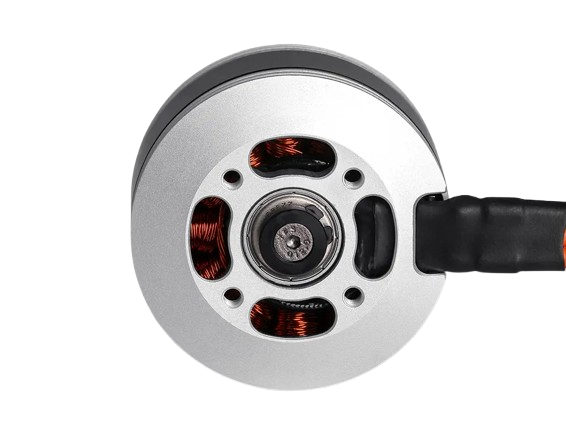

T-Motor MN4112 420KV
Non-returnable
₹10,429.00
The T-Motor MN4112 420KV is a high-performance industrial-grade motor designed for professional UAV applications. Delivering exceptional efficiency and reliable thrust, it's perfect for multi-rotors, VTOL, and fixed-wing drones requiring stable and long-duration flights. Its robust build ensures consistent power and endurance for demanding aerial tasks.
Choose Quantity
Product Details
Features:
- Optimized for multi-rotors, VTOL, fixed-wing UAVs.
- High efficiency, reliable, consistent thrust.
- Industrial-grade build, durable construction.
- Enhanced heat dissipation cooling design.
- Precisely assembled, balanced rotor.
Technical Specifications:
- Motor Size: Φ47.4*38.7mm
- Stator: Imported silicon steel sheet; Anti-rust treatment;180℃ high temperature-resisting coatings
- Configuration: 12N14P
- Shaft Diameter: IN：6mm OUT：4
- Bearing: 686ZZ/696ZZ
- Magnet Level: N45SH
- Lead Cable: 16AWG*150mm
- Copper Wire: 220℃ high temperature resistance: Level C
- Coil Insulation Test: 500V/5s
- Centrifugal Cooling Design: YES
- Rotor Dynamic Balance Standard: ≤5Mg
- KV: 420
- Rated Voltage (LiPo): 6S
- ldle Current(10V): 1.4A
- Propeller Recommendation: P15*5"
- Peak Current (180s): 54A
- Motor Weight (Incl. Cable): 172g
- Max.Power (180s): 1210W
- Package Weight: 275g
- Internal Resistance: 60mΩ
Additional Details:
- Manufacturer: T-Motor
- Brand: T-Motor
- Generic Name: Drone Motor || UAV Motor || Brushless Motor || Multirotor Motor || Industrial Drone Motor || Propulsion System || RC Motor || Electric Motor || Heavy Lift Motor || Aerial Photography Motor
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: Commercial Drones || Agricultural Drones || Mapping Drones || Surveillance Drones || Professional Cinematography Drones || Heavy-Lift Multirotors || Long Endurance UAVs || VTOL Aircraft || Fixed-Wing Drones || Custom Industrial Builds
Package Details:
Includes:
- 1 x T-Motor MN4112 420KV Motor
- 1 x Propeller Mount/Nut
- 1 x Set of Mounting Screws
Frequently Asked Questions:
Q1. What types of drones is this motor best suited for?
Ans. This motor is ideal for industrial UAVs, multi-rotors, VTOL, and fixed-wing drones requiring high efficiency and reliable thrust, such as those used for aerial photography, mapping, or surveillance.
Q2. What battery configuration is recommended for the T-Motor MN4112 420KV?
Ans. The T-Motor MN4112 420KV is designed to operate with a 6S (22.2V) LiPo battery.
Q3. What kind of propeller should I use with this motor?
Ans. T-Motor recommends propellers around 15-17 inches for optimal performance, though the exact choice depends on your drone's weight and intended use.
