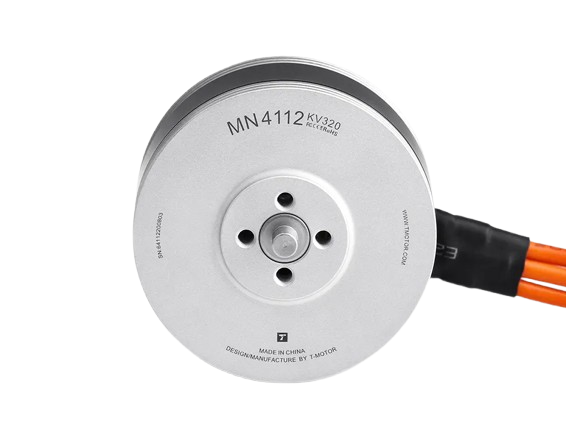

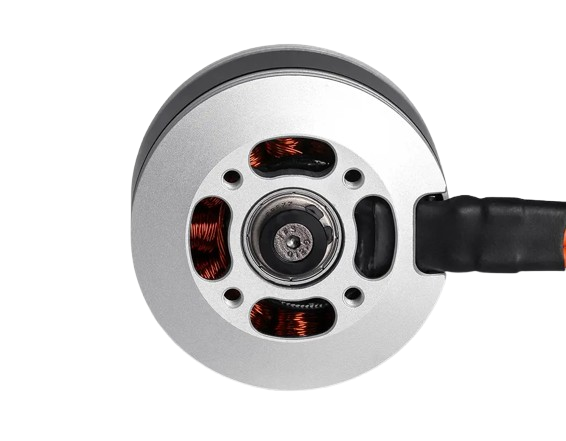

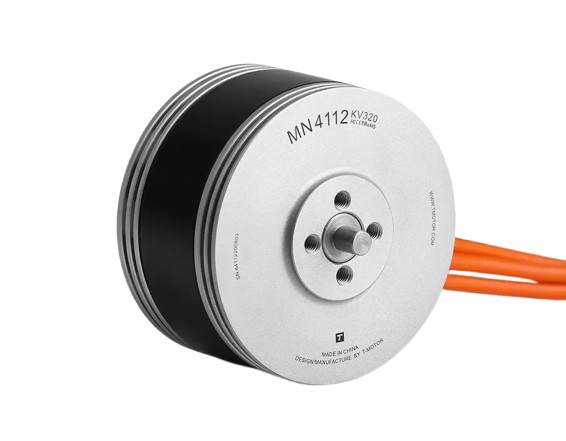

T-Motor MN4112 320KV
Non-returnable
₹10,429.00
The T-Motor MN4112 320KV motor is engineered for extended flight times in industrial UAVs. Its low KV design maximizes efficiency, making it ideal for mapping, inspection, and surveillance drones requiring long endurance. Built with T-Motor's renowned reliability, this motor ensures stable and consistent performance for critical missions.
Choose Quantity
Product Details
Features:
- Optimized for long endurance UAV flight.
- Low KV design for maximum efficiency.
- Industrial-grade build, highly durable construction.
- Enhanced heat dissipation for prolonged operation.
- Precisely assembled, dynamically balanced rotor.
- High-quality bearings for smooth, quiet running.
- Premium magnets for consistent power.
- Designed for professional, heavy-duty applications.
- Water and dust resistant for outdoor use.
- Reliable performance in diverse environments.
Technical Specifications:
- Motor Size: Φ47.4*38.7mm
- Stator: Imported silicon steel sheet; Anti-rust treatment;180℃ high temperature-resisting coatings
- Configuration: 12N14P
- Shaft Diameter: IN：6mm OUT：4
- Bearing: 686ZZ/696ZZ
- Magnet Level: N45SH
- Lead Cable: 16AWG*150mm
- Copper Wire: 220℃ high temperature resistance: Level C
- Coil Insulation Test: 500V/5s
- Centrifugal Cooling Design: YES
- Rotor Dynamic Balance Standard: ≤5Mg
- KV: 320
- Rated Voltage (LiPo): 6S
- ldle Current(10V): 1.1A
- Propeller Recommendation: P15 17"/T16*8"
- Peak Current (180s): 40A
- Motor Weight (Incl. Cable): 172g
- Max.Power (180s): 910W
- Package Weight: 275g
- Internal Resistance: 94mΩ
Additional Details:
- Manufacturer: T-Motor
- Brand: T-Motor
- Generic Name: Drone Motor || UAV Motor || Brushless Motor || Multirotor Motor || Industrial Drone Motor || Propulsion System || RC Motor || Electric Motor || Heavy Lift Motor || Aerial Photography Motor
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: Commercial Drones || Agricultural Drones || Mapping Drones || Surveillance Drones || Professional Cinematography Drones || Heavy-Lift Multirotors || Long Endurance UAVs || VTOL Aircraft || Fixed-Wing Drones || Custom Industrial Builds
Package Details:
Includes:
- 1 x T-Motor MN4112 320KV Motor
- 1 x Propeller Mount/Nut
- 1 x Set of Mounting Screws
Frequently Asked Questions:
Q1. What is the primary advantage of a 320KV motor compared to higher KV motors?
Ans. A 320KV motor offers significantly higher efficiency and longer flight times, making it ideal for endurance-focused industrial UAV applications rather than speed.
Q2. What battery voltage is recommended for optimal performance with this motor?
Ans. The T-Motor MN4112 320KV is designed to operate best with a 6S (22.2V) LiPo battery.
Q3. What propeller sizes are best suited for the MN4112 320KV for long endurance?
Ans. For long endurance, propellers typically ranging from 17-18 inches or larger are recommended with this motor, depending on the specific drone weight and desired flight characteristics.
