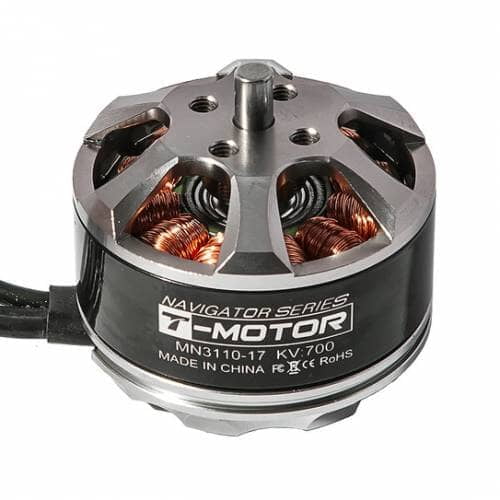

T-Motor MN3110 700KV
Non-returnable
₹5,899.00
Out of stock
The T-Motor MN3110 700KV is a high-quality, smooth-running brushless motor from the Navigator series, ideal for aerial photography and multirotor UAVs. It boasts high-strength construction and excellent balance, ensuring stable flight, especially at low velocities. As an upgrade from earlier models, it delivers greater power and efficiency for dependable aerial platforms.
Product Details
Features:
- Navigator Series for UAV applications.
- Smooth running, durable brushless motor.
- High-quality imported EZO bearings.
- Super dynamic balance.
- High strength construction.
- Upgraded stator bearings for efficiency.
- Reduced eddy current loss.
- Designed for low-speed stable flight.
- Versatile for various main props.
- Long lifespan (MTBF about 1000 hours).
Technical Specifications:
- Test Item: MN3110 KV700
- Configuration: 12N14P
- Internal Resistance: 92mΩ

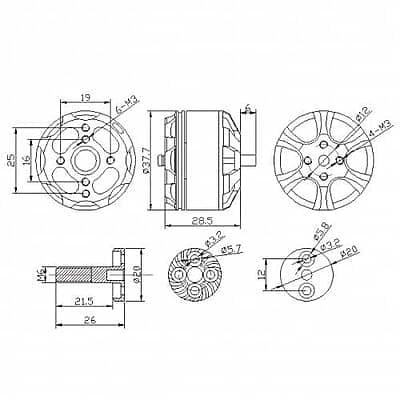

- Motor Dimensions: Φ37.7×28.5mm
- Shaft Diameter: 4mm
- Stator Height: 10mm
- Stator Diameter: 31mm
- Cable Length: 600mm
- AWG: 18#
- Weight Excluding Cables: 80g
- Weight Including Cables: 99g
- Idle Current@10v: 0.3A
- No. of Cells(Lipo): 3-6S
- Max Continuous Current (180S): 21A
- Max Power (180S): 466W
Additional Details:
- Manufacturer: T-Motor
- Brand: T-Motor
- Generic Name: Drone Motor || Brushless Motor || Multirotor Motor || UAV Motor || Aerial Photography Motor || Electric Motor || Outrunner Motor || Professional Drone Motor || Fixed-Wing Motor || VTOL Motor
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: Aerial Photography Drones || Professional Multi-rotors (lighter class) || Small to Medium UAVs || Mapping & Surveying Drones || Long Endurance Flights (lighter setups) || Custom Drone Builds || Fixed-wing UAVs || VTOL Aircraft || Cinematic Drones (lighter payloads) || Pilots requiring stable, smooth flight with good efficiency.
Package Details:
Includes:
- 1 x T-Motor MN3110 700KV Brushless Motor

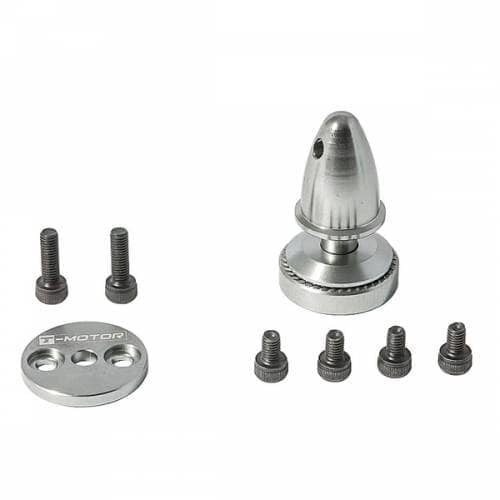

- 1 x Set of Mounting Screws
Frequently Asked Questions:
Q1. What is the primary application for the T-Motor MN3110 700KV motor?
Ans. This motor is primarily engineered for aerial photography and multirotor UAV applications, providing high-quality, smooth-running, and efficient propulsion for dependable aerial platforms.
Q2. What battery voltage range is recommended for this 700KV motor?
Ans. The T-Motor MN3110 700KV motor is designed to operate effectively with 3-6S LiPo batteries, offering flexibility for various drone setups and desired flight characteristics.
Q3. What kind of thrust can I expect from the T-Motor MN3110 700KV, and what propellers are recommended?
Ans. This motor can provide a maximum thrust of up to 1.2kg (1200g), and it is recommended to pair it with T-Motor carbon fiber propellers such as P134.4, P124, or P15*5 for optimal performance.
