T-Motor Flame 60A 12S V2.0 ESC

Features:

• High voltage 3-12S LiPo input.




• Powerful 60A continuous current rating.




• Smooth and precise motor control.




• Supports various signal protocols.

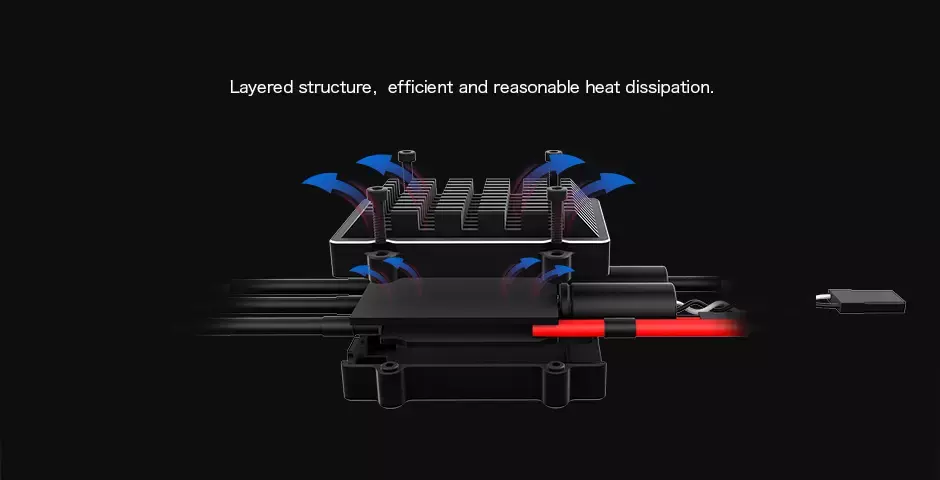

• Provides superior heat dissipation.




• Robust design for industrial applications.




• Optimized for T-Motor industrial motors.




• Ensures reliable and safe operation.




• V2.0 version with improved performance.




• Enhanced efficiency for extended flight times.

Technical Specifications:

• Model: T-Motor Flame 60A 12S V2.0 ESC

• Continuous Current: 60A

• Burst Current: 80A (for 10 seconds)

• Input Voltage: 3-12S LiPo (11.1V-50.4V)

• BEC Output: No BEC

• PWM Frequency: 8-24KHz

• Signal Protocol: PWM

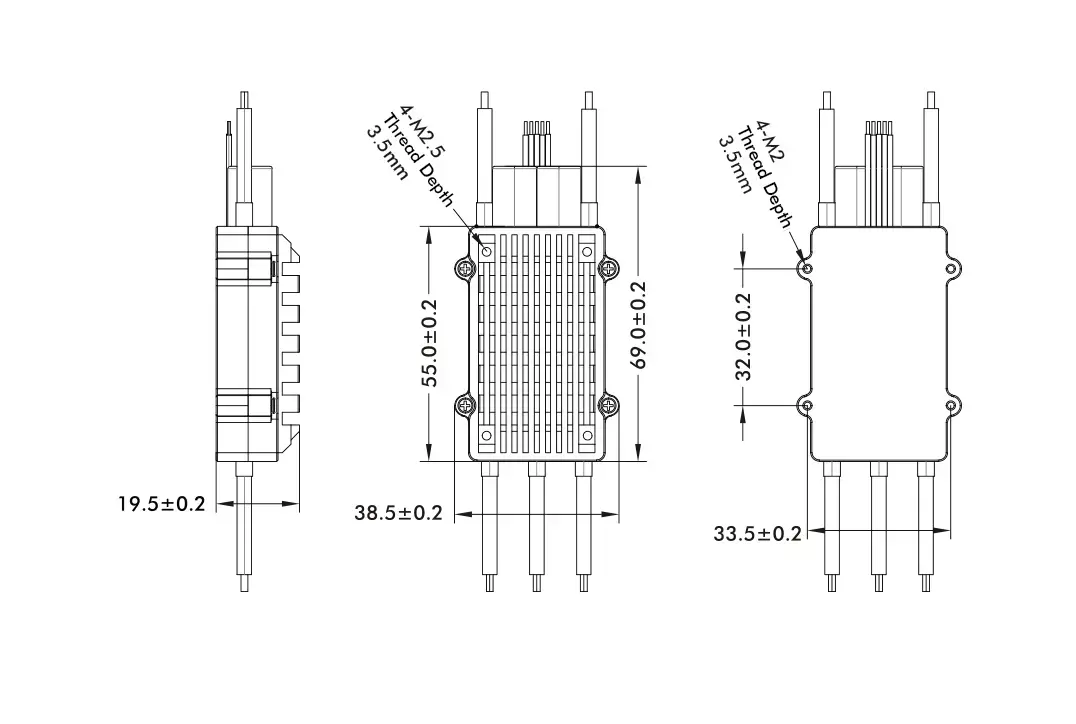

• Dimensions: 71.5 x 35 x 15mm

• Weight: 75g (with wires)

• Operating Temperature: -20℃ to 65℃

Additional Details:

• Manufacturer: T-Motor

• Brand: T-MOTOR

• Generic Name: ESC || Electronic Speed Controller || Drone ESC || High Voltage ESC || Industrial ESC || UAV Part || Brushless Motor Controller || Drone Component || T-Motor ESC || RC Speed Controller

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: Agricultural Drones || Industrial UAVs || Professional Heavy-Lift Drones || Commercial Drone Builders || Large Multirotors || Drone Cinematography Platforms || Search and Rescue Drones || Fixed-Wing Drones || Long-Endurance UAVs || Custom Drone Projects

Package Details:

Includes:

• 1x T-Motor FLAME 60A 12S V2.0 ESC

• 1x Hardware Kit

Frequently Asked Questions:

Q1. What does "12S" mean in the product name, and why is it important?

Ans. The "12S" in the product name refers to the maximum supported battery cell count, meaning this ESC can safely operate on a 12-cell LiPo battery (approximately 50.4V). This high voltage capability is crucial for large industrial and agricultural drones, as it allows for greater efficiency and power to spin large propellers and lift heavy payloads.

Q2. Can this ESC be used with a 6S battery, or is it only for 12S?

Ans. Yes, the T-Motor Flame 60A 12S V2.0 ESC is designed for a wide voltage range of 3-12S. This means it is fully compatible and will work efficiently with both 6S and 12S batteries, giving you flexibility to use it on different drone platforms as needed.

Q3. Is this ESC compatible with all brushless drone motors?

Ans. This ESC is compatible with most standard brushless drone motors. However, to achieve optimal performance, it is highly recommended to pair it with T-Motor's high-efficiency industrial motors. This pairing ensures seamless communication, maximum efficiency, and the best possible flight performance for professional and commercial applications.
