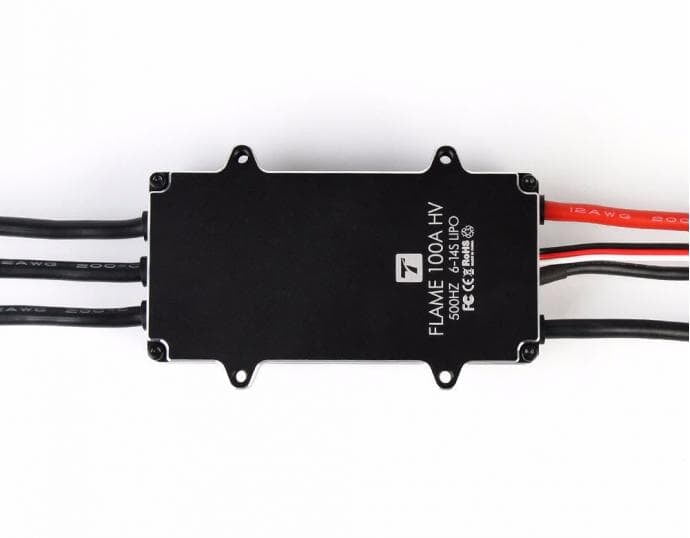

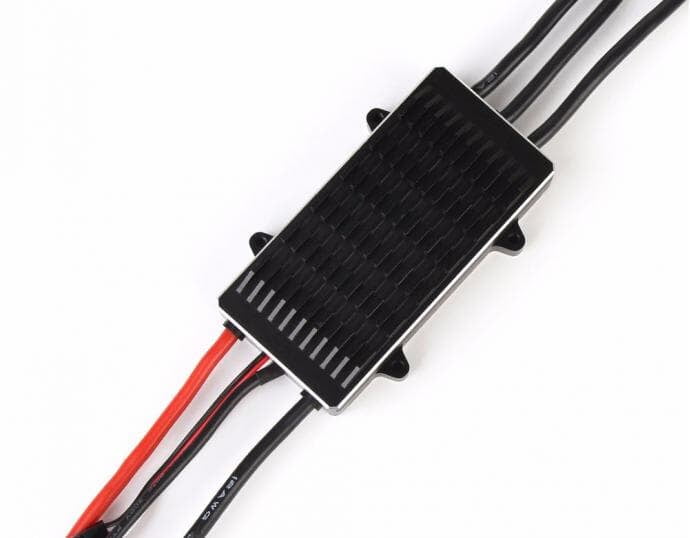

T-Motor FLAME 100A 6-14S HV ESC

Features:

• Extreme high voltage 6-14S LiPo input.




• Massive 100A continuous current rating.




• Smooth, precise FOC motor control.




• Supports various high-speed protocols.




• Provides excellent heat dissipation.




• Robust design for industrial applications.




• Optimized for T-Motor industrial motors.




• Ensures reliable and safe operation.




• Highly efficient for extended flight times.




• Engineered for professional heavy-lift drones.

Technical Specifications:

• Model: T-Motor FLAME 100A HV ESC

• Continuous Current: 100A

• Burst Current: 120A (for 10 seconds)

• Input Voltage: 6-14S LiPo (22.2V-58.8V)

• BEC Output: No BEC

• PWM Frequency: 8-24KHz

• Signal Protocol: PWM, DShot, Dshot150/300/600, FOC

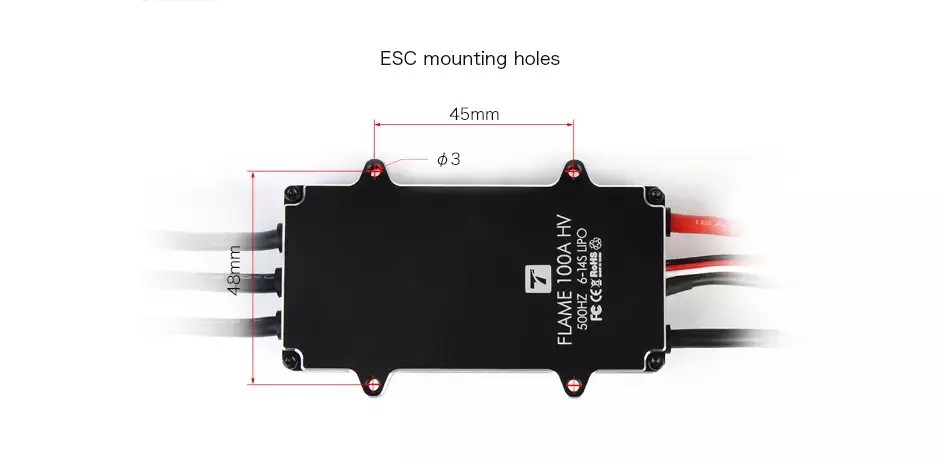

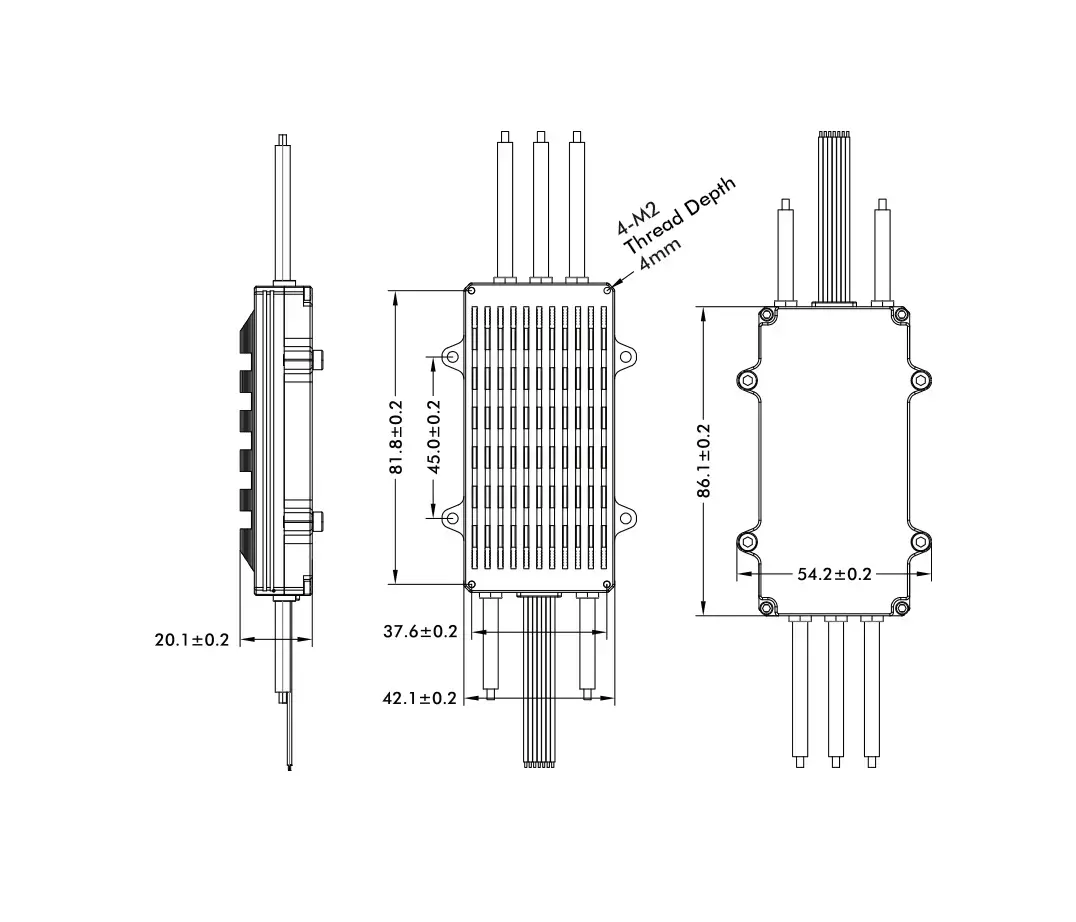

• Dimensions: 112 x 58 x 21mm

• Weight: 225g (with wires)

• Operating Temperature: -20℃ to 65℃

• Special Features: High voltage compatibility, high current capacity, FOC (Field-Oriented Control) support for enhanced efficiency.

Additional Details:

• Manufacturer: T-Motor

• Brand: T-MOTOR

• Generic Name: ESC || Electronic Speed Controller || Drone ESC || High Voltage ESC || Industrial ESC || UAV Part || Brushless Motor Controller || Drone Component || T-Motor ESC || RC Speed Controller

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: Agricultural Drones || Industrial UAVs || Professional Heavy-Lift Drones || Commercial Drone Builders || Large Multirotors || Drone Cinematography Platforms || Search and Rescue Drones || Fixed-Wing Drones || Long-Endurance UAVs || Custom Drone Projects

Package Details:

Includes:

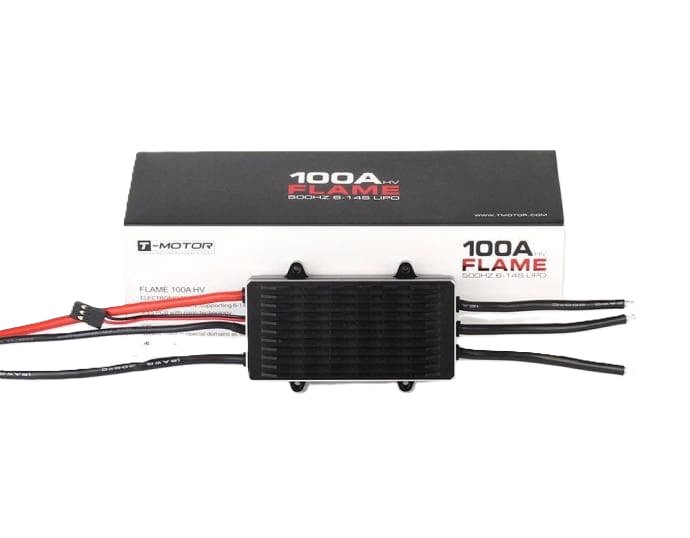

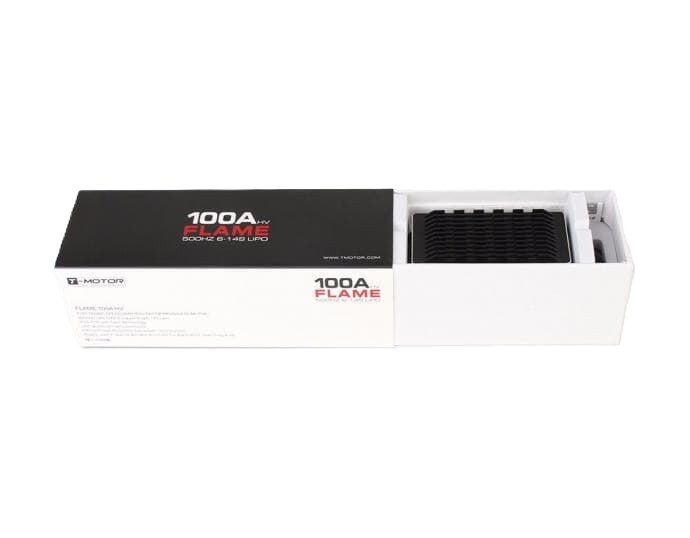

• 1x T-Motor FLAME 100A 6-14S ESC

• 1x Hardware Kit

Frequently Asked Questions:

Q1. What is the main advantage of a 100A ESC for a drone?

Ans. A 100A ESC is essential for extremely powerful and heavy-lift drones. Its high current rating allows it to safely and efficiently drive large motors and propellers, providing the massive thrust required to carry heavy payloads like professional cameras, LiDAR sensors, or agricultural spraying tanks without overheating or failure.

Q2. What does the "HV" in the product name signify?

Ans. The "HV" stands for High Voltage. This indicates that the ESC is designed to operate on high-cell-count batteries, specifically ranging from 6S to 14S LiPo. Running a drone on a higher voltage system is often more efficient for large platforms, as it reduces the current draw, leading to less heat generation and longer flight times.

Q3. Can this ESC be used for a drone with a lower current draw than 100A?

Ans. Yes, the T-Motor Flame 100A ESC can be used for drones with a lower current draw. It is always safe to have an ESC with a higher current rating than your motor requires, as this provides a safety margin and ensures the ESC runs cooler and more efficiently. This can extend the life of the ESC and increase overall system reliability.
