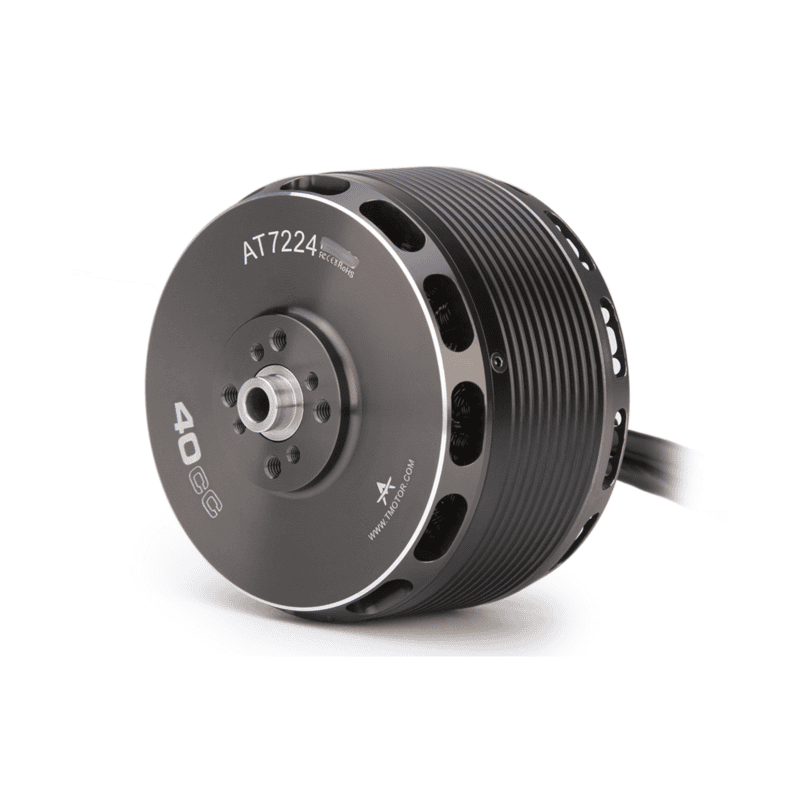

T-Motor AT7224 160KV Motor
Non-returnable
₹23,299.00
The T-Motor AT7224 160KV is a top-tier brushless motor designed for large 30-40CC equivalent RC airplanes and heavy-lift fixed-wing/VTOL UAVs. It delivers immense power (up to 4800W) and massive thrust (up to 17.72 kg), ensuring stable and prolonged flight. Its robust, precision-engineered design makes it a professional-grade choice for demanding aerial applications.
Choose Quantity
Product Details
Features:
- Ultra-low 160KV for maximum torque.
- Suitable for 30-40CC gasoline aircraft.
- Massive 4800W peak power output.
- Immense thrust up to 17.72 kg.
- Excellent efficiency for long endurance.

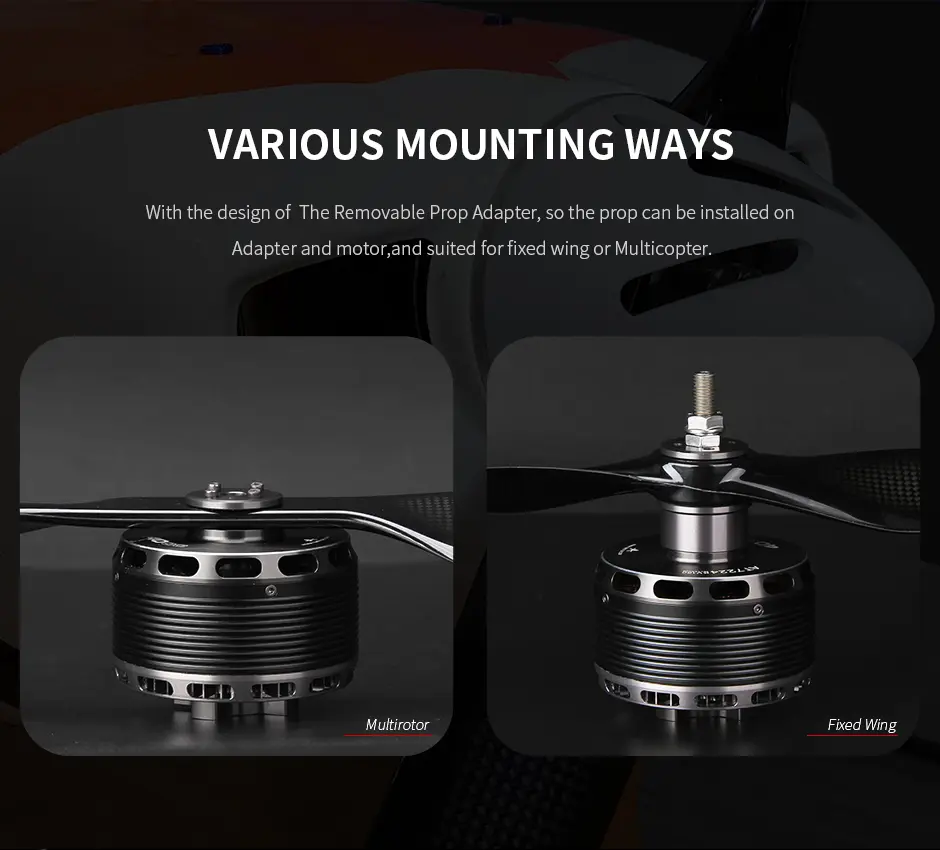

- Robust body, freely releasable.

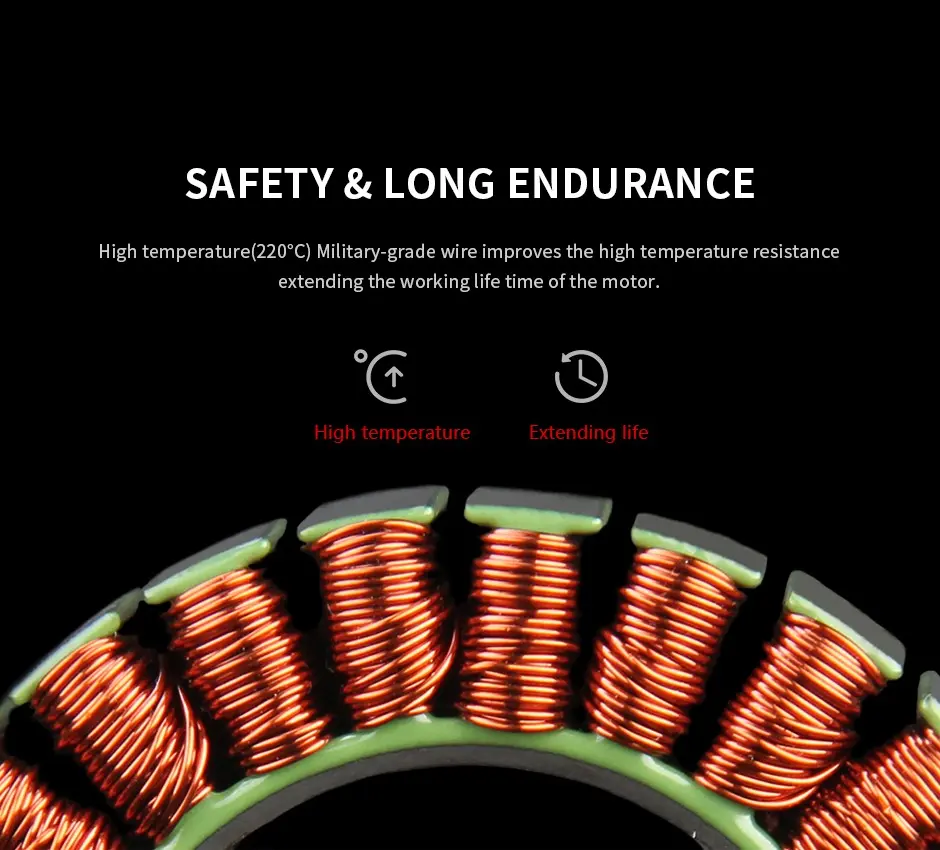

- Military-grade high-temperature wire.

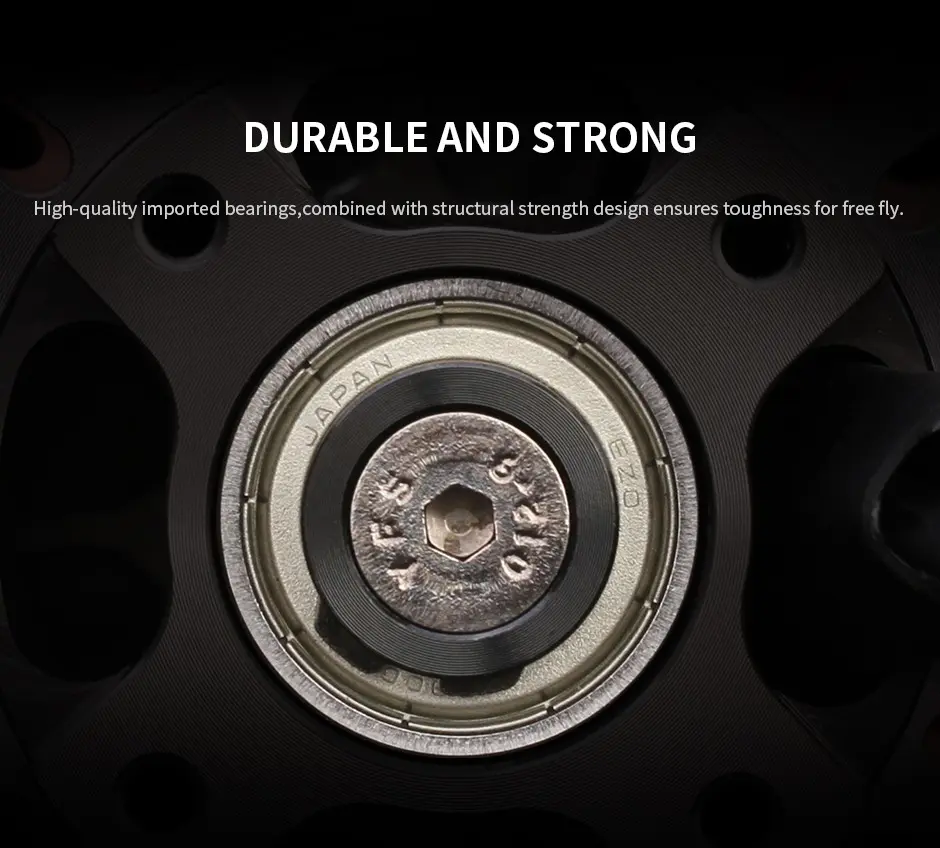

- Triple-bearing support for stability.

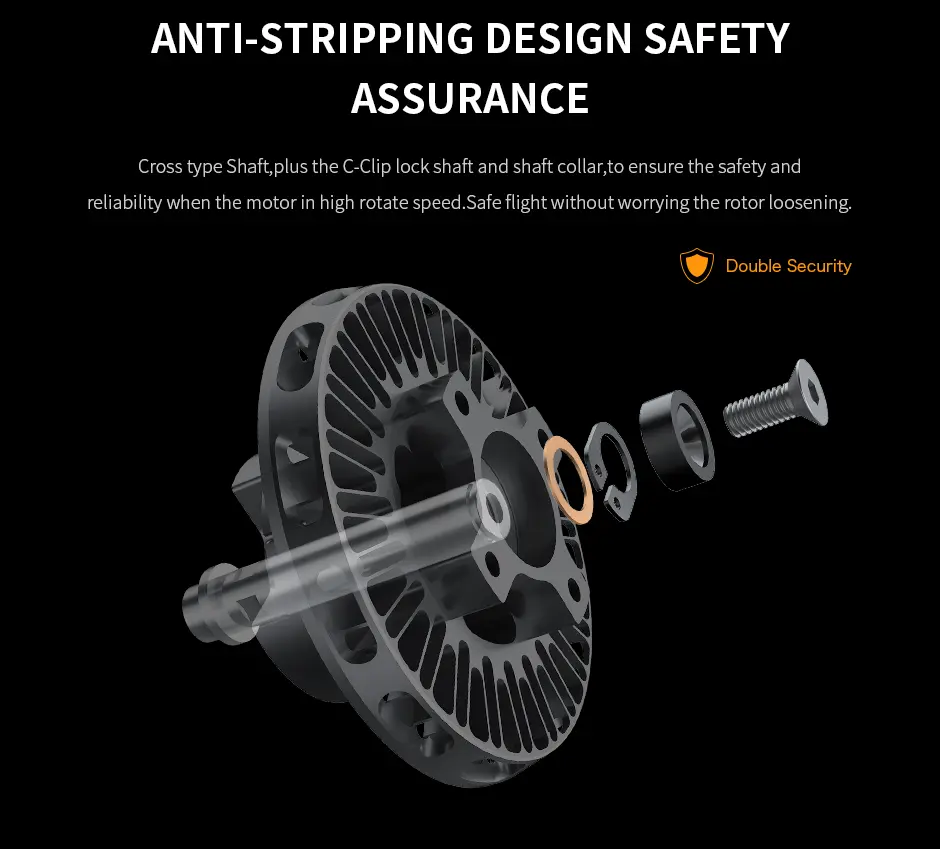

- Anti-stripping shaft design for safety.

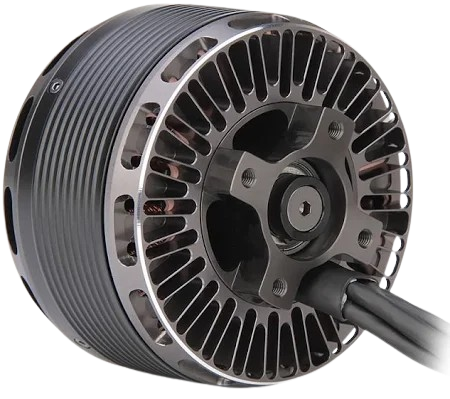

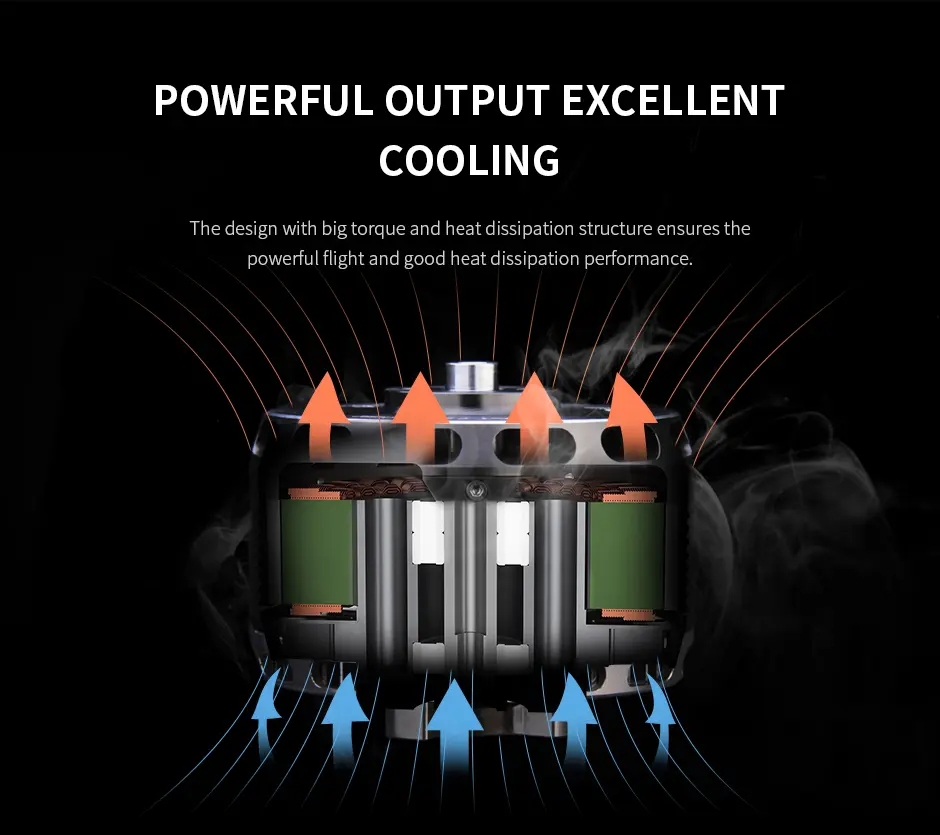

- Advanced heat dissipation structure.
Technical Specifications:
- Model: AT7224
- KV: 160KV
- Configuration: 24N22P
- Shaft Diameter: IN: 10mm, OUT: 10mm
- Rated Voltage (Lipo): 10-12S
- Lead :Enameled Wire 100mm
- Idle Current (10V): 3.1A
- Peak Current (180s): 105A
- Max. Power (180s): 4800W/12S
- Internal Resistance: 24mΩ

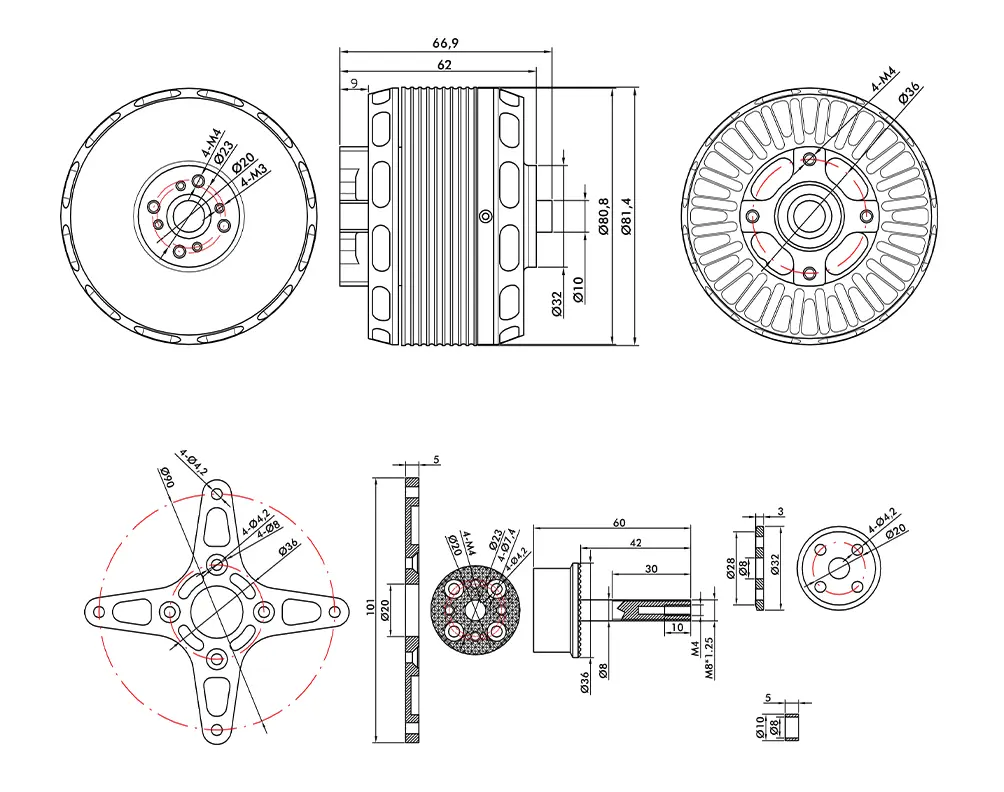

- Motor Dimensions: Φ81.4mm x 66.9mm
- Weight (Incl. Cable): 780g
Additional Details:
- Manufacturer: T-Motor
- Brand: T-Motor
- Generic Name: RC Motor || Brushless Motor || Fixed-Wing Motor || UAV Motor || Electric Plane Motor || Outrunner Motor || Industrial Drone Motor || Heavy Lift Motor || Aircraft Propulsion || Long Endurance Motor
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: Large 30-40CC Equivalent RC Airplanes || Heavy-Lift Fixed-Wing UAVs || VTOL Aircraft || Professional Mapping Drones || Surveillance Drones || Ultra Long-Endurance Aerial Platforms || Custom Industrial UAV Builds || Commercial Drone Applications || Advanced RC Pilots || Cinematic FPV (large platforms)

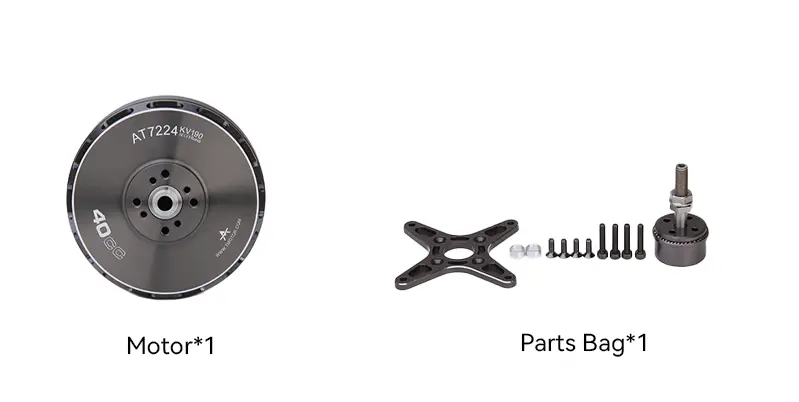

Package Details:
Includes:
- 1 x T-Motor AT7224 160KV Motor
- 1 x Hardware pack
Frequently Asked Questions:
Q1. What battery voltage is best suited for the T-Motor AT7224 160KV motor?
Ans. This motor is designed for high-voltage setups, performing optimally with 10-12S LiPo batteries to deliver maximum power and efficiency for large aircraft.
Q2. What types of UAVs is this motor best suited for, considering its low KV and immense power?
Ans. It is ideally suited for heavy-lift fixed-wing UAVs and VTOL aircraft in the 30-40CC equivalent class, focusing on very long endurance and robust, stable flight.
Q3. What kind of thrust can I expect from the AT7224 160KV, and what propeller sizes are recommended?
Ans. This motor can generate up to 17.72 kg of thrust with appropriate large propellers (e.g., 22x10 or 24x10 inches), making it highly capable for very heavy aircraft.
