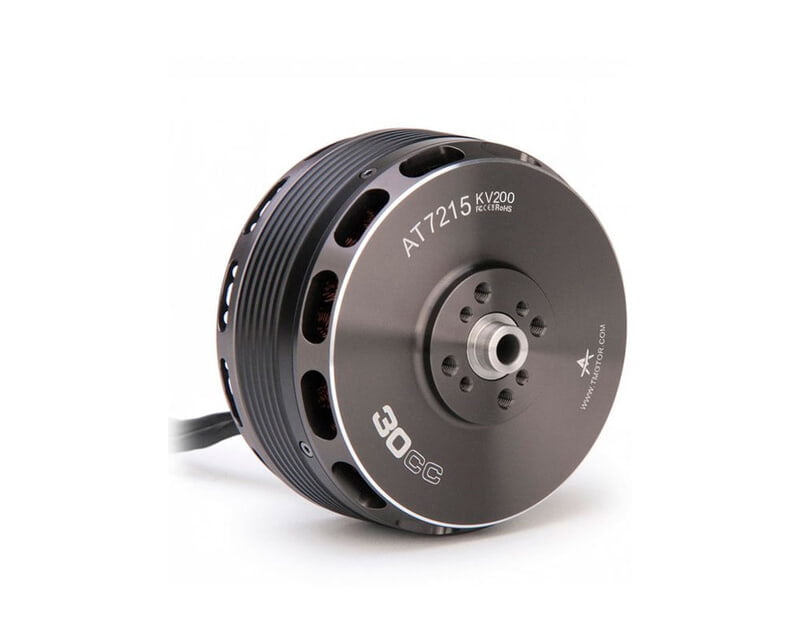

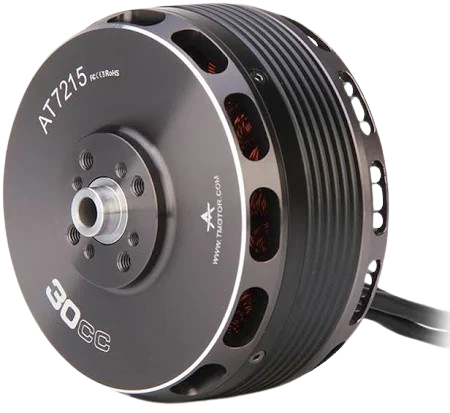

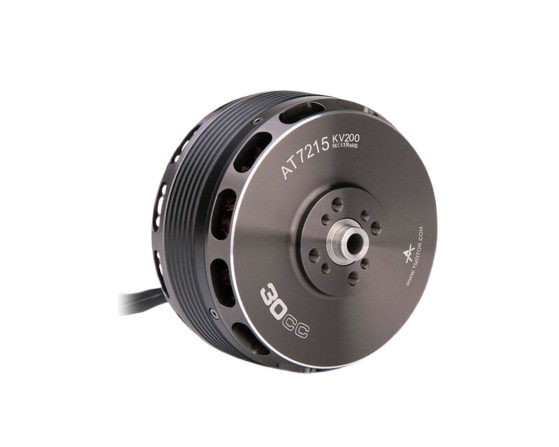

T-Motor AT7215 200KV Motor
Non-returnable
₹23,499.00
- Packaging Weight：900g，
- Packaging size：185*125*105mm
- AT72 series are suitable for 120E-170E aircraft,corresponding to gasoline engine about 30-40CC
Choose Quantity
Product Details
Technical Drawing
Specification
Test Item Long Shaft KV200 Weight (Incl. Cable) 550g Motor Dimensions Φ81.4*57.9mm Internal Resistance 27mΩ Lead Enameled Wire 100mm Configuration 24N22P Shaft Diameter IN：10mm
OUT：10mm Rated Voltage(Lipo) 10-12S Idle Current(10V) 2.4A Peak Current(180s) 95A Max. Power(180s) 4400W/12S
Test Item Long Shaft KV220 Weight (Incl. Cable) 565g Motor Dimensions Φ81.4*57.9mm Internal Resistance 24mΩ Lead Enameled Wire 100mm Configuration 24N22P Shaft Diameter IN：10mm
OUT：10mm Rated Voltage(Lipo) 10-12S Idle Current(10V) 2.4A Peak Current(180s) 100A Max. Power(180s) 4500W/12S
Test Item Long Shaft KV245 Weight (Incl. Cable) 555g Motor Dimensions Φ81.4*57.9mm Internal Resistance 20mΩ Lead Enameled Wire 100mm Configuration 24N22P Shaft Diameter IN：10mm
OUT：10mm Rated Voltage(Lipo) 8-10S Idle Current(10V) 2.4A Peak Current(180s) 110A Max. Power(180s) 5000W/12S
Test Item Long Shaft KV270 Weight (Incl. Cable) 560g Motor Dimensions Φ81.4*57.9mm Internal Resistance 17mΩ Lead Enameled Wire 100mm Configuration 24N22P Shaft Diameter IN：10mm
OUT：10mm Rated Voltage(Lipo) 8S Idle Current(10V) 2.4A Peak Current(180s) 120A Max. Power(180s) 4800W/10S

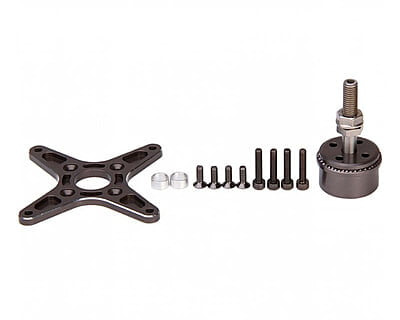

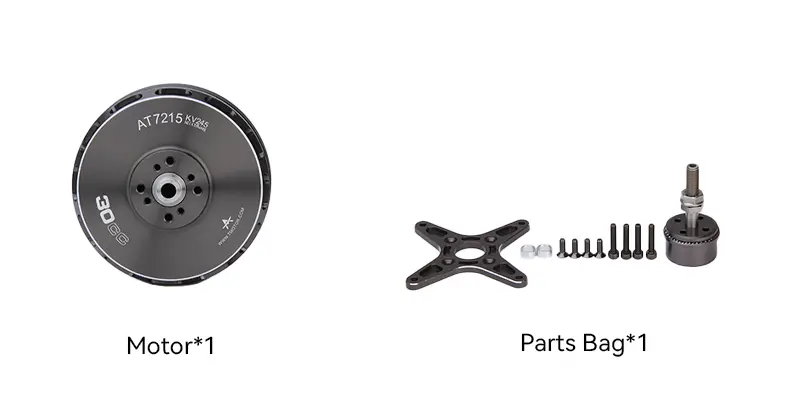

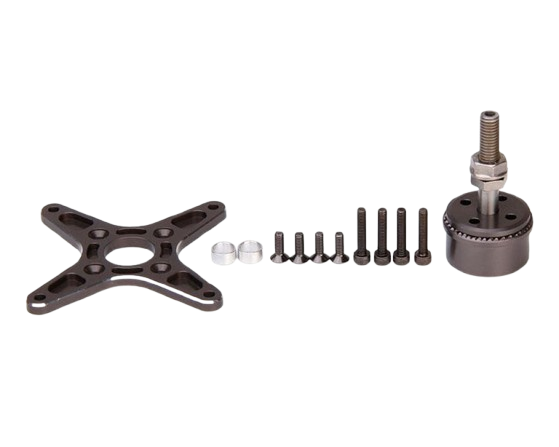

Packing List
Technical Drawing
Specification
| Test Item | Long Shaft KV200 | Weight (Incl. Cable) | 550g |
| Motor Dimensions | Φ81.4*57.9mm | Internal Resistance | 27mΩ |
| Lead | Enameled Wire 100mm | Configuration | 24N22P |
| Shaft Diameter | IN：10mm OUT：10mm | Rated Voltage(Lipo) | 10-12S |
| Idle Current(10V) | 2.4A | Peak Current(180s) | 95A |
| Max. Power(180s) | 4400W/12S |
| Test Item | Long Shaft KV220 | Weight (Incl. Cable) | 565g |
| Motor Dimensions | Φ81.4*57.9mm | Internal Resistance | 24mΩ |
| Lead | Enameled Wire 100mm | Configuration | 24N22P |
| Shaft Diameter | IN：10mm OUT：10mm | Rated Voltage(Lipo) | 10-12S |
| Idle Current(10V) | 2.4A | Peak Current(180s) | 100A |
| Max. Power(180s) | 4500W/12S |
| Test Item | Long Shaft KV245 | Weight (Incl. Cable) | 555g |
| Motor Dimensions | Φ81.4*57.9mm | Internal Resistance | 20mΩ |
| Lead | Enameled Wire 100mm | Configuration | 24N22P |
| Shaft Diameter | IN：10mm OUT：10mm | Rated Voltage(Lipo) | 8-10S |
| Idle Current(10V) | 2.4A | Peak Current(180s) | 110A |
| Max. Power(180s) | 5000W/12S |
| Test Item | Long Shaft KV270 | Weight (Incl. Cable) | 560g |
| Motor Dimensions | Φ81.4*57.9mm | Internal Resistance | 17mΩ |
| Lead | Enameled Wire 100mm | Configuration | 24N22P |
| Shaft Diameter | IN：10mm OUT：10mm | Rated Voltage(Lipo) | 8S |
| Idle Current(10V) | 2.4A | Peak Current(180s) | 120A |
| Max. Power(180s) | 4800W/10S |
Packing List
