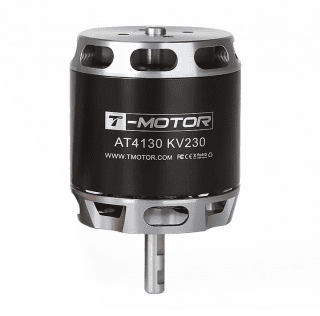

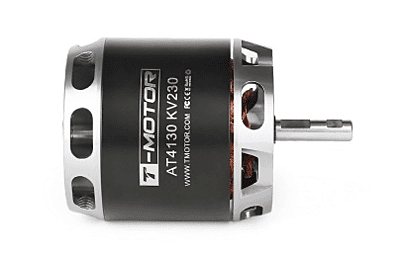

T-Motor AT4130 230KV Motor
Non-returnable
₹11,599.00
The T-Motor AT4130 230KV is a specialized brushless motor engineered for ultra long endurance and heavy-lift fixed-wing and VTOL UAVs (12-15kg class). Its very low KV delivers exceptional efficiency, maximizing flight time for critical industrial missions. With robust construction and advanced features, it ensures reliable and stable propulsion for demanding professional applications.
Choose Quantity
Product Details
Features:
- Ultra-low 230KV for maximum endurance.
- Optimized for 12-15kg VTOL fixed-wing.
- High efficiency for extended flight times.
- Robust body design, freely releasable.
- Military-grade wire for superior durability.
- Anti-stripping shaft design for safety.
- High torque with curved magnets.
- Triple-bearing support for stability.
- Enhanced heat dissipation structure.
- Embossing design for secure prop mounting.
Technical Specifications:
- KV: 230
- Weight (Incl. Cable): 408g
- Motor Dimensions: Φ50*79mm
- Internal Resistance: 60mΩ
- Lead Enameled Wire: 100mm
- Configuration: 12N14P
- Shaft Diameter IN 6mm OUT:6mm
- Rated Voltage(Lipo): 12S
- Idle Current(10V): 1.4A
- Peak Current(180s): 60A
- Max Power (180S): 2500W
Additional Details:
- Manufacturer: T-Motor
- Brand: T-Motor
- Generic Name: UAV Motor || Brushless Motor || Fixed-Wing Motor || VTOL Motor || Electric Plane Motor || Outrunner Motor || Industrial Drone Motor || Heavy Lift Motor || Aircraft Propulsion || Long Endurance Motor
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: Large Fixed-Wing UAVs (12-15kg class) || VTOL Aircraft || Ultra Long-Endurance Drones || Professional Mapping Drones || Surveillance Drones || Heavy-Lift Fixed-Wing Drones || Custom Industrial UAV Builds || Commercial Drone Applications || Advanced UAV Pilots || Defense & Security Drones
Package Details:
Includes:
- 1 x T-Motor AT4130 230KV Motor

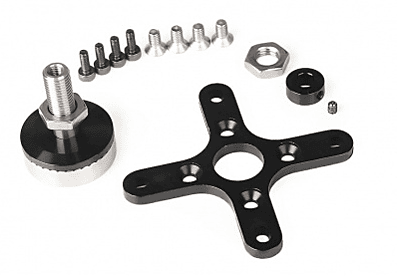

- 1 x Hardware pack (typically includes propeller adapter/nut, mounting screws)
Frequently Asked Questions:
Q1. What battery voltage is primarily recommended for the T-Motor AT4130 230KV motor?
Ans. This motor is specifically designed for high-voltage systems and performs optimally with 12S LiPo batteries, maximizing efficiency for long flights.
Q2. What types of UAVs is this motor best suited for, considering its low KV and high power?
Ans. Its ultra-low KV and substantial power are ideal for heavy-lift fixed-wing UAVs and VTOL aircraft in the 12-15kg class, focusing on long endurance and stable flight.
Q3. What kind of thrust can I expect from the T-Motor AT4130 230KV, and what propellers are recommended?
Ans. This motor can generate significant thrust, reaching up to 7.63KG with propellers like an APC 17x10 on 12S, or T-Motor FS15*8 folding propellers are also recommended.
