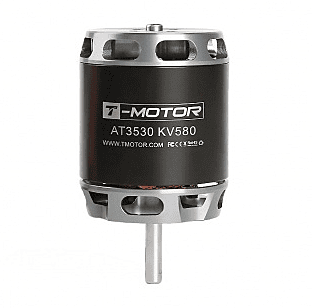

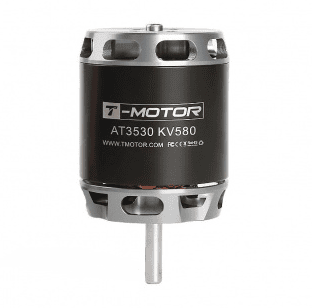

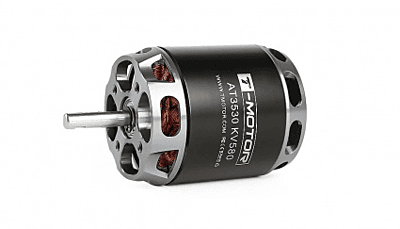

T-Motor AT3530 580KV Motor
Non-returnable
₹10,999.00
The T-Motor AT3530 580KV is a high-performance brushless motor specifically designed for larger fixed-wing UAVs (2.2-2.4kg) and RC airplanes. It delivers exceptional thrust (up to 4.8kg) and efficiency, ensuring stable, powerful, and long-duration flights. With its robust construction and advanced cooling, it's a premium choice for demanding aerial applications.
Choose Quantity
Product Details
Features:
- Powerful 580KV for large fixed-wing.
- Designed for 2.2-2.4kg UAVs.
- High maximum thrust up to 4.8KG.
- Excellent efficiency for long flights.
- Robust body, freely releasable.
- Military-grade wires for durability.
- Anti-stripping design for safety.
- High torque with curved magnets.
- Triple bearing design for stability.
- Ultra-efficient heat dissipation system.
Technical Specifications:
- Test Item: Long Shaft KV580
- Weight (Incl. Cable): 298g
- Motor Dimensions: Φ43*75mm
- Internal Resistance: 18mΩ
- Lead: 100mm
- Configuration: 12N14P
- Shaft Diameter: IN：5mm OUT：5mm
- Rated Voltage(Lipo): 4-6S
- Idle Current(10V): 1.9A
- Peak Current(180s): 65A
- Max Power (180S): 1400W
Additional Details:
- Manufacturer: T-Motor
- Brand: T-Motor
- Generic Name: RC Motor || Brushless Motor || Fixed-Wing Motor || UAV Motor || Electric Plane Motor || Outrunner Motor || High Power Motor || Hobby Motor || Aircraft Propulsion || Model Aircraft Motor
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: Large RC Airplanes (e.g., 2.2-2.4kg fixed-wing) || VTOL Aircraft || Long-Range Fixed-Wing UAVs || Professional Mapping Drones || Surveillance Drones || Custom Aircraft Builds || High-Performance Sport RC Planes || Commercial Drone Applications || Advanced RC Pilots || Aerobatic RC Planes (larger scale)
Package Details:
Includes:
- 1 x T-Motor AT3530 580KV Motor

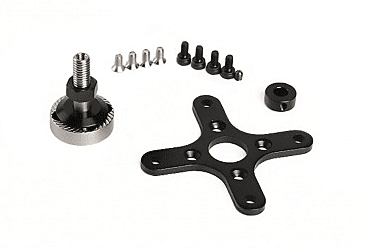

- 1 x Hardware pack
Frequently Asked Questions:
Q1. What battery voltage is primarily recommended for the T-Motor AT3530 580KV motor?
Ans. This motor is designed to perform optimally with 4-6S LiPo batteries, providing versatile power options for various fixed-wing setups.
Q2. Is this motor suitable for achieving long flight durations on a fixed-wing UAV?
Ans. Yes, its 580KV rating and high efficiency make it an excellent choice for long-endurance fixed-wing UAVs, providing sustained power for extended missions.
Q3. What kind of thrust can I expect from the T-Motor AT3530 580KV?
Ans. This motor can deliver a maximum thrust of up to 4.8KG, making it highly capable for supporting larger fixed-wing aircraft and demanding flight envelopes.
