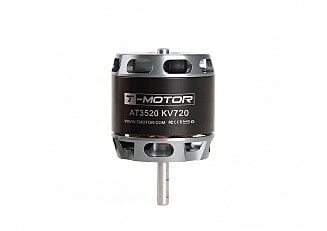

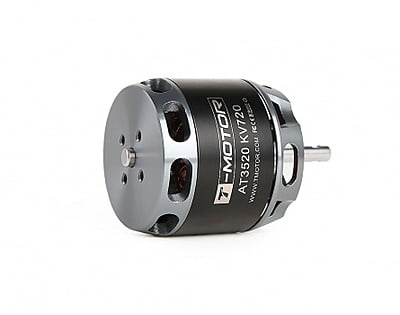

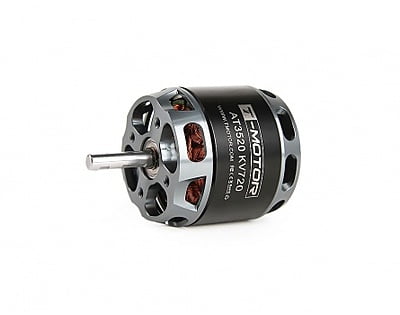

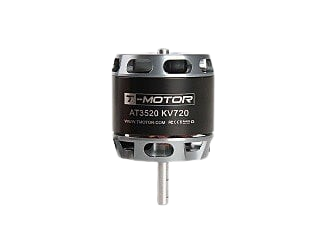

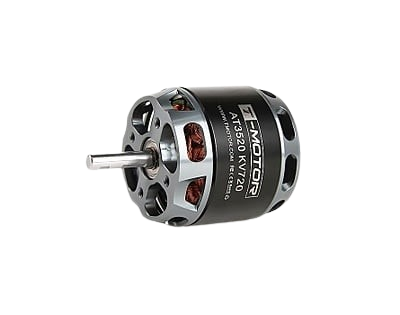

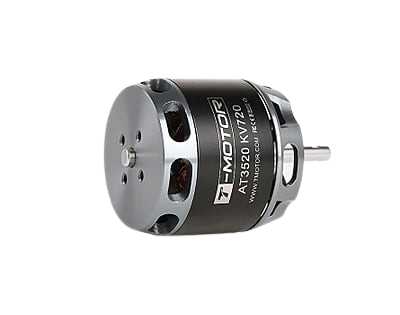

T-MOTOR-AT3520 BRUSHLESS MOTOR
₹8,899.00
The T-Motor AT3520 850KV is a premium brushless outrunner motor engineered for fixed-wing aircraft and VTOL applications. Delivering robust power, high efficiency, and exceptional reliability, it ensures stable and powerful flight performance for RC planes and long-range UAVs. Its durable construction and advanced design make it ideal for demanding aerial maneuvers.
KV
Choose Quantity
Product Details
Features:
- Specifically designed for fixed-wing and VTOL.
- High 850KV delivers impressive RPMs.
- High power output for demanding flights.
- Excellent efficiency for extended flight times.
- Premium quality bearings for smooth operation.
- Advanced cooling system for heat dissipation.
- Hand-wound stator for optimized performance.
- Military-grade high-temperature enamelled wire.
- Curved arc magnets for superior torque.
- Robust body construction for durability.
Technical Specifications:
- Model: AT3520
- KV: 850KV
- Configuration: 12N14P
- Shaft Diameter: 5mm
- Rated Voltage (LiPo): 3-4S
- Motor Dimensions: Approximately Φ43*65mm (Diameter x Length, including shaft)
- Weight (incl. cable): Approximately 221g
- Internal Resistance: 14mΩ
- Recommended Propeller: 10-12 inch for optimal performance with 3-4S LiPo.
- Recommended ESC: 75A ESC
- Lead: Enameled Wire100mm
- Idle Current(10V): 2.0A
- Peak Current(180s):70A
- Max Power (180S): 1100W
Additional Details:
- Manufacturer: T-Motor
- Brand: T-Motor
- Generic Name: RC Motor || Brushless Motor || Fixed-Wing Motor || VTOL Motor || Electric Aircraft Motor || Outrunner Motor || Hobby Motor || Plane Motor || UAV Propulsion || Model Aircraft Motor
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: RC Airplanes || Fixed-Wing UAVs || VTOL Aircraft || Long-Range Drones || FPV Planes || Large RC Models || Aerobatic RC Planes || Custom Aircraft Builds || High-Performance Drones || Sport Flying RC Planes
Package Details:
Includes:
- 1x T-MOTOR AT3520 Motor

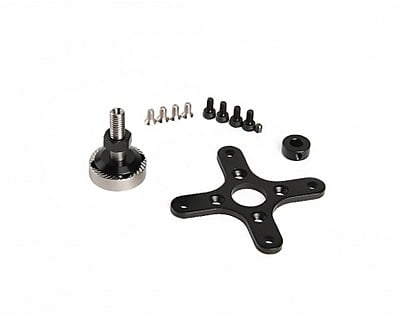

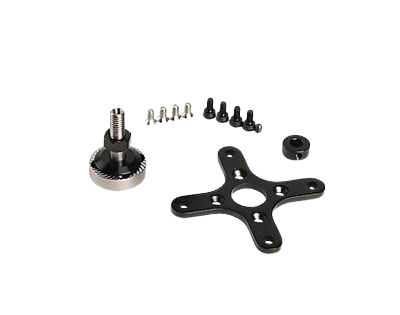

- 1x Hardware pack
Frequently Asked Questions:
Q1. What battery voltage is best for the AT3520 850KV motor?
Ans. The T-Motor AT3520 850KV is optimized for use with 3-4S LiPo batteries.
Q2. What propeller size should I use with this 850KV motor for a fixed-wing aircraft?
Ans. For optimal performance with this 850KV, propellers between 10-12 inches are generally recommended, depending on your aircraft's weight and desired flight characteristics.
Q3. Is this motor suitable for both speed and efficiency in RC aircraft?
Ans. The 850KV offers a good balance, providing strong power for speed while maintaining decent efficiency for reasonable flight durations in fixed-wing and VTOL applications.
