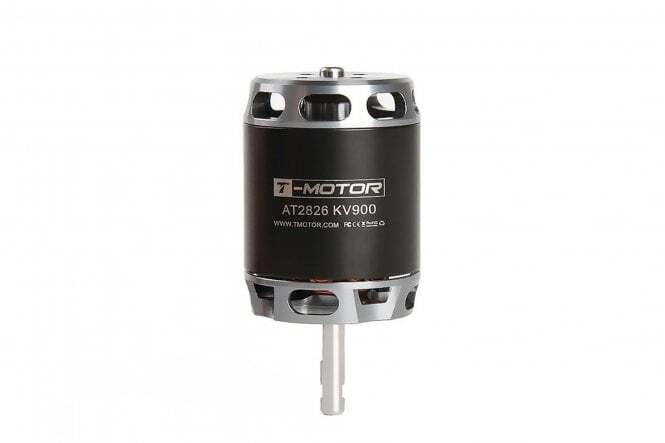

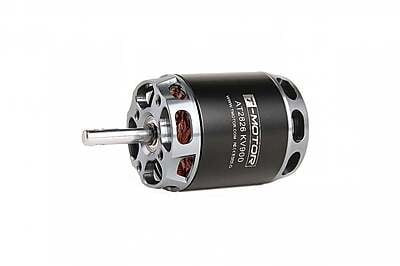

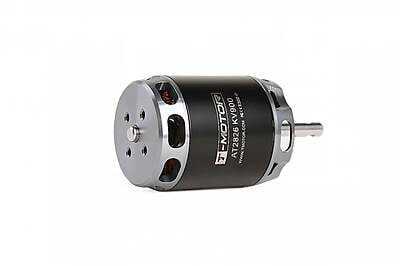

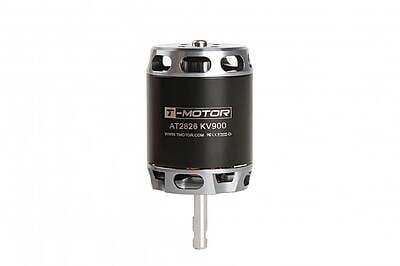

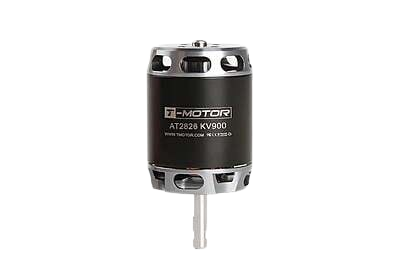

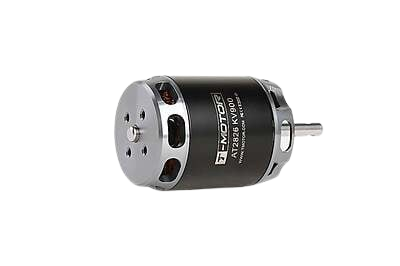

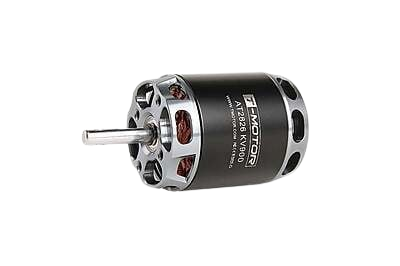

T-MOTOR-AT2826 BRUSHLESS MOTOR
₹8,499.00
The T-Motor AT2826 1100KV is a powerful and versatile brushless motor, ideal for RC airplanes, FPV fixed-wing drones, and VTOL projects. It delivers strong thrust, high efficiency, and reliable performance for sport flying, aerobatics, and demanding aerial maneuvers. Its durable construction and precision engineering ensure consistent power for your advanced builds.
KV
Choose Quantity
Product Details
Features:
- High 1100KV for dynamic performance.
- Designed for fixed-wing and VTOL.
- High thrust output for agile flight.
- Excellent efficiency for balanced performance.
- Precision balanced for smooth operation.
- Durable construction ensures long lifespan.
- Advanced heat dissipation structure.
- Military-grade high-temperature enamelled wire.
- Robust Japanese triple-bearing support.
- Anti-stripping shaft design for safety.
Technical Specifications:
- Motor: KV1100
- Weight (Incl. Cable): 175g
- Motor Dimensions: Φ35.2*69.5mm
- Internal Resistance: 110mΩ
- Lead: Enameled Wire100mm
- Configuration: 12N14P
- Shaft Diameter: IN：5mm OUT：5mm
- Rated Voltage(Lipo): 3-4S
- Idle Current(10V): 2.9A
- Peak Current(180s): 59A
- Max Power (180S): 110W
Additional Details:
- Manufacturer: T-Motor
- Brand: T-Motor
- Generic Name: RC Motor || Brushless Motor || RC Plane Motor || Drone Motor || Multirotor Motor || Electric Aircraft Motor || Outrunner Motor || Hobby Motor || UAV Propulsion || Model Aircraft Motor
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: Medium to Large RC Airplanes || 3D Aerobatic RC Planes || Fixed-Wing UAVs || VTOL Aircraft || FPV Fixed-Wing Drones || Custom Aircraft Builds || High-Performance Sport RC Planes || Gliders with Power Systems || Intermediate to Advanced Pilots || Long-Range FPV Platforms
Package Details:

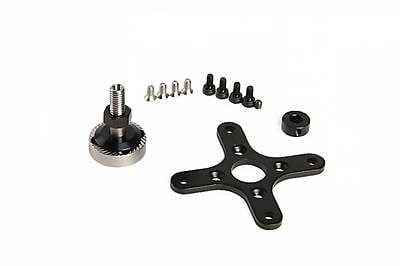

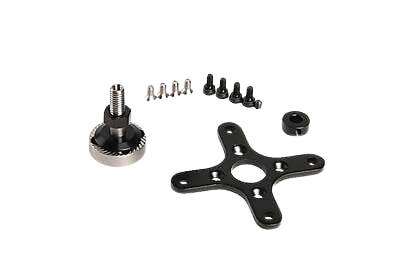

Includes:
- 1 x T-Motor AT2826 1100KV Brushless Motor
- 1 x Propeller Adapter/Mount (often a collet or bolt-on type)
- 1 x Set of Mounting Screws
Frequently Asked Questions:
Q1. What battery voltage is primarily recommended for the T-Motor AT2826 1100KV motor?
Ans. This motor is designed to perform optimally with 3-4S LiPo batteries, providing strong power and efficiency for its size.
Q2. Is this motor suitable for both RC airplanes and fixed-wing UAVs?
Ans. Yes, its power output and efficiency make it an excellent choice for a wide range of RC airplanes, including 3D models, as well as various fixed-wing UAV and VTOL applications.
Q3. What propeller sizes are generally recommended for this 1100KV motor to achieve its listed thrust?
Ans. For 3S LiPo, propellers like APC 12x6 or 13x6.5 are often recommended for optimal thrust. For 4S, you would typically use smaller propellers, such as 10x5 or 11x5.5, to manage current draw and RPM.
