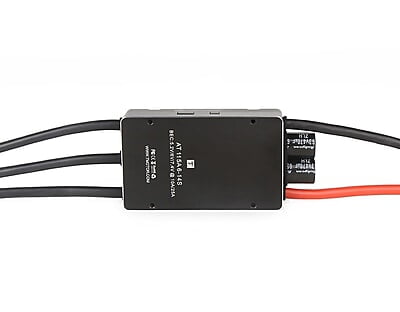

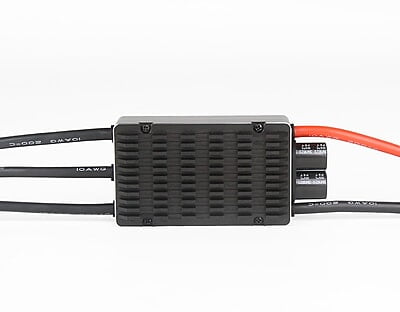

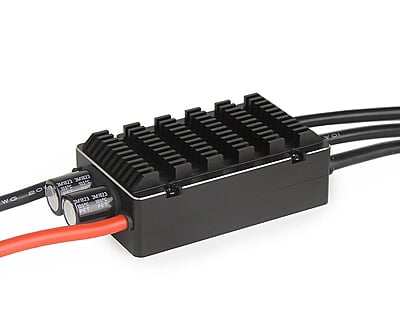

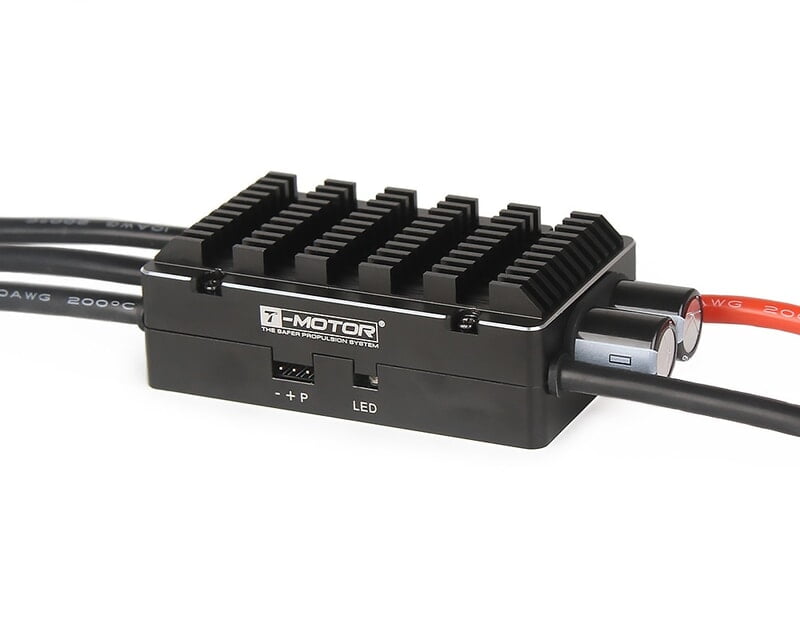

T-Motor AT 115A 14S ESC

Features:

• Extreme high voltage 6-14S LiPo input.




• Massive 115A continuous current rating.




• Provides excellent heat dissipation.




• Optimized for T-Motor AT series motors.




• Robust design for industrial applications.




• Supports precise motor control.




• Built for high-power, heavy-lift drones.




• Reliable and safe for critical missions.




• Enhanced efficiency for extended flight times.




• Durable casing for harsh environments.

Technical Specifications:

• Model: T-Motor AT 115A 14S ESC

• Continuous Current: 115A

• Burst Current: 140A (for 10 seconds)

• Input Voltage: 6-14S LiPo (22.2V-58.8V)

• BEC Output: No BEC

• PWM Frequency: 8-24KHz

• Signal Protocol: PWM, DShot, Dshot150/300/600 (and likely others)

• Dimensions: 105 x 44 x 19mm

• Weight: 215g (with wires)

• Operating Temperature: -20℃ to 65℃

• Special Features: High voltage compatibility, high current capacity, specifically designed for T-Motor's AT series of large motors.

Additional Details:

• Manufacturer: T-Motor

• Brand: T-MOTOR

• Generic Name: ESC || Electronic Speed Controller || Drone ESC || High Voltage ESC || Industrial ESC || UAV Part || Brushless Motor Controller || Drone Component || T-Motor ESC || RC Speed Controller

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: Agricultural Drones || Industrial UAVs || Professional Heavy-Lift Drones || Commercial Drone Builders || Large Multirotors || Drone Cinematography Platforms || Search and Rescue Drones || Fixed-Wing Drones || Long-Endurance UAVs || Custom Drone Projects

Package Details:

Includes:

• 1x T-Motor AT115A ESC

• 1x Hardware Kit

Frequently Asked Questions:

Q1. What makes the T-Motor AT 115A ESC suitable for heavy-lift drones?

Ans. The T-Motor AT 115A ESC is suitable for heavy-lift drones due to its immense 115A continuous current rating and high-voltage 14S support. These specifications allow it to handle the immense power draw required to spin large motors and propellers, providing the thrust necessary to lift and carry heavy payloads for industrial and agricultural missions without risk of component failure.

Q2. Is this ESC compatible with all brushless drone motors?

Ans. While the T-Motor AT 115A ESC is compatible with many high-voltage brushless motors, it is specifically optimized to be paired with T-Motor's AT series motors. This pairing ensures the highest possible efficiency, precision, and reliability for industrial applications. Using a matched ESC and motor from the same series guarantees a perfectly balanced and high-performing power system.

Q3. What is the primary benefit of running a drone on a 14S high-voltage system?

Ans. The primary benefit of running a drone on a 14S high-voltage system is increased efficiency and reduced current load. By increasing voltage, the system's current draw for the same power output is reduced. This results in less heat generated, which improves component lifespan and, most importantly, allows for significantly longer flight times for critical missions.
