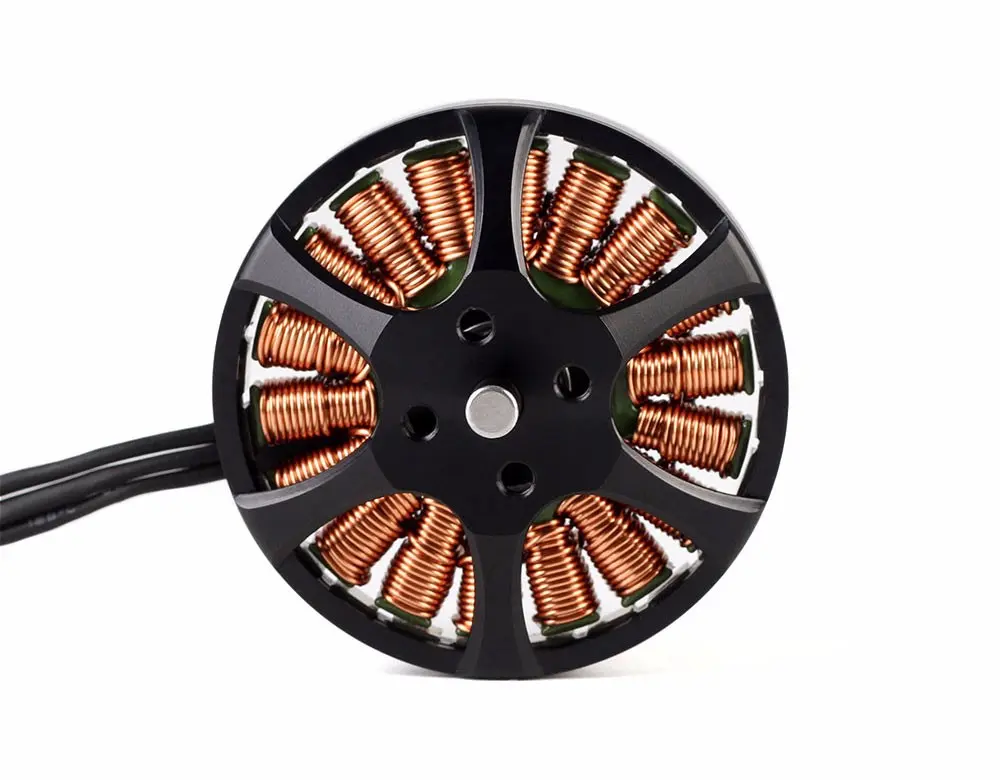

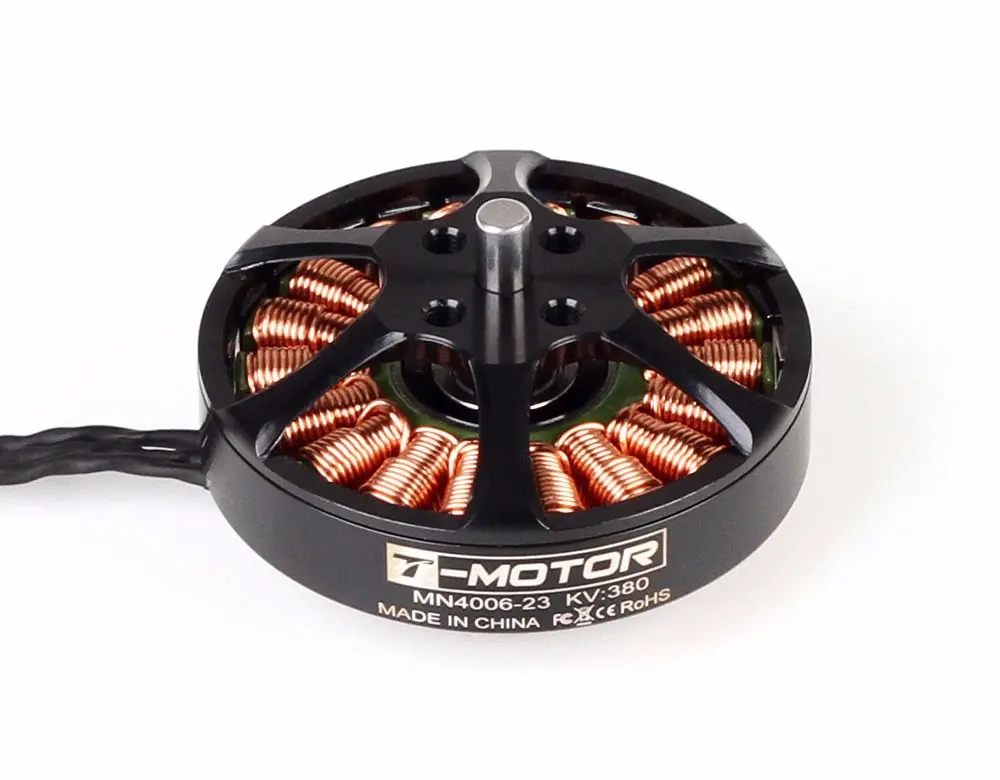

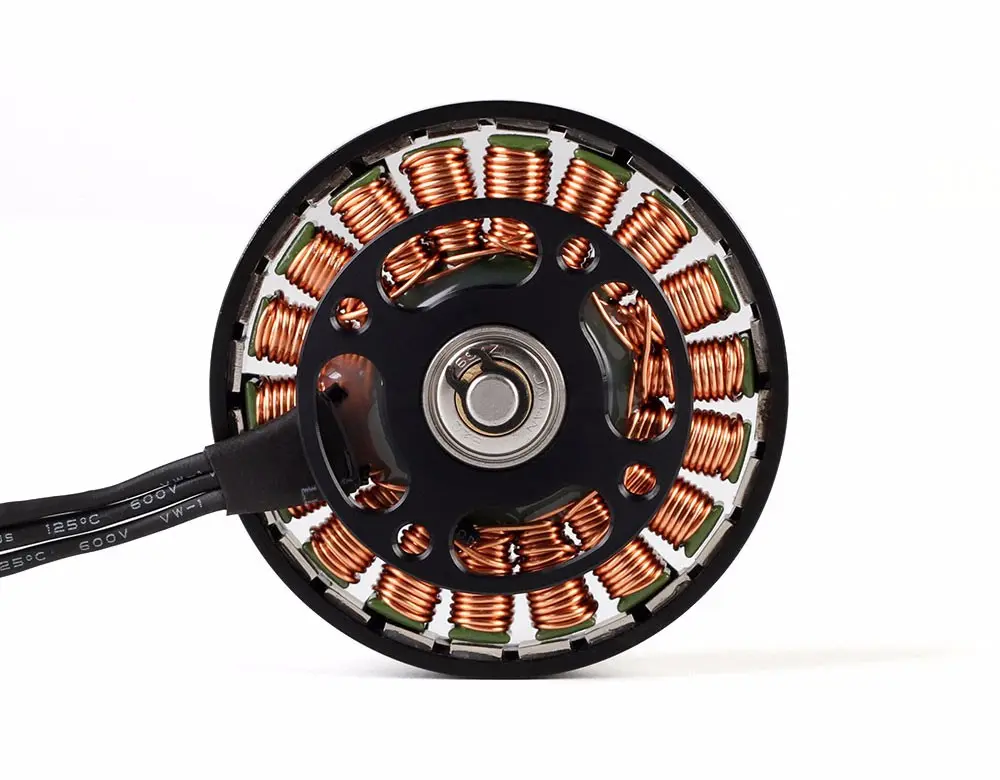

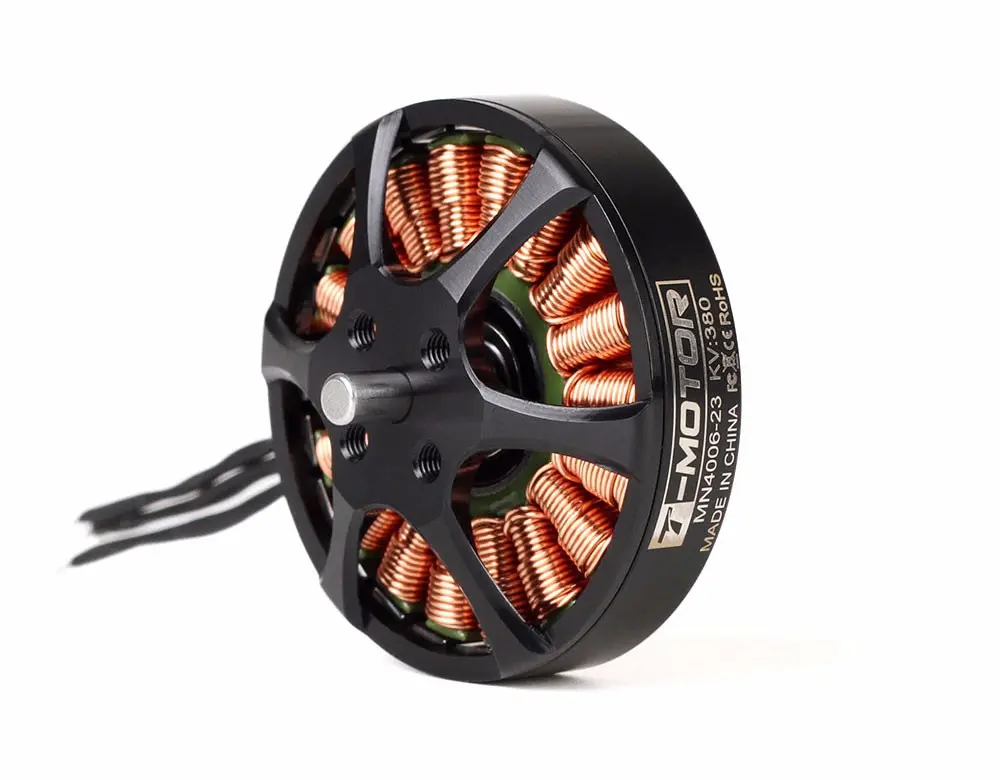

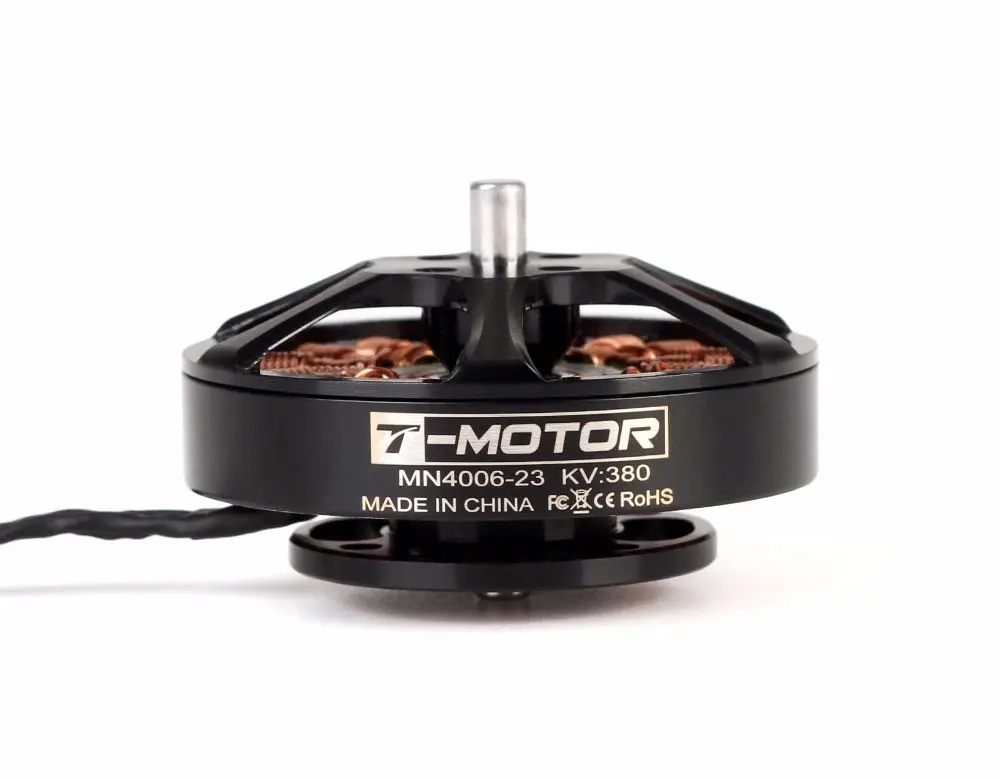

T-MOTOR - ANTIGRAVITY MN 4006 KV380
₹21,499.00
Out of stock
T-MOTOR MN4006 Antigravity KV380 is a revolutionary brushless motor designed for top-tier UAV performance. Weighing only 57g, it’s one of the lightest motors in its class, offering exceptional power without compromising on durability. Crafted with precision, this motor delivers unparalleled efficiency, making it the ideal choice for builders who demand both high performance and reliability.Up to 1.6kg thrust.
Product Details
Features:
- Ultrathin design for lightest weight.
- Unique ventilation and cooling system.
- Single thick copper wire winding by hand.
- High-grade EZO bearings for extended life.
- Excellent assembling workmanship.
- Great rotor dynamic balance.
- High efficiency (up to 92%).
- Compatible with 4-6S LiPo batteries.
- Offers up to 1.6kg thrust.
- Anti-rust treatment on stator.
Technical Specifications:
- KV: KV380
- Weight (Incl. Cable): 68g
- Motor Dimensions: Φ44.35x21mm
- Internal Resistance: 194mΩ
- Lead: 50mm
- Configuration: 18N24P
- Shaft Diameter: 40mm
- Rated Voltage(Lipo): 4-6S
- Idle Current(22V): 0.3A
- Peak Current(180s): 16A
- Max Power (180S): 380W
Additional Details:
- Manufacturer: T-Motor
- Brand: T-Motor
- Generic Name: Drone Motor || Brushless Motor || Multirotor Motor || UAV Motor || Long Endurance Motor || Aerial Photography Motor || Electric Motor || Outrunner Motor || Professional Drone Motor || Surveying Drone Motor
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: Aerial Photography Drones || Professional Multi-rotors || Small to Medium UAVs || Mapping & Surveying Drones || Long-Endurance Flights || Custom Drone Builds || VTOL Aircraft || Cinematic Drones (lighter payloads) || Pilots requiring stable, smooth, and very lightweight propulsion.
Package Details:
Includes:
- 1 x T-Motor Antigravity MN4006 380KV Brushless Motor
- 1 x Set of Mounting Screws
Frequently Asked Questions:
Q1. What is the primary advantage of the T-Motor Antigravity MN4006 380KV motor?
Ans. Its ultrathin and ultra-lightweight design, combined with high efficiency and superior dynamic balance, is engineered to provide significantly extended flight times for UAVs.
Q2. What battery voltage range is recommended for this 380KV motor?
Ans. The T-Motor Antigravity MN4006 380KV motor is designed to operate effectively with 4-6S LiPo batteries, offering a good balance for power and efficiency in long-duration drone applications.
Q3. What kind of thrust can I expect from the MN4006 380KV, and what propellers are recommended?
Ans. This motor can provide up to 1.6kg (1600g) of thrust, and it is recommended to pair it with T-Motor carbon fiber propellers such as P144.8 or P155 for optimal performance.
