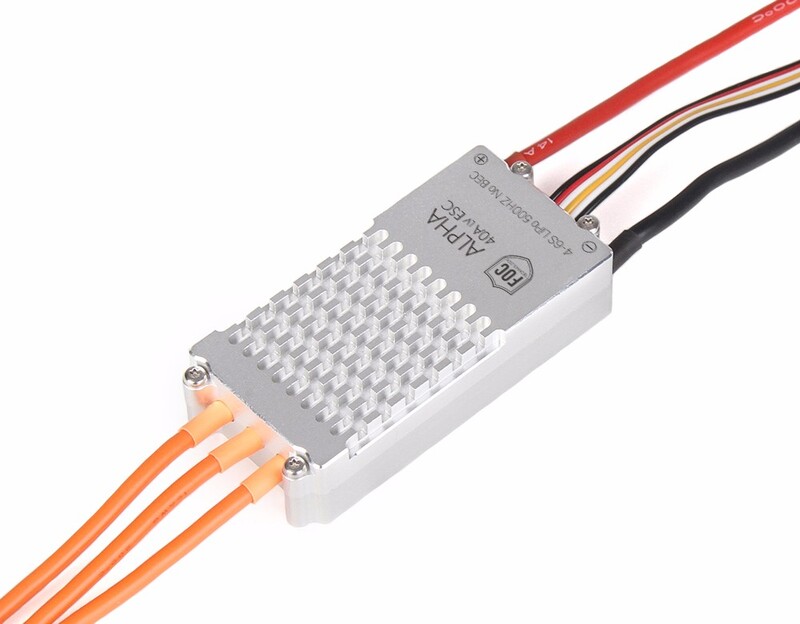

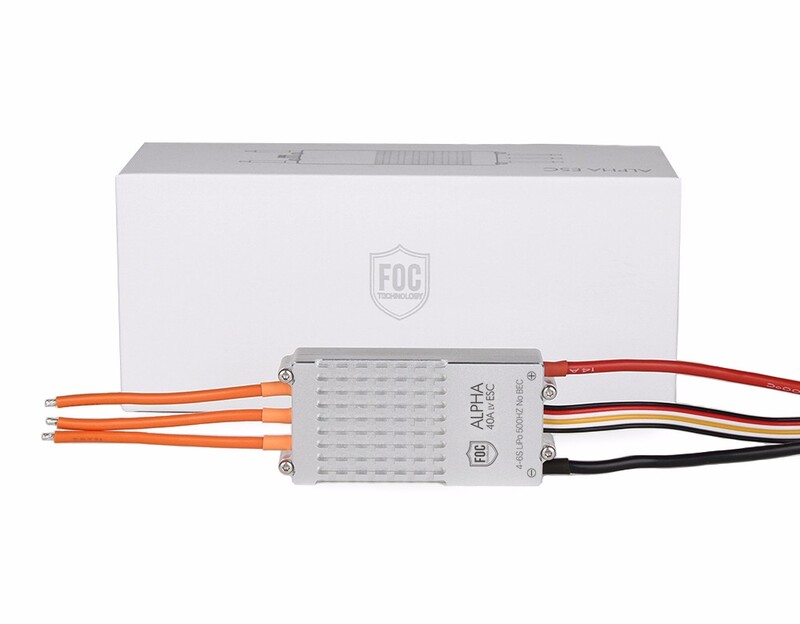

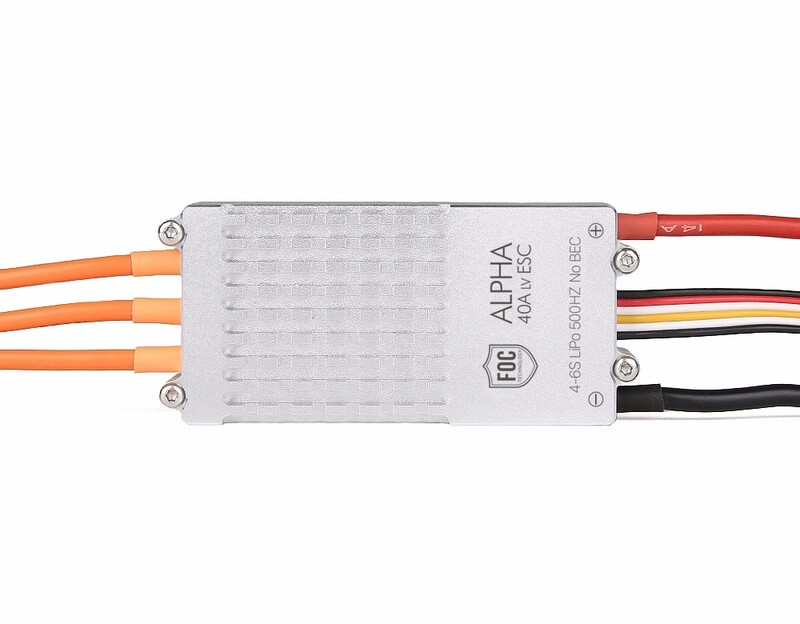

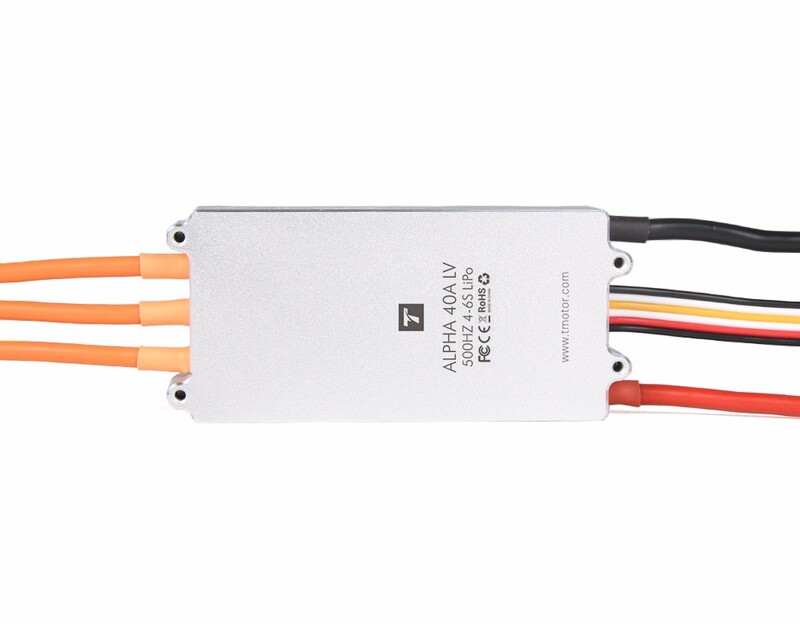

T-Motor ALPHA 40A 6S ESC

Features :

• Supports 2S to 6S LiPo battery input.

• 40 Amps continuous current capability.

• Advanced 32-bit processor for fast execution.

• Excellent heat dissipation for reliable operation.

• Optimized for high-performance multirotor applications.

• Precise motor synchronization and throttle linearity.

• Multiple protection features (over-current, over-temp, etc.).

• Compact size and lightweight design for easy integration.

• Robust and durable construction for demanding use.

• Ideal for professional and industrial drone builds.

Technical Specifications:

• Continuous Current: 40A

• Burst Current: 50A (for 10 seconds)

• Input Voltage: 2-6S LiPo (7.4V - 25.2V)

• BEC Output: No BEC (OPTO) - Requires separate BEC or flight controller power for low-voltage components.

• Firmware: T-Motor proprietary firmware (often optimized for T-Motor motors, typically supports DShot, ProShot, etc.)

• Processor: High-performance 32-bit MCU (Specific model often proprietary)

• Signal Support: DShot150/300/600, ProShot1000, MultiShot, OneShot125, PWM

• Dimensions: Approx. 35mm x 15mm x 5mm (L x W x H) - User needs to provide specific dimensions, this is an estimate for a compact 40A ESC.

• Weight: Approx. 10-15g (excluding wires)

• Input Wires: Typically 16AWG (silicone)

• Output Wires: Typically 18AWG (silicone)

• Protection Features: Over-current protection, Over-temperature protection, Throttle loss protection, Startup protection.

Additional Details:

• Manufacturer: T-Motor

• Brand: T-Motor

• Generic Name: Electronic Speed Controller || ESC || Brushless ESC || Multirotor ESC || Drone ESC || 6S ESC || Motor Controller || Speed Controller || RC ESC || OPTO ESC

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: Professional FPV Drones || Cinematic UAVs || Industrial Inspection Drones || Agricultural Drones || Custom Racing Drones || Heavy-Lift Multirotors || High-Performance Drone Builds || Robotics Projects || Aerial Photography Platforms || Competitive FPV Pilots

Package Details:

Includes:

• 1x T-Motor ALPHA 40A 6S ESC

• 1x User Manual / Wiring Diagram

Frequently Asked Questions:

Q1. What does "OPTO" mean for the T-Motor ALPHA 40A 6S ESC?

Ans. "OPTO" on an ESC signifies that it does not have a built-in Battery Eliminator Circuit (BEC). This means the ESC's primary function is solely to drive the motor, and you'll need to provide separate regulated power (e.g., from a standalone BEC or a flight controller with a built-in BEC) to power your flight controller, receiver, and other low-voltage electronics.

Q2. Is this T-Motor ALPHA 40A 6S ESC suitable for cinematic or heavy-lift drone applications?

Ans. Yes, the T-Motor ALPHA 40A 6S ESC is well-suited for cinematic and lighter heavy-lift drone applications due to its robust 40A continuous current rating, 6S LiPo compatibility, and precise motor control capabilities. Its high-performance design ensures stable and efficient power delivery essential for smooth footage and reliable operations.

Q3. What digital protocols does the T-Motor ALPHA 40A 6S ESC support for communication with a flight controller?

Ans. The T-Motor ALPHA 40A 6S ESC typically supports a wide range of popular digital communication protocols including DShot (DShot150, DShot300, DShot600), ProShot1000, MultiShot, and OneShot125, in addition to standard PWM. These digital protocols offer lower latency, higher precision, and less noise compared to traditional PWM, enhancing overall flight performance.
