T-MOTOR Air Gear 450II

Features:

• Complete propulsion system in one kit.




• Powerful and efficient brushless motor.




• Fast and responsive electronic speed controller.




• Self-locking propellers for easy assembly.




• Optimized for 450-class quadcopter frames.




• Reduced vibrations for stable video footage.




• High-quality components for long lifespan.




• Integrated design for quick installation.




• Superior thrust-to-weight ratio.




• Perfectly matched components for peak performance.

Technical Specifications:

• Model: T-MOTOR Air Gear 450II

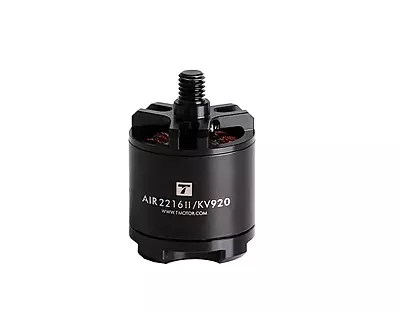

• Motor Model: T-Motor 2216

• Motor KV (RPM/V): 920 KV

• Max. Power: 272 W (180s)

• Peak Current (180s): 17 A

• Idle Current: 0.8 A (10V)

• Rated Voltage (LiPo): 4S (4.2V)

• Internal Resistance: 115 ± 10 mΩ

• Propeller Size: 9.5×4.5 or 10×4.5 inches

• ESC Model: T-Motor 30A ESC

• Input Voltage: 3S–4S LiPo

• Recommended Frame Size: 450-class quadcopters

• Weight (Motor Only): 64 ± 2 g

• Total Set Weight: 100–150 g (Motor + ESC + Propeller)

• Shaft Material: Steel

• Shipping Weight: 0.678 kg

• Shipping Dimensions: 27 × 13 × 5 cm

Additional Details:

• Manufacturer: T-Motor

• Brand: T-MOTOR

• Generic Name: Drone Propulsion System || Motor & ESC Combo || Quadcopter Kit || Drone Motor Set || Brushless Motor || Drone Electronic Speed Controller || Drone Propeller || UAV Power System || Motor ESC Prop Combo || Drone Gear

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: 450-Class Drones || FPV Quadcopters || Aerial Photography Platforms || Hobbyist Drone Builders || DIY Drone Projects || Multirotor Enthusiasts || Cinematography Drones || Beginner to Intermediate Drones || Custom Quadcopter Builds || Research and Development UAVs

Package Details:

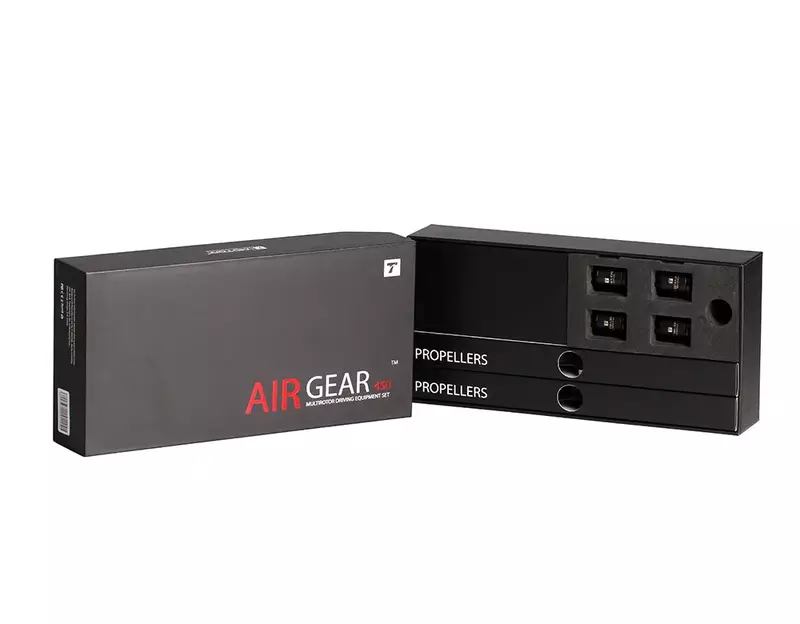

Includes:

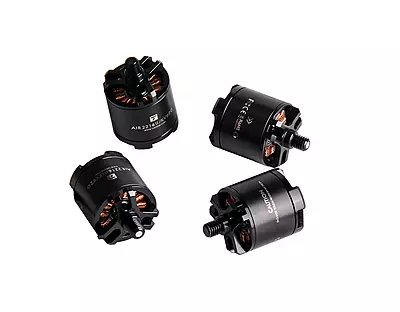

• 4 x AIR2216II/920KV Brushless Drone Motors

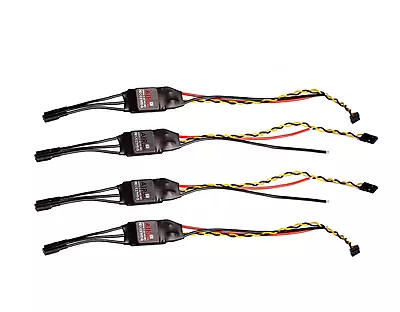

• 2 x AIR 20A V2.0 ESC

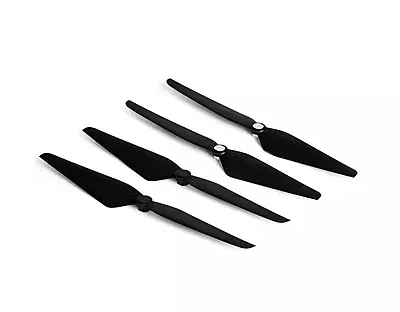

• 2 x T1045II CW  Propeller

• 2 x T1045II CCW Propeller

Frequently Asked Questions:

Q1. What is the main advantage of buying a complete Air Gear system?

Ans. The main advantage is that all components are pre-selected and perfectly matched by T-Motor's engineers. This eliminates the guesswork of pairing a motor, ESC, and propeller, ensuring you get a reliable, high-performance, and efficient system without the risk of incompatibility or performance issues.

Q2. Is this kit suitable for a beginner drone builder?

Ans. Yes, the T-Motor Air Gear 450II is highly recommended for beginners. Its integrated design and pre-matched components simplify the build process, reducing the complexity of soldering and wiring. The self-locking propellers are also easy to install and secure, making it a very user-friendly system.

Q3. What size drone frame is this kit designed for?

Ans. As indicated by the "450" in its name, this kit is specifically designed for 450-class quadcopter frames, such as the popular DJI F450 or other similar frames with a 450mm diagonal motor-to-motor distance. It provides the optimal balance of power, efficiency, and weight for this specific drone size.
