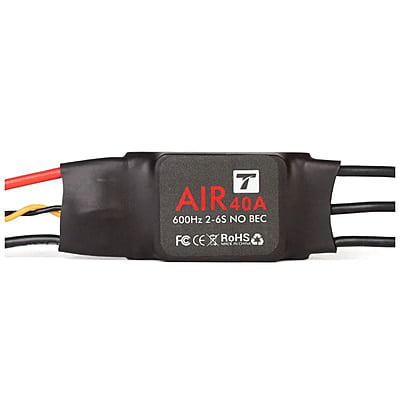

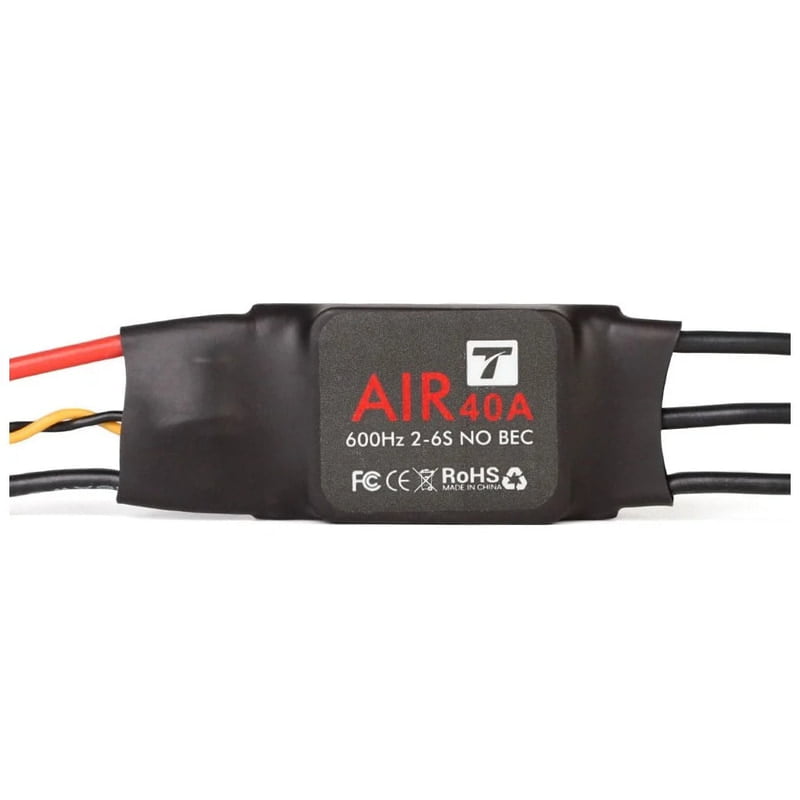

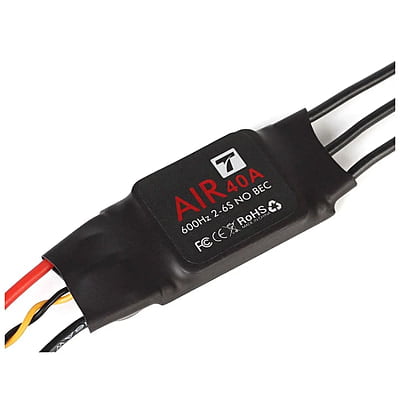

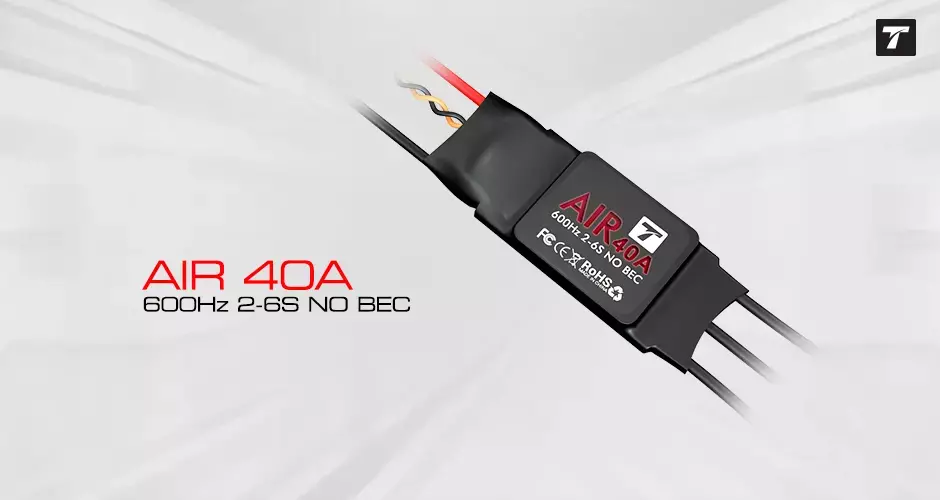

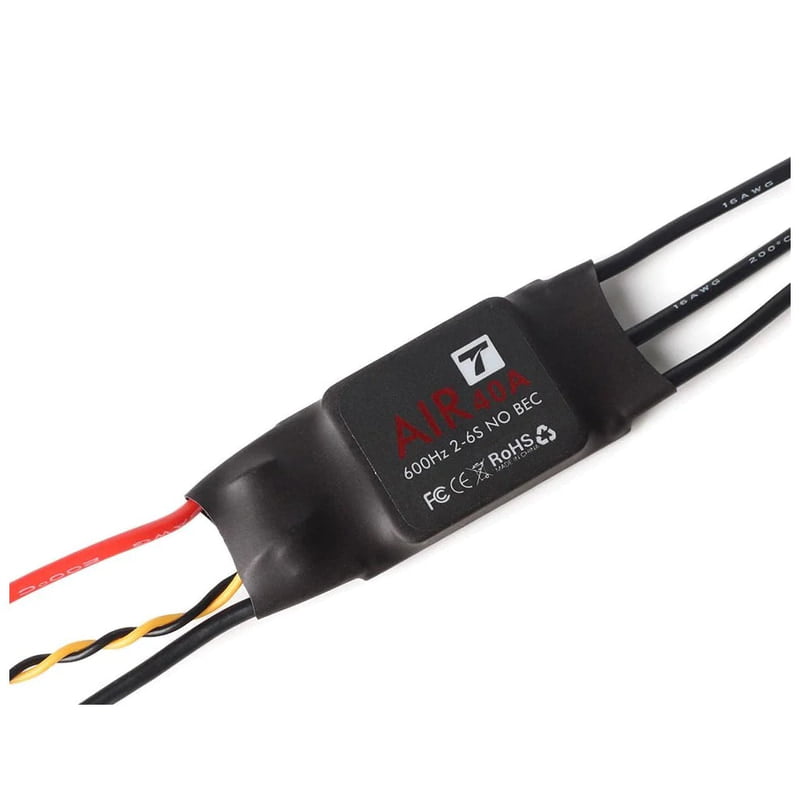

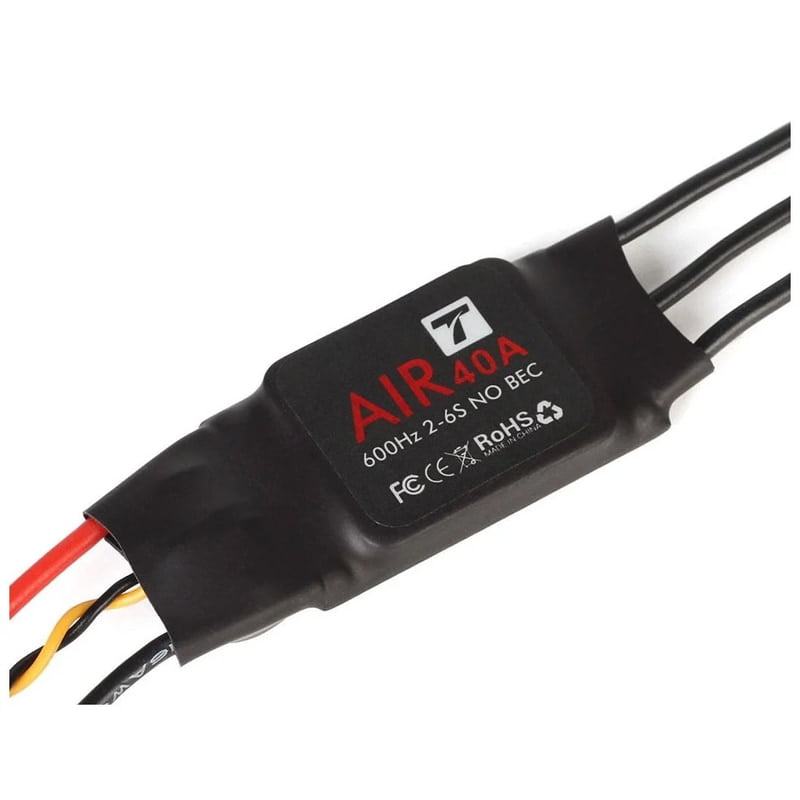

T-Motor AIR 40A Brushless ESC (2-6S) - High Efficiency Industrial & Cinema UAV Speed Controller
The T-Motor AIR 40A is a high-efficiency Electronic Speed Controller (ESC) designed for professional UAV platforms.Engineered to work seamlessly with T-Motor’s AIR series propulsion systems, it supports 2S to 6S LiPo inputs and offers a simplified, robust firmware that ensures linear throttle response and extreme stability in the most demanding Indian climates.
Designed with a "Reliability First" philosophy, the AIR 40A strips away unnecessary features to focus on core performance. For the UAV designer, this ESC represents a "set and forget" solution that minimizes the risk of desync or overheating during long-endurance mapping or heavy-lift cinema missions.

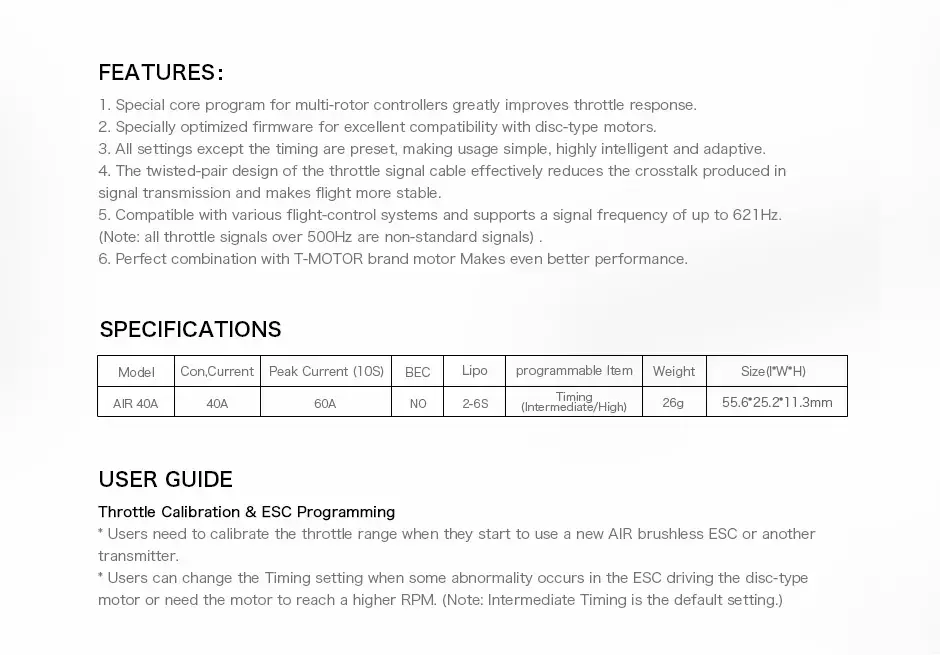

Key Technical Specifications:
Optimized Thermal Architecture: Features a high-performance aluminum heatsink and low-ESR (Equivalent Series Resistance) capacitors, allowing the ESC to maintain continuous 40A current even in the high ambient temperatures of the Indian summer.
Smart Throttle Logic: Utilizing specialized firmware optimized for multirotor flight, the AIR 40A provides a predictable, linear power band. This is critical for maintaining stable altitude and position hold during autonomous GPS-guided missions.
Component Selection: Built with industrial-grade MOSFETs and a high-frequency processor to handle the rapid switching required for high-pole-count motors.
Interference Suppression: Integrated twisted-pair signal cables reduce electromagnetic interference (EMI) and signal crosstalk, which is vital for drones with long motor arms or sensitive telemetry systems.
Plug-and-Play Integration: While compatible with most flight controllers (Pixhawk, ArduPilot, Cube), it is specifically tuned to extract maximum efficiency when paired with T-Motor AIR2216 or AIR3510 motors.
Frequently Asked Questions (FAQ)
1. Is the T-Motor AIR 40A compatible with high-voltage setups? Yes, the AIR 40A is designed to handle a wide voltage range from 2S to 6S LiPo (7.4V - 22.2V). This makes it a versatile choice for both smaller specialized industrial rigs and larger cinema drones carrying heavy camera payloads.
2. What makes the "AIR" series better for Cinema and Industrial UAVs? Unlike standard racing ESCs, the AIR series focuses on throttle linearity and low interference. It uses a specialized core algorithm for multi-rotor motors, ensuring ultra-stable flight—critical for capturing smooth cinematic footage or maintaining precision during industrial inspections.
3. Does this ESC require active cooling? The T-Motor AIR 40A features an integrated all-aluminum heat sink. This design allows for highly efficient passive cooling. As long as the ESC is mounted in a position with moderate airflow from the propellers, it will maintain safe operating temperatures even under heavy industrial workloads.
4. Can I use the AIR 40A with motors from other brands? While optimized for T-Motor’s own high-efficiency motors (like the MN or U-Series), the AIR 40A is fully compatible with any brushless motor within its current rating. It automatically detects and adapts to most motor timings, reducing the need for manual firmware tuning.
5. How does the "Quick Response" feature impact flight stability? The ESC uses a high-frequency drive signal that allows the motor to respond almost instantly to flight controller commands. In industrial applications, this results in superior wind resistance and the ability to maintain a steady hover in turbulent conditions.
Frequently Asked Questions (FAQ)
1. What makes the T-Motor AIR series different from standard racing ESCs? The AIR series is specifically tuned for throttle linearity and stability. Unlike racing ESCs that prioritize aggressive "snappy" response, the AIR 40A uses a specialized core algorithm to ensure ultra-smooth motor transitions, which is critical for capturing stable cinematic footage and maintaining precision during industrial inspections.
2. Can I use the AIR 40A with high-pole count industrial motors? Yes. This ESC is designed to be compatible with a wide range of brushless motors, including high-pole count motors often used in heavy-lift UAVs. It features an intelligent auto-timing function that optimizes performance without the need for complex manual firmware tuning.
3. Does this ESC feature active braking (Damped Light)? The AIR 40A is optimized for efficiency and motor protection. While it provides a responsive deceleration, its primary focus is on reducing electrical noise and interference that could otherwise affect sensitive onboard sensors like GPS or high-end cinema cameras.
4. How does the AIR 40A handle heat during long-duration flights? Thermal management is a core feature of this speed controller. It is built with an integrated aluminum heat sink that provides superior passive cooling. When mounted in the airflow of the propellers, it can comfortably handle continuous 40A loads during long-endurance missions.
5. Is this ESC "Plug and Play" for most Flight Controllers? Yes, it supports a standard signal frequency of up to 621Hz, making it compatible with almost all professional flight controllers (such as Pixhawk, Cube, and DJI N3/A3). It is designed to work reliably straight out of the box with minimal calibration.
