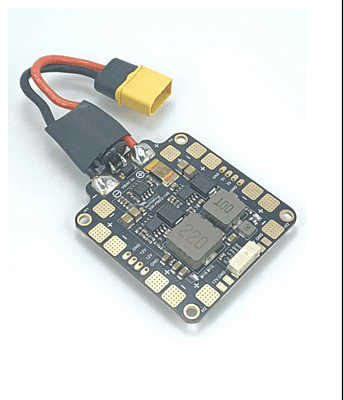

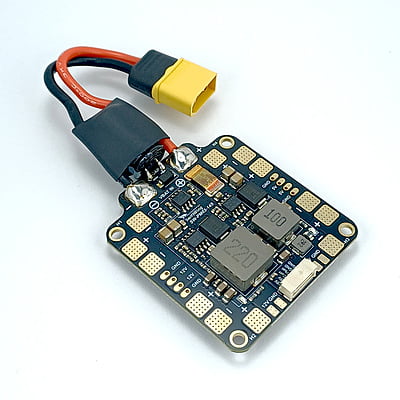

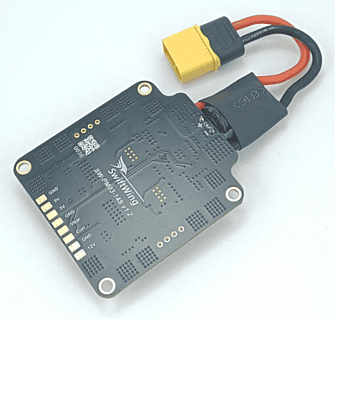

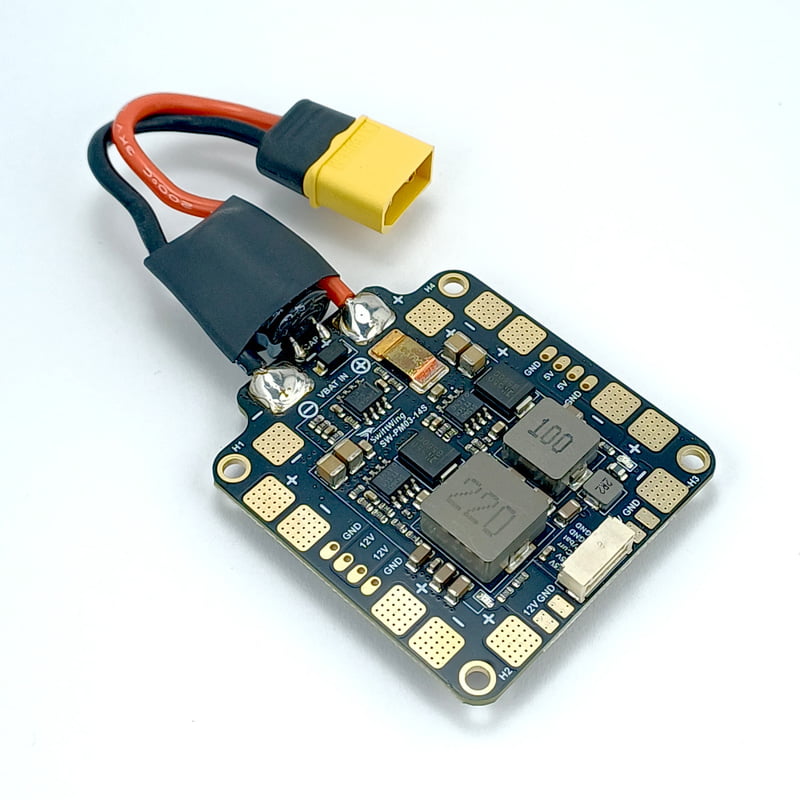

MADE IN INDIA SwiftWing PM03-14S Integrated Power Module & Power Distribution Board (3S–14S, 120A)
₹5,579.00
Out of stock
The SwiftWing PM03-14S is a high-performance integrated Power Module and Power Distribution Board designed for ArduPilot and PX4 UAV platforms. Supporting 3S–14S LiPo inputs (up to 60V) and 120A continuous current, it provides precise analog sensing, six ESC outputs, and regulated 5V/12V rails.
Choose Quantity
Product Details
Features:
- Supports 3S–14S LiPo inputs from 9V to 60V DC.
- Distributes continuous current up to 120A (150A burst capacity).
- Features precision shunt-based current sensing for reliable monitoring.
- Includes six dedicated ESC outputs for multirotor builds.
- Integrated regulated 5V and 12V outputs for flight electronics.
Technical Details:
- Interface & Specs: Pixhawk-compatible JST-GH 6-pin interface with a 20.66 voltage divider ratio.
- PCB Construction: 4-layer board with 2 oz copper, TVS transient protection, and lead-free ENIG finish.
- Capacitor: Factory-installed 330µF, 63V Rubycon low-ESR capacitor for noise reduction and stability.
- Dimensions & Weight: 58 mm × 52 mm × 5 mm; weighs 36 g.
Additional Details:
- Manufacturer: SwiftWing Robotics
- Brand: SwiftWing
- Generic Name: Integrated Power Module & Power Distribution Board
- Sold By: UAV Marketplace
- Ideal For: Industrial drones, VTOL aircraft, custom heavy-lift multirotors, and robotics systems running ArduPilot or PX4.
Package Details:

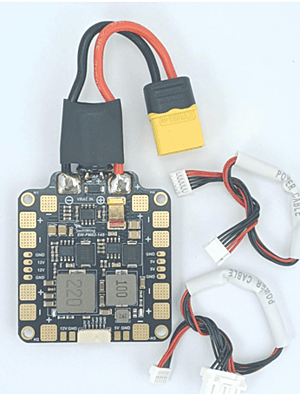

- Includes 1 × SwiftWing PM03-14S Board and 2 × JST power cables.
