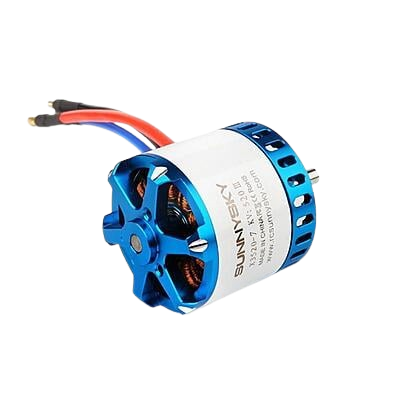

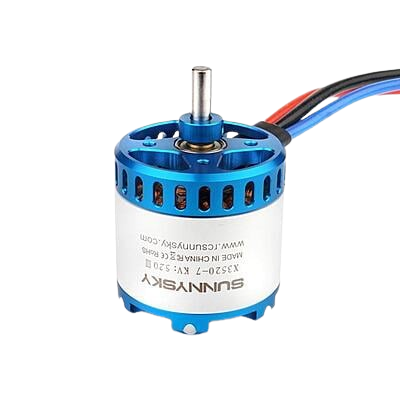

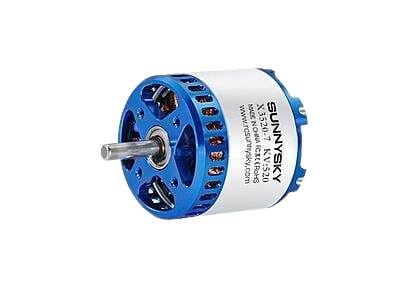

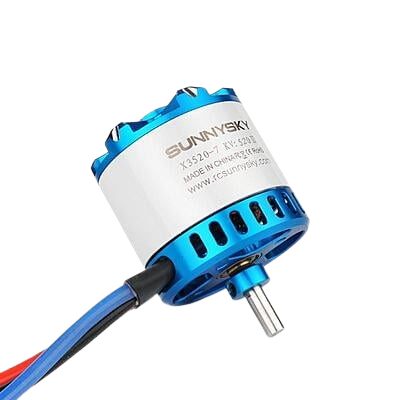

SUNNYSKY X3520 V3 BRUSHLESS MOTOR
Non-returnable
₹7,259.00
The SUNNYSKY X3520 V3 560KV is a powerful, high-efficiency brushless motor, perfect for larger RC airplanes and multirotors requiring substantial thrust and extended flight times. Its low KV design maximizes endurance while providing smooth, reliable power. The V3 iteration ensures enhanced durability and consistent performance for demanding aerial applications.
KV
Choose Quantity
Product Details
Features:
- Low 560KV for maximum efficiency.
- Designed for larger RC planes.
- High thrust output for heavier models.
- Excellent efficiency for long flights.
- Precision balanced for smooth operation.
- Durable construction ensures long lifespan.
- Advanced heat dissipation system.
- High-quality N52SH arc magnets.
- Robust Japanese NMB bearings.
- High-temperature resistant copper windings.
Technical Specifications:
- Model: X3520 V3
- KV: 560KV
- Stator Diameter: 35mm
- Rotor Diameter: 42.5mm
- Stator Thickness: 20mm
- Body Length: 45mm
- No.of Stator Slots: 12
- Max Lipo Cell: 6S
- No.of Rotor Poles: 14
- ESC: 60-80A
- Recommended Prop(inch):APC12*8/APC12*6/APC13*6.5/APC13*8/APC14*7
- No-load current: 1.1A/10V
- Motor Resistance: 23mΩ
- Max Continuous Current:80A/30s
- Max Continuous Power: 2000W
- Weight:219g
Additional Details:
- Manufacturer: Sunnysky
- Brand: Sunnysky
- Generic Name: RC Motor || Brushless Motor || RC Plane Motor || Drone Motor || Multirotor Motor || Electric Aircraft Motor || Outrunner Motor || Hobby Motor || UAV Propulsion || Model Aircraft Motor
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: Larger RC Airplanes || Medium to Heavy-lift Drones || Aerial Photography Drones || Fixed-Wing UAVs (medium-large) || Long-Range RC Planes || Gliders with Power Systems || Custom Aircraft Builds || Multi-Purpose Drones || Sport Flying RC Planes || Scale RC Models
Package Details:
Includes:
- 1 x SUNNYSKY X3520 V3 560KV Brushless Motor
- 1 x Propeller Adapter/Nut
- 1 x Set of Mounting Screws
Frequently Asked Questions:
Q1. What battery voltage is most suitable for the SUNNYSKY X3520 V3 560KV motor?
Ans. This motor is designed to perform optimally with 4-6S LiPo batteries, providing significant power for its size.
Q2. Is this motor good for achieving long flight times on an RC airplane or drone?
Ans. Yes, its low 560KV rating and high efficiency make it an excellent choice for maximizing flight endurance on suitable aircraft.
Q3. What propeller sizes are typically recommended for this 560KV motor?
Ans. Depending on the aircraft and voltage, propellers ranging from 12-15 inches are commonly recommended for optimal performance with this motor.
