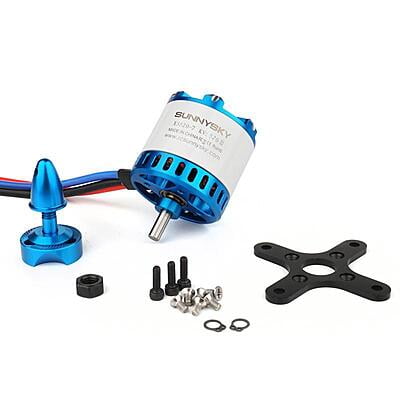

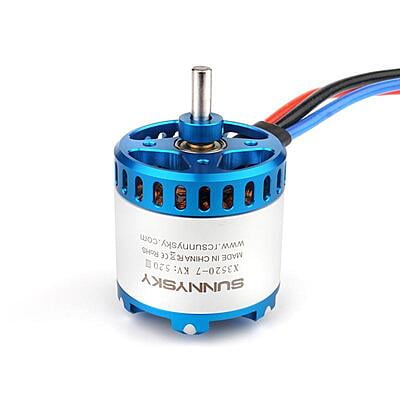

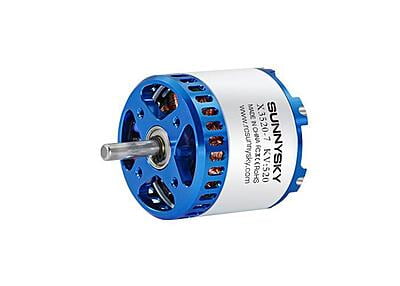

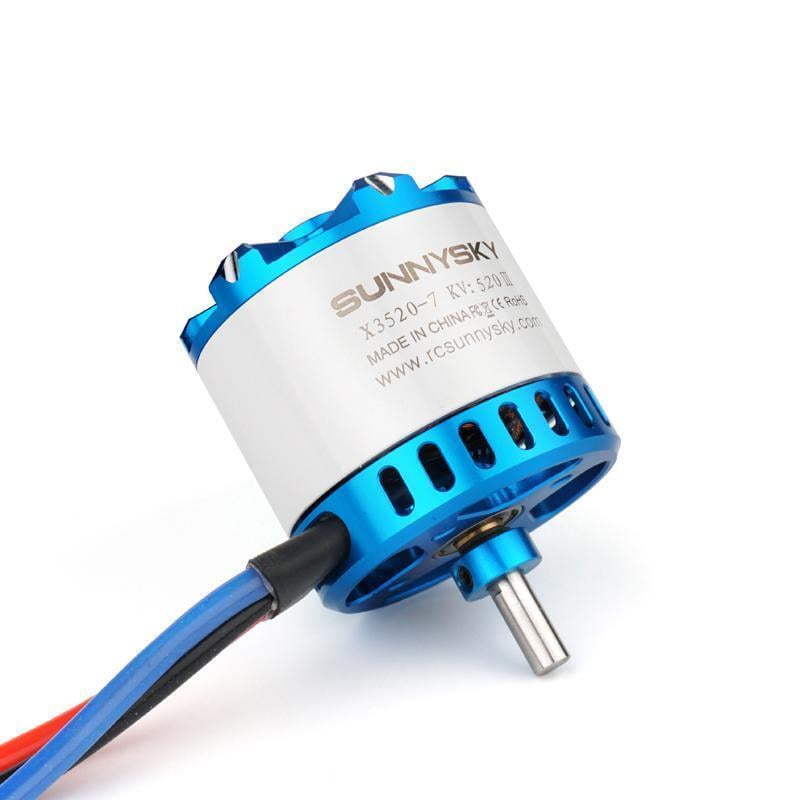

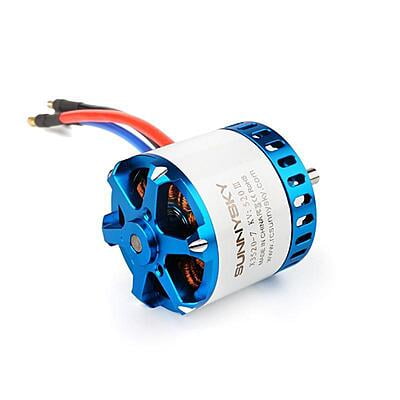

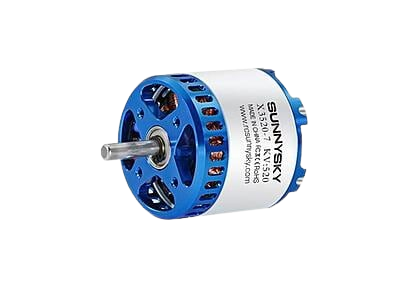

SUNNYSKY- X3520 V3 BRUSHLESS MOTOR
Non-returnable
₹7,259.00
Specifications - X3520
Motor Kv - 560
Motor Resistance - 23mΩ
Max Lipo Cell - 6S
ESC - 60-80A
KV
Choose Quantity
Product Details
SPECIFICATION -
| Specifications | X3520 |
| Stator Diameter | 35mm |
| Stator Thickness | 20mm |
| No.of Stator Arms | 12 |
| No.of Stator Poles | 14 |
| Motor Kv | 560 |
| NO-Load Current(A/10V) | 1.1A |
| Motor Resistance | 23mΩ |
| Max Continuous Current | 80A/30s |
| Max Continuous Power | 2000W |
| Weight | 219g |
| Outside Diameter | 42.5mm |
| Body Length | 45mm |
| Max Lipo Cell | 6S |
| ESC | 60-80A |
| Recommend Prop(inch) | APC12*8/APC12*6/APC13*6.5/APC13*8/APC14*7 |
| Recommended setting for Aerobatic airplanes: | 2500g (6S APC13*6.5\APC13*8) |
| Recommended setting for 3D airplanes: | 2200g (6S APC13*6.5\APC13*8) |
