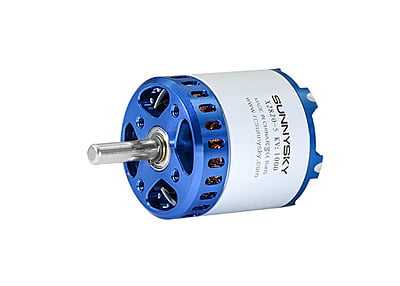

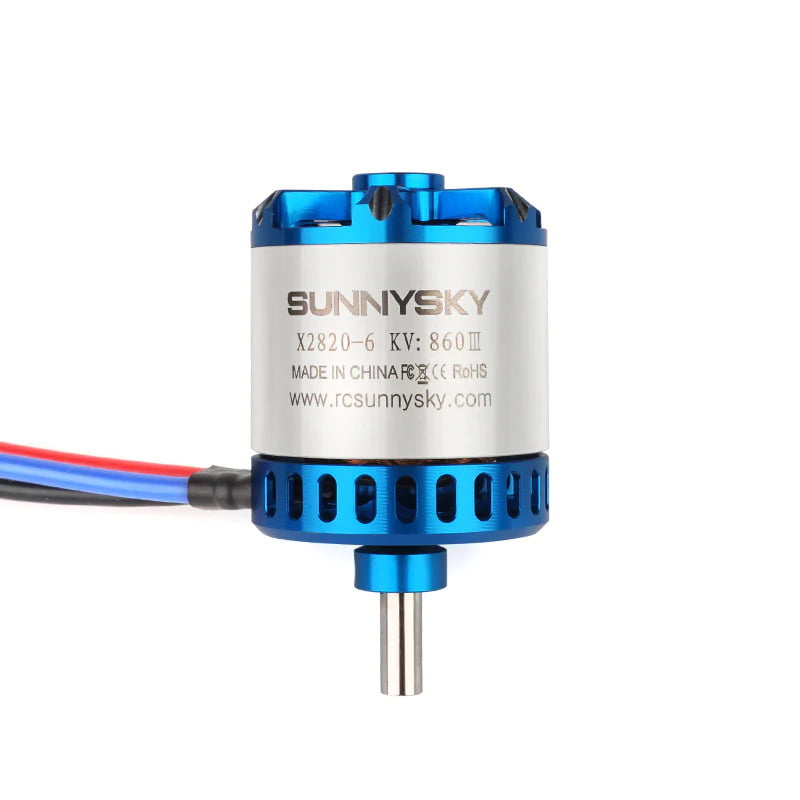

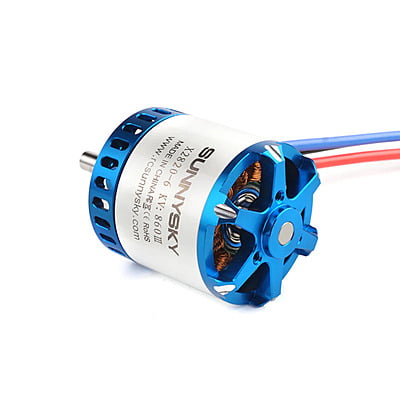

SUNNYSKY X2820 860KV V3 BRUSHLESS MOTOR
Non-returnable
₹7,099.00
The SUNNYSKY X2820 V3 860KV is a powerful and versatile brushless motor, ideal for medium to large RC airplanes and multirotors. Delivering excellent thrust and efficiency, it's perfect for sport flying, aerobatics, and stable drone platforms. Its robust V3 design ensures durability and consistent performance for demanding applications, making it a reliable choice.
KV
Product Details
Features:
- Versatile 860KV for diverse applications.
- Designed for medium/large RC planes.
- High thrust output for dynamic flight.
- Excellent efficiency for balanced performance.
- Precision balanced for smooth operation.
- Durable construction ensures long lifespan.
- Advanced heat dissipation system.
- High-quality N52SH arc magnets.
- Robust Japanese NMB bearings.
- High-temperature resistant copper windings.
Technical Specifications:
- Stator Diameter: 28mm
- Rotor Diameter: 35mm
- Stator Thickness: 20mm
- Body Length: 42mm
- No.of Stator Slots: 12
- Max Lipo Cell: 3-4S
- No.of Rotor Poles: 14
- ESC: 50-60A
- Motor Kv: 860
- Recommended Prop(inch): APC13*6.5/APC13*8/APC12*6/APC12*8
- No-load current: 1.3A/10V
- Weight for aerobatics airplane: 1400g-2000g(4S APC12*6\APC12*8\APC13*6.5\APC13*8)
- Motor Resistance: 25.8mΩ
- Weight for 3D airplane: 1100g-1500g(4S APC12*6\APC12*8\APC13*6.5\APC13*8)
- Max Continuous Current: 65A/30s
- Max Continuous Power: 960W
- Weight: 143g
Additional Details:
- Manufacturer: Sunnysky
- Brand: Sunnysky
- Generic Name: RC Motor || Brushless Motor || RC Plane Motor || Drone Motor || Multirotor Motor || Electric Aircraft Motor || Outrunner Motor || Hobby Motor || UAV Propulsion || Model Aircraft Motor
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: Medium to Large RC Airplanes || FPV Camera Drones || Sport RC Planes || Aerobatic RC Planes || Fixed-Wing UAVs (medium) || Custom Drone Builds || Quadcopters || Model Aircraft Enthusiasts || Gliders with Power Systems || Intermediate to Advanced Pilots
Package Details:

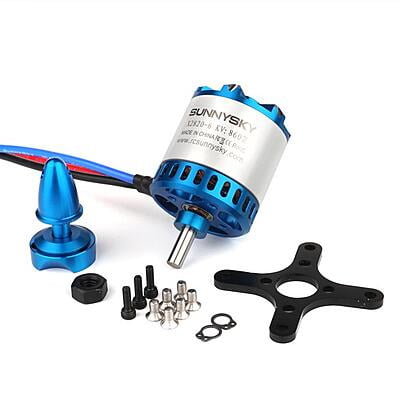

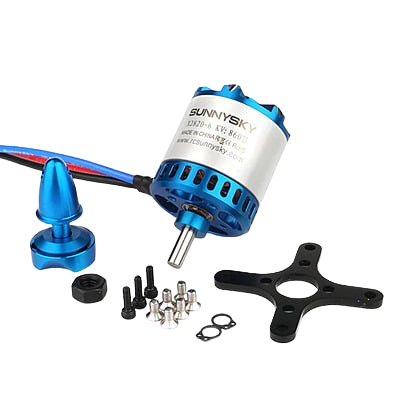

Includes:
- 1 x SUNNYSKY X2820 V3 860KV Brushless Motor
- 1 x Propeller Adapter/Nut
- 1 x Set of Mounting Screws
Frequently Asked Questions:
Q1. What battery voltage range is recommended for the SUNNYSKY X2820 V3 860KV motor?
Ans. This motor is designed to perform optimally with 4-6S LiPo batteries, offering a good balance of power and runtime.
Q2. Is this motor suitable for aerobatic RC plane flying?
Ans. Yes, its 860KV rating provides ample power for dynamic maneuvers and aerobatics in suitably sized RC planes.
Q3. What propeller sizes are generally recommended for this 860KV motor?
Ans. For RC planes, propellers around 10-12 inches are common, while for multirotors, 10-11 inch props are typically used, depending on the specific aircraft and desired performance.
