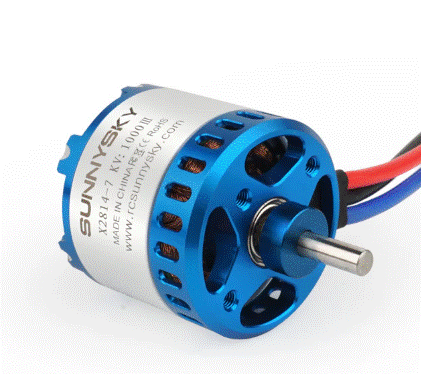

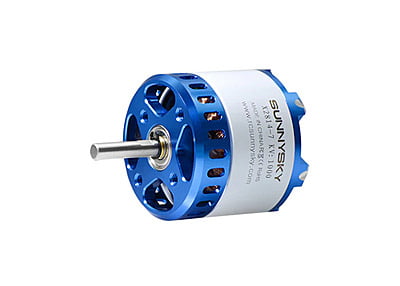

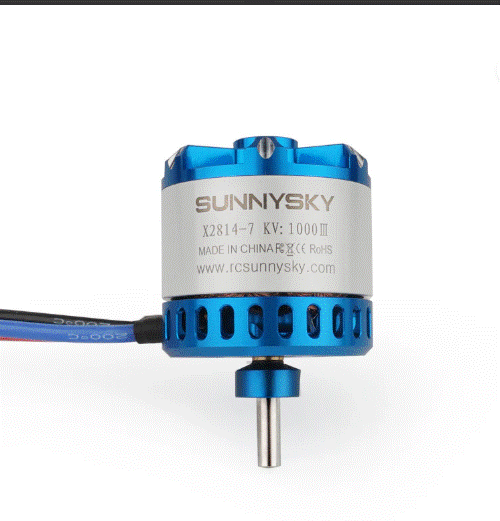

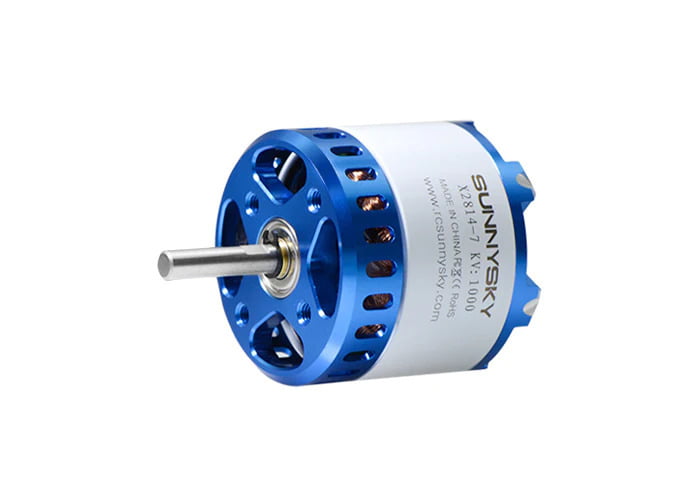

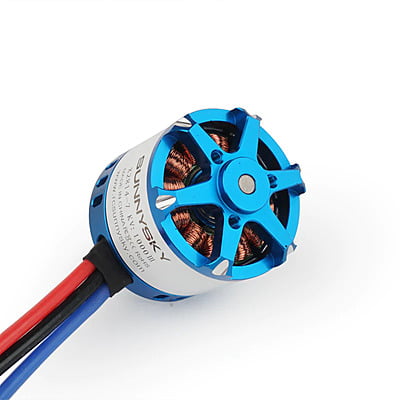

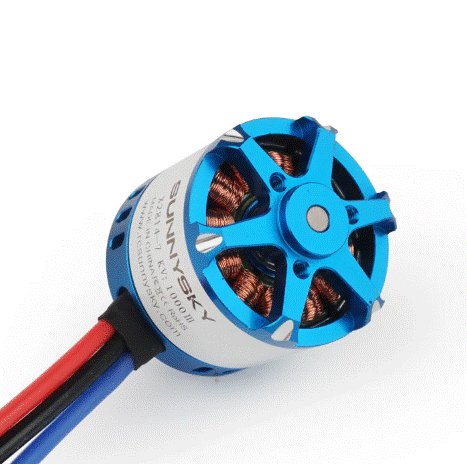

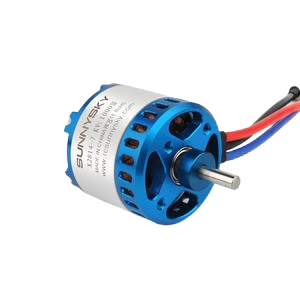

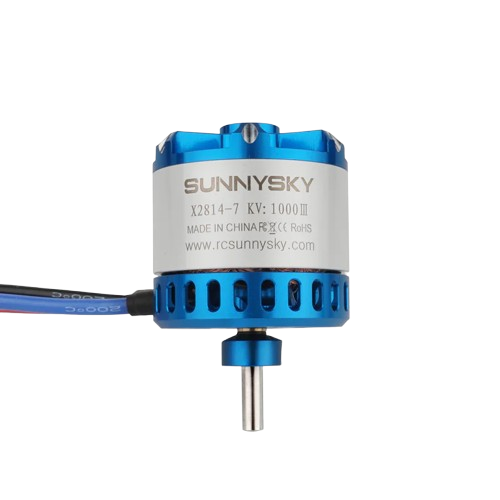

SUNNYSKY X2814 V3 Brushless Motor
Non-returnable
₹5,009.00 - ₹6,399.00
The SUNNYSKY X2814 V3 series offers versatile brushless motors, renowned for their power, efficiency, and durability. Engineered with advanced materials and precision manufacturing, they deliver reliable performance for RC airplanes, multirotor drones, and various UAV applications. A trusted choice for hobbyists and professionals seeking a balanced and robust propulsion solution.
KV
Choose Quantity
Product Details
Features:
- Versatile series for diverse applications.
- Suitable for RC planes and multirotor drones.
- Excellent power-to-weight ratio.
- High efficiency for extended flights.
- Precision balanced for smooth, quiet operation.
- Durable construction for long lifespan.
- Advanced heat dissipation system.
- High-quality N52SH arc magnets.
- Robust Japanese NMB bearings.
- High-temperature resistant copper windings.
Technical Specifications:

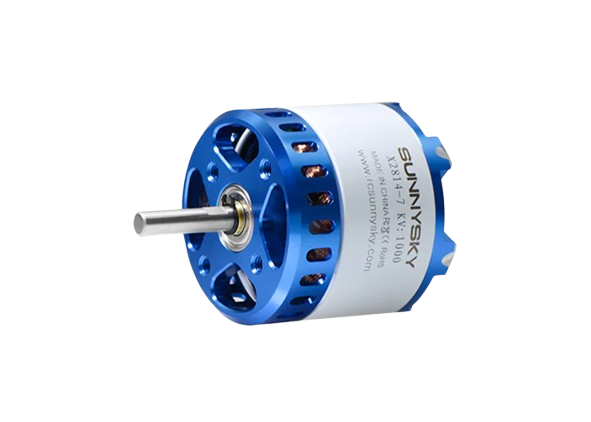

For 900KV motor:
- Stator Diameter: 28mm
- Rotor Diameter: 35mm
- Stator Thickness: 14mm
- Body Length: 36mm
- No.of Stator Slots: 12
- Max Lipo Cell: 3-4S
- No.of Rotor Poles: 14
- ESC: 40-60A
- Motor Kv: 900
- Recommended Prop(inch): APC11*5.5/APC13*6.5/APC11*8/APC13*8
- No-load current: 1.2A/10V
- Weight for aerobatics airplane: 1200g-1400g (3S APC13*6.5\APC13*8) (4S APC11*5.5\APC11*7\APC11*8)
- Motor Resistance: 33.6mΩ
- Weight for 3D airplane: 800g-1200g (3S APC13*6.5\APC13*8)
- Max Continuous Current: 50A/30s
- Max Continuous Power: 680W
- Weight: 108g
For 1200KV motor:
- Stator Diameter: 28mm
- Rotor Diameter: 35mm
- Stator Thickness: 14mm
- Body Length: 36mm
- No.of Stator Slots: 12
- Max Lipo Cell: 3-4S
- No.of Rotor Poles: 14
- ESC: 50-60A
- Motor Kv: 1200
- Recommended Prop(inch): APC11*5.5/APC1050/APC9060
- No-load current: 1.7A/10V
- Weight for aerobatics airplane: 1000g-1300g (4S APC1060\APC9060\APC8060) (3S APC11*5.5)
- Motor Resistance: 21.3mΩ
- Max Continuous Current: 55A/30s
- Max Continuous Power: 815W
- Weight: 110g
for 1400KV motor:
- Stator Diameter: 28mm
- Rotor Diameter: 35mm
- Stator Thickness: 14mm
- Body Length: 36mm
- No.of Stator Slots: 12
- Max Lipo Cell: 3-4S
- No.of Rotor Poles: 14
- ESC: 80A
- Motor Kv: 1400
- Recommended Prop(inch): APC8060/APC9060
- No-load current: 2.3A/10V
- Weight for aerobatics airplane: 1000g-1400g (4S APC9060\APC8060)
- Motor Resistance: 15.9mΩ
- Max Continuous Current: 80A/30s
- Max Continuous Power: 1180W
- Weight: 109g
Additional Details:
- Manufacturer: Sunnysky
- Brand: Sunnysky
- Generic Name: RC Motor || Brushless Motor || RC Plane Motor || Drone Motor || Multirotor Motor || Electric Aircraft Motor || Outrunner Motor || Hobby Motor || UAV Propulsion || Model Aircraft Motor
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: Medium to Large RC Airplanes || FPV Camera Drones || Sport RC Planes || Aerobatic RC Planes || Fixed-Wing UAVs || Custom Drone Builds || Quadcopters || Model Aircraft Enthusiasts || Gliders with Power Systems || Intermediate to Advanced Pilots || Aerial Photography Platforms
Package Details:

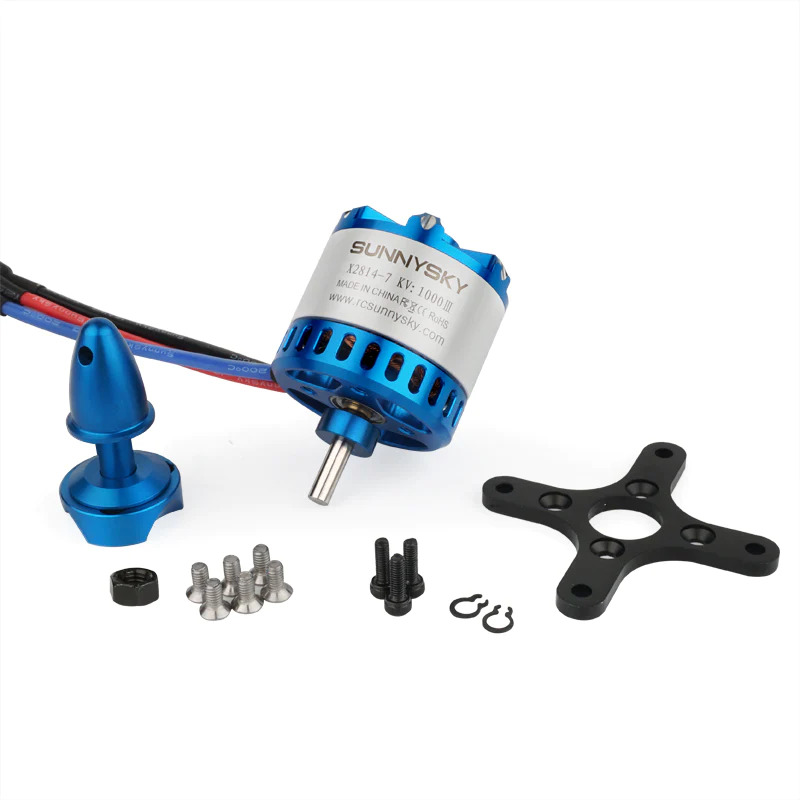

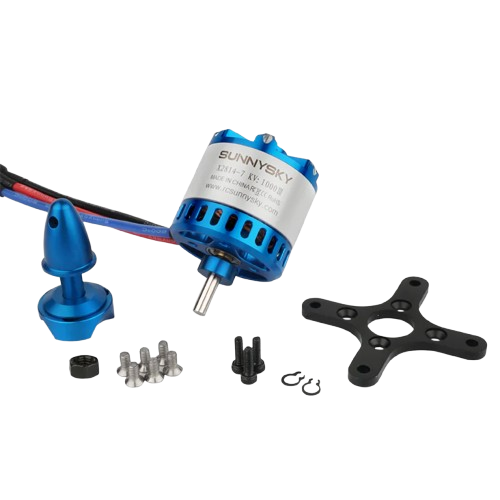

Includes:
- 1 x SUNNYSKY X2814 V3 Series Brushless Motor
- 1 x Propeller Adapter
- 1 x Set of Mounting Screws
Frequently Asked Questions:
Q1. What battery voltage is typically recommended for the SUNNYSKY X2814 V3 series motors?
Ans. The recommended battery voltage varies by the specific KV, generally ranging from 3S to 4S LiPo for most applications, with some KVs potentially supporting 5S.
Q2. Is this motor series suitable for both RC planes and multirotor drones?
Ans. Yes, the X2814 V3 series offers various KV options that are well-suited for a wide range of RC airplanes, as well as medium-sized multirotor drones, offering excellent versatility.
Q3. What improvements does the "V3" designation signify for these motors?
Ans. The V3 (Version 3) typically indicates advancements in manufacturing processes, improved materials (like better bearings, magnets, or shaft steel), optimized winding techniques (often hand-wound), and enhanced overall efficiency and durability over previous versions.
