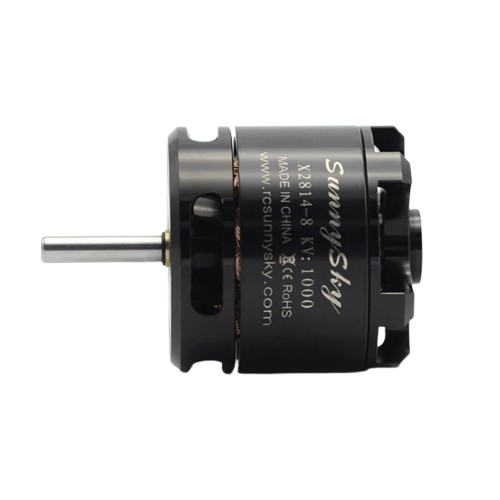

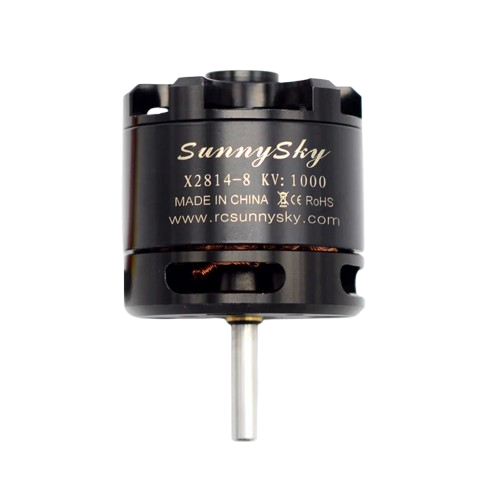

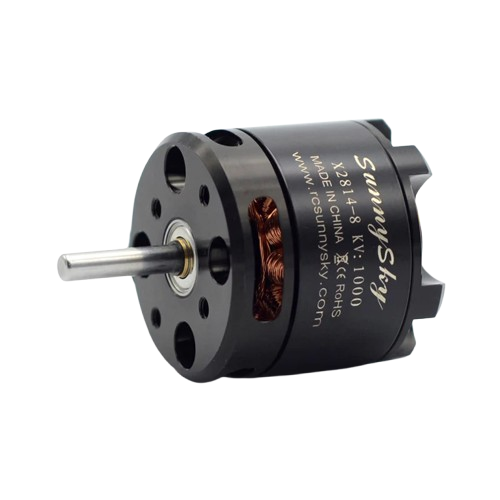

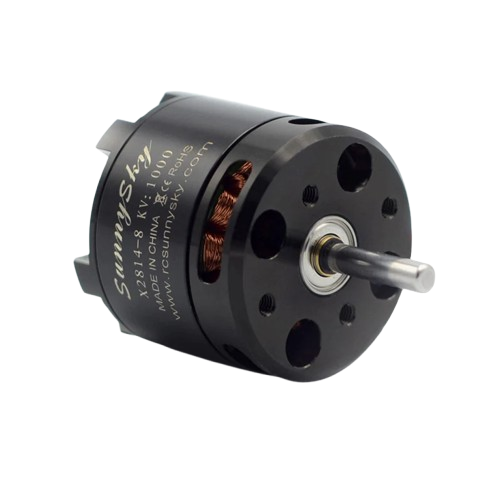

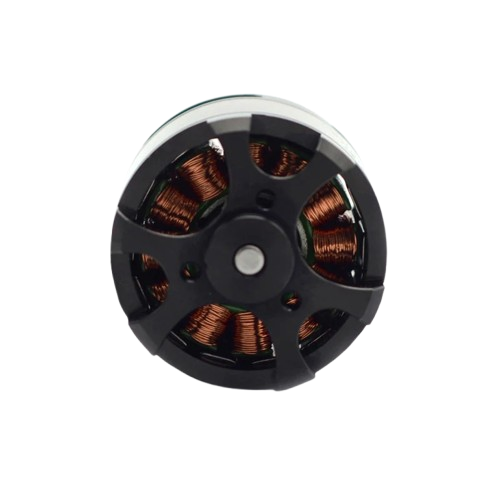

SUNNYSKY-X2814 BRUSHLESS MOTOR
Non-returnable
₹2,889.00 - ₹3,699.00
The SUNNYSKY X2814 series brushless motors offer a blend of power, efficiency, and reliability for various RC airplanes and multirotor drones. Known for their robust construction and smooth operation, these motors provide consistent performance across a range of applications, from sport flying to aerial photography. A popular choice for hobbyists seeking quality.
KV
Choose Quantity
Product Details
Features:
- Versatile series for diverse applications.
- Suitable for RC planes and drones.
- Good power-to-weight ratio.
- Efficient performance for varied flight.
- Precision balanced for smooth operation.
- Durable construction ensures long lifespan.
- Advanced heat dissipation system.
- High-quality N52SH arc magnets.
- Robust Japanese NMB bearings.
- High-temperature resistant copper windings.
Technical Specifications:
for 900KV motor
- Stator Diameter: 28mm
- Rotor Diameter: 35mm
- Stator Thickness: 14mm
- Shaft Diameter: 4mm
- No.of Stator Slots: 12
- Body Length (Without Shaft): 36mm
- No.of Rotor Poles: 14
- Body Length: 54mm
- Motor Kv: 900
- Max Lipo Cell: 3-4S
- No-load current: 0.7A/10V
- ESC: 40A
- Motor Resistance: 52mΩ
- Recommended Prop(inch): APC13*6.5/APC13*8/APC11*8/APC11*5.5/APC11*7
- Max Continuous Current: 40A/30s
- Max Continuous Power: 570W
- Weight: 108g
for 1100KV Motor
- Stator Diameter28mm
- Rotor Diameter35mm
- Stator Thickness14mm
- Shaft Diameter4mm
- No.of Stator Slots12
- Body Length (Without Shaft)36mm
- No.of Rotor Poles14
- Body Length54mm
- Motor Kv1100
- Max Lipo Cell3-4S
- No-load current1.5A/10V
- ESC50A
- Motor Resistance32mΩ
- Recommended Prop(inch): APC11*5.5/APC11*7/APC10*5/APC9*6
- Max Continuous Current40A/30s
- Weight108g
For 1450KV motor
- KV : 1450
- Weight: 106g
- Diameter: 35mm
- Length : 52.1mm/ 34mm (with shaft/ without motor shaft)
- Motor Shaft Diameter(mm): 4
- Prop adaptor output shaft diameter: 6mm
Additional Details:
- Manufacturer: Sunnysky
- Brand: Sunnysky
- Generic Name: RC Motor || Brushless Motor || RC Plane Motor || Drone Motor || Multirotor Motor || Electric Aircraft Motor || Outrunner Motor || Hobby Motor || UAV Propulsion || Model Aircraft Motor
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: Medium to Large RC Airplanes || FPV Camera Drones || Sport RC Planes || Fixed-Wing UAVs || Custom Drone Builds || Quadcopters || Model Aircraft Enthusiasts || Gliders with Power Systems || Intermediate to Advanced Pilots || Aerial Photography Platforms
Package Details:
Includes:
- 1 x SUNNYSKY X2814 V3 Series Brushless Motor
- 1 x Propeller Adapter/Nut (type may vary)
- 1 x Set of Mounting Screws
Frequently Asked Questions:
Q1. What battery voltage is typically recommended for the SUNNYSKY X2814 V3 series motors?
Ans. The recommended battery voltage varies by the specific KV, generally ranging from 3S to 6S LiPo to achieve optimal performance and efficiency.
Q2. Is this motor series suitable for both RC planes and drones?
Ans. Yes, the X2814 V3 series offers various KV options that are well-suited for a wide range of RC airplanes, as well as medium-sized multirotor drones, offering versatility for hobbyists.
Q3. How do different KV values impact the motor's performance and recommended propeller sizes?
Ans. Higher KV values typically result in higher RPMs and are suited for smaller propellers and faster flight, while lower KV values are more efficient for larger propellers, providing more thrust and longer flight times.
