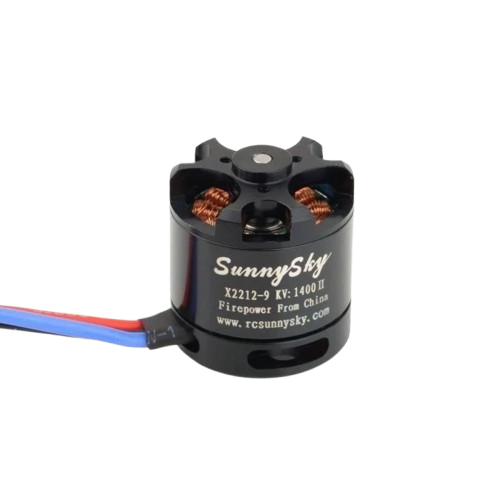

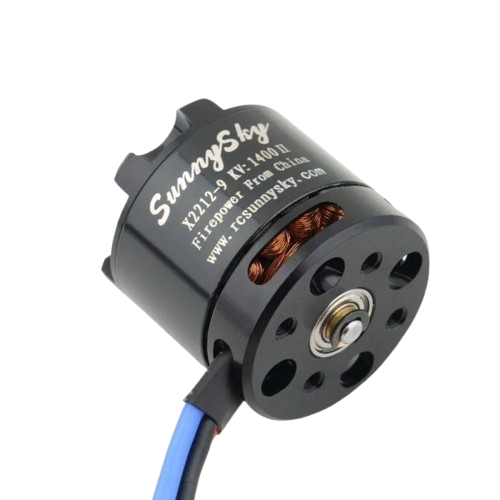

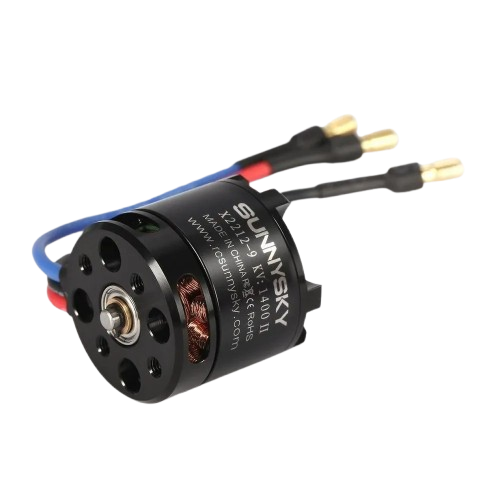

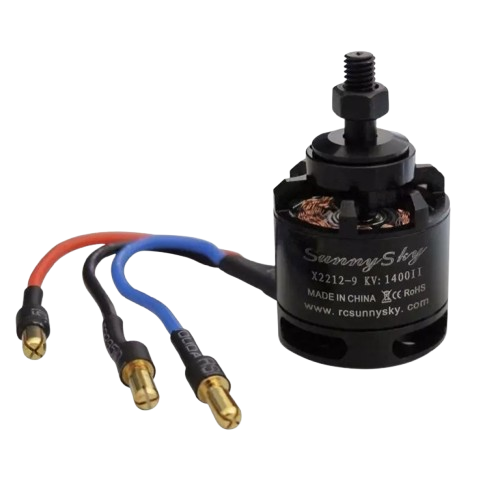

SUNNYSKY-X2212 BRUSHLESS MOTOR
Non-returnable
₹1,999.00
The SUNNYSKY X2212 is a versatile and efficient brushless motor, widely used in RC airplanes and smaller multirotor drones. It offers a great balance of power and efficiency, making it ideal for sport flying and FPV setups. Known for its reliability and smooth operation, it's a popular choice for hobbyists building and upgrading their aerial platforms.
KV
Product Details
Features:
- Versatile 1400KV or 2450KV for diverse applications.
- Suitable for RC planes and drones.
- Good power-to-weight ratio.
- Efficient for reasonable flight times.
- Precision balanced for smooth operation.
- Durable construction ensures long lifespan.
- High-quality bearings for reliability.
- High-temperature resistant windings.
- Easy to install and configure.
- Consistent performance for hobby use.
Technical Specifications:
For 1400KV motor:
- Stator Diameter: 22mm
- Rotor Diameter: 27.5mm
- Stator Thickness: 12mm
- Shaft Diameter: 3.175mm
- No.of Stator Slots: 12
- Body Length (Without Shaft): 30mm
- No.of Rotor Poles: 14
- Body Length: 32mm
- Motor Kv: 1400
- Max Lipo Cell: 2-4S
- No-load current: 0.9A/10V
- ESC: 30A
- Motor Resistance: 65mΩ
- Max Continuous Current: 28A/15s
- Max Continuous Power: 365W
- Weight: 59g
For 2450KV Motor:- Stator Diameter: 22mm
- Rotor Diameter: 27.5mm
- Stator Thickness: 12mm
- Shaft Diameter: 3.175mm
- No.of Stator Slots: 12
- Body Length (Without Shaft): 30mm
- No.of Rotor Poles: 10
- Body Length: 32mm
- Motor Kv: 2450
- Max Lipo Cell: 2-3S
- No-load current: 1.6A/10V
- ESC: 40A
- Motor Resistance: 32mΩ
- Max Continuous Current: 40A/30s
- Max Continuous Power: 450W
- Weight: 57g
Additional Details:
- Manufacturer: Sunnysky
- Brand: Sunnysky
- Generic Name: RC Motor || Brushless Motor || Plane Motor || Drone Motor || Multirotor Motor || Electric Motor || Outrunner Motor || Hobby Motor || UAV Propulsion || Model Aircraft Motor
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: RC Trainer Planes || Beginner FPV Drones || Small Fixed-Wing Aircraft || 250-450mm Quadcopters || Gliders || Light RC Aircraft || Custom Hobby Builds || Sport Flying RC Models || Educational Drone Kits || Park Flyers
Package Details:
Includes:- 1 x SUNNYSKY X2212 Brushless Motor
- 1 x Propeller Adapter/Saver (with O-rings if applicable for prop saver type)
- 1 x Set of Mounting Screws
Frequently Asked Questions:
Q1. What battery voltage is best for the SUNNYSKY X2212 1400KV motor?Ans. This motor is generally optimized for 3S LiPo batteries, but can often be used with 2S or even 4S (with careful propeller selection) depending on the specific model and desired performance.
Q2. Is this motor suitable for a beginner RC airplane?Ans. Yes, the 1400KV is a common and excellent choice for trainer RC airplanes due to its balanced performance and reliability, offering good flight times.
Q3. Is this motor suitable for small FPV racing drones?Ans. Yes, its high 2450KV rating provides the necessary speed and responsiveness for micro FPV racing drones.
