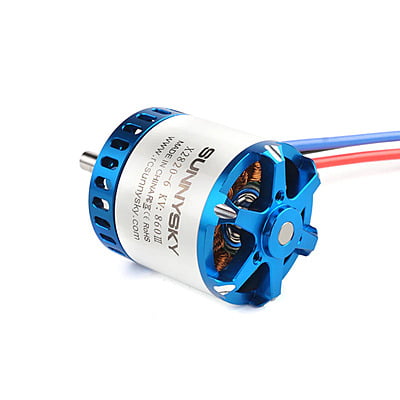

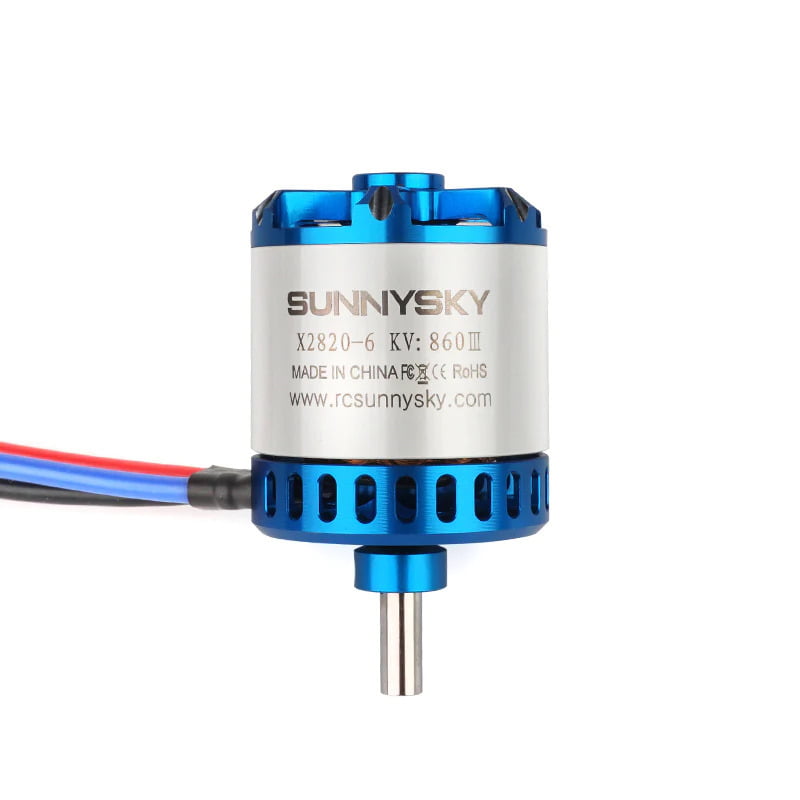

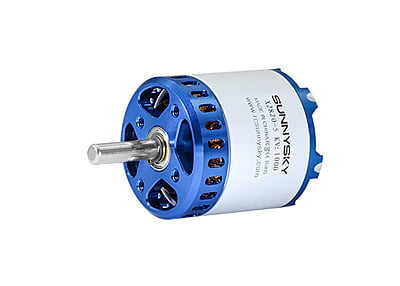

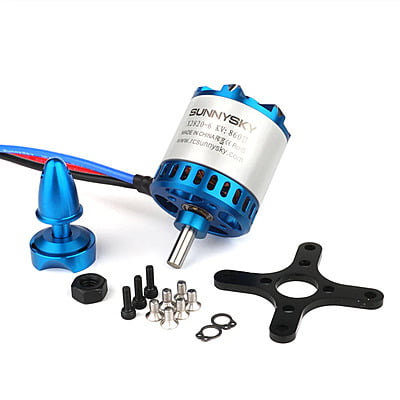

SUNNYSKY-X-2820 1250KV V3 BRUSHLESS MOTOR
Non-returnable
₹5,539.00
Specifications
- Stator Diamater: 28
- Stator Thickness: 20
- Poles: 14
- Max Continuous Power: 1172W
- Weight: 144g
- ESC: 80A
- KV: 1250KV
KV
Product Details
| Stator Diameter | 28mm | Rotor Diameter | 35mm |
|---|---|---|---|
| Stator Thickness | 20mm | Body Length | 42mm |
| No.of Stator Slots | 12 | Max Lipo Cell | 3-4S |
| No.of Rotor Poles | 14 | ESC | 80A |
| Motor Kv | 1250 | Recommended Prop(inch) | APC12*6/APC1050/APC9060/APC11*5.5/APC11*8 |
| No-load current | 2.5A/10V | Weight for aerobatics airplane | 1600g (3S APC11*5.5\ APC 11*7\ APC 11*8) (4S APC1050\APC9060) |
| Motor Resistance | 13.1mΩ | Weight for 3D airplane | 1200g (3S APC11*5.5\APC12*6) |
| Max Continuous Current | 79A/30s | Weight for glider | 1800g (3S APC11*5.5) |
| Max Continuous Power | 1172W | ||
| Weight | 144g |
NameValueMANUFACTURERSunnySkySTATOR DIAMETER28STATOR HEIGHT20KV1250THREAD DIRECTIONNoneSHAFT FOR COLLET MOUNTyes
