SUNNYSKY-X-2820 1250KV V3 BRUSHLESS MOTOR
Non-returnable
₹5,539.00
The SUNNYSKY X2820 V3 1250KV is a powerful and agile brushless motor, ideal for RC airplanes, FPV racing drones, and multirotors demanding quick response. It delivers excellent thrust for dynamic maneuvers and spirited flight. Built with robust V3 series quality, it ensures consistent power and reliability, perfect for enthusiasts seeking performance.
KV
Product Details
Features:
- High 1250KV for dynamic performance.
- Designed for RC planes and FPV drones.
- Excellent power-to-weight ratio.
- High thrust output for agile flight.
- Precision balanced for smooth operation.
- Durable construction ensures long lifespan.
- Advanced heat dissipation system.
- High-quality N52SH arc magnets.
- Robust Japanese NMB bearings.
- High-temperature resistant copper windings.
Technical Specifications:
- Stator Diameter: 28mm
- Rotor Diameter: 35mm
- Stator Thickness: 20mm
- Body Length: 42mm
- No.of Stator Slots: 12
- Max Lipo Cell: 3-4S
- No.of Rotor Poles: 14
- ESC: 80A
- Motor Kv: 1250
- Recommended Prop(inch): APC12*6/APC1050/APC9060/APC11*5.5/APC11*8
- No-load current: 2.5A/10V
- Weight for aerobatics airplane: 1600g (3S APC11*5.5\ APC 11*7\ APC 11*8) (4S APC1050\APC9060)
- Motor Resistance: 13.1mΩ
- Weight for 3D airplane: 1200g (3S APC11*5.5\APC12*6)
- Max Continuous Current: 79A/30s
- Weight for glider: 1800g (3S APC11*5.5)
- Max Continuous Power: 1172W
- Weight: 144g
Additional Details:
- Manufacturer: Sunnysky
- Brand: Sunnysky
- Generic Name: RC Motor || Brushless Motor || RC Plane Motor || Drone Motor || Multirotor Motor || Electric Aircraft Motor || Outrunner Motor || Hobby Motor || UAV Propulsion || Model Aircraft Motor
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: Medium to Large RC Airplanes || FPV Racing Drones || Sport RC Planes || 3D Aerobatic RC Planes || Fixed-Wing UAVs (medium) || Custom Drone Builds || Quadcopters || Model Aircraft Enthusiasts || Intermediate to Advanced Pilots || High-Thrust Applications
Package Details:

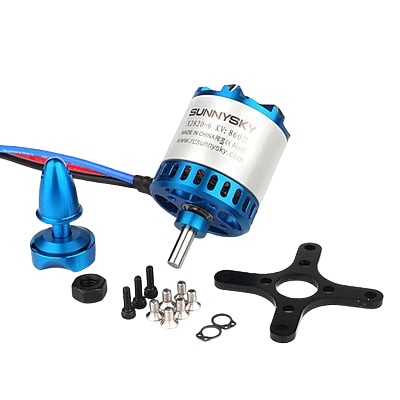

Includes:
- 1 x SUNNYSKY X2820 V3 1250KV Brushless Motor
- 1 x Propeller Adapter / Bolt-on Propeller Mount
- 1 x Set of Mounting Screws
Frequently Asked Questions:
Q1. What battery voltage is primarily recommended for the SUNNYSKY X2820 V3 1250KV motor?
Ans. This motor is primarily optimized for use with 3-4S LiPo batteries to achieve its full potential in terms of power and RPM for dynamic flight.
Q2. Is this motor suitable for aggressive 3D aerobatic flying or FPV racing?
Ans. Yes, its 1250KV rating and high power output make it highly suitable for aggressive 3D aerobatics in RC planes and for high-speed FPV racing drone builds.
Q3. What propeller sizes are generally recommended for this 1250KV motor?
Ans. For 4S LiPo, propellers like APC 10x5 or 9x6 are common for balanced performance. For 3S, larger props like APC 11x5.5 or 12x6 can be used for more thrust, depending on the aircraft type and desired flight characteristics.
| Stator Diameter | 28mm | Rotor Diameter | 35mm |
|---|---|---|---|
| Stator Thickness | 20mm | Body Length | 42mm |
| No.of Stator Slots | 12 | Max Lipo Cell | 3-4S |
| No.of Rotor Poles | 14 | ESC | 80A |
| Motor Kv | 1250 | Recommended Prop(inch) | APC12*6/APC1050/APC9060/APC11*5.5/APC11*8 |
| No-load current | 2.5A/10V | Weight for aerobatics airplane | 1600g (3S APC11*5.5\ APC 11*7\ APC 11*8) (4S APC1050\APC9060) |
| Motor Resistance | 13.1mΩ | Weight for 3D airplane | 1200g (3S APC11*5.5\APC12*6) |
| Max Continuous Current | 79A/30s | Weight for glider | 1800g (3S APC11*5.5) |
| Max Continuous Power | 1172W | ||
| Weight | 144g |
