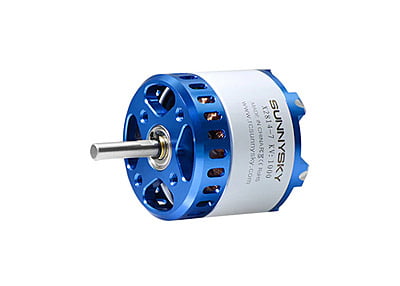

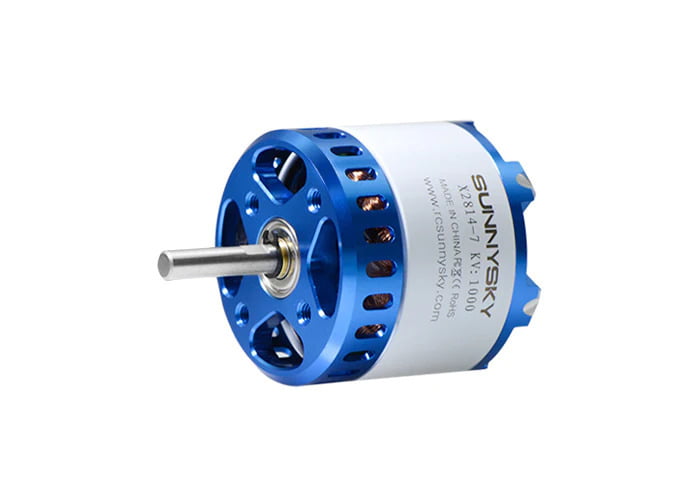

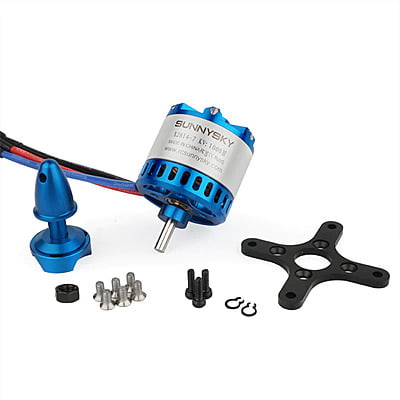

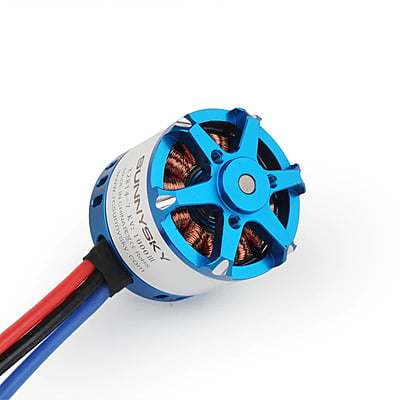

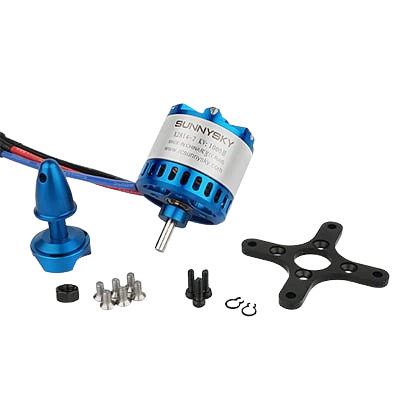

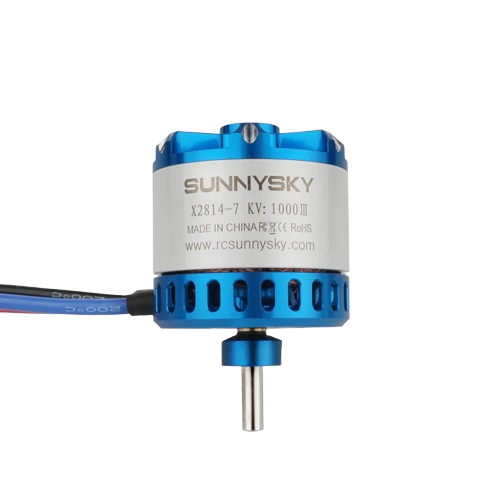

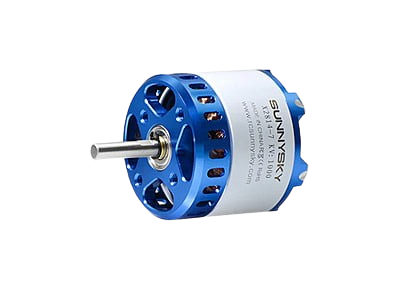

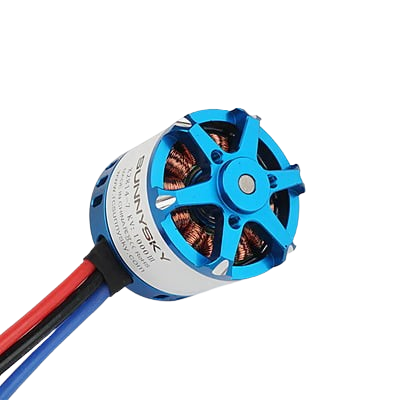

SUNNYSKY X 2814 V3 Brushless Motor
Non-returnable
₹6,399.00
Motor 900KV
Max Lipo Cell - 3-4S
ESC - 40-60A
Motor Resistance - 33.6mΩ
KV
Product Details
SPECIFICATION -
SunnySky X Series V3 X2814 V3 Brushless Motor 900KV
| Stator Diameter | 28mm | Rotor Diameter | 35mm |
|---|---|---|---|
| Stator Thickness | 14mm | Body Length | 36mm |
| No.of Stator Slots | 12 | Max Lipo Cell | 3-4S |
| No.of Rotor Poles | 14 | ESC | 40-60A |
| Motor Kv | 900 | Recommended Prop(inch) | APC11*5.5/APC13*6.5/APC11*8/APC13*8 |
| No-load current | 1.2A/10V | Weight for aerobatics airplane | 1200g-1400g (3S APC13*6.5\APC13*8) (4S APC11*5.5\APC11*7\APC11*8) |
| Motor Resistance | 33.6mΩ | Weight for 3D airplane | 800g-1200g (3S APC13*6.5\APC13*8) |
| Max Continuous Current | 50A/30s | ||
| Max Continuous Power | 680W | ||
| Weight | 108g |
