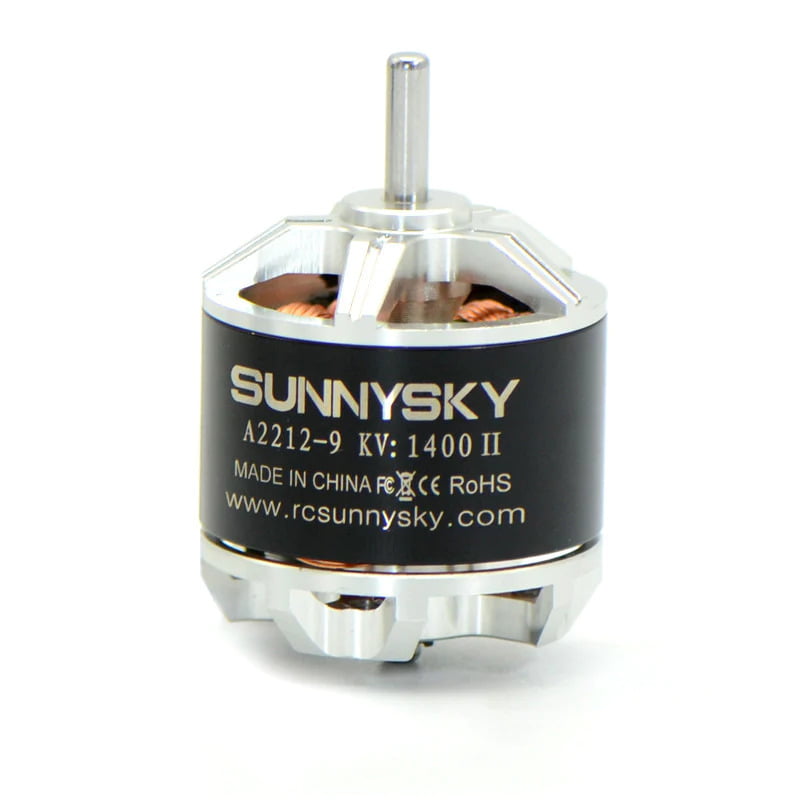

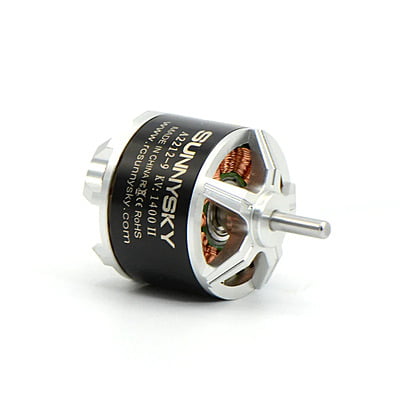

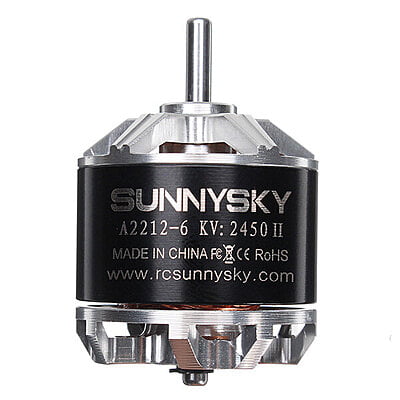

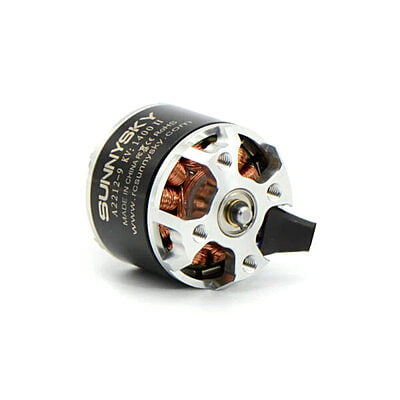

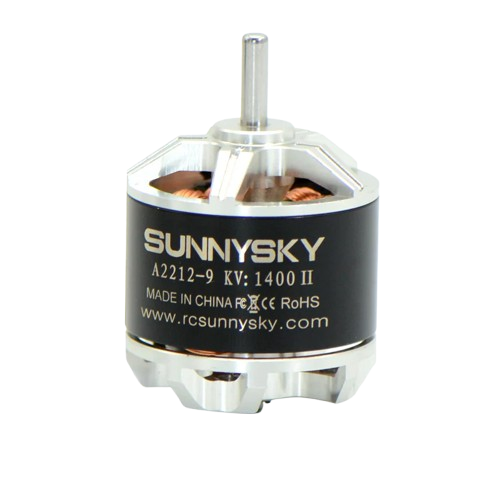

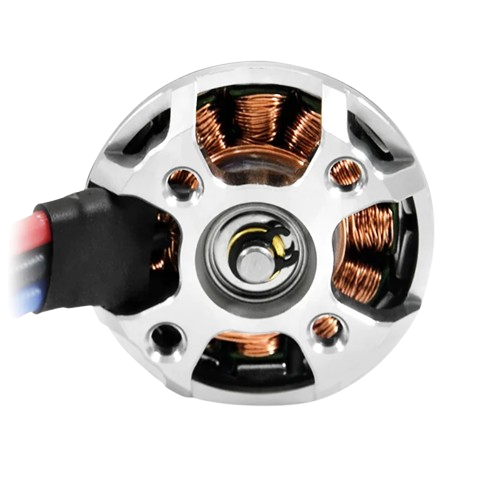

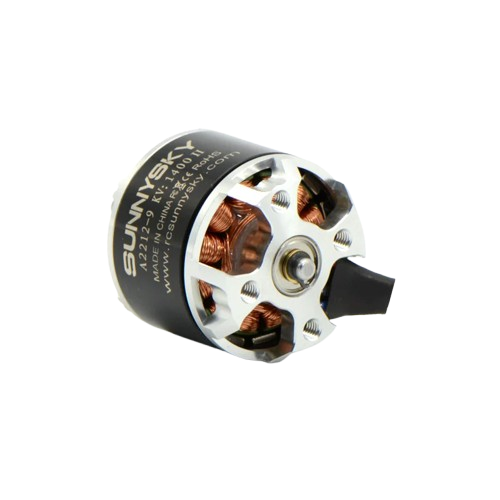

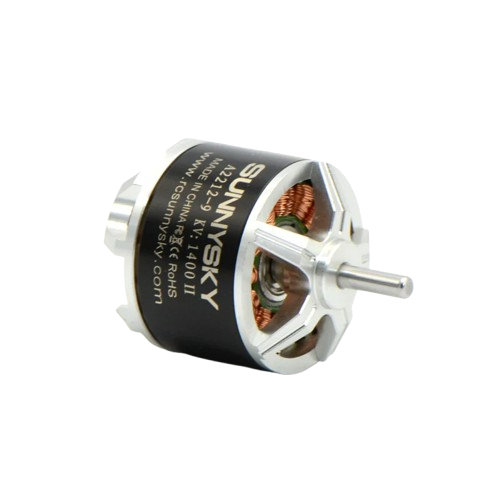

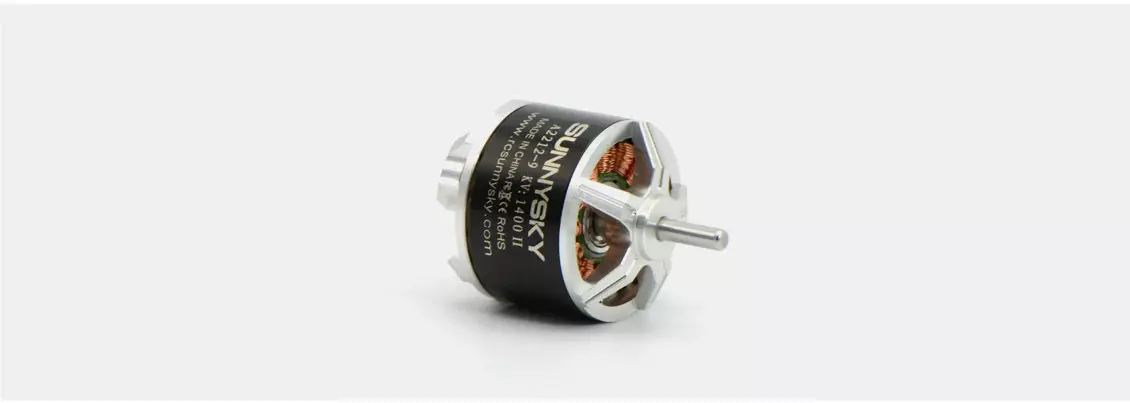

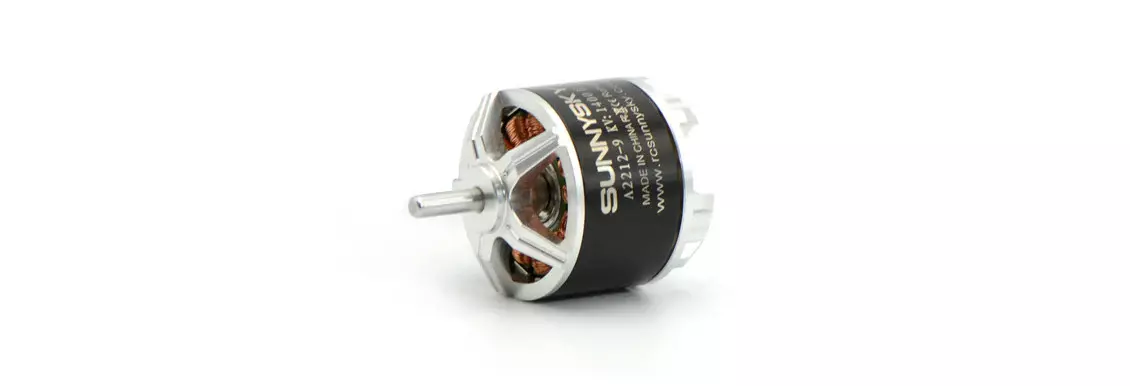

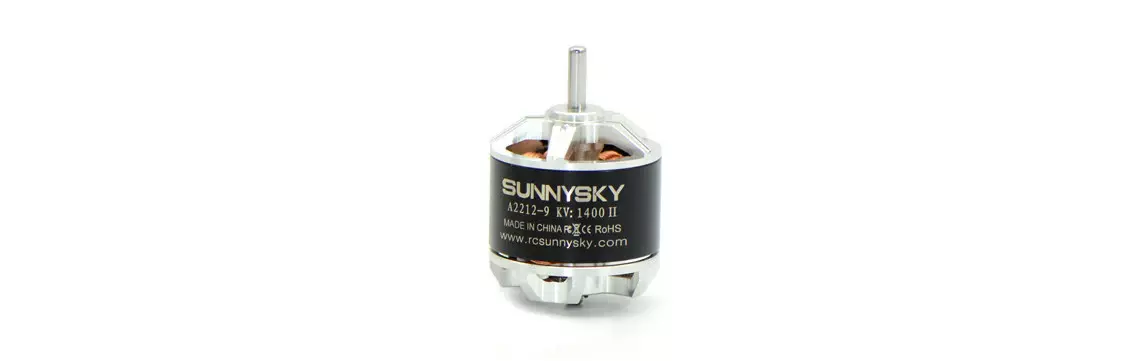

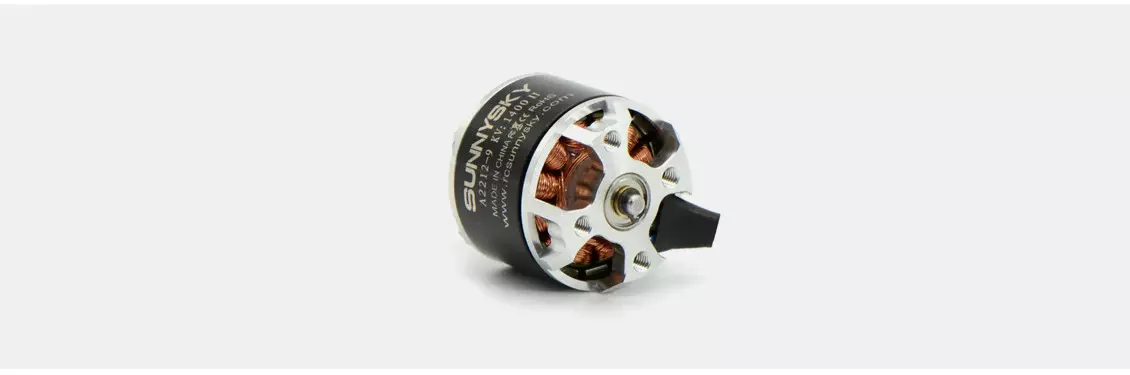

SUNNYSKY-A2212 BRUSHLESS MOTOR

Features:

• Stator Diameter: 22mm for powerful torque.

• Durable construction for long life.

• High-quality magnets for strong performance.

• Efficient power consumption.

• Available in multiple KV options.

SPECIFICATION:

• Stator Diameter: 22mm

• Weight: 56g

• Stator Thickness: 12mm

• Rotor Diameter: 27.5mm

• No. of Stator Slots: 12

• Body Length: 40mm

• No. of Rotor Poles: 14

• Max Lipo Cell: 3-4S

• Motor Kv: 1400/2450

• ESC: 20A

• No-load current: 0.7A/10V

• Recommended Prop(inch): 9045

• Motor Resistance: 123mΩ

• Max Continuous Current: 20A/30s

• Max Continuous Power: 330W

Additional Details:

• Manufacturer: SUNNYSKY

• Brand: SUNNYSKY

• Generic Name: Brushless Motor, Drone Motor, RC Motor

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: Fixed-wing aircraft, multi-rotor drones, RC planes, and general RC hobbyists.

Package Details:

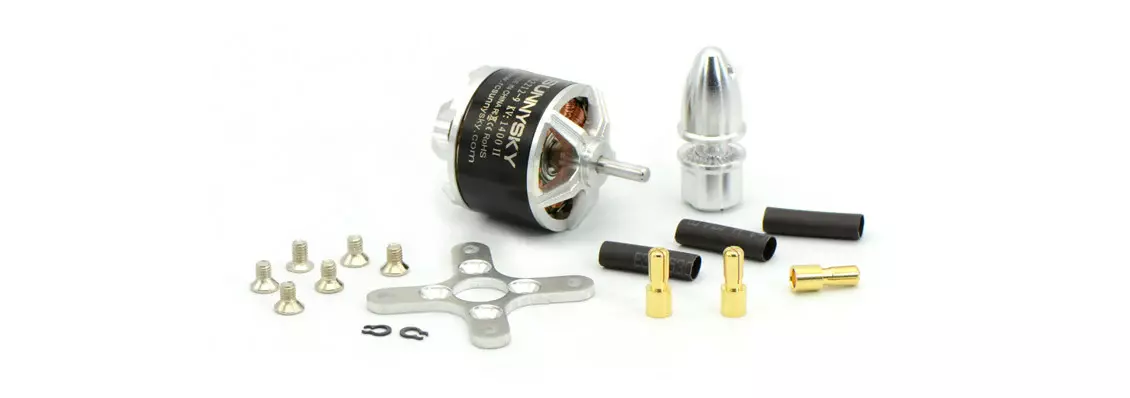

Includes:

• 1 x SUNNYSKY A2212 Brushless Motor

Frequently Asked Questions:

Q1: What size propeller should I use with this motor?

ANS: The recommended propeller is a 9045-inch model.

Q2: Is this motor suitable for a 4S battery?

ANS: Yes, this motor is compatible with 3-4S LiPo batteries.

Q3: What is the recommended ESC for this motor?

ANS: A 20A ESC is recommended for use with this motor.
