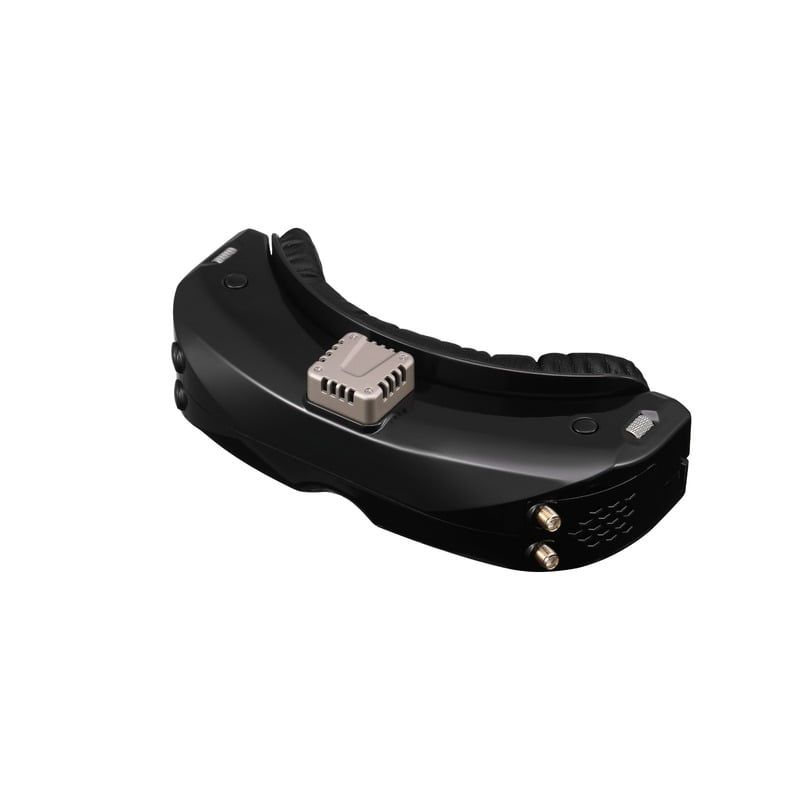

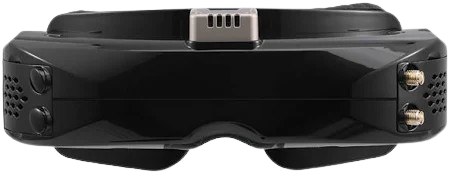

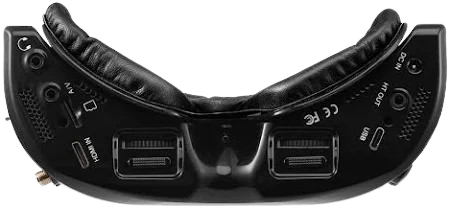

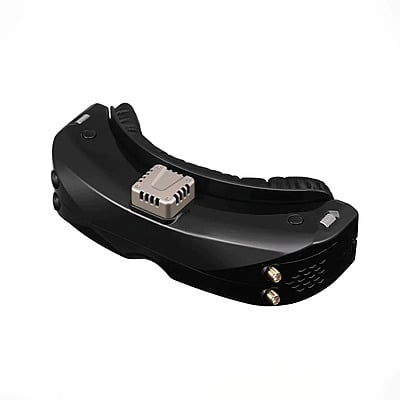

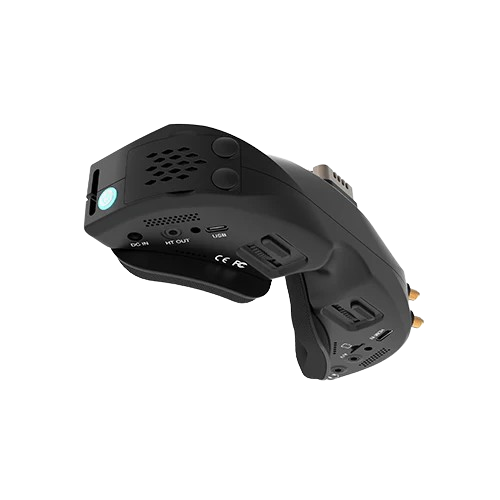

SKYZONE SKY04X V2 FPV Goggles
₹58,699.00 ₹85,999.00
The SKYZONE SKY04X V2 is a high-end FPV goggle set tailored for racing drone enthusiasts. It features a crisp 1280×960 OLED screen, SteadyView V3.3 receiver, and 60fps DVR with H264 encoding. With adjustable focus from -6 to +6 diopters and a wide 46° FOV, it offers immersive visuals without the need for corrective lenses. Designed with modularity and comfort in mind, it features a user-friendly shuttle wheel interface, multiple aspect ratios, and multilingual support, all within a compact design. Compatible with HDZero and FatShark, it’s built for superior clarity and reduced image tearing in tough flying conditions.
Choose Quantity
Product Details
Features
- High-resolution OLED screen (1280×960) with vivid colors and contrast
- 46° diagonal FOV for an immersive, wide-angle experience
- Focus adjustment (-6 to +6) for users with vision correction needs—no external lenses needed
- V3.3 SteadyView receiver merges dual signals into one, improving clarity and reducing visual artifacts
- Aspect ratio switching between 4:3 and 16:9
- 4 preset + 3 customizable screen modes for various conditions (indoor/outdoor/weather)
- User-friendly shuttle wheel—no more confusing multi-function buttons
- Updated multilingual UI with 10 language options
- Built-in DVR with H264 codec at 60fps, MOV file format (6Mbps)
- Modular bay for future receiver upgrades
- Supports HDZero and FatShark video systems
- Comfortable design with two included faceplates for custom fit
Technical Specifications
- Screen Type: OLED
- Resolution: 1280 × 960 pixels
- Field of View (FOV): 46° (diagonal)
- Aspect Ratio: 4:3 / 16:9 switchable
- Focus Adjustment: -6 to +6 diopters
- Interpupillary Distance (IPD): 58–71 mm
- Receiver: 5.8GHz 48CH V3.3 SteadyView Diversity Receiver
- Language Support: 10 languages
- Power Supply: DC 6.5–25.2V or USB 5V
- Power Consumption: 720mA @ 12V
- DVR: H264, 60fps, MOV format, 6Mbps bitrate
- SD Card Support: microSD up to 128GB
- Head Tracker: 3-axis gyroscope + 3-axis accelerometer
- Antenna Connector: SMA
- Dimensions: 185 × 75 × 67 mm
- Weight: Approx. 262g
Package Includes
- 1 × SKY04X V2 FPV Goggles
- 1 × V3.3 SteadyView Receiver Module
- 2 × Faceplates (Wide and Narrow)
- 1 × Sponge with Velcro
- 1 × Zipper Carry Case
- 1 × Power Cable
- 1 × Head Tracker Cable
- 2 × 5.8GHz 2dB Antennas
- 1 × Video/Audio Cable
- 1 × USB-C Cable
- 1 × User Manual
Additional Details
- Immersive Visuals: With OLED technology and a wide FOV, pilots can see more of their environment with greater clarity and dynamic range.
- No Need for Diopters: Unlike older goggles, the SKY04X V2 includes built-in optical adjustment from -6 to +6, eliminating the need for external corrective lenses.
- SteadyView Advantage: The V3.3 module merges signal strength from both antennas, offering smoother and more stable video even in high-interference zones.
- Simple UI: The new shuttle wheel makes it easier to adjust settings mid-flight without removing the goggles.
- Wide Compatibility: Supports HDZero digital and analog systems like FatShark, making it versatile for both professional racers and freestyle pilots.
- Upgrade-Friendly: The module bay design allows for future expansions such as digital receivers or alternate RF modules.
- FPV Drone Video Goggles || OLED FPV Goggles for RC Models || Rechargeable FPV Headset || 5.8GHz FPV Receiver Goggles || Drone Racing Vision System || Immersive RC Flight Goggles || Adjustable Focus FPV Goggles
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
Frequently Asked Questions
Q1: Can I use these goggles with prescription glasses?
A. No need! The built-in optical focus adjustment (-6 to +6) covers most vision needs.
Q2: Are these goggles compatible with digital systems like HDZero?
A. Yes, SKY04X V2 supports HDZero and FatShark, offering flexibility between analog and digital.
Q3: Can I record my flights?
A. Yes, the built-in DVR records in H264, 60fps, with a bitrate of 6Mbps in MOV format.
