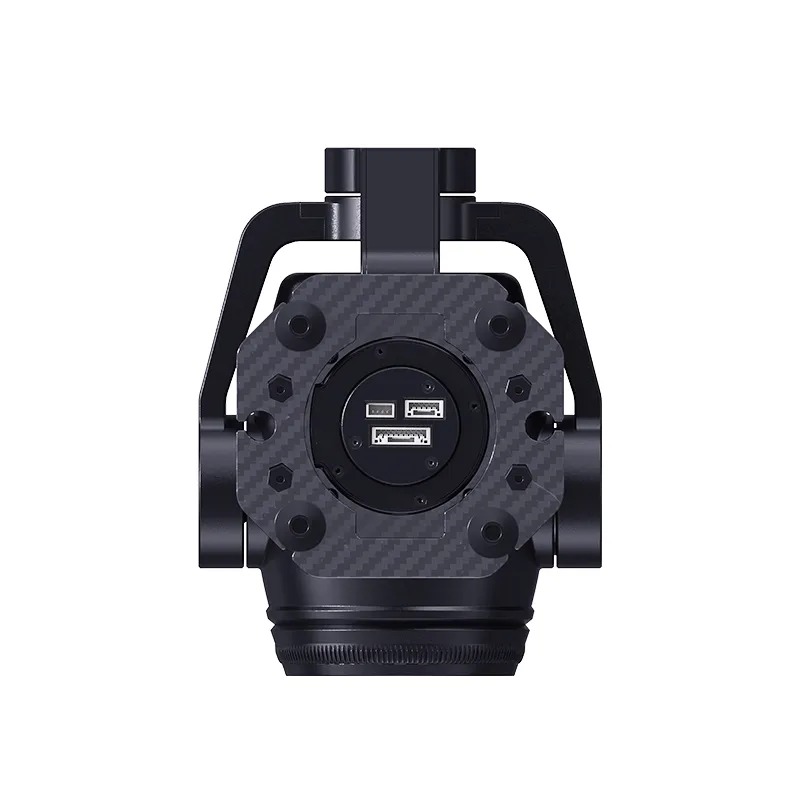

SIYI-ZR30 GIMBLE CAMERA
₹151,499.00
Out of stock

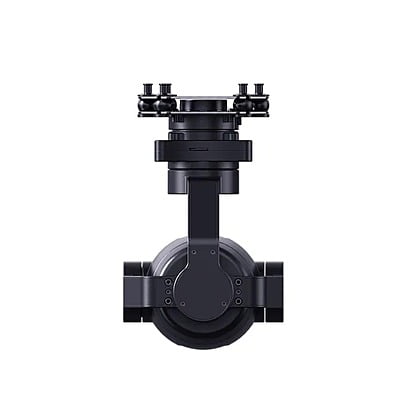

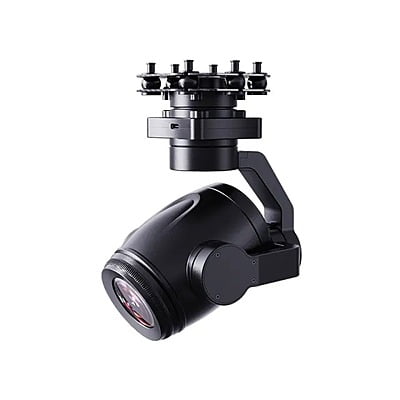

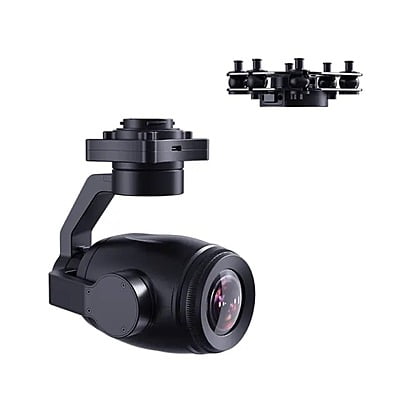

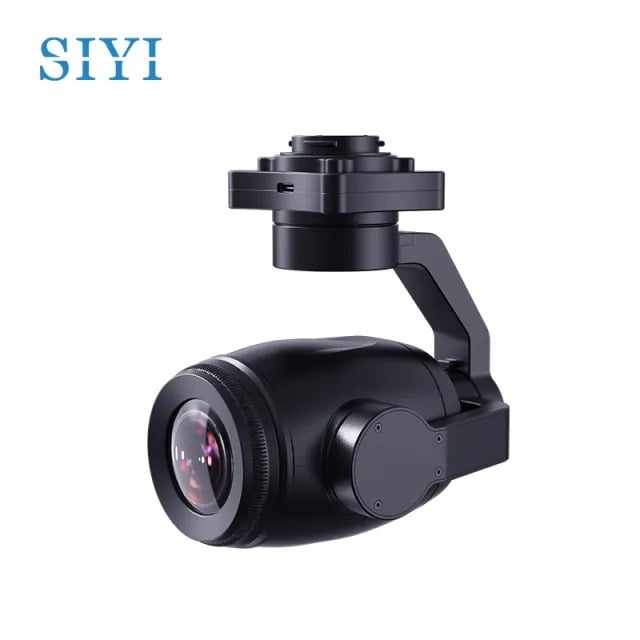

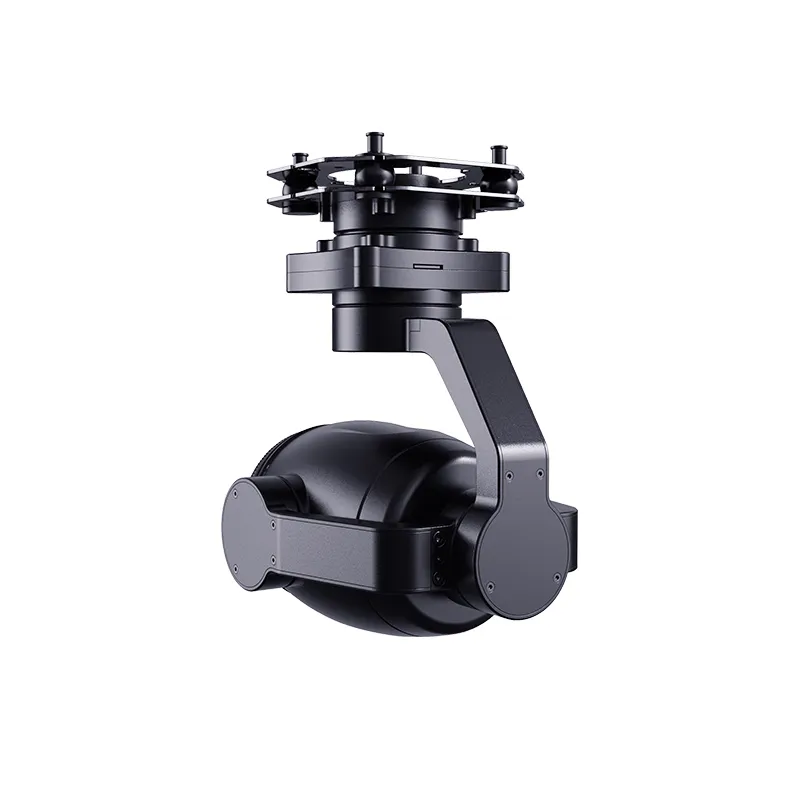

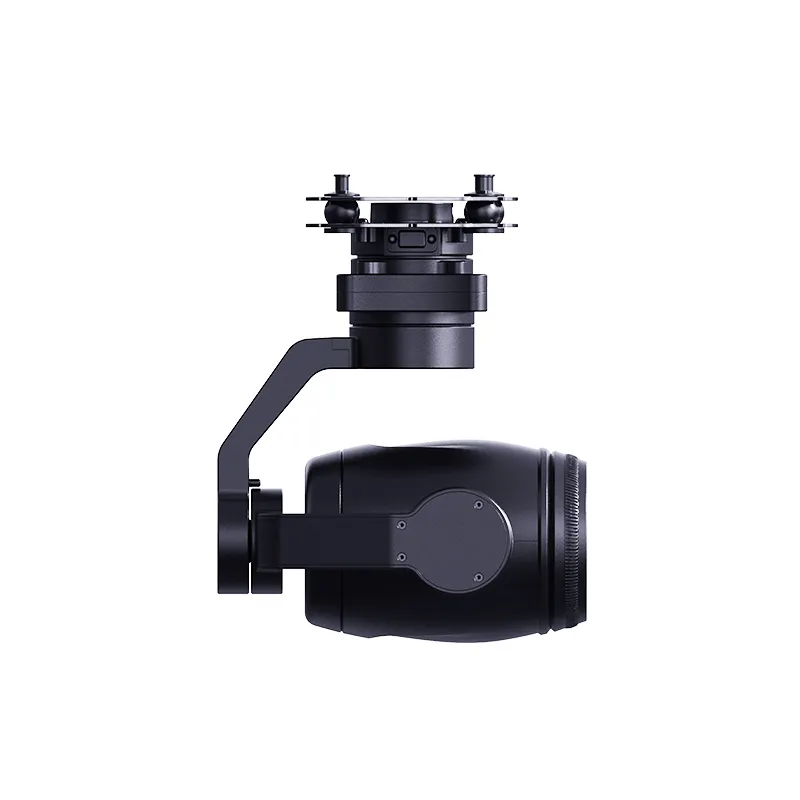

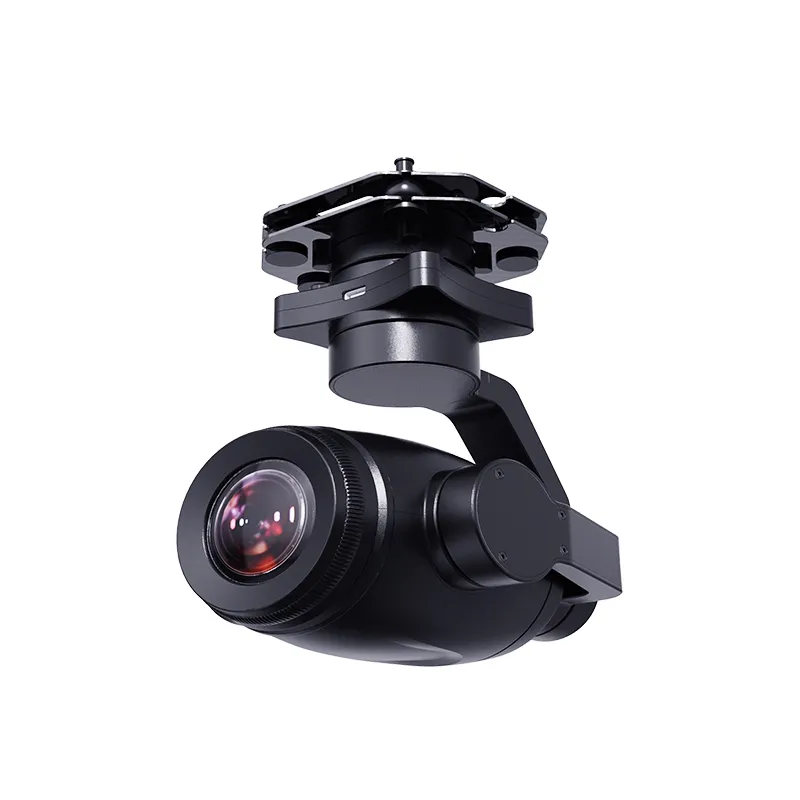

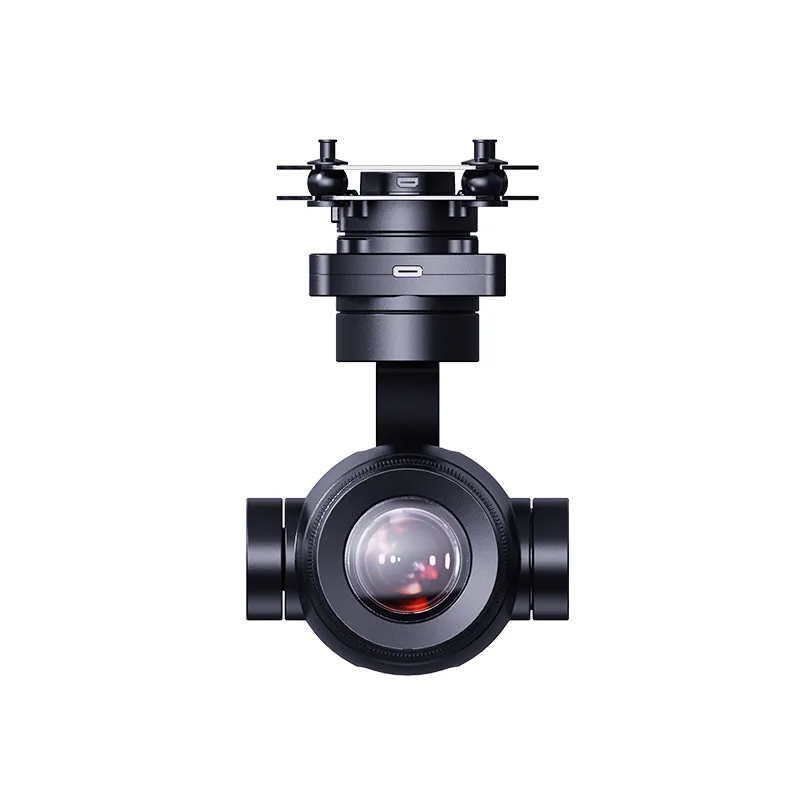

The SIYI ZR30 is a professional 3-axis gimbal camera boasting 30X optical zoom and 4K video. With AI Smart Tracking, OIS (Optical Image Stabilization), and Starlight Night Vision, it delivers ultra-stable, high-resolution footage from afar, even in low light. Its IP45 protection and versatile outputs make it ideal for demanding industrial inspection, surveillance, and long-range aerial photography.
Product Details
Features:
- Powerful 30X Optical Zoom.
- 4K Ultra HD (3840x2160@30fps) video.
- AI Smart Identify and Tracking (Neural Network).
- Optical Image Stabilization (OIS).
- Starlight Night Vision (1/2.8" Sony CMOS sensor).
- 3-axis gimbal stabilization (±0.01°).
- IP45 Dustproof and Waterproof.
- HDR (High Dynamic Range) function.
- Versatile video outputs (Ethernet, HDMI, CVBS).
- Multiple control inputs (S.Bus, UART, UDP).
Technical Specifications:
- Video Output Port: Ethernet, Micro-HDMI
- Control Signal Input Port: S.Bus, UART, Ethernet UDP/TCP
- High-Accuracy 3-Axis Stabilization: Yaw, Pitch, Roll
- Working Voltage: 11 ~ 25.2 V (3S to 6S)
- Power Consumption: Average: 5 W, Summit: 12 W
- Waterproof Level: IP4X
- Working Temperature: -10 ~ 50℃
- Dimension: 132100180 mm (Quick Release Board Included)
- Weight: 668 g (Quick Release Board Included)
- ZR30 Quick Release Board Dimension: 826520 mm
- ZR30 Quick Release Board Weight: 38 g
- Gimbal Angular Vibration Range: ±0.01°
- Gimbal Controllable Pitch Angle: -90° ~ +25°
- Gimbal Controllable Yaw Angle: -270° ~ +270°
- Gimbal Roll Angle: -45° ~ +45°
- Camera Lens: 30X Optical Zoom (180X Hybrid Zoom)
- Camera Focal Length: 4.5 ~ 148.4 mm (±5%)
- Camera Image Sensor: 1/2.7 Inch Sony CMOS, 8 MP Effective Resolution
- Camera Aperture: F1.3 ~ 2.8 (±5%)
- Camera FOV:
- Without Zoom: Diagonal 65.4°, Horizontal 58.1°
- 30X Optical Zoom: Diagonal 2.5°, Horizontal 2.1°
- Video Recording Resolution:
- 4K (4096×2160) @ 25 fps
- 2K (2560×1440) @ 30 fps
- 1080p (1920×1080) @ 30 fps
- 720p (1280×720) @ 30 fps
- Still Photo Resolution: 4K (3840 x 2160)
- Video Storage Bitrate: 12 Mbps (H.265 Codec)
- Supported File System: FAT32, ExFAT
- Image Format: JPG
- Video File Format: MP4
- Supported MicroSD Cards: MicroSD Class10, Max 128GB
- Still Photography Mode: Single
- Metering Mode: Evaluative metering
- White Balance: Automatic
Additional Details:
- Manufacturer: SIYI Technology
- Brand: SIYI
- Generic Name: Drone Gimbal Camera || UAV Camera || Aerial Photography Camera || Zoom Camera || Industrial Drone Camera || Surveillance Camera || Mapping Camera || 3-Axis Gimbal || Professional Drone Camera || Drone Payload
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: Industrial Inspections (power lines, infrastructure) || Long-Range Surveillance || Search and Rescue || Public Safety UAVs || Wildlife Monitoring || Large-Scale Mapping & Surveying (detail capture) || Commercial Drone Applications || Autonomous Drone Missions requiring advanced zoom || Enterprise Drones || Critical Infrastructure Monitoring.
Package Details:
Includes:
- 1 x SIYI ZR30 Gimbal Camera
Frequently Asked Questions:
Q1. What makes the SIYI ZR30 Gimbal Camera stand out for professional drone operations?
Ans. The ZR30 combines a powerful 30X optical zoom with AI Smart Tracking, Optical Image Stabilization (OIS), 4K resolution, and Starlight Night Vision, offering unparalleled clarity, stability, and intelligence for demanding industrial inspection and surveillance tasks.
Q2. How does the SIYI ZR30 perform in challenging lighting and environmental conditions?
Ans. With its Starlight Night Vision (Sony IMX585 sensor), HDR function, and IP45 dustproof and waterproof rating, the ZR30 is designed to capture clear footage in very low light and operate reliably in various outdoor environmental conditions, including rain and dust.
Q3. What connectivity options does the SIYI ZR30 Gimbal Camera provide for drone integration?
Ans. The ZR30 offers versatile connectivity including Ethernet, HDMI (Micro-HDMI), and CVBS (AV) for video output, and supports S.Bus, UART, and UDP/TCP for control signal input, ensuring flexible integration with a wide range of drone platforms and ground stations.
