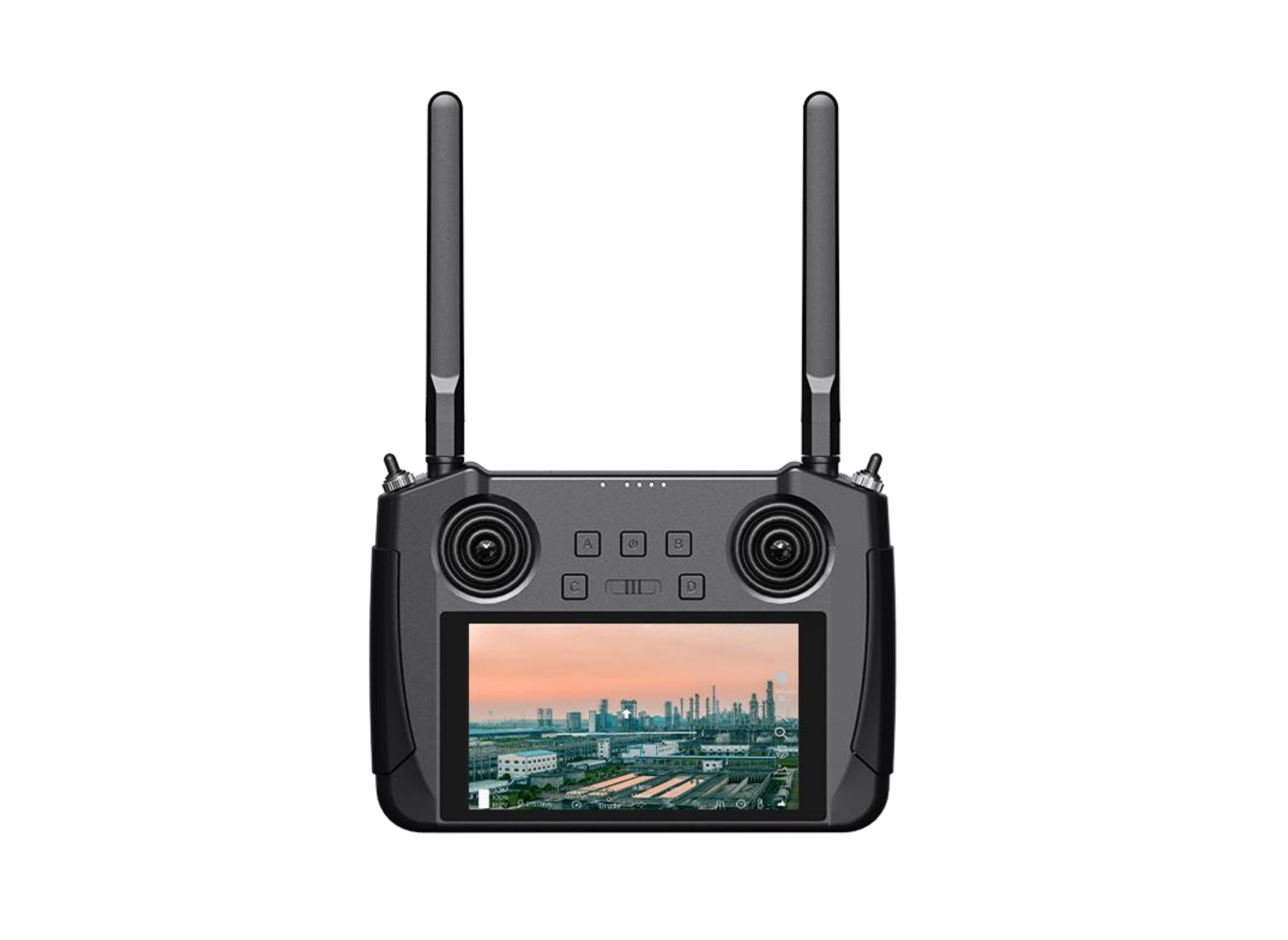

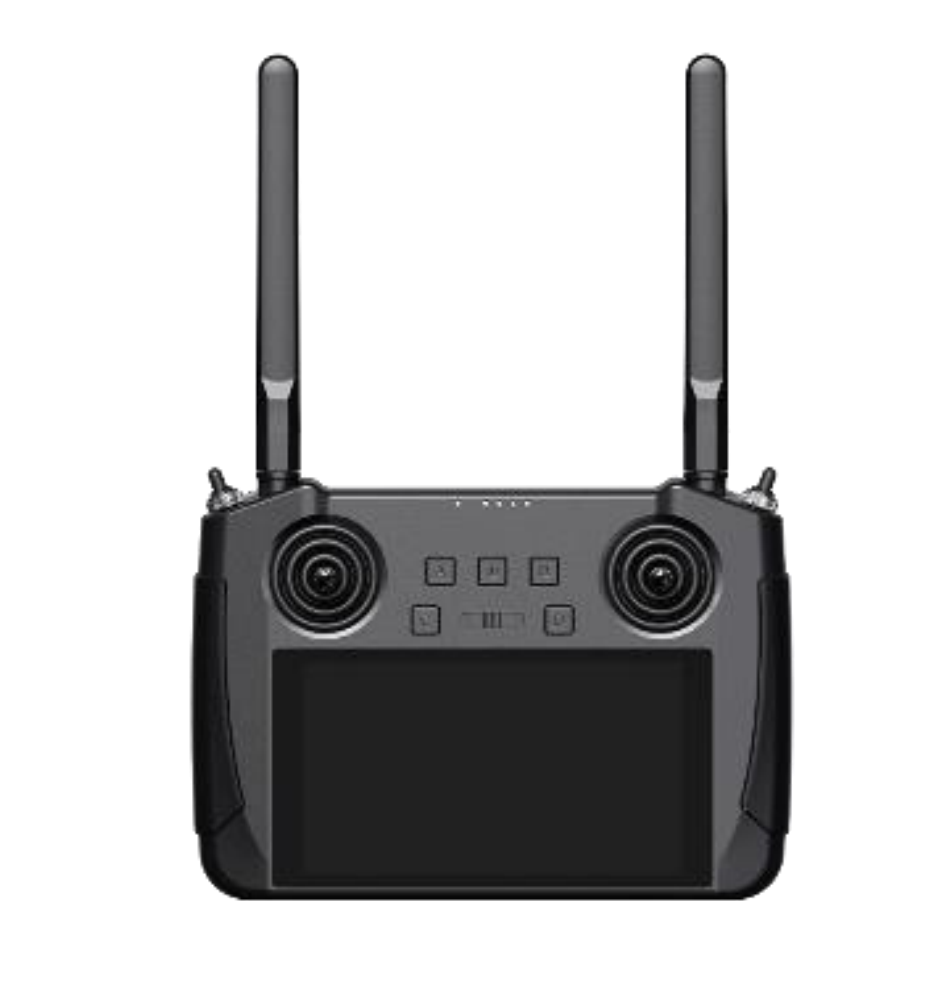

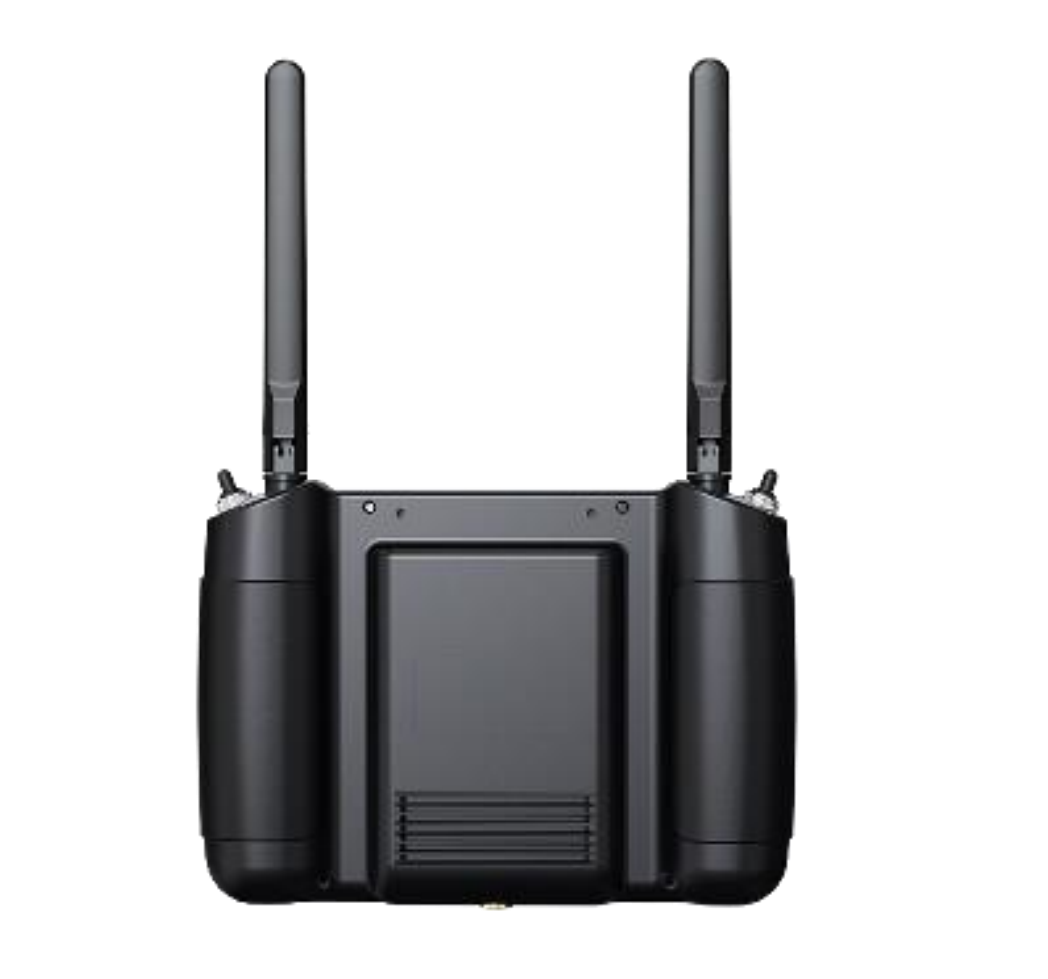

SIYI MK15E Agriculture Combo Remote Controller
₹58,999.00
Out of stock
The SIYI MK15E is a robust, handheld remote controller designed for agriculture drones. Featuring a bright 5.5" HD touchscreen, dual 1080p digital image transmission with low latency, and an Android 9.0 OS, it provides precise control and real-time monitoring for efficient farming operations and drone management in challenging environments.
Product Details
Features:
- 5.5-inch high-brightness HD touchscreen display.
- Dual 1080p digital image transmission.
- 180ms low latency for responsive control.
- Runs on Android 9.0 operating system.
- Equipped with a powerful Qualcomm 8-core CPU.
- Up to 12-13 hours battery life.
- Fast charging with PD 20W protocol.
- IP53 waterproof and dustproof rating.
- Compatible with popular agriculture flight controllers.
- Supports external RTK modules.
Technical Details:
Overall:
- Model: MK15E
- Max Transmission Range: 5 kilometers (unobstructed, free of interference)
- Agriculture Control Range: 2.5 kilometers (flying at 3-meter's altitude)
- Channels: 13 physical channels, 16 communication channels
- Compatible Agriculture Flight Controllers: BOYING Paladin V2 , JIYI K++ V2 / K3A Pro , VK V7AG , Pixhawk / APM based flight controllers
- Compatible Enterprise Flight Controllers: JIYI KX
- Compatible Android GCS (standard RTSP video stream): QGround Control , JIYI IFLY / Agri-Assistant , BOYING Agriculture , VK V7 Pro
- Compatible Windows GCS (standard RTSP video stream): Mission Planner
Remote Controller:
- Monitor: 5.5-inch High Definition and High Brightness LCD Touchscreen
- System: Android 9.0 OS, 2 G RAM & 16 G ROM
- Dimension (antenna overlapped): 189 x 138 x 41 mm
- Weight: 850 g
- Battery Capacity & Type: 10200 mAh 7.4 V 2S Li-ion, 75.48 Wh
- Fast Charging Protocol: PD 30W
- Battery Life: 15 hours
- Interface & Ports: Charging: Type-C , Firmware Upgrade: Bottom DATA (4-Pin) , 4G/LTE Network: SIM Card Slot , External Storage: TF Card Slot , Tripod Connect: 1/4-inch Screw Hole , Video Output: Standard HDMI , External RTK: Top DATA (4-Pin) , Data Transfer: USB-A
- Waterproof Level: IP53
- Working Temperature: -10 to 55℃

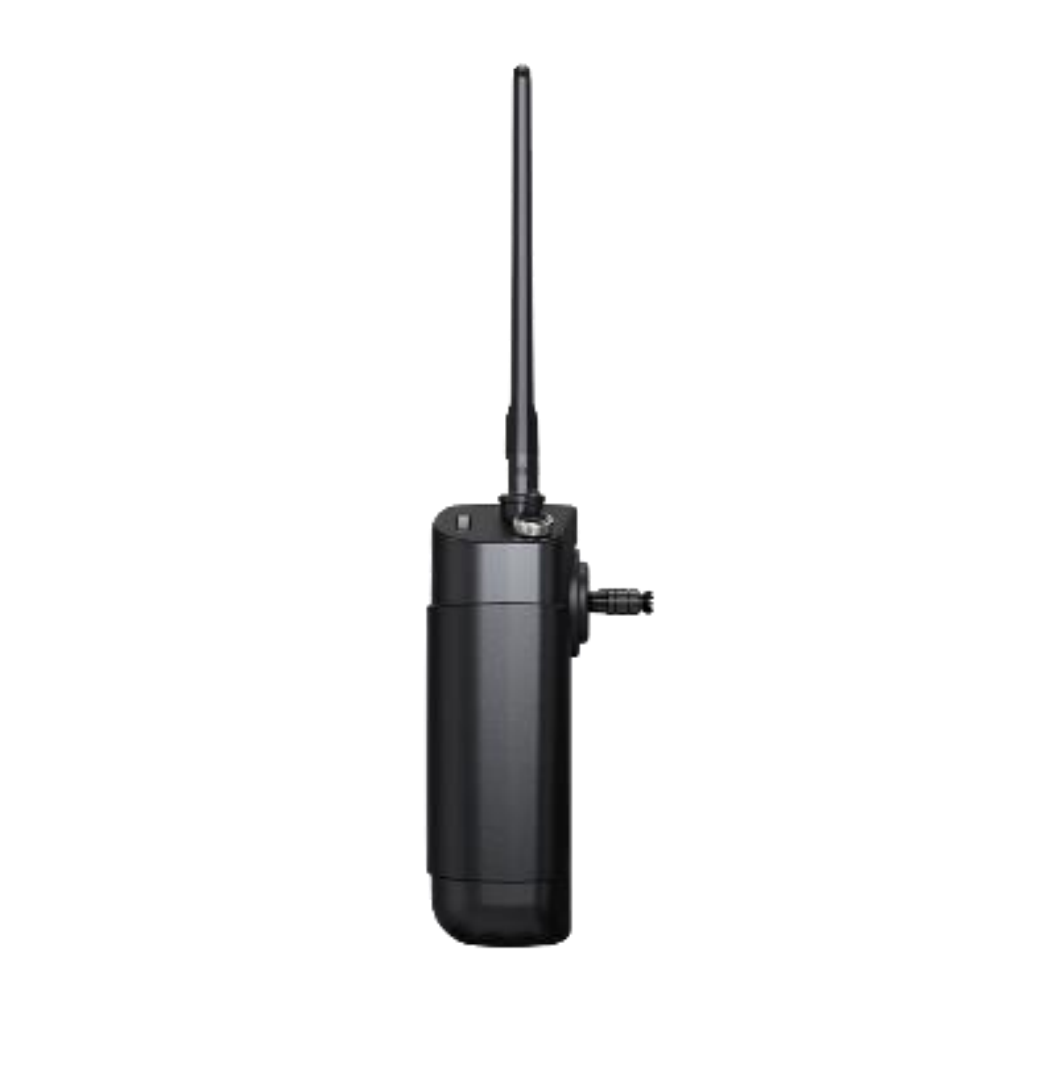

Air Unit:
- Signal Output: 16 channels of S.BUS, 5 channels of PWM
- Interface & Ports: SBUS: 3-Pin , Datalink (to FC): UART 4-Pin , PWM Channel 1 to 5: 6-Pin , Video Input: Ethernet 8-Pin , Firmware Upgrade: Type-C
- Dimensions (antenna excluded): 75 x 48 x 17 mm
- Weight (antenna excluded): 116 g
- Antenna Gain (standard omni): 5 dBi
- Power Input: 14.8 to 58.8 V (4S to 14S)
- Working Temperature: -10 to 55℃
Additional Detail:
- Manufacturer: SIYI Technology
- Brand: SIYI
- Generic Name: Drone Remote Controller, Agricultural Drone Controller, Smart Handheld Controller, FPV Ground Station, UAV Controller
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: Agricultural drone operations, precision farming, crop monitoring, field mapping, drone-based data collection, aerial spraying, large-scale farm management.
Package Details:
- includes: 1 x SIYI MK15E Mini HD Handheld Agriculture Smart Controller
Frequently Asked Questions:
Q1: What is the battery life of the SIYI MK15E?
Ans: The SIYI MK15E offers an extended battery life of up to 12-13 hours on a full charge.
Q2: Is the SIYI MK15E compatible with all agriculture drones?
Ans: It is compatible with popular agriculture flight controllers like JIYI, BOYING, VK, and Pixhawk/Ardupilot-based systems.
Q3: Does the SIYI MK15E support external cameras?
Ans: Yes, the MK15 air unit can connect two IP cameras via an FPV Hub for dual video stream monitoring.
