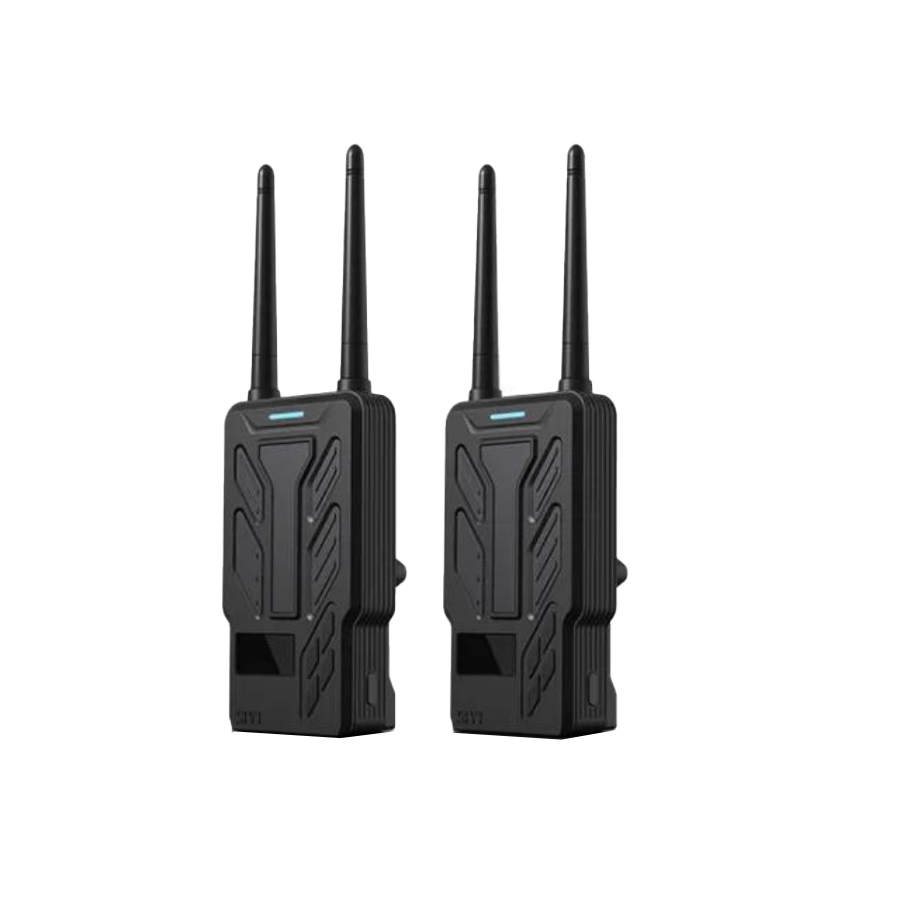

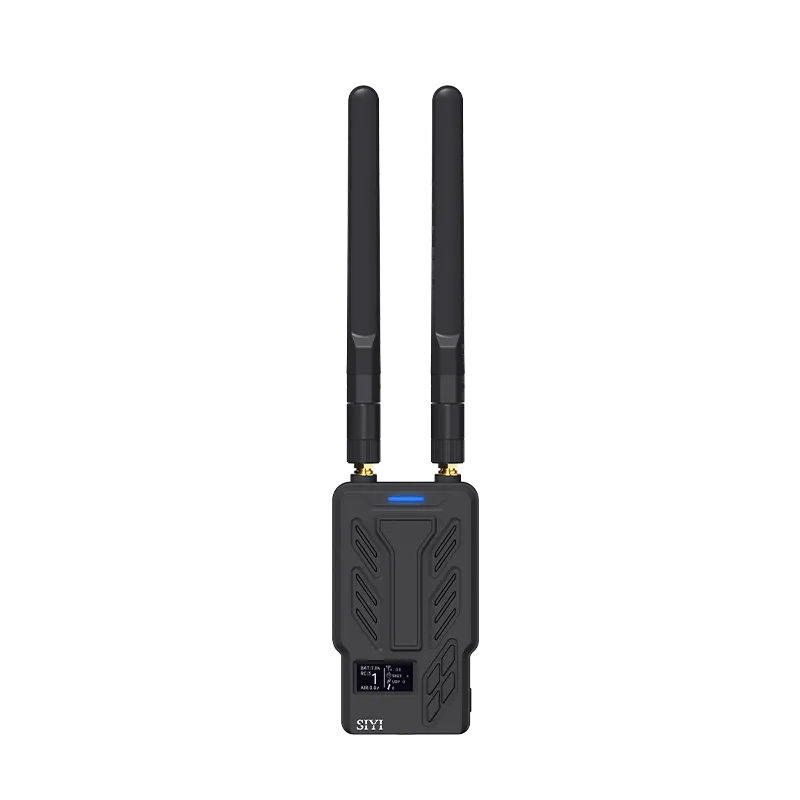

SIYI-HM30 DUAL LONG RANGE MODULE
₹45,299.00 ₹54,359.00
Out of stock
The SIYI HM30 is a cutting-edge long-range Full HD digital FPV system. Delivering 1080p/60fps video over 30KM, it features 150ms low latency, dual control/telemetry, and IP67 weather protection. Ideal for professional industrial and agricultural UAVs, it offers high-definition video, precise control, and MAVLink telemetry, ensuring robust and reliable performance in demanding environments.
Product Details
Features:
- Full HD 1080p @ 30fps digital video.
- Ultra-long range up to 30KM (FCC).
- Low latency of 150ms.
- Integrated remote control and video transmission.
- Dual S.Bus / PWM / MAVLink telemetry ports.
- IP67 industrial protection (Ground Unit).
- High-gain directional antenna (Ground Unit).
- High-brightness 0.96-inch OLED Display display (Ground Unit).
- Supports various camera inputs (HDMI, Ethernet, USB, CVBS).
Technical Specifications:
- Max Transmission Range: 30 km (Unobstructed, free of interference)
- Channels: 16 communication channels
- Datalink Compatible Flight Controllers: PX4 / ArduPilot Open-Source Flight Controllers: SIYI N7, etc., INAV Open-Source Flight Controllers
- Video Stream Compatible GCS (Android): SIYI Factory Apps: SIYI FPV, Open-Source GCS: QGroundControl, Mission Planner
- Video Stream Compatible GCS (Windows): Open-Source GCS: QGroundControl, Mission Planner (H264 only)

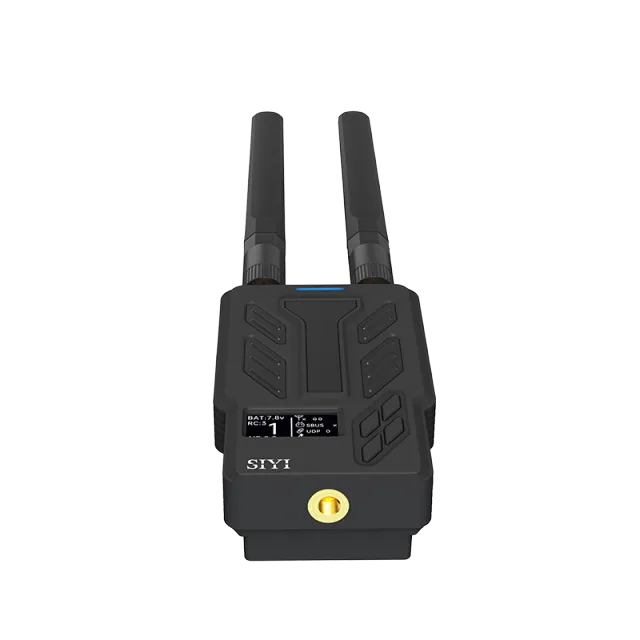

- Ground Unit Monitor: 0.96-inch OLED Display

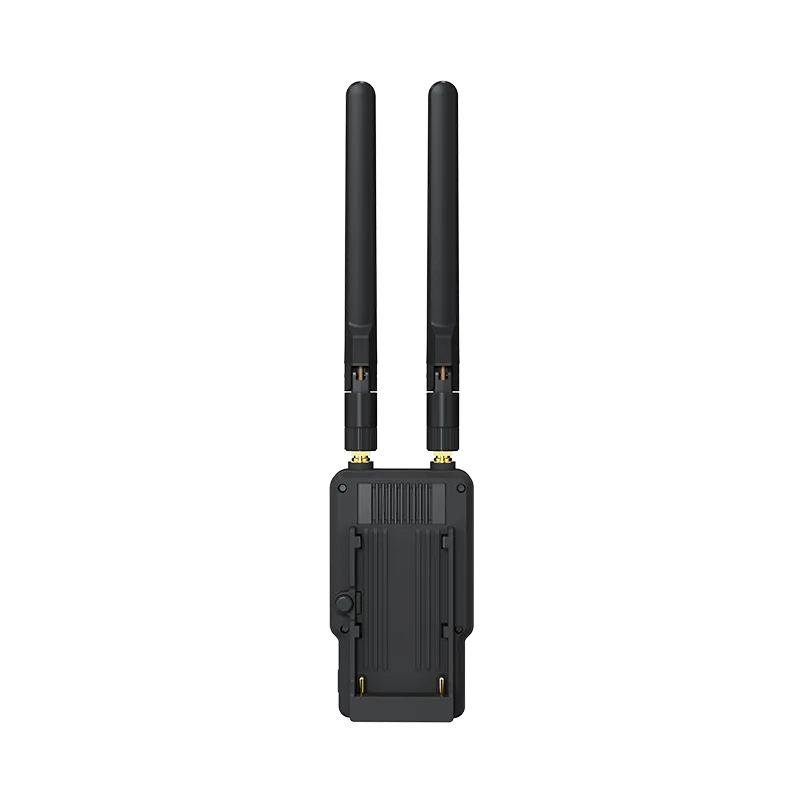

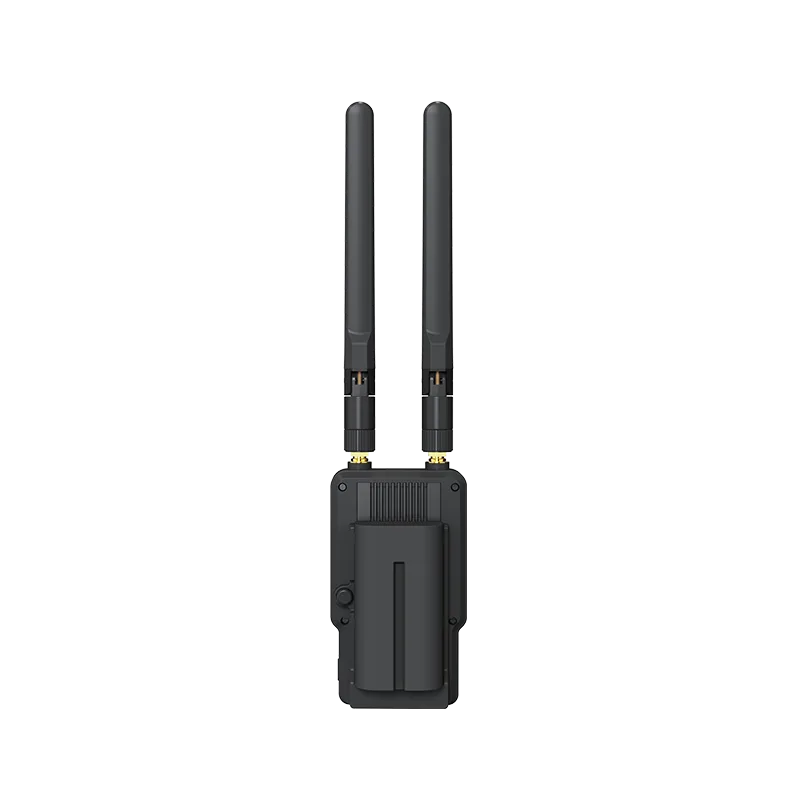

- Ground Unit Compatible Battery Type: NP-F550 / F750 / F950 Series Quick Release Batteries (HM30 fly more combo comes with NP-750 quick release battery)
- Ground Unit Fast Charging Protocol: PD 30W

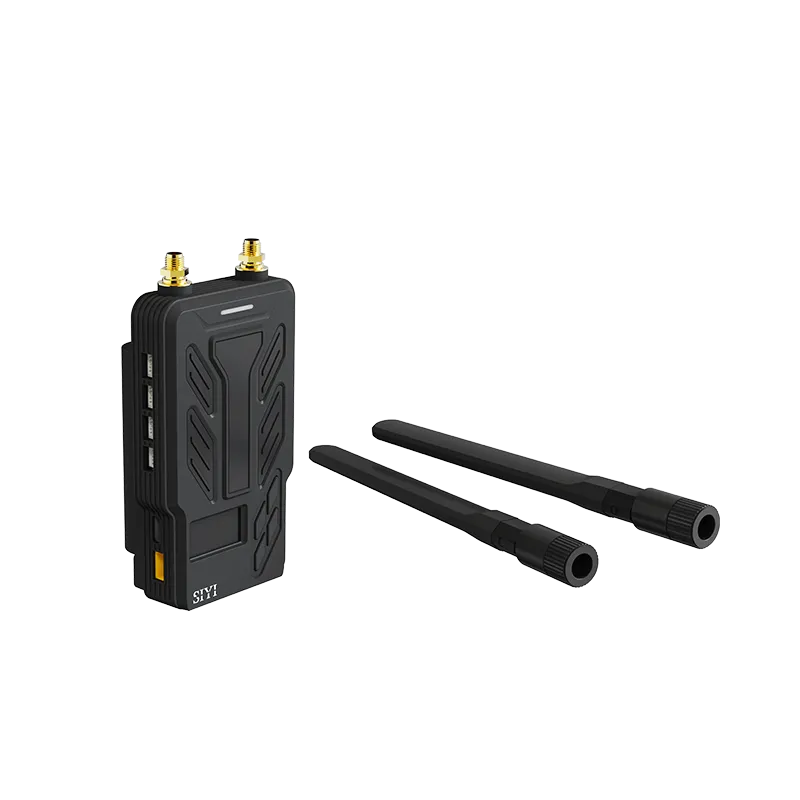

- Ground Unit Antenna Gain:
- Standard Omni Antenna: 5 dBi
- Standard Long Range Antenna: 11 dBi
- (Optional) Lollipop Antenna: 5 dBi

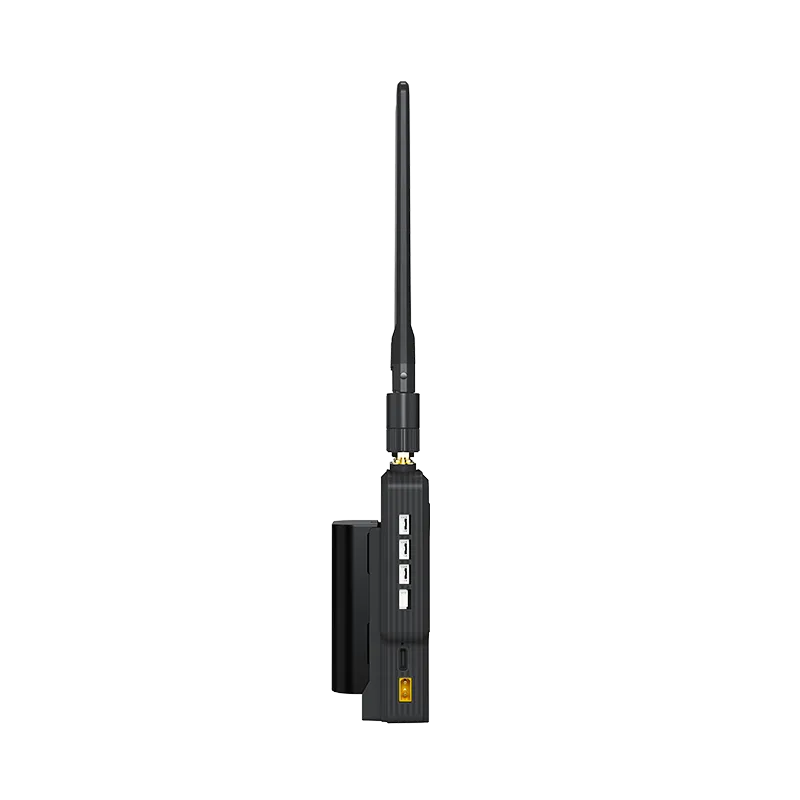

- Ground Unit Interface & Ports:
- S.Bus / PPM RC Signal Input: RC (GH1.25 4-pin)
- Datalink Output: UART (GH1.25 4-pin)
- Ethernet Port: LAN (GH1.25 4-pin)
- Power Output: VCC (GH1.25 4-pin, without bucket)
- GCS Datalink Communication: Type-C
- Firmware Upgrade: Type-C
- Charge: Type-C
- Power Input: PWR (XT30)

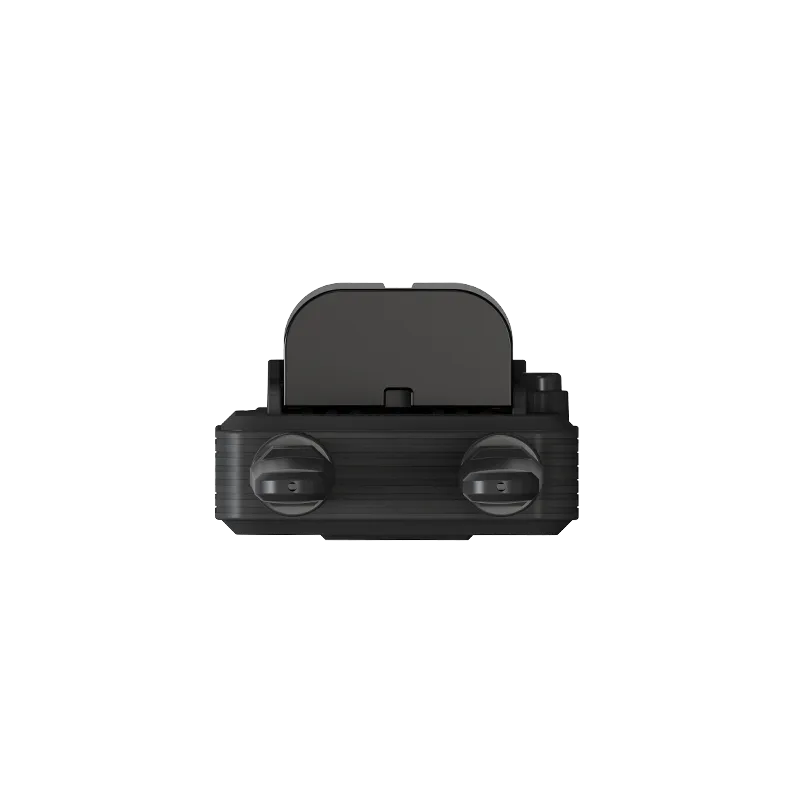

- Tripod Connector: 1/4-inch Screw Hole
- Product Dimensions (Battery and antennas excluded): 109 x 61 x 28 mm
- Product Dimensions (Battery and antennas excluded): 132 g
- Waterproof Level: IP53
- Working Temperature: -10 ~ 50℃
- Air Unit Signal Output:
- 16 channels of S.Bus
- 5 channels of PWM
- Air Unit Interface & Ports:
- S.Bus RC Signal Output: S.Bus Out (GH1.25 3-Pin)
- Datalink (to FC): UART (GH1.25 4-Pin)
- PWM Channel 1 to 5: PWM (GH1.25 6-Pin)
- Video Input / Network Communication: LAN (GH1.25 8-Pin)
- Firmware Upgrade: Type-C
- Antenna Gain:
- Omni Antenna: 5 dBi (Standard)
- Lollipop Antenna: 5 dBi (Optional)
- Working Voltage:
- HM30 Air Unit: 2S ~ 4S / 12.6 ~ 25.2 V
- 4S to 18S Power Module (Optional): 16.8 ~ 75.6 V
- Power Consumption:
- HM30 Air Unit: Average: 2.8 W, Summit: 12 W
- HM30 Air Unit + 4S to 18S Power Module: Average: 3.2 W, Summit: 12 W
- Dimensions (Antenna Excluded): 70 x 55 x 16 mm (fan included)
- Weight (Antenna Excluded):
- HM30 Air Unit: 74 g
- HM30 Air Unit + 4S to 18S Power Module: 109 g
- Working Temperature: -10 ~ 50℃
Additional Details:
- Manufacturer: SIYI Technology
- Brand: SIYI
- Generic Name: FPV System || Digital FPV System || Long Range FPV || Drone Video Transmission || UAV Communication System || HD FPV System || Telemetry System || Remote Control System || Industrial Drone FPV || Agricultural Drone FPV
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: Professional Industrial Drones || Agricultural Spraying Drones || Long-Range Inspection UAVs || Mapping & Surveying Drones || Surveillance Drones || Cargo Drones || Public Safety UAVs || Autonomous Drone Missions || High-Definition Aerial Photography/Videography || Fixed-Wing UAVs || VTOL Aircraft.

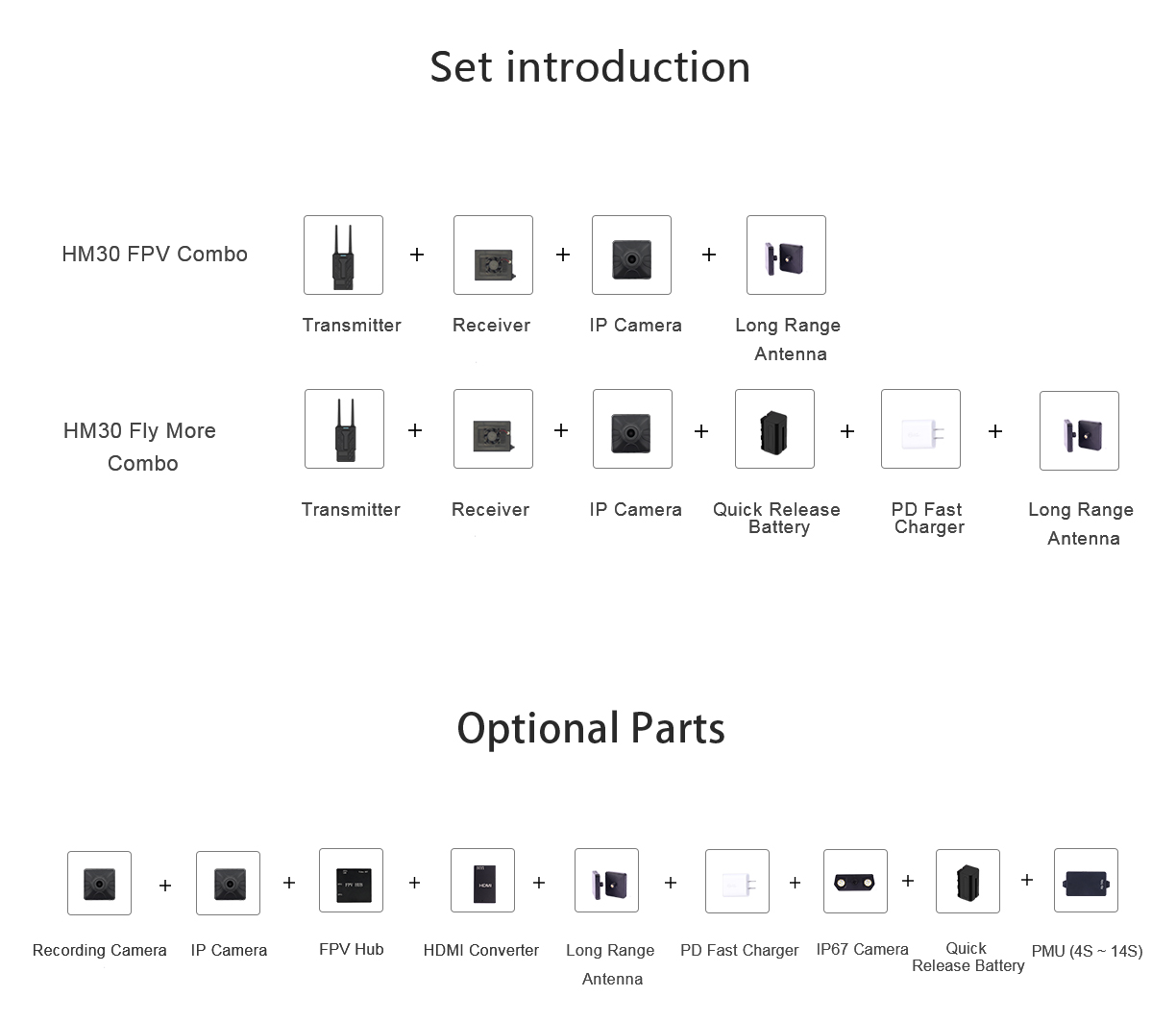

Package Details:
Includes:
1 x SIYI-HM30 DUAL LONG RANGE MODULE
Frequently Asked Questions:
Q1. What is the maximum range of the SIYI HM30 FPV System?
Ans. The SIYI HM30 can achieve an ultra-long transmission range of up to 30KM under FCC regulations and up to 15KM under CE regulations, providing extensive coverage for professional drone operations.
Q2. Does the SIYI HM30 system include real-time telemetry and control capabilities?
Ans. Yes, the HM30 system integrates remote control, MAVLink telemetry, and digital video transmission, allowing for simultaneous high-definition FPV, precise drone control (via S.Bus/PWM), and real-time flight data monitoring with OSD.
Q3. What kind of environmental protection does the SIYI HM30 Ground Unit offer?
Ans. The HM30 Ground Unit (remote controller) features an IP67 industrial protection rating, making it completely dustproof and submersible in water up to 1 meter for 30 minutes, ensuring reliable operation even in the harshest outdoor and challenging weather conditions.
