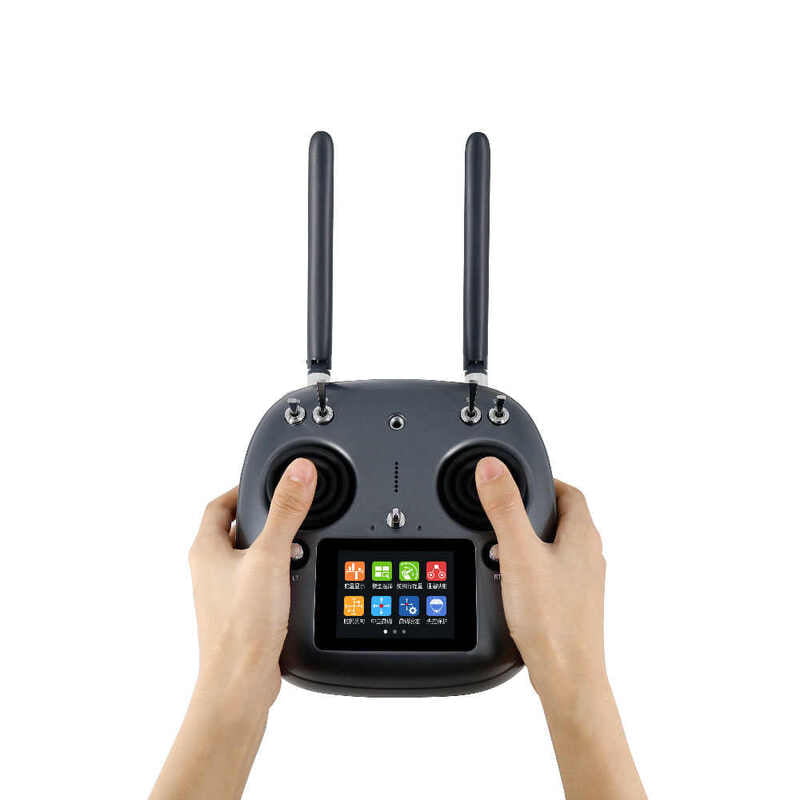

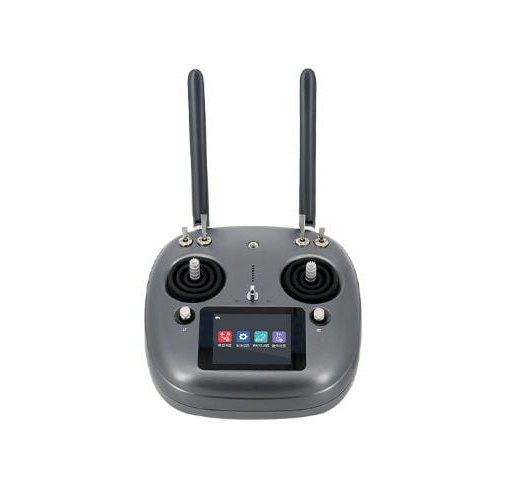

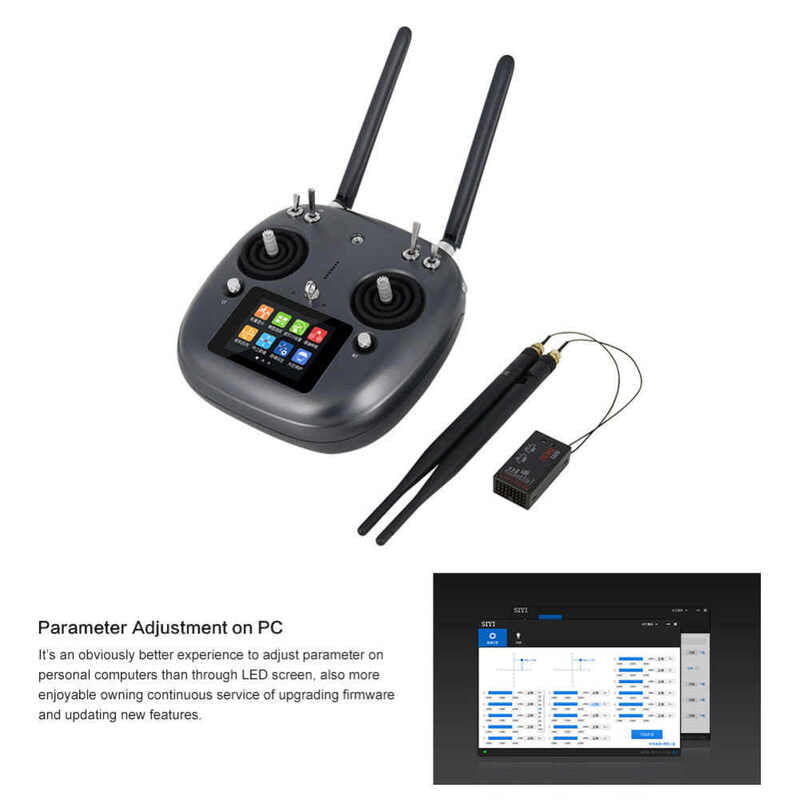

SIYI-DK32 TRANSMITTER

Features:

• Integrated HD touch screen for live video feed.




• Runs on a powerful, user-friendly Android OS.




• Combines control link and video transmission.




• Long-range communication for extended missions.




• Multiple switch and knob controls for customization.




• High-capacity internal battery for long flights.




• Built-in HDMI output for external monitors.




• Durable, ruggedized design for field use.




• Supports various flight controllers via ports.




• A professional-grade tool for serious operators.

Technical Specifications:

• Model: SIYI DK32 Transmitter

• Maximum Communication Distance: 15 km

• Operating Frequency: 2.400 – 2.483 GHz

• Channels: 26 physical channels, 16 receiver output channels

• Supported Models: Plant protection machine, Multi-rotor, Fixed wing, Glider, Helicopter

• Supported Flight Controls: TopXgun T1-A, Woozoom THEONE-A, EFY Finix200, JIYI K3A, BOYING PALADIN V2, QIAO Matrix, Cfuas C1-A, Open-source (PIX, APM), DJI N3/A3 (with expansion module)

• Receiver (Sky Terminal): Integrated DATALINK

• Signal Output: 16-channel S.Bus, 9-channel PPM, 9-channel PWM

• Interface: UART, CAN (optional)

• Dimensions (without antenna): 49 × 26 × 14 mm

• Weight (without antenna): 22 g

• Antenna Gain: 5 dBi

• Working Voltage: 5 V – 8.4 V

• Operating Temperature: -10 °C to 55 °C

Additional Details:

• Manufacturer: SIYI Technology

• Brand: SIYI

• Generic Name: RC Transmitter || Drone Controller || Remote Control || FPV Ground Station || Drone Radio || UAV Controller || All-in-One Transmitter || Professional RC || Radio Controller || Ground Control System

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: Agricultural Drones || Industrial UAVs || Long-Range Drones || Professional Drone Pilots || Aerial Surveying || Public Safety Drones || Search and Rescue || Custom Drone Builds || Filmmaking Drones || UAV Operations

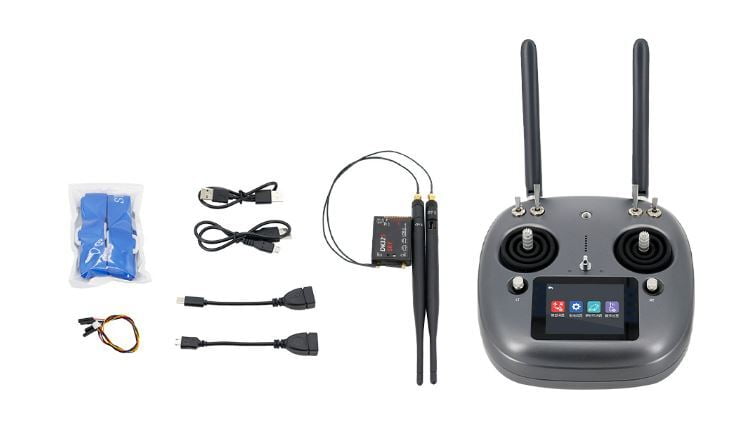

Package Details:

• Includes:

  • 1x SIYI DK32 Transmitter

  • 1x Antenna Set

  • 1x Neck Strap

  • 1x USB-C Cable

Frequently Asked Questions:

Q1. What makes the SIYI DK32 different from other drone transmitters?

Ans. The SIYI DK32 is a powerful all-in-one solution that integrates a high-definition video display and a powerful Android operating system directly into the transmitter. This eliminates the need for a separate tablet or monitor, streamlining your field setup for professional applications.

Q2. Can I use this transmitter for both controlling the drone and viewing live video?

Ans. Yes, the SIYI DK32 is specifically designed to do both. It receives the video feed wirelessly from a compatible air unit and displays it directly on its integrated screen while simultaneously providing a robust control link for piloting the drone.

Q3. What is the benefit of the Android operating system?

Ans. The Android OS provides a familiar and flexible platform that allows you to run a variety of applications, such as flight planning software, mission control apps (like Mission Planner or QGroundControl), and video streaming apps, all from a single device.
