SIYI A8 Mini Gimble Camera
Non-returnable
₹33,040.00
Out of stock

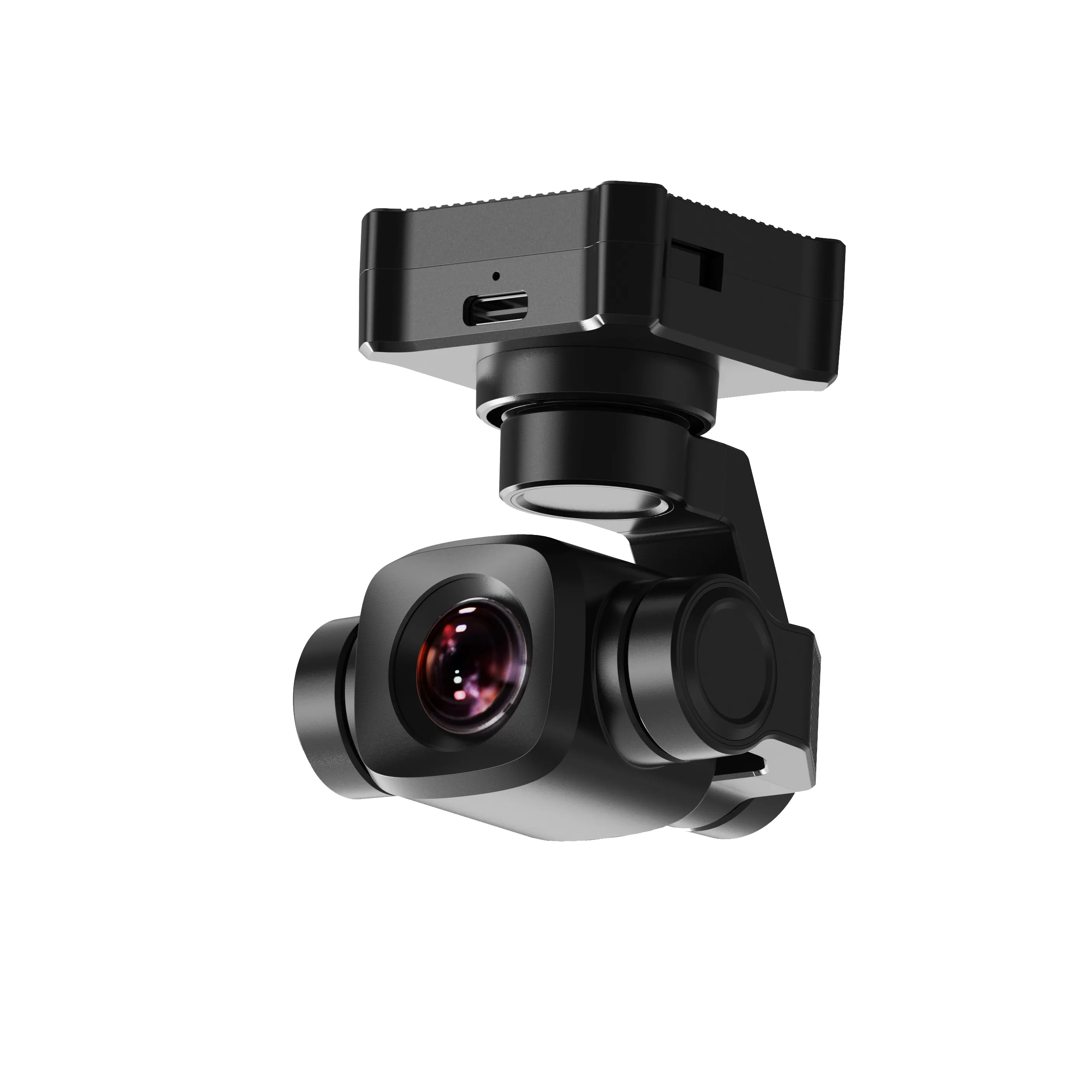

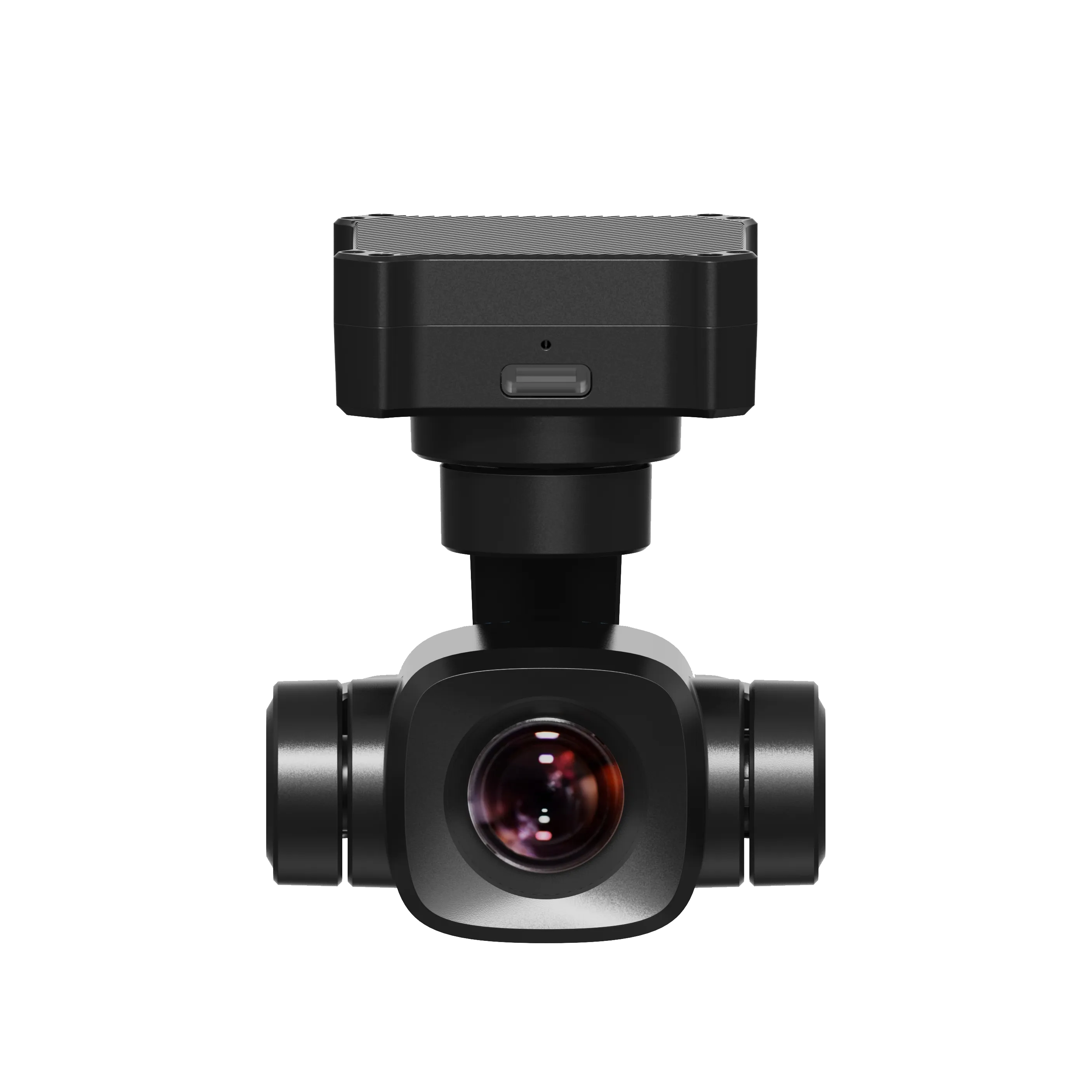

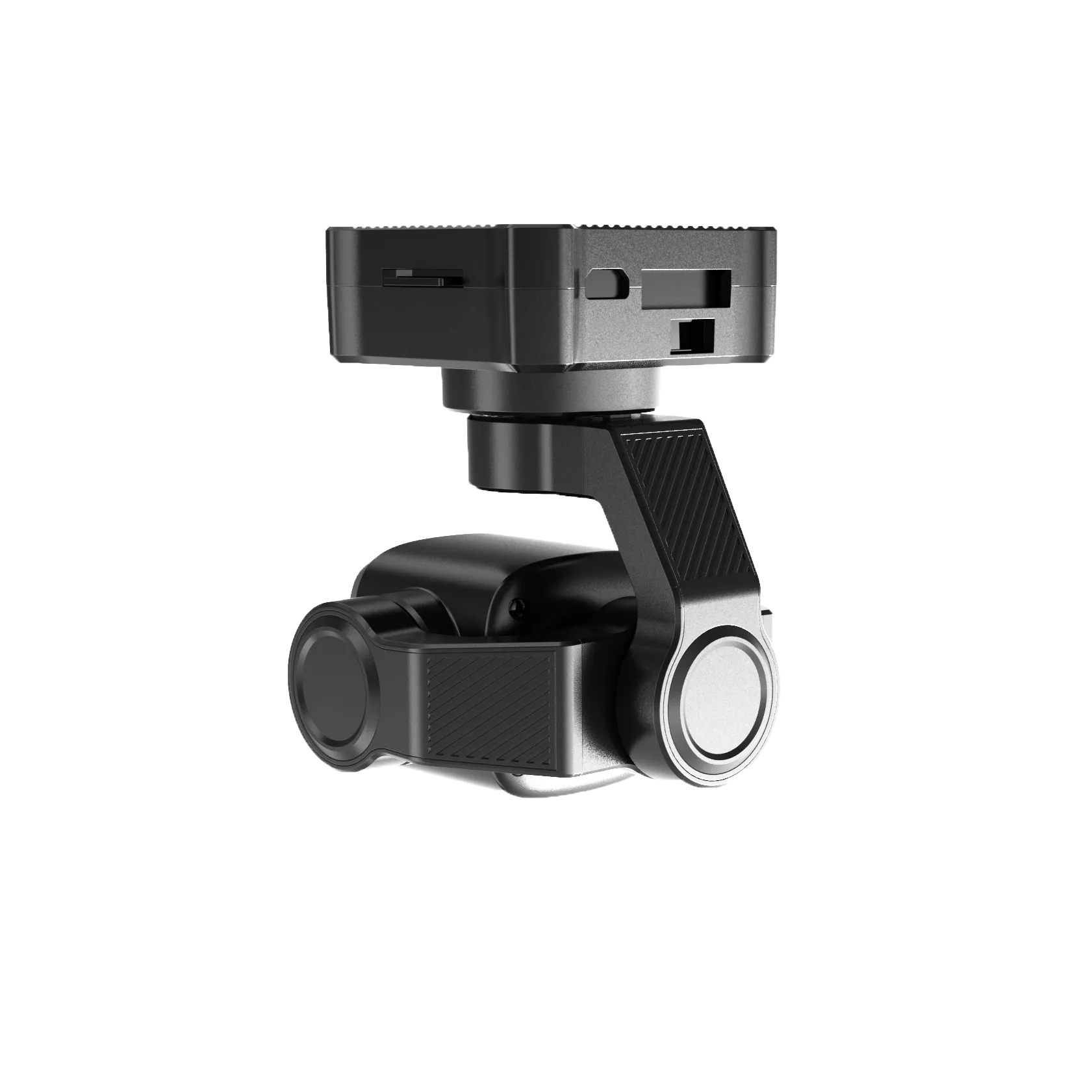

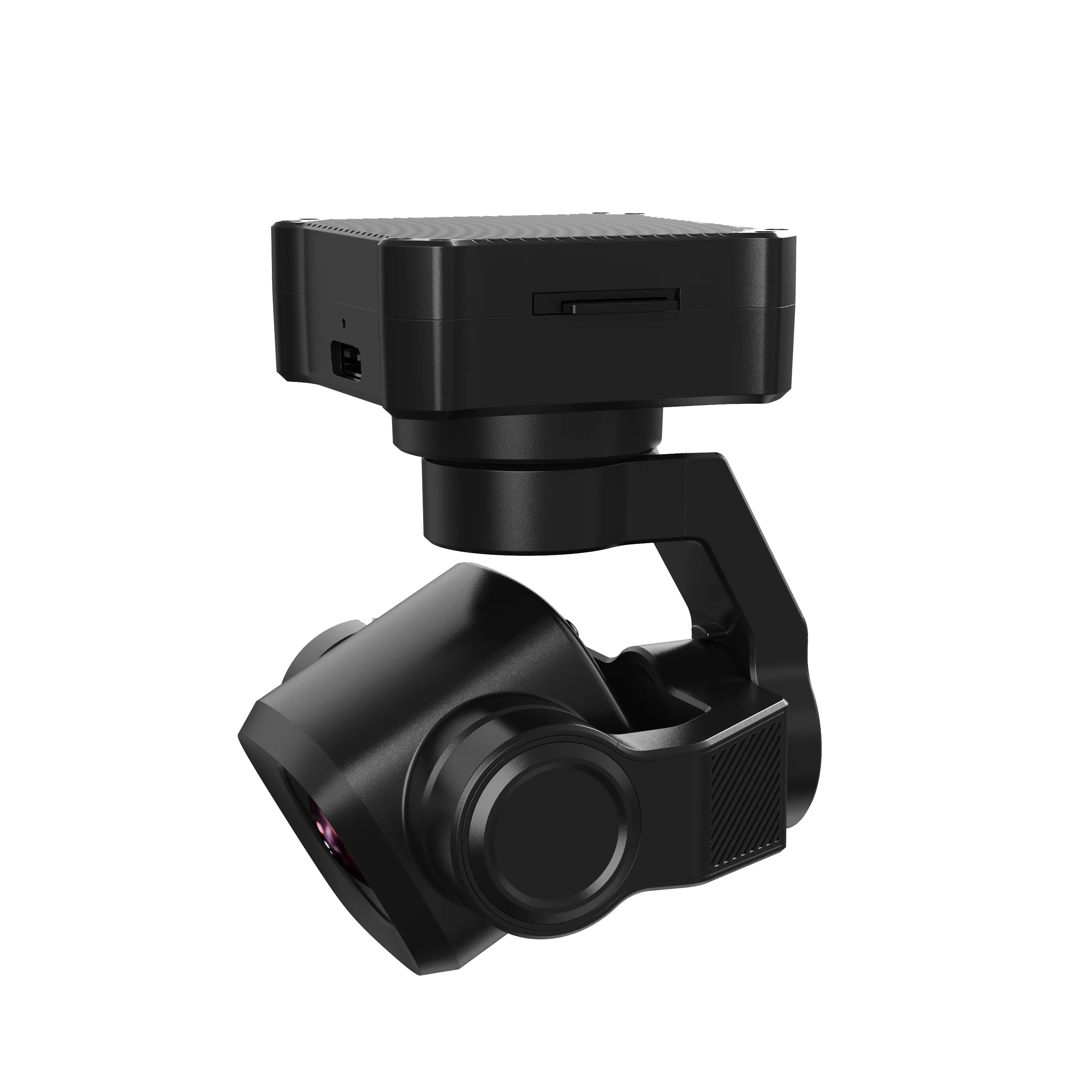

The SIYI A8 Mini is a compact (95g) 3-axis gimbal camera featuring a 4K 1/1.7-inch Sony starlight sensor and 6X digital zoom. It offers AI identification and tracking, HDR, and starlight night vision. With versatile outputs (Ethernet, HDMI, CVBS) and S.Bus/UART/UDP control, it's ideal for enterprise drones, UGVs, USVs, robotics, and FPV drones requiring high-quality, stable aerial imagery.
Product Details
Features:
- 4K Ultra HD Video & Photography
- 8MP 1/1.7-Inch Sony CMOS
- 320-Degree Yaw Axis Rotation
- 6X Digital Zoom
- Nose Mode
- Upside Down Mode
- Compatible with ArduPilot & PX4 (Mavlink)
- Ethernet, HDMI, CVBS Video Output
- High Accuracy & High Collaboration Control AlgorithmMultiple control inputs: S.Bus, UART, Ethernet UDP.
Technical Specifications:
- Video Output Port: Ethernet, CVBS, Micro-HDMI
- Control Signal Input Port: S.Bus, UART, Ethernet UDP/TCP
- Control Signal Output Port: S.Bus
- High-Accuracy 3-Axis Stabilization: Yaw, Pitch, Roll
- Working Voltage: 11 ~ 25.2 V (3S to 6S) *Early manufacturing lots before June of 2023 may not support 25.2V, please carefully confirm
- Power Consumption: Average: 5W, Summit: 12W
- Waterproof Level: IP4X
- Working Temperature: -10° ~ 50°C
- Dimension: 55*55*70 mm
- Weight: 95 g
- Angular Vibration Range: ± 0.01°
- Controllable Pitch Angle: -135° ~ +45°
- Controllable Yaw Angle: -160° ~ +160°
- Roll Angle: -30° ~ +30°
- Lens: Fixed Focal Length, 6X Digital Zoom
- Equivalent Focal Length: 21 mm
- Image Sensor: Sony 1/1.7-inch, 8 MP effective resolution
- Aperture: F2.8
- FOV: Diagonal: 93°, Horizontal: 81°
- Video Recording Resolution: 4K (4096 × 2160) @ 25 fps, 2K (2560 × 1440) @ 25 fps, 1080p (1920 × 1080) @ 25 fps, 720p (1280 × 720) @ 25 fps
- Video Storage Bitrate (H265 Codec): 4K / 2K: 20 Mbps, 1080p / 720p: 15 Mbps
- File Storage Format: FAT32, ExFAT
- Image Format: JPG
- Video Format: MP4
- Supported MicroSD Cards: MicroSD Class10, max 256GB
- Still Photography Mode: Single
- White Balance: Auto
Additional Details:
- Manufacturer: SIYI Technology
- Brand: SIYI
- Generic Name: Drone Gimbal Camera || UAV Camera || Aerial Photography Camera || FPV Camera || 4K Drone Camera || AI Tracking Camera || Starlight Camera || Miniature Gimbal || Drone Payload || Robotic Camera
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: Aerial Cinematography || Real Estate Photography || Surveying and Mapping || Sports and Event Photography || Enterprise Drones || UGV (Unmanned Ground Vehicles) || USV (Unmanned Surface Vehicles) || Robotics || RC Hobby Planes || FPV Drones (especially cinematic/inspection builds) || Low-Light Surveillance.
Package Details:
Includes:
1 x SIYI A8 Mini Ultra HD 6X Digital Zoom Gimbal Camera
Frequently Asked Questions:
Q1. What is the main resolution and sensor type of the SIYI A8 Mini Gimbal Camera?
Ans. The SIYI A8 Mini captures stunning 4K Ultra HD video at 25fps and 8MP photos, utilizing a high-quality 1/1.7-inch Sony starlight night vision sensor for excellent low-light performance.
Q2. Does the SIYI A8 Mini support intelligent tracking capabilities?
Ans. Yes, it comes with powerful AI identification and tracking functions based on a neural network processing unit, allowing it to autonomously identify and follow moving objects, keeping them centered in the frame.
Q3. What kind of video output options does the SIYI A8 Mini provide for integration?
Ans. The A8 Mini offers versatile connectivity with various video output ports, including Ethernet, HDMI (Micro-HDMI), and CVBS (AV), making it compatible with a wide range of SIYI links and third-party video transmission systems, including analog FPV.
